Danby
Upright Freezer

Model # DUF1656WEY Official Danby freezer

Here are the diagrams and repair parts for Official Danby DUF1656WEY freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Drier 3-34960-001
#12

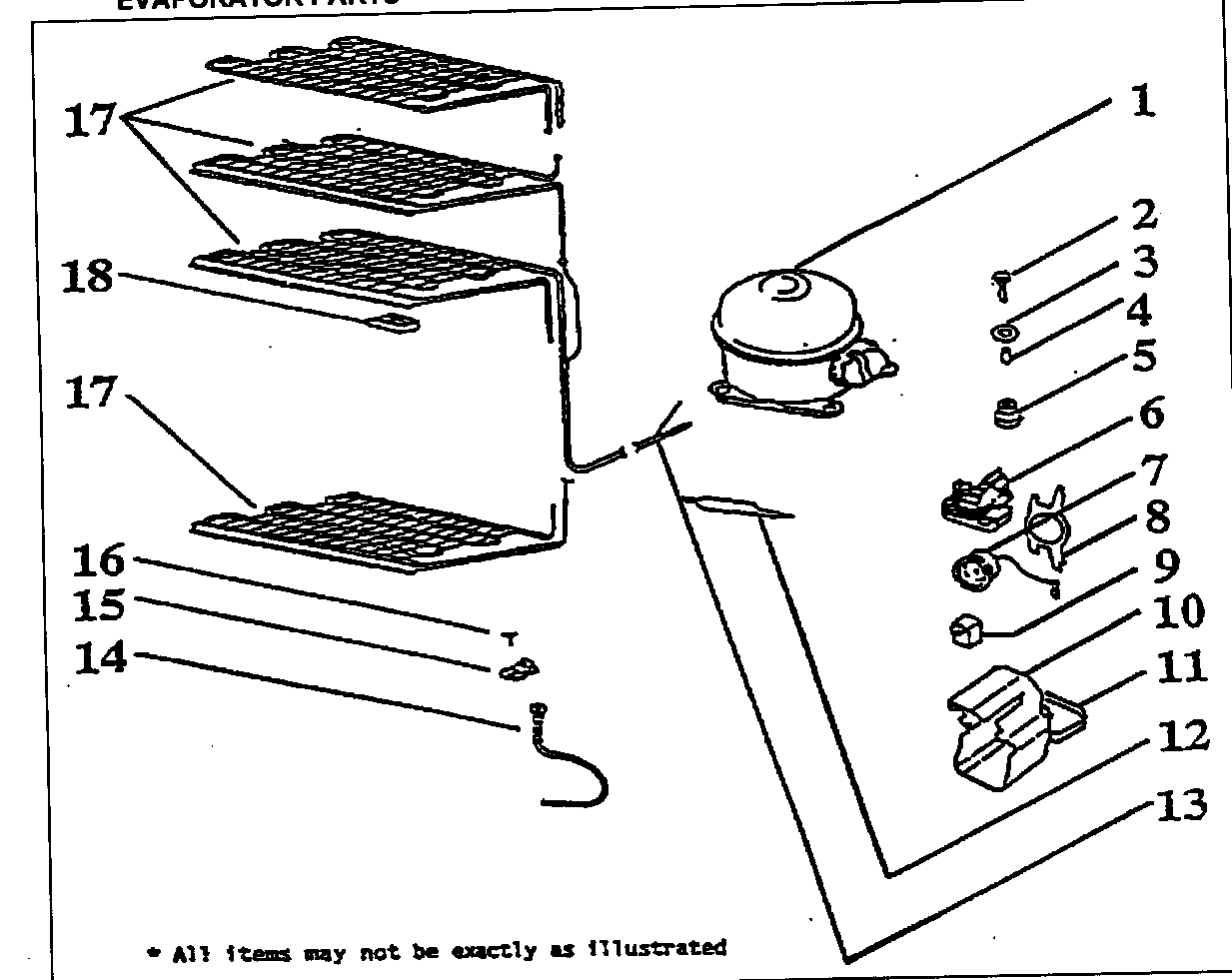

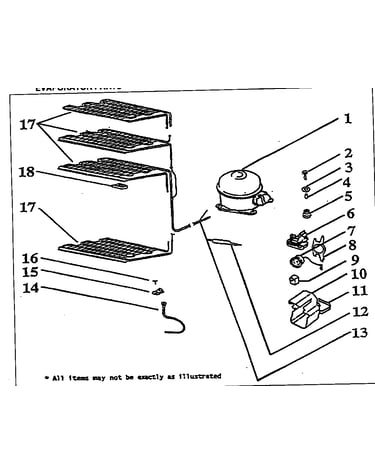

Evaporator parts diagram

Drier

Part #3-34960-001

The manufacturer no longer makes this part, and there's no substitute part

Light Bulb 1-24397-001
#3

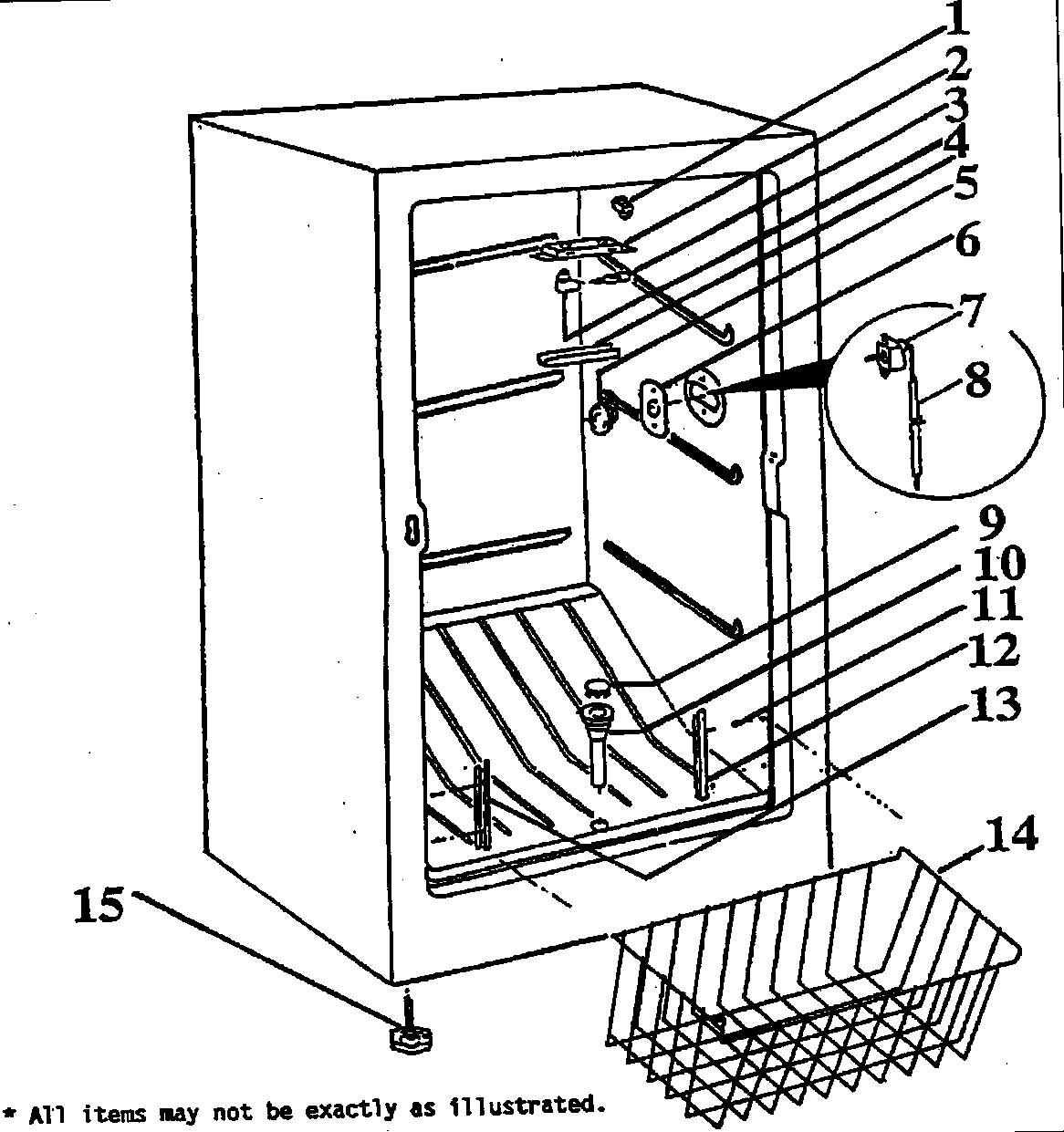

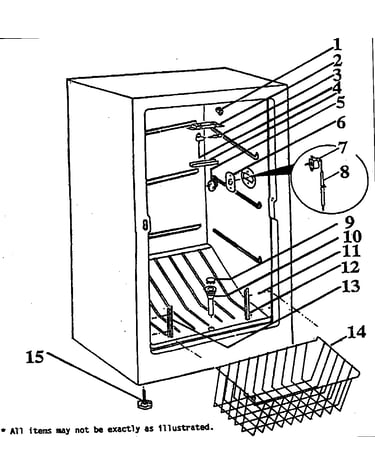

Cabinet parts diagram

Light bulb

Part #1-24397-001

The manufacturer no longer makes this part, and there's no substitute part

Washer 1-20152
Washer

Part #1-20152

The manufacturer no longer makes this part, and there's no substitute part

Brckt-light Mount 3-80475-102
#2

Cabinet parts diagram

Brckt-light mount

Part #3-80475-102

The manufacturer no longer makes this part, and there's no substitute part

Leveller Legs 90028-001
#15

Cabinet parts diagram

Leveller legs

Part #90028-001

The manufacturer no longer makes this part, and there's no substitute part

Compr Mount Grommet 1-32965
#5

Evaporator parts diagram

Compr mount grommet

Part #1-32965

The manufacturer no longer makes this part, and there's no substitute part

Door Shell 90017-161
#1

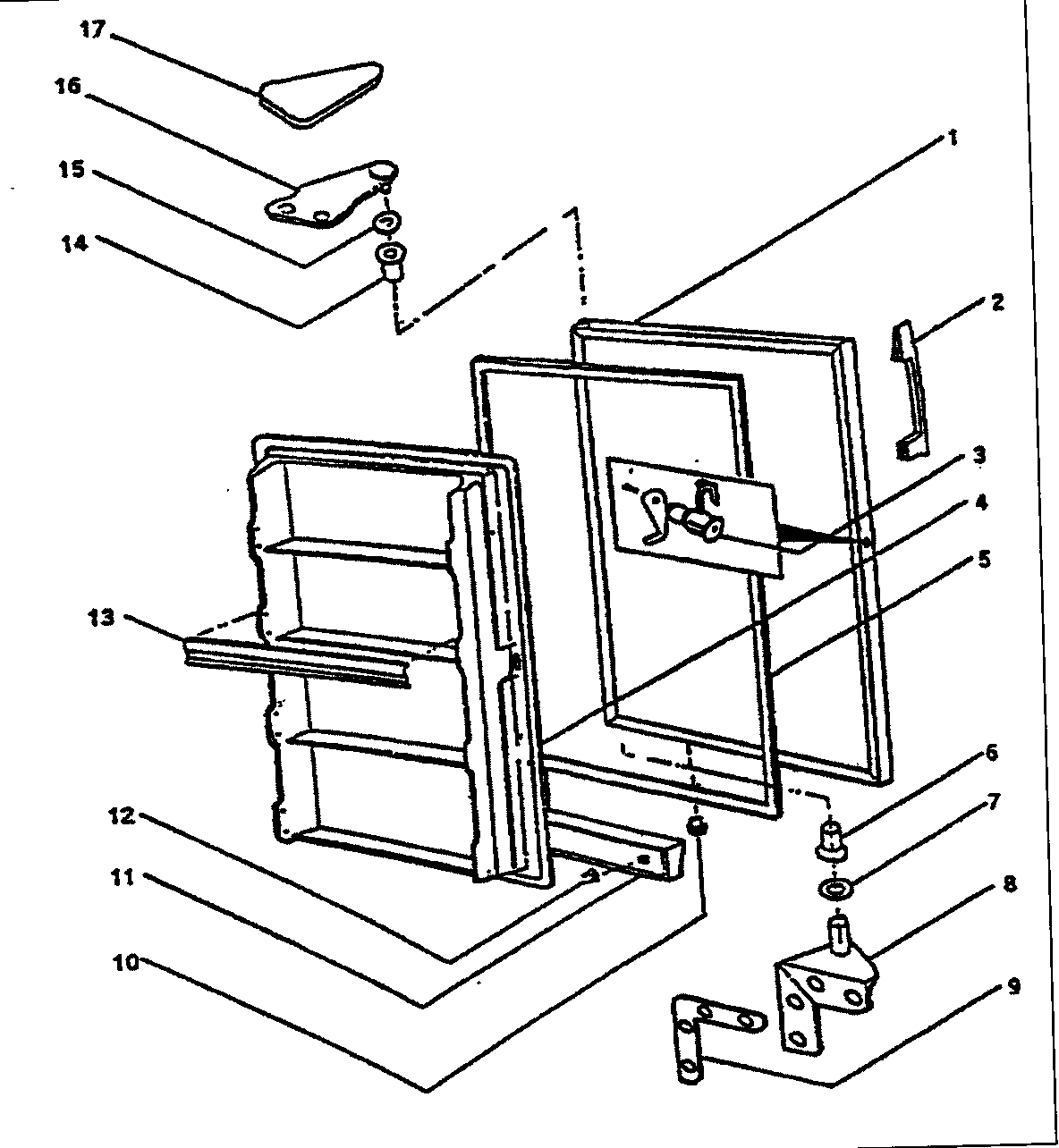

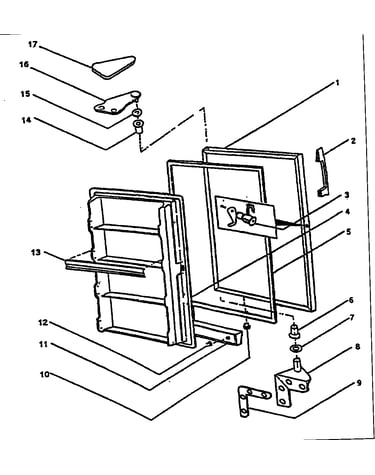

Door parts diagram

Door shell

Part #90017-161

The manufacturer no longer makes this part, and there's no substitute part

Compres.mounting Pan 90027-001
#1A

Evaporator parts diagram

Compres.mounting pan

Part #90027-001

The manufacturer no longer makes this part, and there's no substitute part

Compr Grommet Sleeve 1-80682-101
#4

Evaporator parts diagram

Compr grommet sleeve

Part #1-80682-101

The manufacturer no longer makes this part, and there's no substitute part

Clamp-cntrl Bulb 1-80308-101
#18

Evaporator parts diagram

Clamp-cntrl bulb

Part #1-80308-101

The manufacturer no longer makes this part, and there's no substitute part
