Kenmore
Countertop Microwave

Model # 5658844881 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 5658844881 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

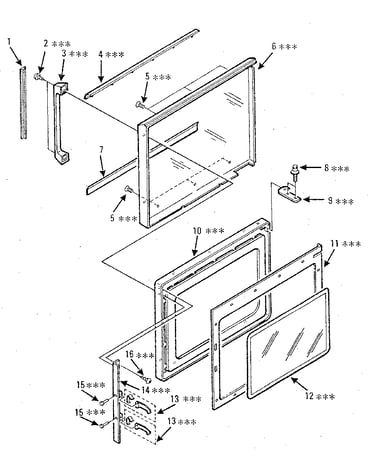

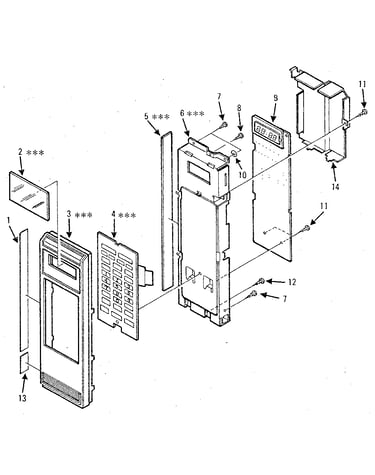

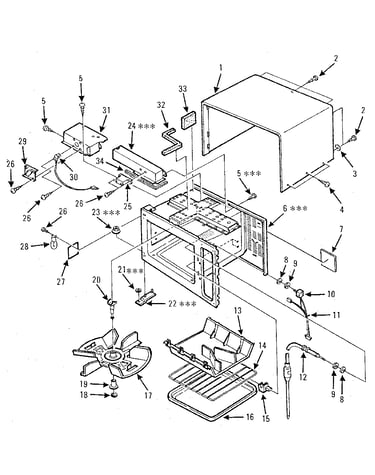

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 196 parts  |
Microwave Magnetron Thermostat 14531
#7

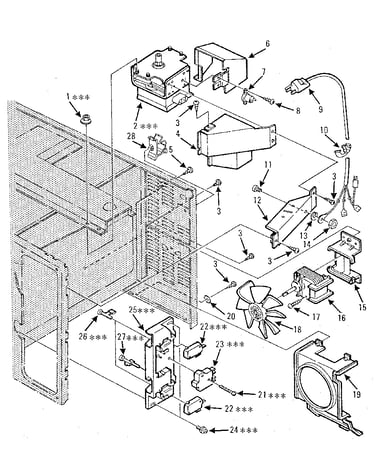

Switches and microwave diagram

Microwave magnetron thermostat

Part #14531

The manufacturer no longer makes this part, and there's no substitute part

Microwave Fuse, 15-amp 11255
#19

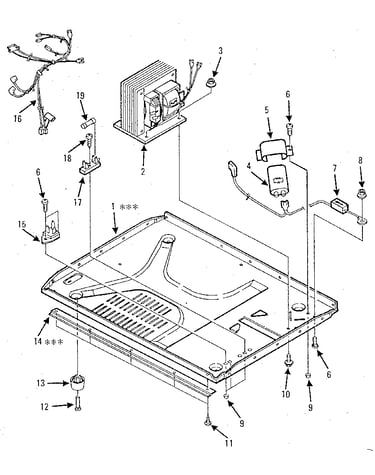

Microwave diagram

Microwave fuse, 15-amp

Part #11255

The manufacturer no longer makes this part, and there's no substitute part

Microwave Fuse Holder 13553
#17

Microwave diagram

Microwave fuse holder

Part #13553

The manufacturer no longer makes this part, and there's no substitute part

Intg Circuit 11283
#5C

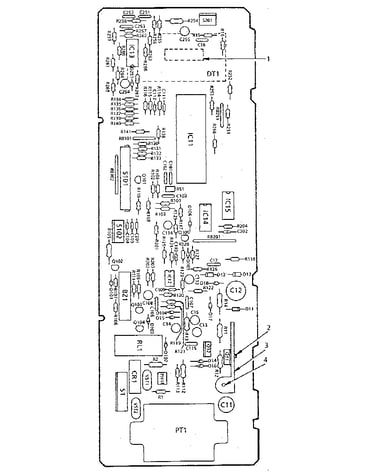

Power and control circuit board (part no. 14817) diagram

Intg circuit

Part #11283

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 12631
Capacitor

Part #12631

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 13872
#8A

Power and control circuit board (part no. 14817) diagram

Capacitor

Part #13872

The manufacturer no longer makes this part, and there's no substitute part

Intg Circuit 13041
#5A

Power and control circuit board (part no. 14817) diagram

Intg circuit

Part #13041

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 13640
#8ZA

Power and control circuit board (part no. 14817) diagram

Capacitor

Part #13640

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 12133
#8U

Power and control circuit board (part no. 14817) diagram

Capacitor

Part #12133

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch 11243
#22

Switches and microwave diagram

Micro-switch

Part #11243

The manufacturer no longer makes this part, and there's no substitute part
