Lawn Edger

Model # 536796515 Official Craftsman 9" 2.5-hp edger

Here are the diagrams and repair parts for Official Craftsman 536796515 9" 2.5-hp edger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
V-belt 32668
#49

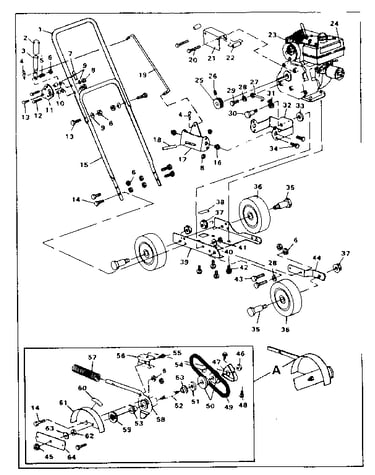

Replacement parts diagram

V-belt

Part #32668

Replaced by #32668MA

?
Manufacturer substitution
This part replaces 32668. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$24.96 |
19% OFF Phone Price : $30.96
In Stock
Bearing S-a 51708
#16

Replacement parts diagram

Bearing s-a

Part #51708

Replaced by #338607MA

?
Manufacturer substitution
This part replaces 51708. Substitute parts can look different from the original.
$7.74
In Stock
Washer 8728
#9

Replacement parts diagram

Washer

Part #8728

Replaced by #783000MA

?
Manufacturer substitution
This part replaces 8728. Substitute parts can look different from the original.
This item is not returnable
$9.34
In Stock
Washer 845
#40

Replacement parts diagram

Washer

Part #845

Replaced by #17X168ZMA

?
Manufacturer substitution
This part replaces 845. Substitute parts can look different from the original.
$11.26
In Stock
Spring 25644
#5

Replacement parts diagram

Spring

Part #25644

Replaced by #25644MA

?
Manufacturer substitution
This part replaces 25644. Substitute parts can look different from the original.
$7.60
In Stock
Lock Nut 274654
#46

Replacement parts diagram

Lock nut

Part #274654

Replaced by #7090266YP

?
Manufacturer substitution
This part replaces 274654. Substitute parts can look different from the original.
This item is not returnable
$7.37
In Stock
Shaft 48697
#52

Replacement parts diagram

Shaft

Part #48697

Replaced by #48697MA

?
Manufacturer substitution
This part replaces 48697. Substitute parts can look different from the original.
$85.99 |
7% OFF Phone Price : $91.99
In Stock
Wheel Axle 23763
#35

Replacement parts diagram

Wheel axle

Part #23763

Replaced by #310716MA

?
Manufacturer substitution
This part replaces 23763. Substitute parts can look different from the original.
$8.69 |
10% OFF Phone Price : $9.69
In Stock
Washer Blade 22265
#63

Replacement parts diagram

Washer blade

Part #22265

Replaced by #22265MA

?
Manufacturer substitution
This part replaces 22265. Substitute parts can look different from the original.
$7.69 |
12% OFF Phone Price : $8.69
In Stock
Decal 70330
#60

Replacement parts diagram

Decal

Part #70330

Replaced by #333874MA

?
Manufacturer substitution
This part replaces 70330. Substitute parts can look different from the original.
$17.31
In Stock
