Model # 247297750 Official Craftsman 5-hp chain drive tiller

Here are the diagrams and repair parts for Official Craftsman 247297750 5-hp chain drive tiller, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

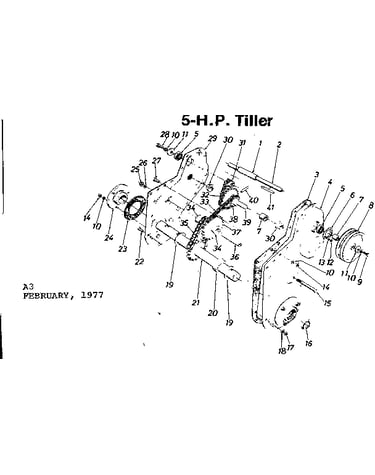

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Toro Lawn & Garden Equipment Carriage Bolt (replaces 753-08024, 910-0451) 710-0451
#38

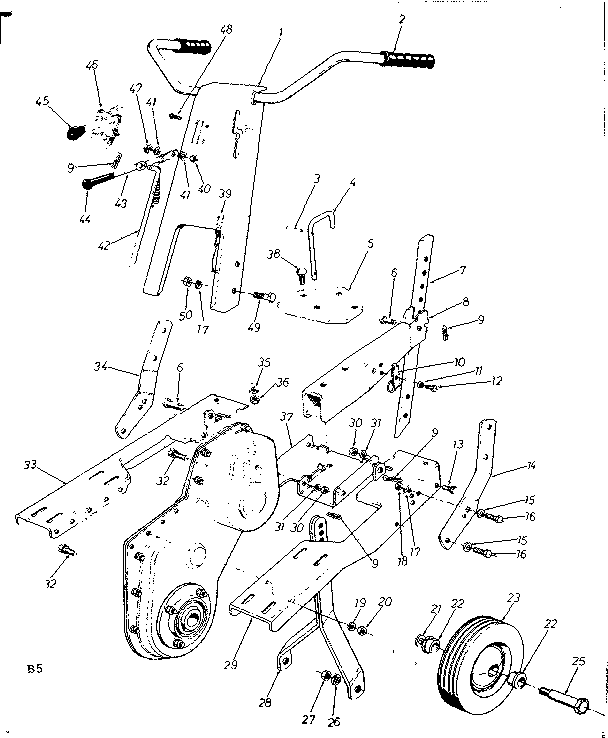

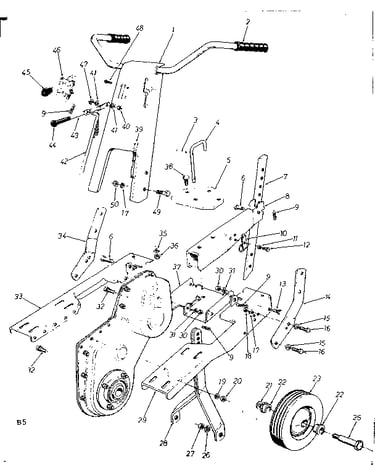

Handle assembly diagram

Toro lawn & garden equipment carriage bolt (replaces 753-08024, 910-0451)

Part #710-0451

BEST SELLER
This item is not returnable
$5.42 |
16% OFF Phone Price : $6.42
In Stock
Lawn Tractor Screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599) 710-0599
Lawn tractor screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599)

Part #710-0599

BEST SELLER
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Lock Washer 736-0119
Lock washer

Part #736-0119

Replaced by #936-0119

?
Manufacturer substitution
This part replaces 736-0119. Substitute parts can look different from the original.
This item is not returnable
$6.05 |
14% OFF Phone Price : $7.05
In Stock
Sears Snowblower Flat Washer (replaces 936-0159) 736-0159
#41

Handle assembly diagram

Sears snowblower flat washer (replaces 936-0159)

Part #736-0159

This item is not returnable
$5.73 |
15% OFF Phone Price : $6.73
In Stock
Lawn & Garden Equipment Cotter Pin (replaces 914-0145) 714-0145
Lawn & garden equipment cotter pin (replaces 914-0145)

Part #714-0145

This item is not returnable
$6.97
In Stock
Unknown Brand Name #689 Lawn & Garden Equipment Nut 712-0241
Unknown brand name #689 lawn & garden equipment nut

Part #712-0241

This item is not returnable
$7.63
In Stock
Lock Nut 712-0195
#16

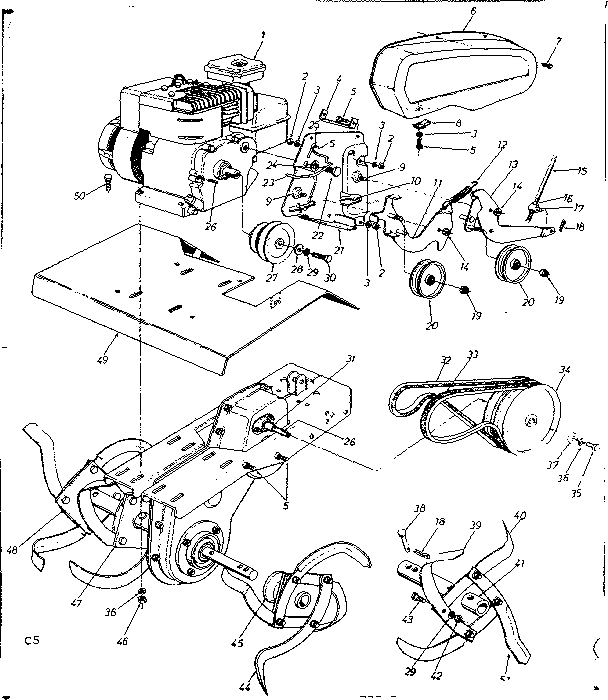

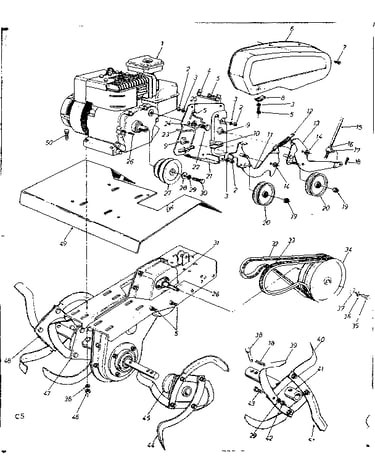

Engine diagram

Lock nut

Part #712-0195

Replaced by #712-0711

?
Manufacturer substitution
This part replaces 712-0195. Substitute parts can look different from the original.
This item is not returnable
$6.17
In Stock
Screw 710-0252
#5

Engine diagram

Screw

Part #710-0252

Replaced by #710-3015

?
Manufacturer substitution
This part replaces 710-0252. Substitute parts can look different from the original.
This item is not returnable
$5.12 |
16% OFF Phone Price : $6.12
In Stock
Toro Lawn Tractor Screw 710-0643
Toro lawn tractor screw

Part #710-0643

This item is not returnable
$10.56 |
16% OFF Phone Price : $12.56
In Stock
Yard Machines Lawn & Garden Equipment Washer (replaces 936-0105) 736-0105
#15

Handle assembly diagram

Yard machines lawn & garden equipment washer (replaces 936-0105)

Part #736-0105

This item is not returnable
$6.29
In Stock
