Model # KPWB100 Official KitchenAid waffle maker

Here are the diagrams and repair parts for Official KitchenAid KPWB100 waffle maker, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
KPWB100 Waffle Maker
Foot 8211501
#10

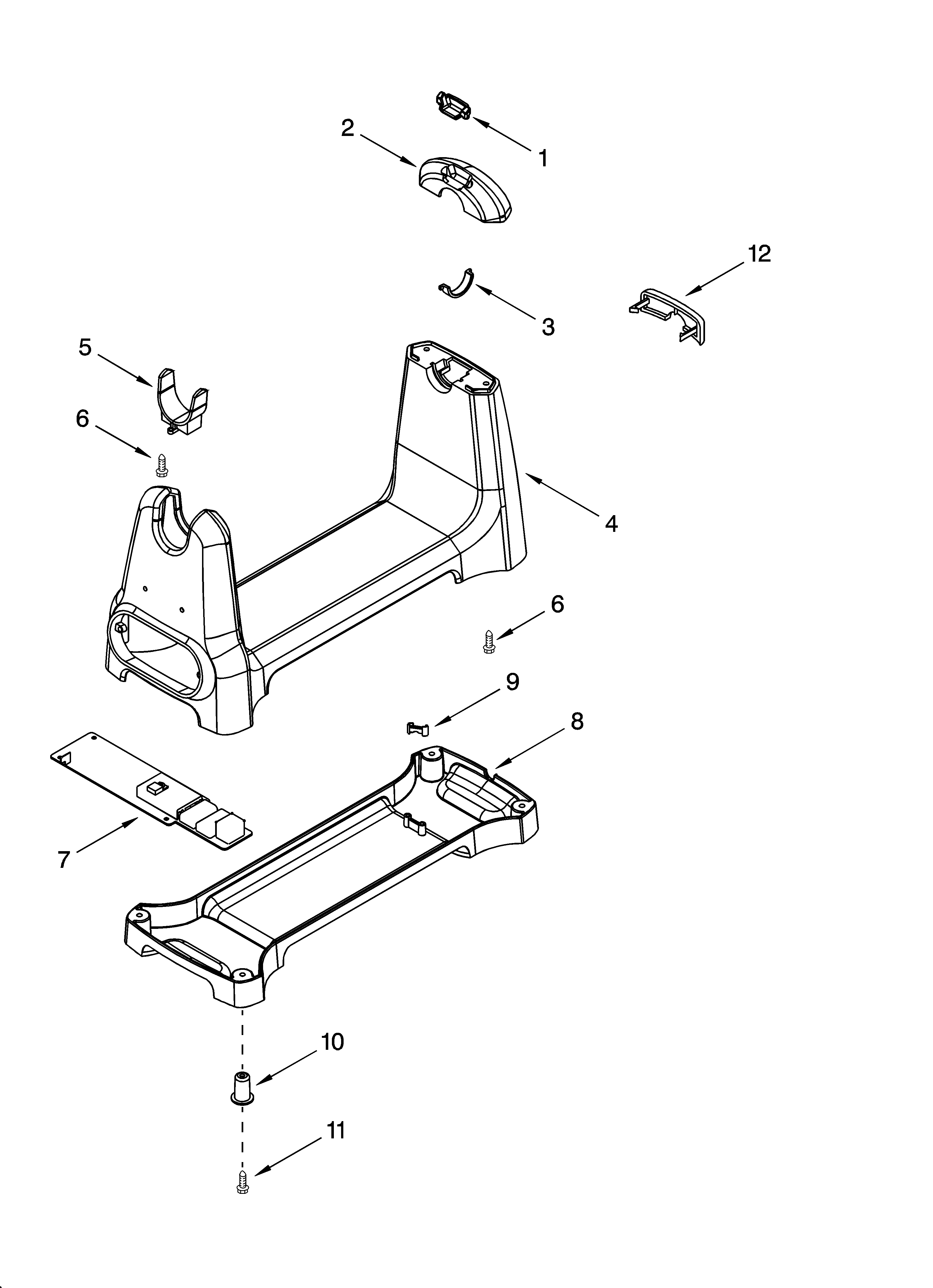

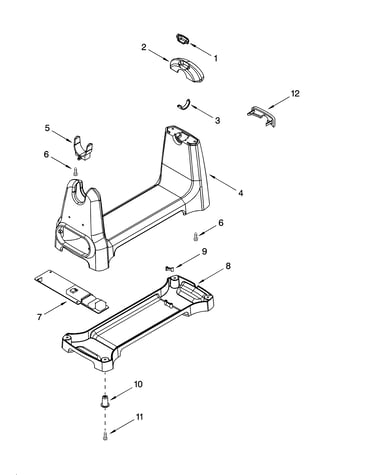

Cradle parts diagram

Foot

Part #8211501

In Stock
Clamp 8211498
#1

Cradle parts diagram

Clamp

Part #8211498

In Stock
Bezel 8211488
#6

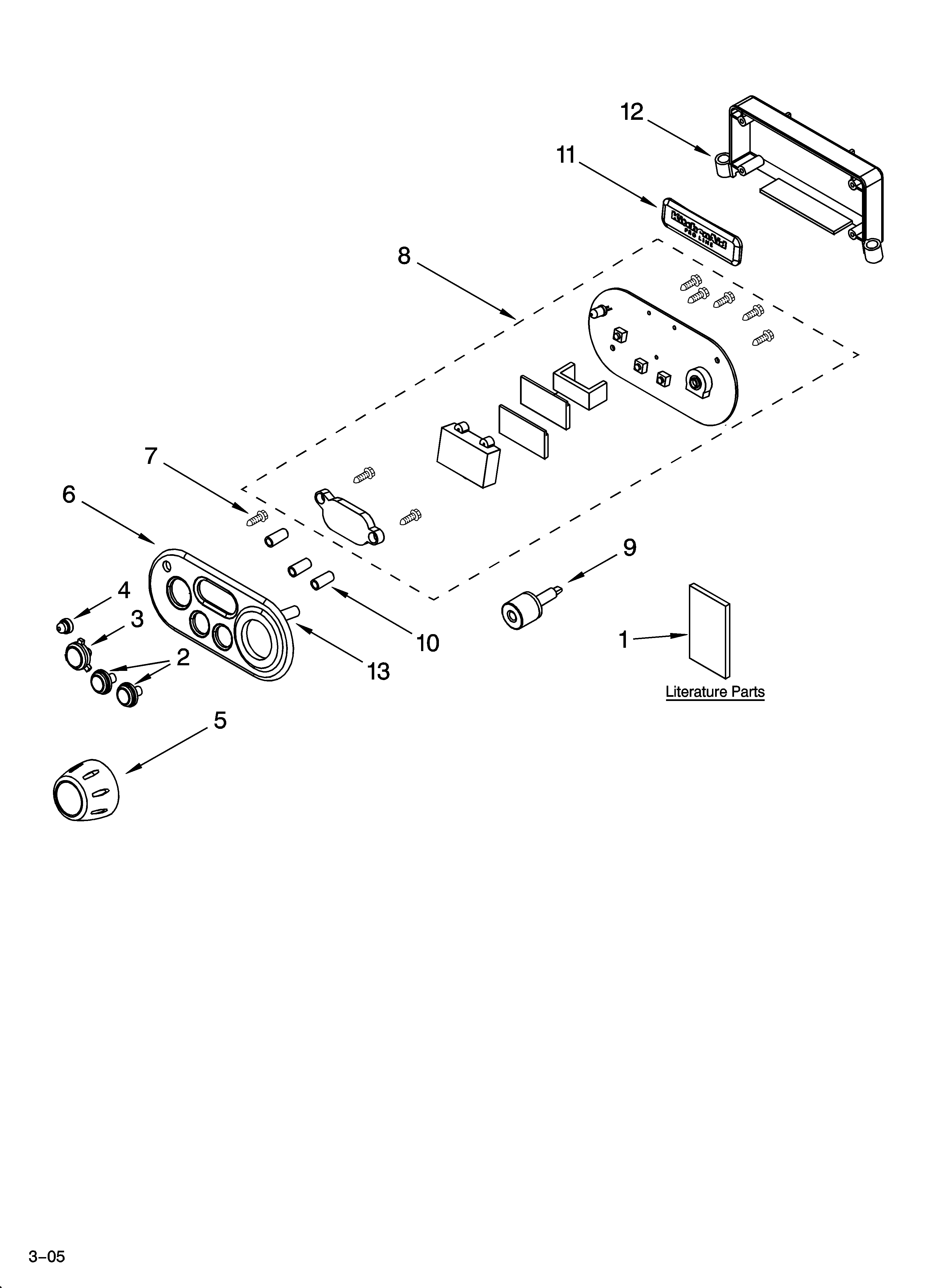

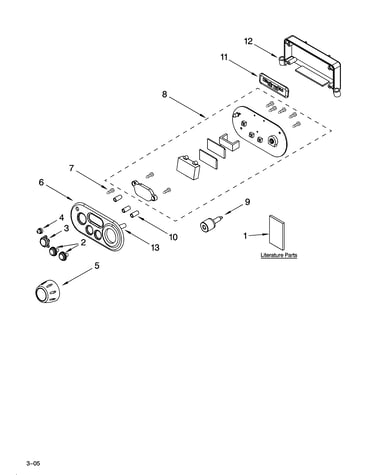

Control panel parts diagram

Bezel

Part #8211488

In Stock
Cover 8211508
#10

Control panel parts diagram

Cover

Part #8211508

In Stock
Button 8211487
#3

Control panel parts diagram

Button

Part #8211487

In Stock
Bracket 8211494
#5

Cradle parts diagram

Bracket

Part #8211494

In Stock
Cover 8211505
#8

Cradle parts diagram

Cover

Part #8211505

Replaced by #W10240856

?
Manufacturer substitution
This part replaces 8211505. Substitute parts can look different from the original.
In Stock
Holder 8211493
#12

Control panel parts diagram

Holder

Part #8211493

The manufacturer no longer makes this part, and there's no substitute part

Knob 8211485
#5

Control panel parts diagram

Knob

Part #8211485

The manufacturer no longer makes this part, and there's no substitute part

Pcb 8211491
#8

Control panel parts diagram

Pcb

Part #8211491

The manufacturer no longer makes this part, and there's no substitute part
