Magic Chef
Electric Wall Oven

Model # 9522XUB Official Magic Chef electric wall oven

Here are the diagrams and repair parts for Official Magic Chef 9522XUB electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

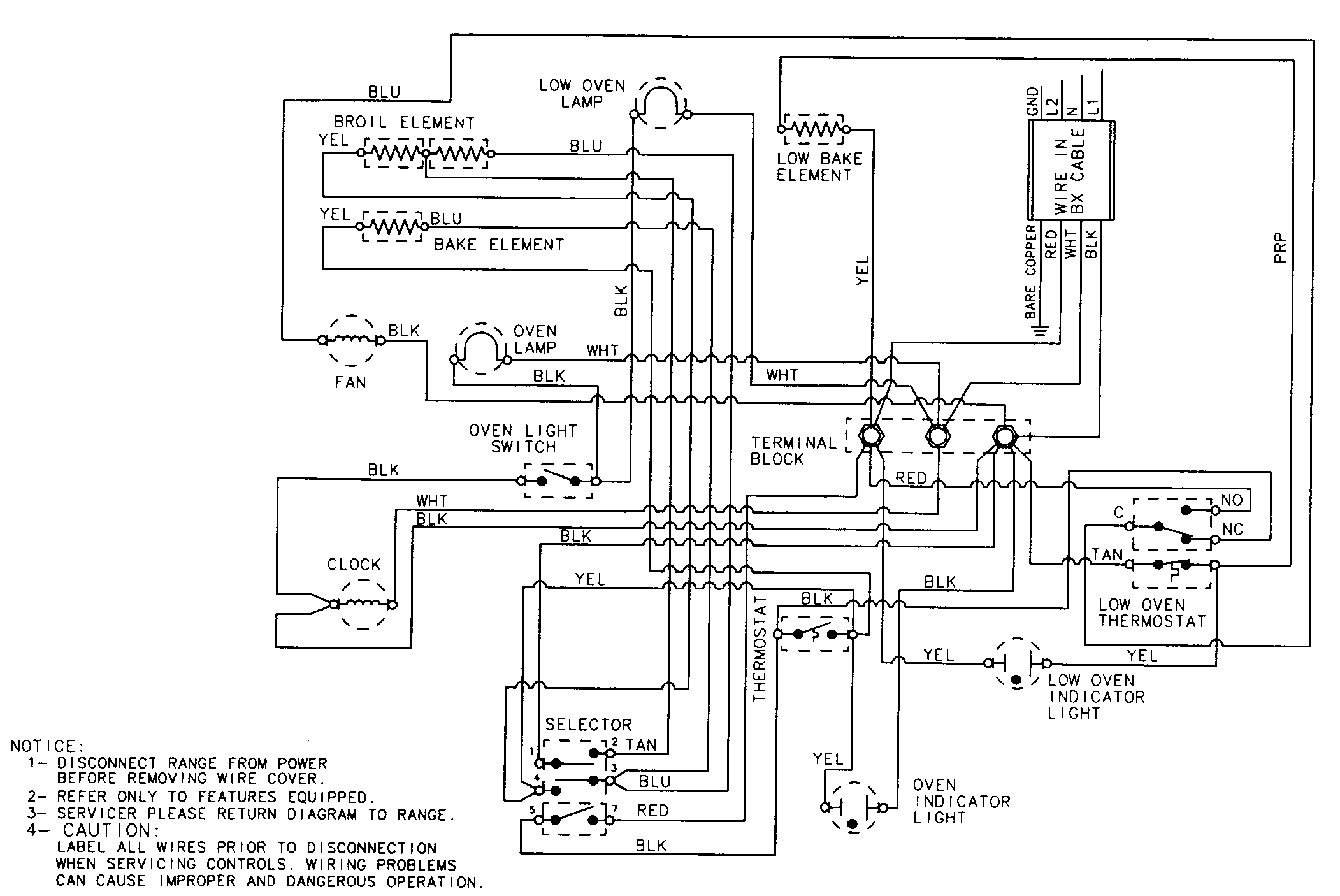

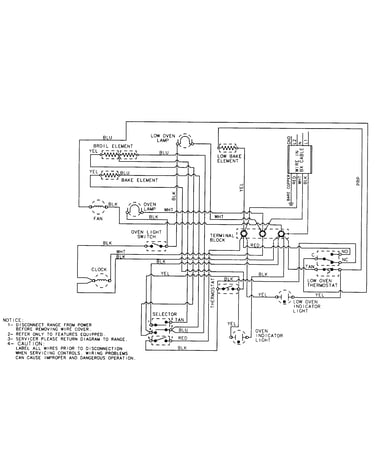

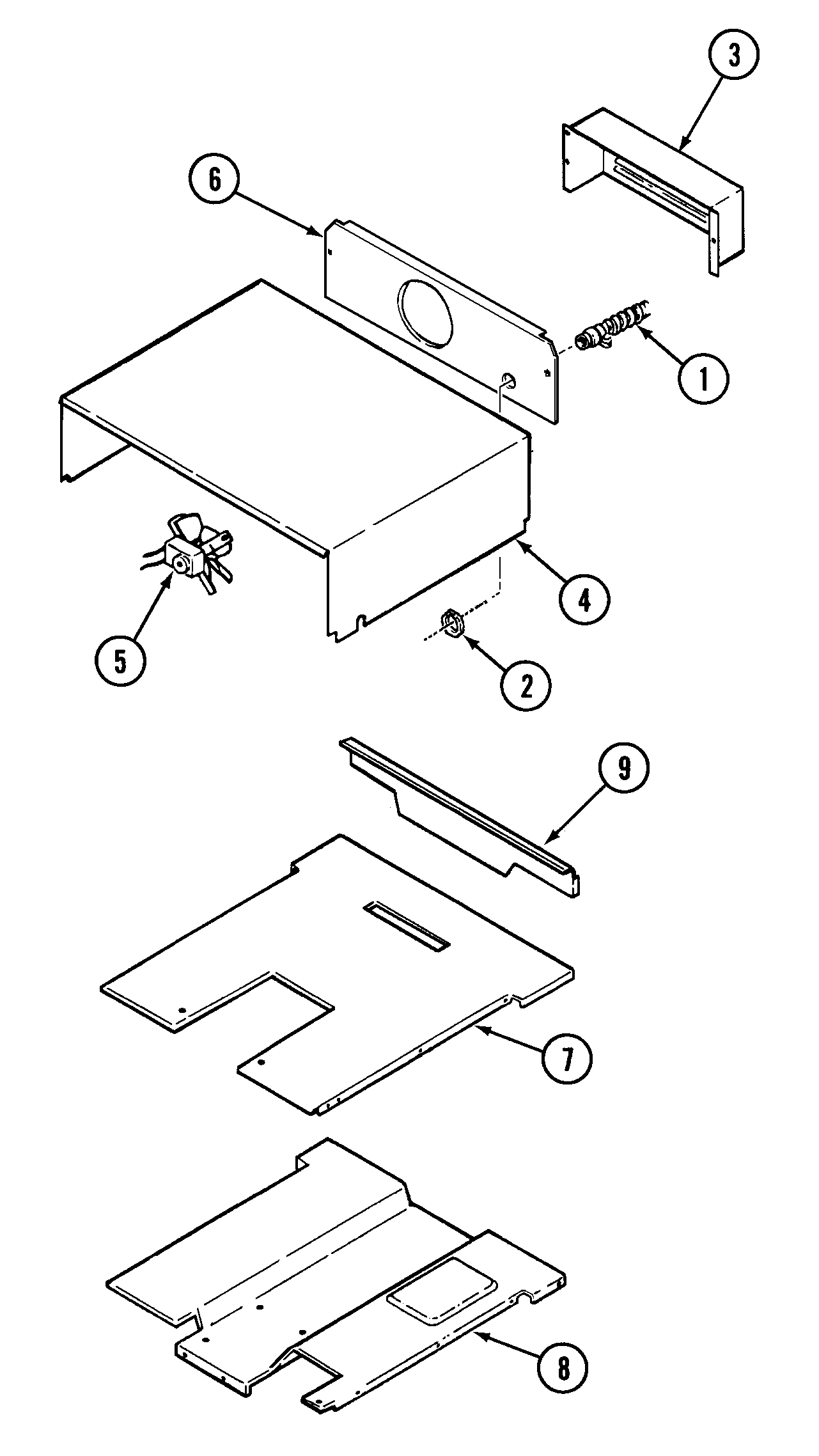

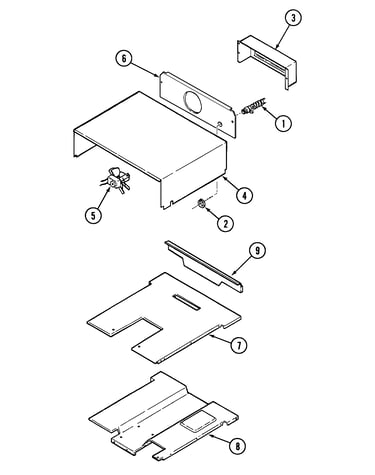

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Bake Element 74004073
#3

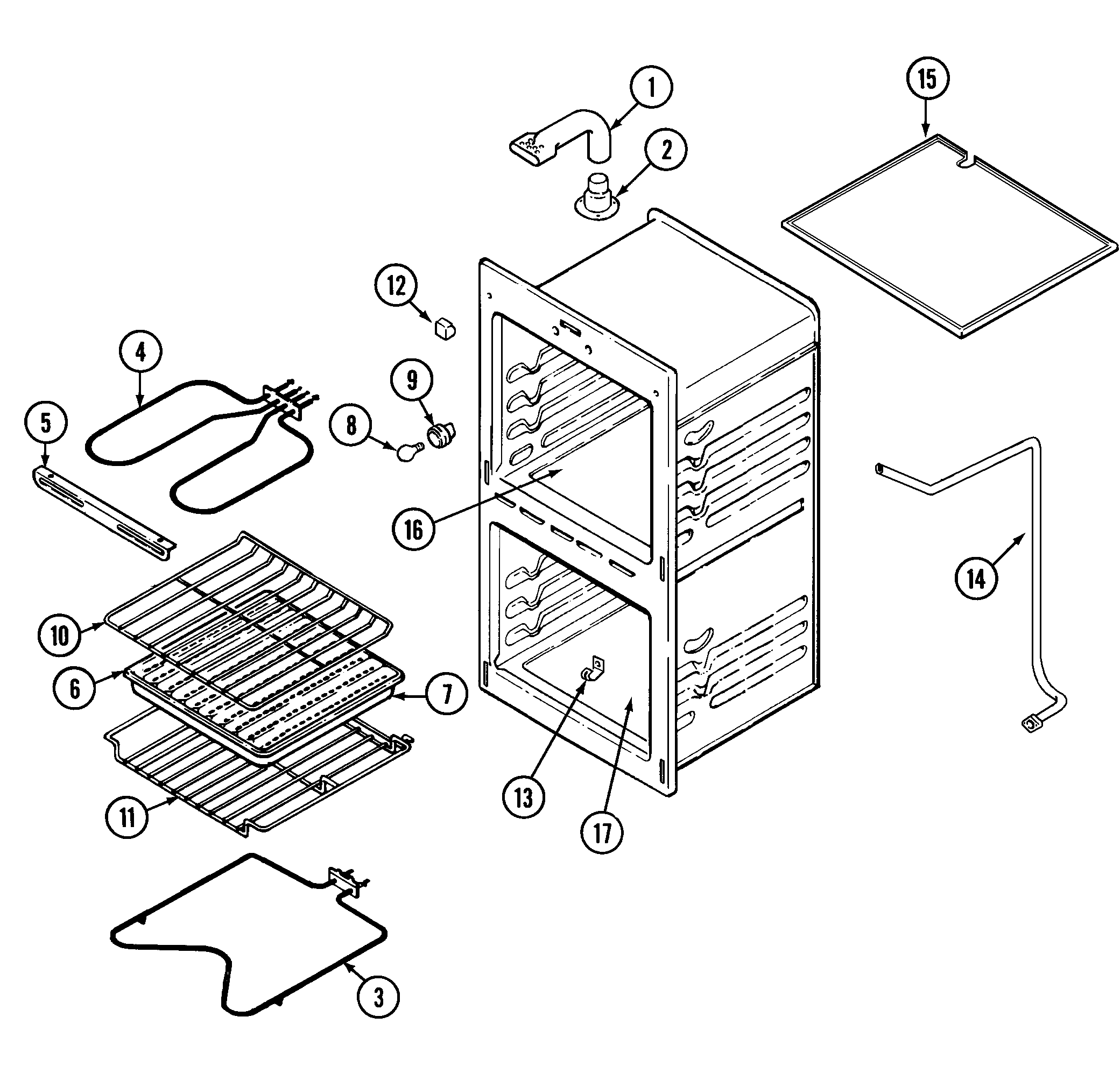

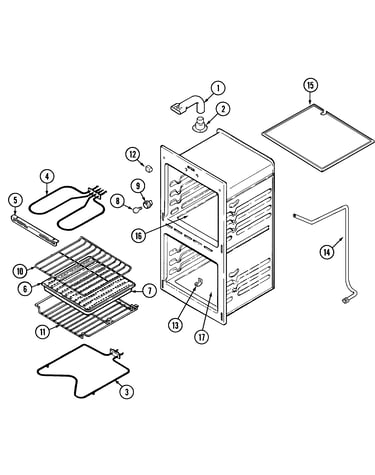

Oven diagram

Bake element

Part #74004073

Replaced by #WPY04000066

?
Manufacturer substitution
This part replaces 74004073. Substitute parts can look different from the original.
BEST SELLER
$57.02 |
10% OFF Phone Price : $63.02
In Stock
Bake Element 7406P075-60
#3A

Oven diagram

Bake element

Part #7406P075-60

Replaced by #WPY04000066

?
Manufacturer substitution
This part replaces 7406P075-60. Substitute parts can look different from the original.
BEST SELLER
$57.02 |
10% OFF Phone Price : $63.02
In Stock
Screw 74001530
#13B

Oven diagram

Screw

Part #74001530

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74001530. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Bracket Screw 7101P040-60
Bracket screw

Part #7101P040-60

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 7101P040-60. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Crosley Range Oven Door Hinge (replaces 7106p059-60, 74001882) 74001856
#6

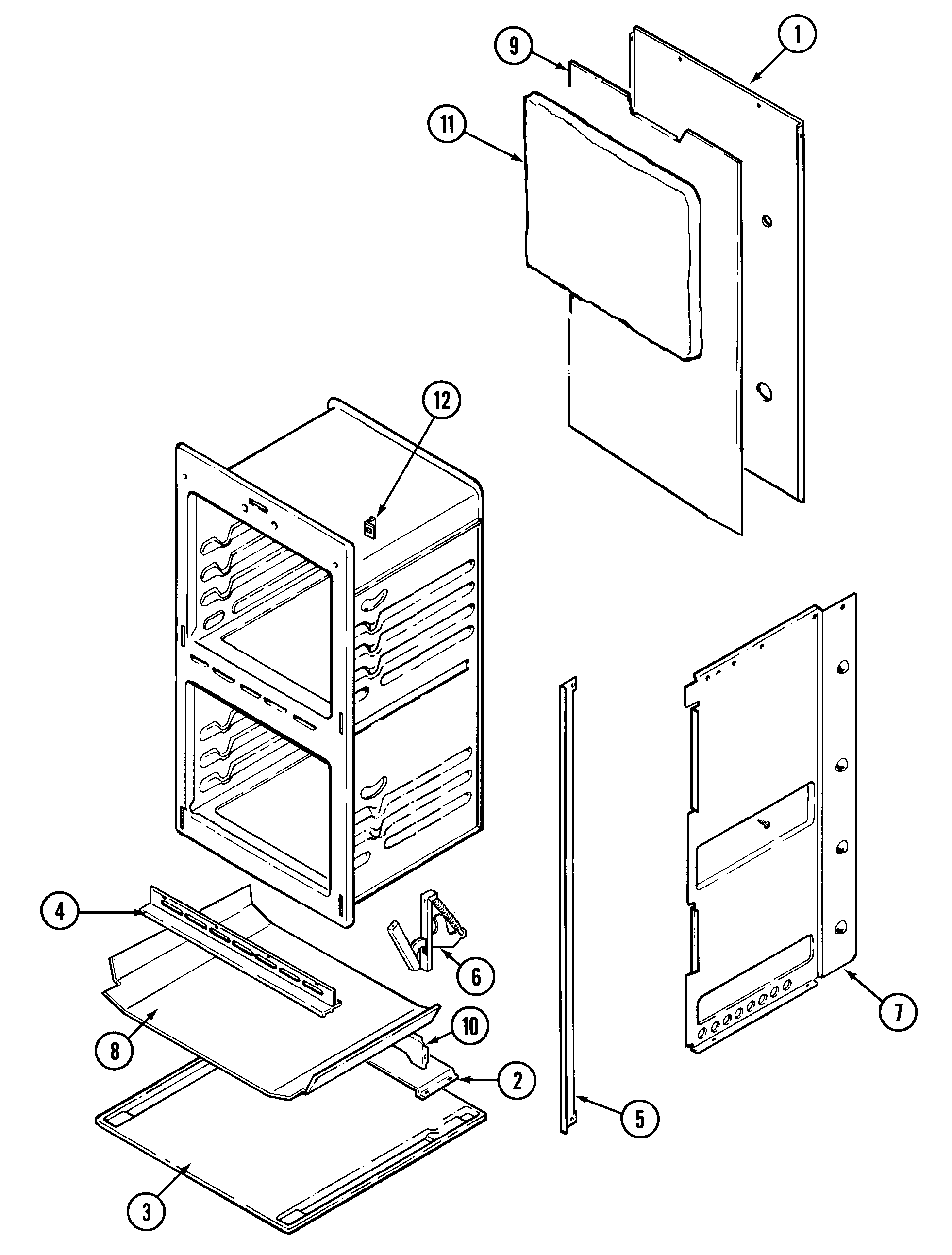

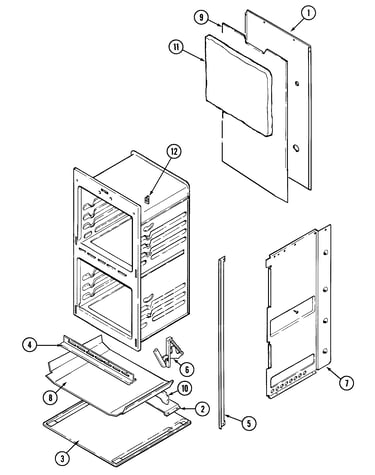

Body diagram

Crosley range oven door hinge (replaces 7106p059-60, 74001882)

Part #74001856

$88.02 |
6% OFF Phone Price : $94.02
Back Order
Door Hinge 74001882
#6A

Body diagram

Door hinge

Part #74001882

Replaced by #74001856

?
Manufacturer substitution
This part replaces 74001882. Substitute parts can look different from the original.
$88.02 |
6% OFF Phone Price : $94.02
Back Order
Oven Broiler Element 7406P076-60
#4A

Oven diagram

Oven broiler element

Part #7406P076-60

Replaced by #WPY04000048

?
Manufacturer substitution
This part replaces 7406P076-60. Substitute parts can look different from the original.
$89.92 |
6% OFF Phone Price : $95.92
In Stock
Wall Oven Clock And Timer (white) 74006099
#1A

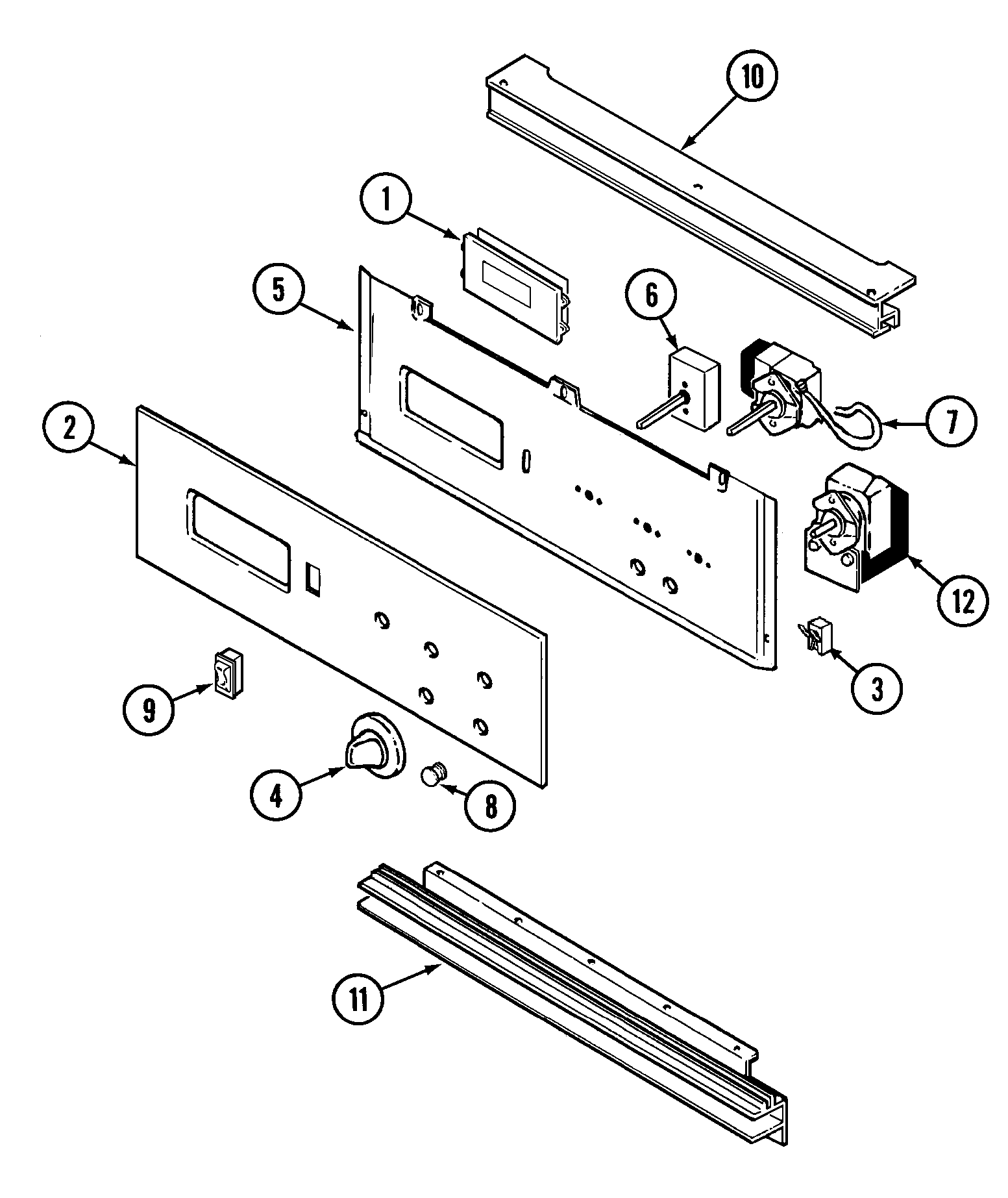

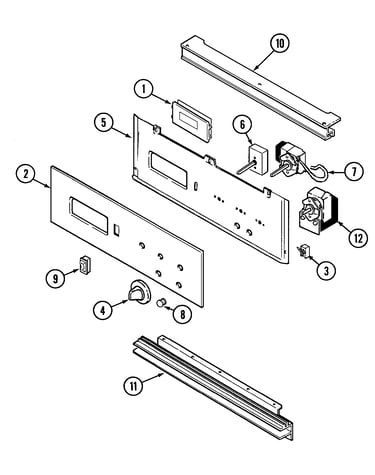

Control panel diagram

Wall oven clock and timer (white)

Part #74006099

Replaced by #W10799767

?
Manufacturer substitution
This part replaces 74006099. Substitute parts can look different from the original.
$287.16 |
$12.00 OFF Phone Price : $299.16
In Stock
Wall Oven Clock And Timer (white) 74004946
#1

Control panel diagram

Wall oven clock and timer (white)

Part #74004946

Replaced by #W10799767

?
Manufacturer substitution
This part replaces 74004946. Substitute parts can look different from the original.
$287.16 |
$12.00 OFF Phone Price : $299.16
In Stock
Screw 7101P068-60
#12

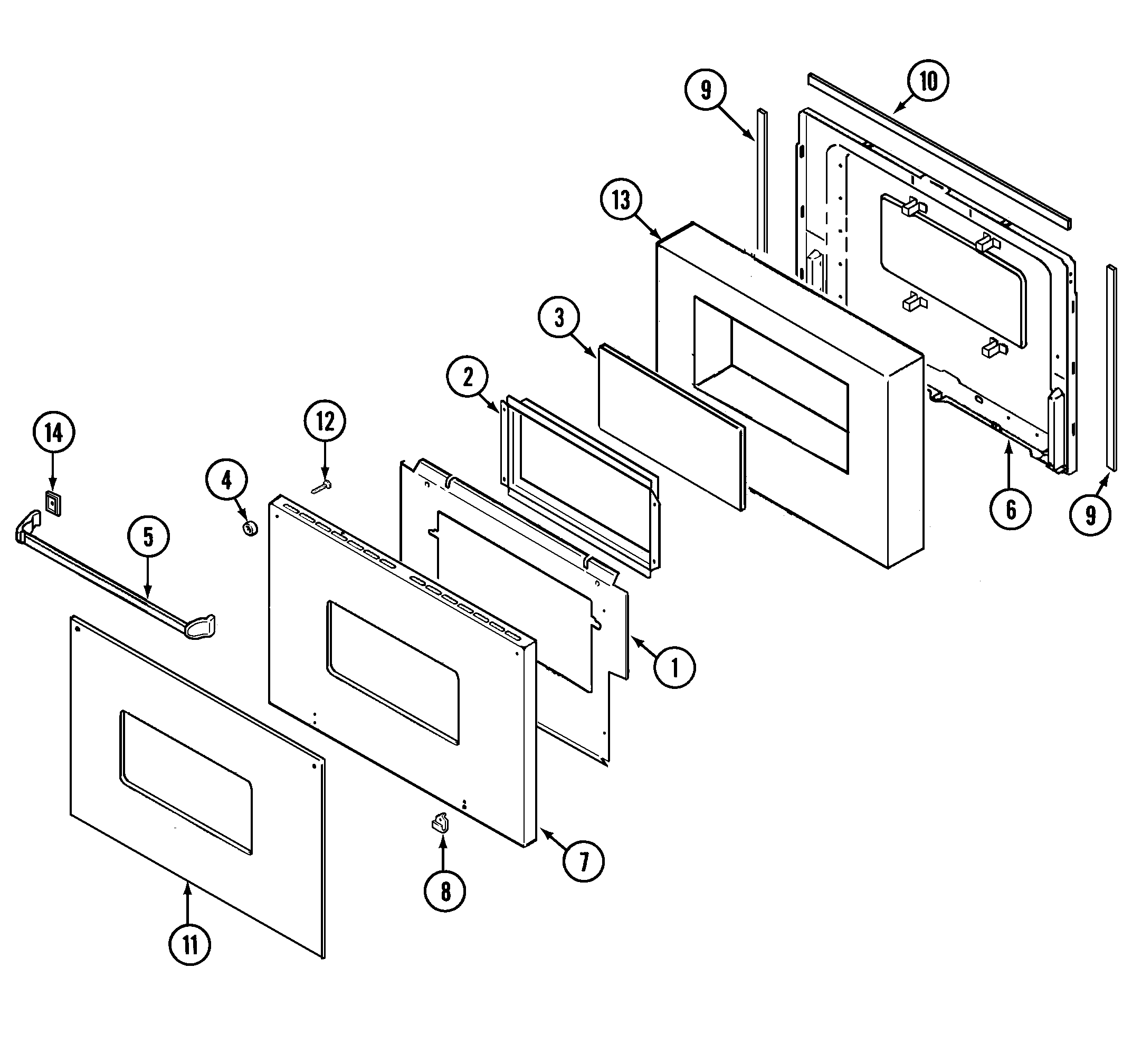

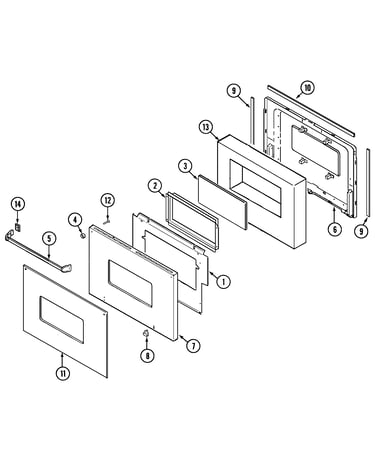

Door (upper & lower) diagram

Screw

Part #7101P068-60

Replaced by #WP3400074

?
Manufacturer substitution
This part replaces 7101P068-60. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
