Model # FKFU13M2HW4 Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FKFU13M2HW4 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Filter Drier 216987500
#4

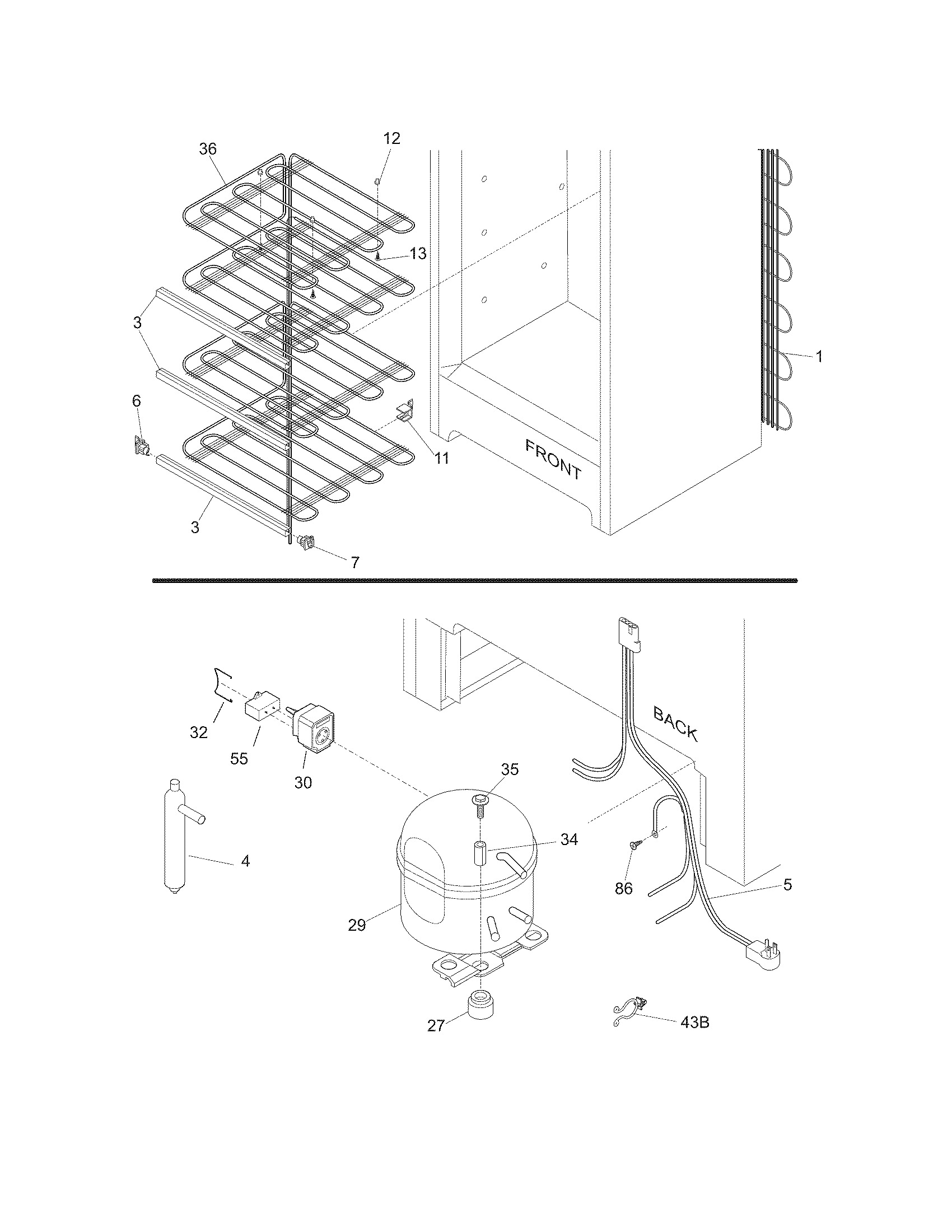

System diagram

Filter drier

Part #216987500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216987500. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Door Gasket 216522306
#1

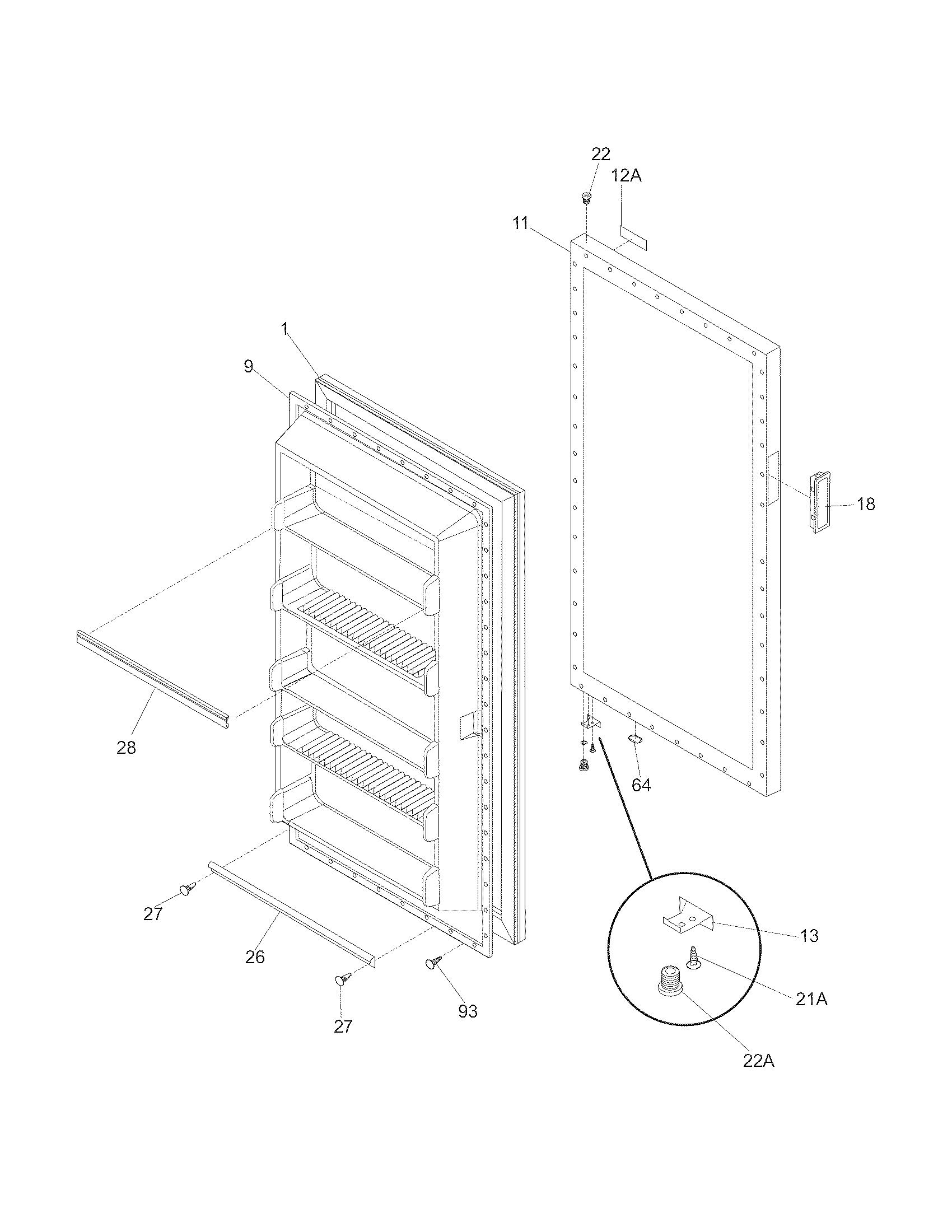

Door diagram

Freezer door gasket

Part #216522306

Replaced by #5304507201

?
Manufacturer substitution
This part replaces 216522306. Substitute parts can look different from the original.
BEST SELLER
$125.82 |
9% OFF Phone Price : $137.82
In Stock
Freezer Door Closer Bearing 216503300
#26

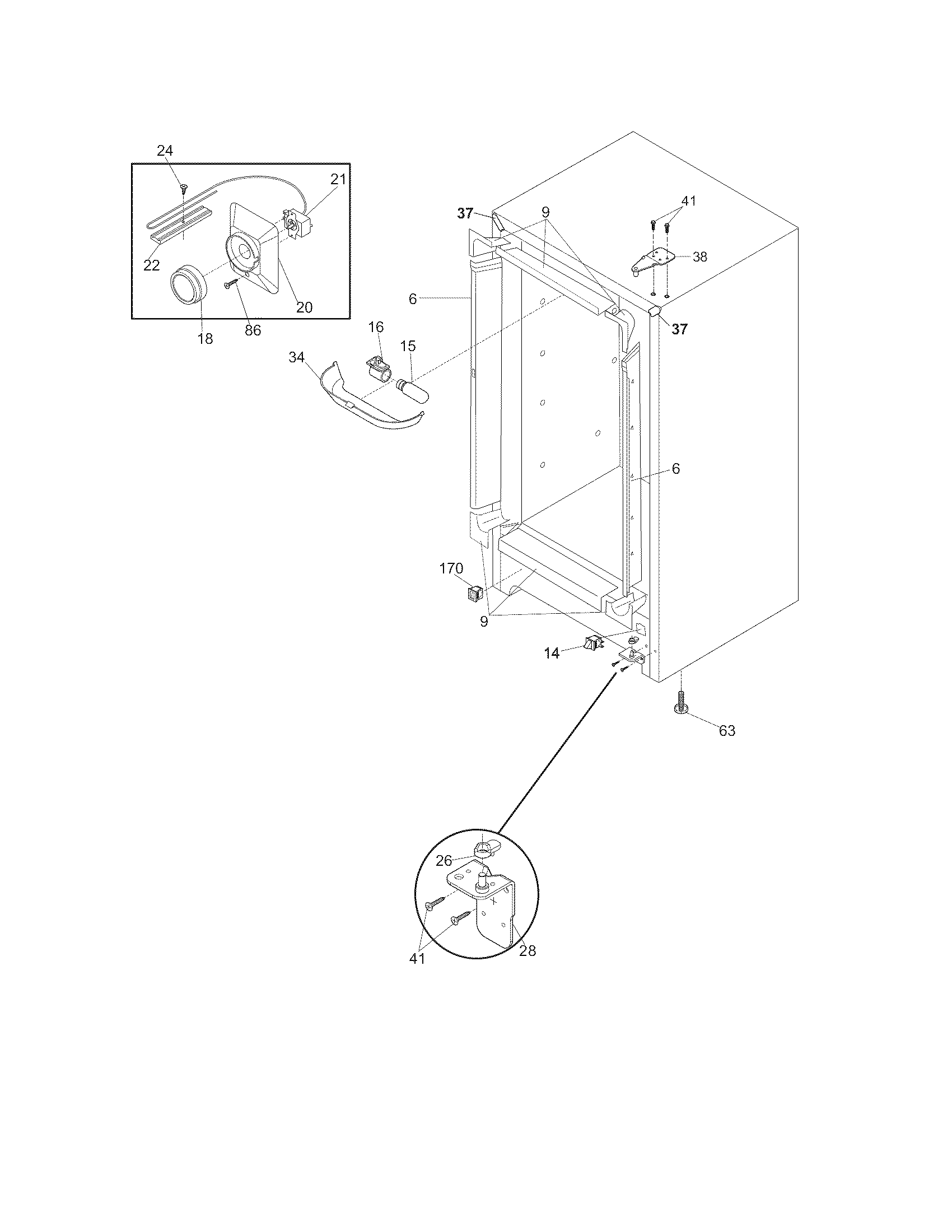

Cabinet diagram

Freezer door closer bearing

Part #216503300

BEST SELLER
This item is not returnable
$8.49 |
11% OFF Phone Price : $9.49
In Stock
Compressor 297199800
#29

System diagram

Compressor

Part #297199800

Replaced by #5304507767

?
Manufacturer substitution
This part replaces 297199800. Substitute parts can look different from the original.
BEST SELLER
$362.44 |
$12.00 OFF Phone Price : $374.44
In Stock
Chest Freezer Run Capacitor 218909911
#55

System diagram

Chest freezer run capacitor

Part #218909911

Replaced by #297286802

?
Manufacturer substitution
This part replaces 218909911. Substitute parts can look different from the original.
BEST SELLER
$38.69 |
13% OFF Phone Price : $44.69
In Stock
Appliance Leveling Leg (replaces 134158000, 7216396900) 216396900
#63

Cabinet diagram

Appliance leveling leg (replaces 134158000, 7216396900)

Part #216396900

BEST SELLER
$20.04 |
23% OFF Phone Price : $26.04
In Stock
Freezer Door Hinge Bearing 216970800
#22

Door diagram

Freezer door hinge bearing

Part #216970800

Replaced by #216970802

?
Manufacturer substitution
This part replaces 216970800. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$11.09 |
15% OFF Phone Price : $13.09
In Stock
Freezer Door Hinge, Upper 297283800
#38

Cabinet diagram

Freezer door hinge, upper

Part #297283800

Replaced by #297283803

?
Manufacturer substitution
This part replaces 297283800. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$18.08 |
10% OFF Phone Price : $20.08
In Stock
Freezer Door Hinge Bearing (replaces 216503200, 7297006800) 297006800
#22A

Door diagram

Freezer door hinge bearing (replaces 216503200, 7297006800)

Part #297006800

This item is not returnable
$12.59 |
14% OFF Phone Price : $14.59
In Stock
Freezer Temperature Control Knob 216707200
#18

Cabinet diagram

Freezer temperature control knob

Part #216707200

$37.39 |
14% OFF Phone Price : $43.39
In Stock
