Craftsman
Power Sander

Model # 315268192 Official Craftsman belt sander

Here are the diagrams and repair parts for Official Craftsman 315268192 belt sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

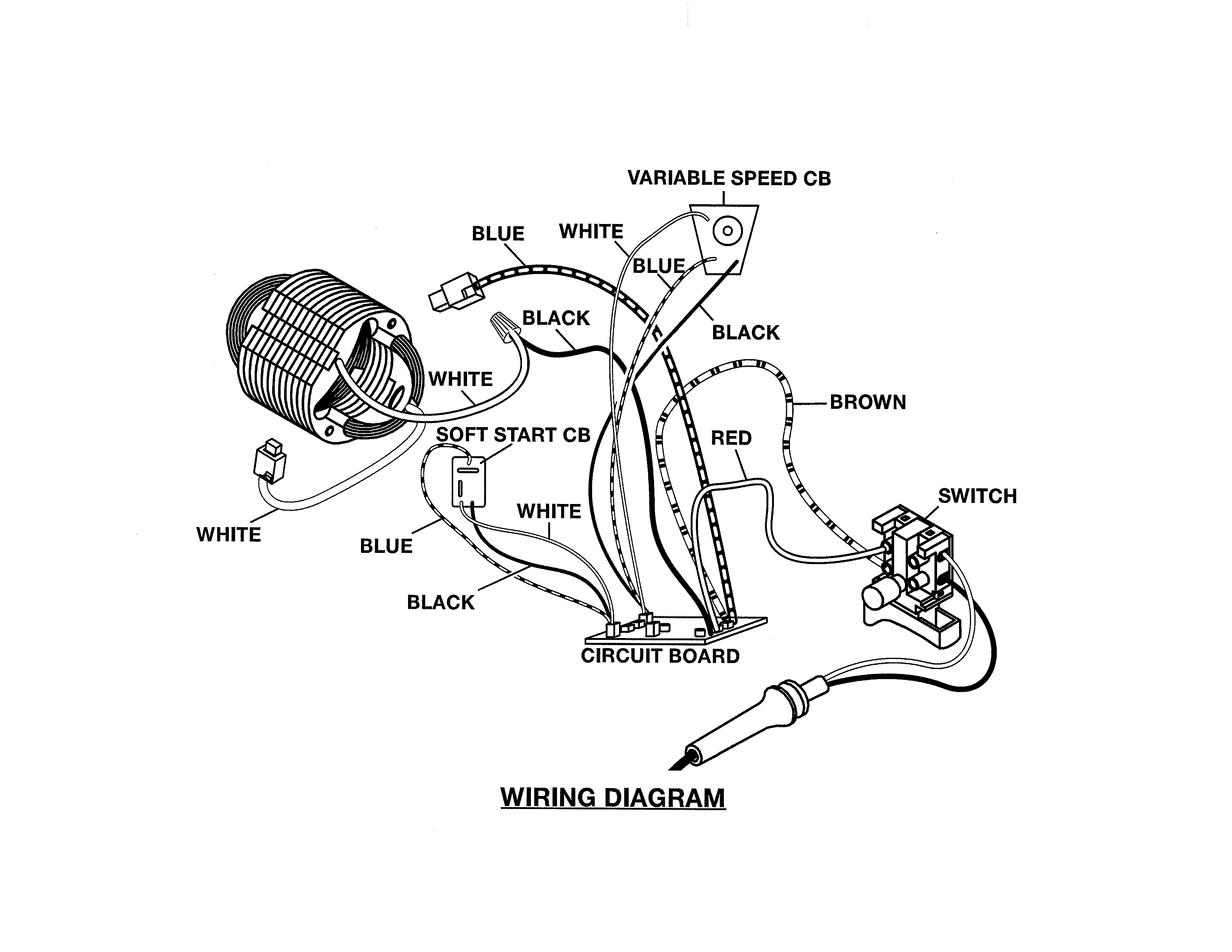

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Seal 900729001
#3

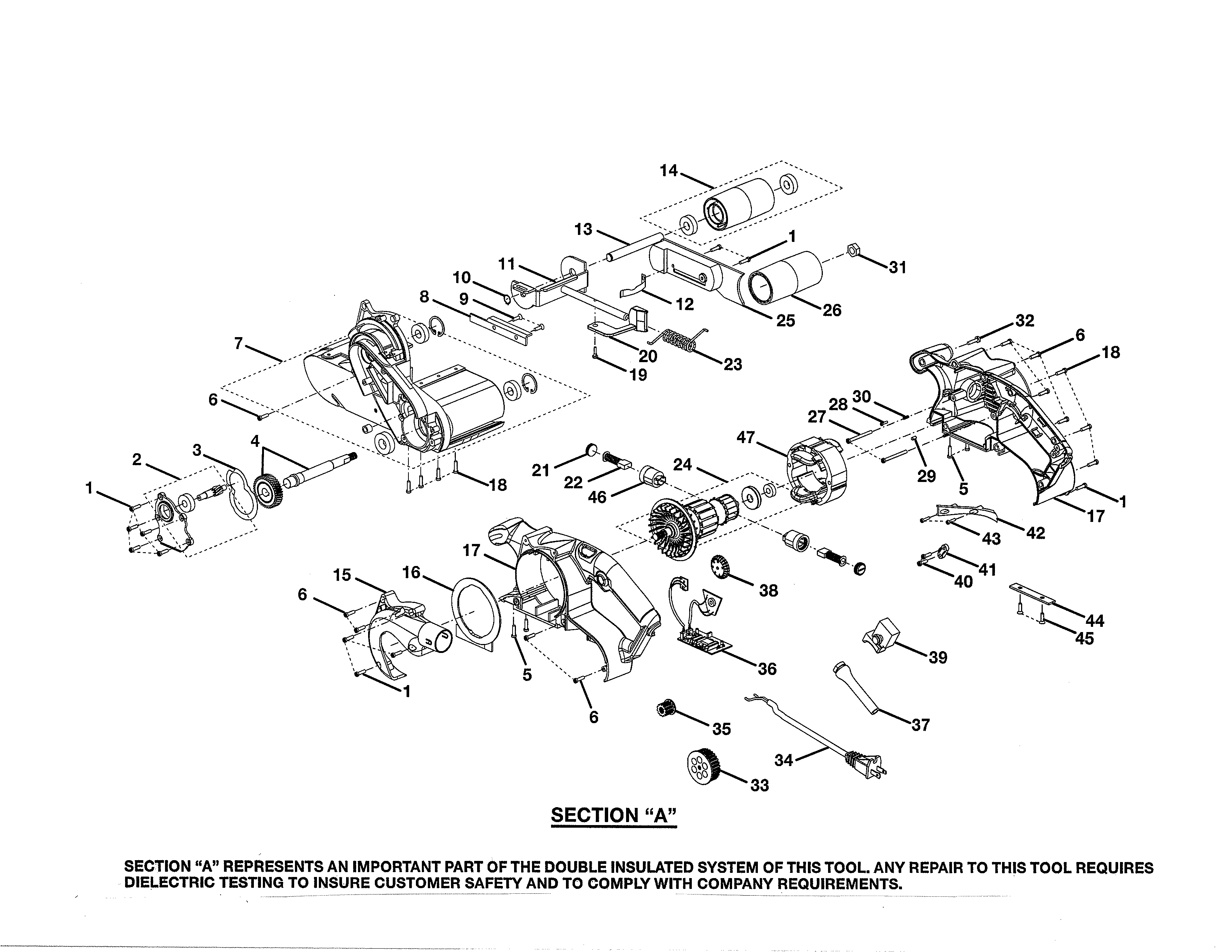

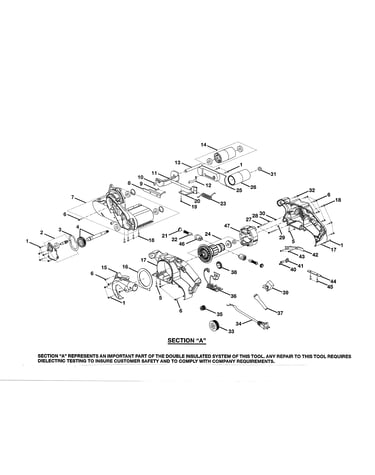

Motor/field diagram

Seal

Part #900729001

The manufacturer no longer makes this part, and there's no substitute part

Lever 590541001
#20

Motor/field diagram

Lever

Part #590541001

The manufacturer no longer makes this part, and there's no substitute part

Sander Wear Plate 690715002
#8

Motor/field diagram

Sander wear plate

Part #690715002

The manufacturer no longer makes this part, and there's no substitute part

Cover 590547007
#15

Motor/field diagram

Cover

Part #590547007

The manufacturer no longer makes this part, and there's no substitute part

Spring 690725001
#13

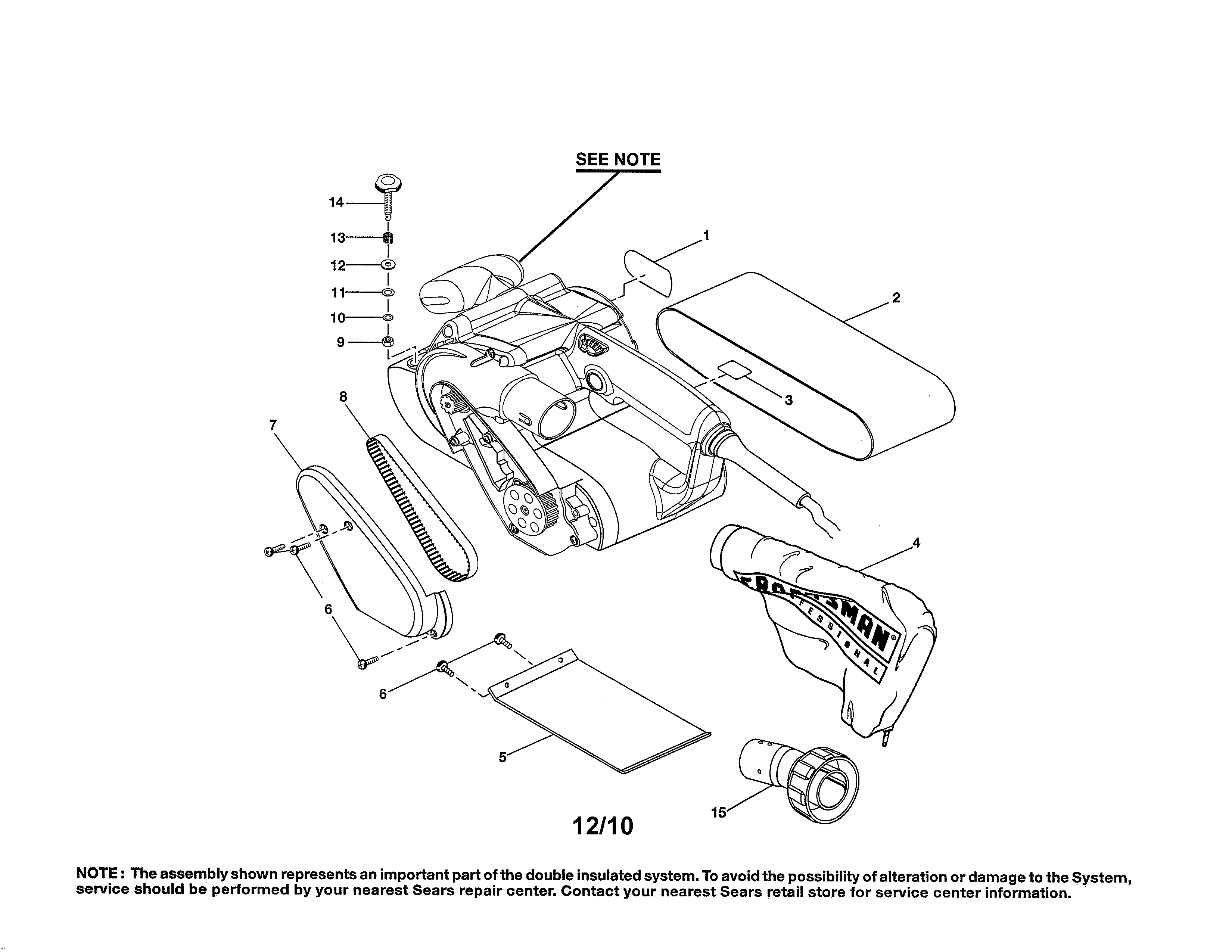

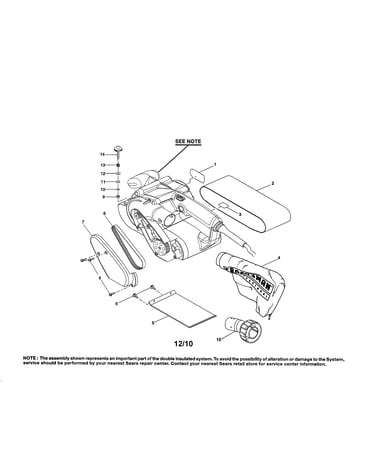

Belt/dust bag/wear plate diagram

Spring

Part #690725001

The manufacturer no longer makes this part, and there's no substitute part

Dust Bag 300027071
#4

Belt/dust bag/wear plate diagram

Dust bag

Part #300027071

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly 280013041
#36

Motor/field diagram

Pcb assembly

Part #280013041

The manufacturer no longer makes this part, and there's no substitute part

Shaft 620233001
#13

Motor/field diagram

Shaft

Part #620233001

The manufacturer no longer makes this part, and there's no substitute part

Sander Tracking Knob 300898002
#14

Belt/dust bag/wear plate diagram

Sander tracking knob

Part #300898002

The manufacturer no longer makes this part, and there's no substitute part

Yoke 632450004
#11

Motor/field diagram

Yoke

Part #632450004

The manufacturer no longer makes this part, and there's no substitute part
