Tappan
Microwave/Hood Combo

Model # TMV151FSA Official Tappan microwave

Here are the diagrams and repair parts for Official Tappan TMV151FSA microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

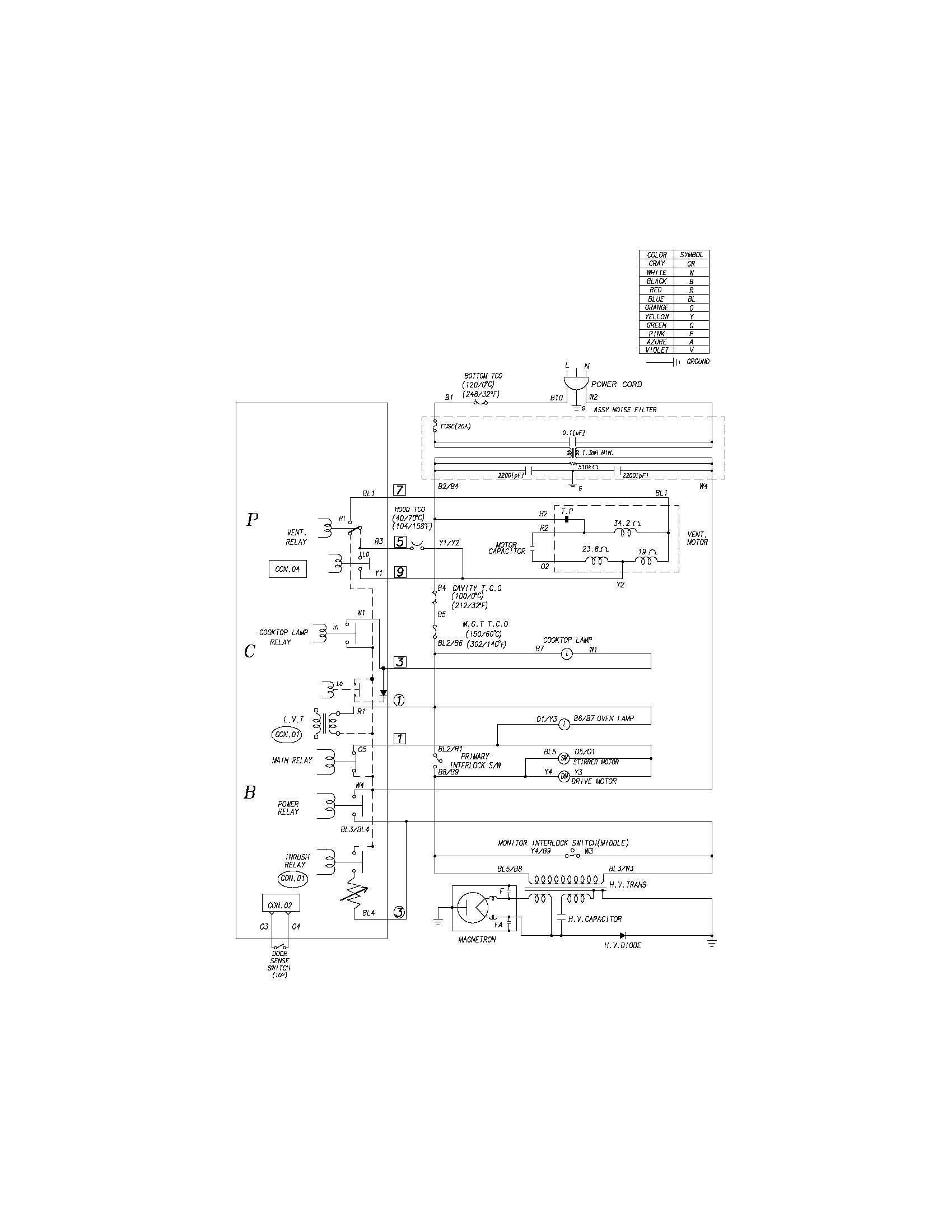

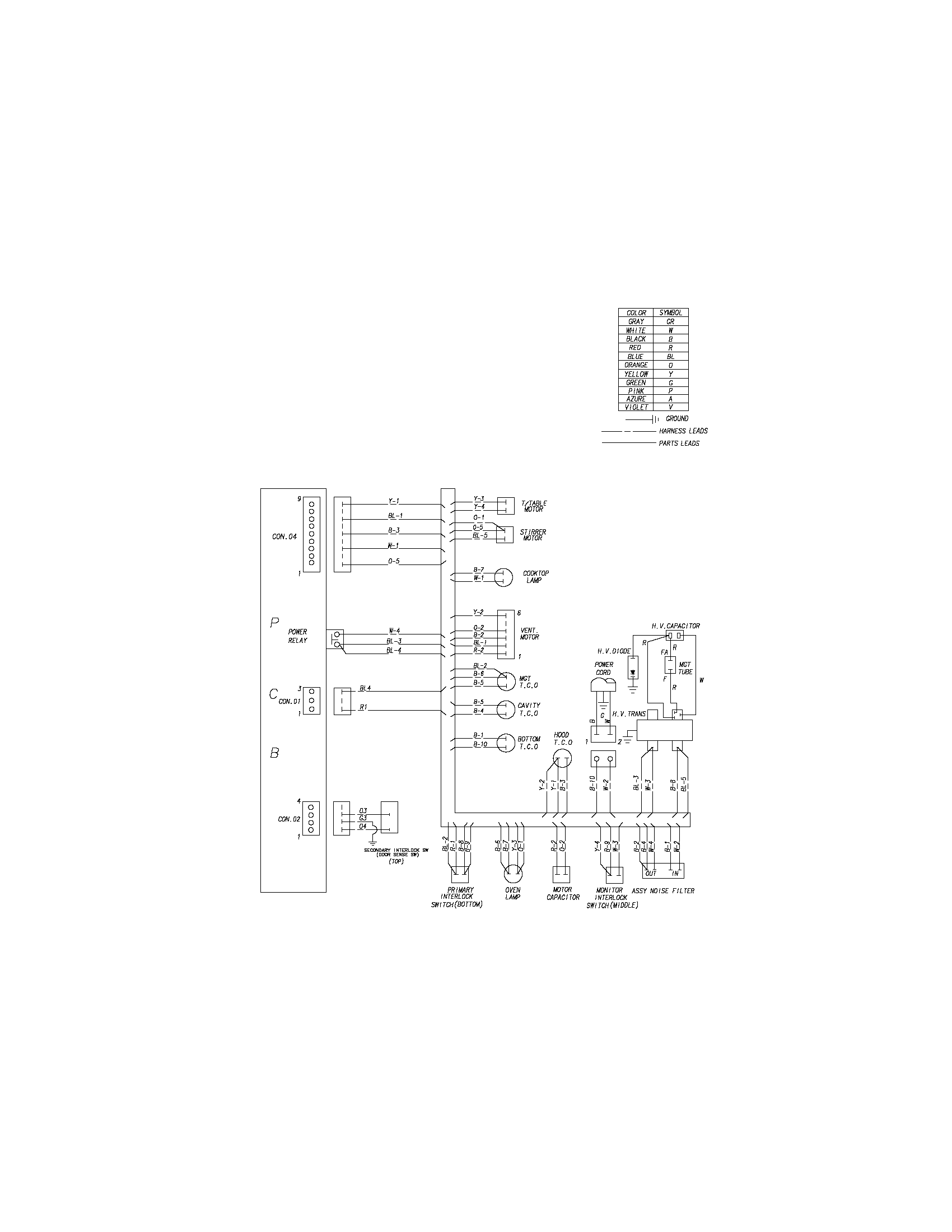

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Microwave Magnetron 5304456105
#36

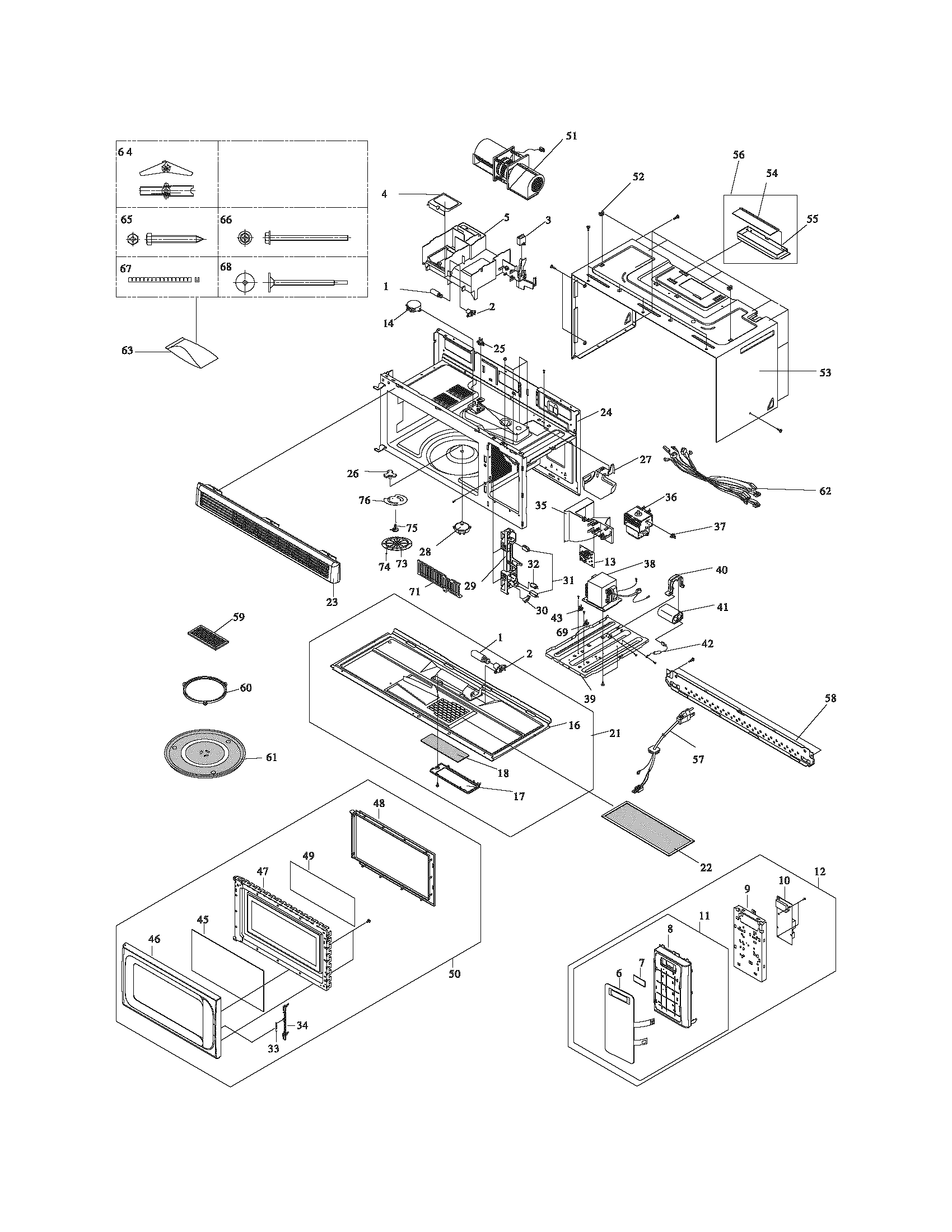

Recommended spare parts diagram

Microwave magnetron

Part #5304456105

$102.71
In Stock
Microwave Thermostat 5304456139
#69

Recommended spare parts diagram

Microwave thermostat

Part #5304456139

$36.90 |
14% OFF Phone Price : $42.90
In Stock
Motor 5304456097
#28

Recommended spare parts diagram

Motor

Part #5304456097

$91.39 |
6% OFF Phone Price : $97.39
In Stock
Microwave Door Interlock Switch 5304456101
#32

Recommended spare parts diagram

Microwave door interlock switch

Part #5304456101

$36.82
In Stock
Hardware Assembly 5304456133
#63

Recommended spare parts diagram

Hardware assembly

Part #5304456133

$113.98
In Stock
Frigidaire Microwave Mounting Plate 5304456129
#58

Recommended spare parts diagram

Frigidaire microwave mounting plate

Part #5304456129

$71.40
In Stock
Microwave Magnetron Thermostat 5304456106
#37

Recommended spare parts diagram

Microwave magnetron thermostat

Part #5304456106

The manufacturer no longer makes this part, and there's no substitute part

Nut 5304456122
#52

Recommended spare parts diagram

Nut

Part #5304456122

The manufacturer no longer makes this part, and there's no substitute part

Window 5304456073
#7

Recommended spare parts diagram

Window

Part #5304456073

The manufacturer no longer makes this part, and there's no substitute part

Installation 316488501
#NI

Recommended spare parts diagram

Installation

Part #316488501

The manufacturer no longer makes this part, and there's no substitute part
