Model # 153004 Official Broan range hood

Here are the diagrams and repair parts for Official Broan 153004 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Motor 99080359
#37

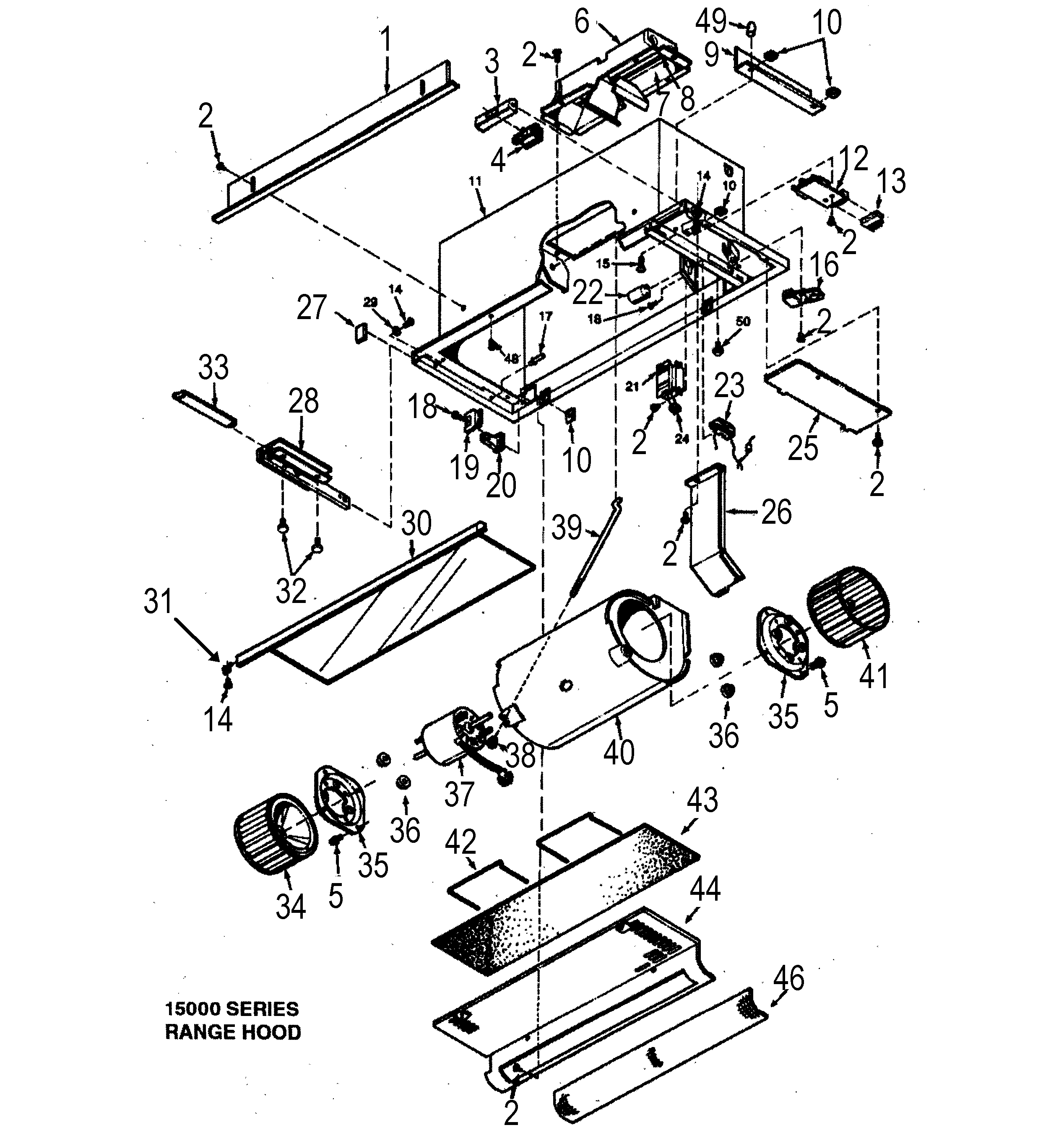

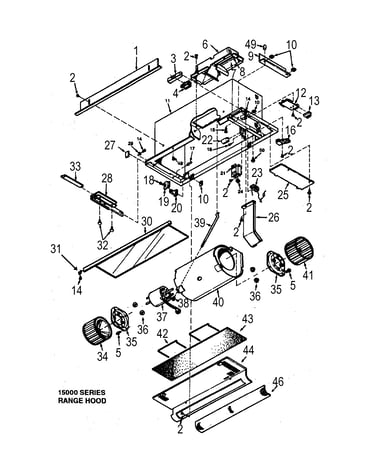

Range hood assy diagram

Motor

Part #99080359

Replaced by #S97010736

?
Manufacturer substitution
This part replaces 99080359. Substitute parts can look different from the original.
$120.10 |
9% OFF Phone Price : $132.10
In Stock
Range Hood Blower 97005985
#NI

Range hood assy diagram

Range hood blower

Part #97005985

Replaced by #S97010327

?
Manufacturer substitution
This part replaces 97005985. Substitute parts can look different from the original.
$216.99 |
5% OFF Phone Price : $228.99
In Stock
Range Hood Vent Damper Cover 98005221
#7

Range hood assy diagram

Range hood vent damper cover

Part #98005221

Replaced by #S98005221

?
Manufacturer substitution
This part replaces 98005221. Substitute parts can look different from the original.
This item is not returnable
$3.70
In Stock
Range Hood Electronic Control Board 97008578
#12

Range hood assy diagram

Range hood electronic control board

Part #97008578

Replaced by #S97008578

?
Manufacturer substitution
This part replaces 97008578. Substitute parts can look different from the original.
$66.94
In Stock
Lamp Holder 99270550
#20

Range hood assy diagram

Lamp holder

Part #99270550

The manufacturer no longer makes this part, and there's no substitute part

Rivet 99230342
#17

Range hood assy diagram

Rivet

Part #99230342

This item is not returnable
$2.16
In Stock
Retainer 98005860
#19

Range hood assy diagram

Retainer

Part #98005860

Replaced by #S98005860

?
Manufacturer substitution
This part replaces 98005860. Substitute parts can look different from the original.
This item is not returnable
$3.33
In Stock
Thumb Screw 99420602
#32

Range hood assy diagram

Thumb screw

Part #99420602

Replaced by #S99420602

?
Manufacturer substitution
This part replaces 99420602. Substitute parts can look different from the original.
This item is not returnable
$2.96
In Stock
Range Hood Filter 99010175
#43

Range hood assy diagram

Range hood filter

Part #99010175

Replaced by #S99010175

?
Manufacturer substitution
This part replaces 99010175. Substitute parts can look different from the original.
This item is not returnable
$20.00 |
23% OFF Phone Price : $26.00
In Stock
Trim 98010015
#1

Range hood assy diagram

Trim

Part #98010015

Replaced by #S98010015

?
Manufacturer substitution
This part replaces 98010015. Substitute parts can look different from the original.
$9.35
In Stock
