Hotpoint
Washer

Model # HTW200ASK1WW Official Hotpoint washer

Here are the diagrams and repair parts for Official Hotpoint HTW200ASK1WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

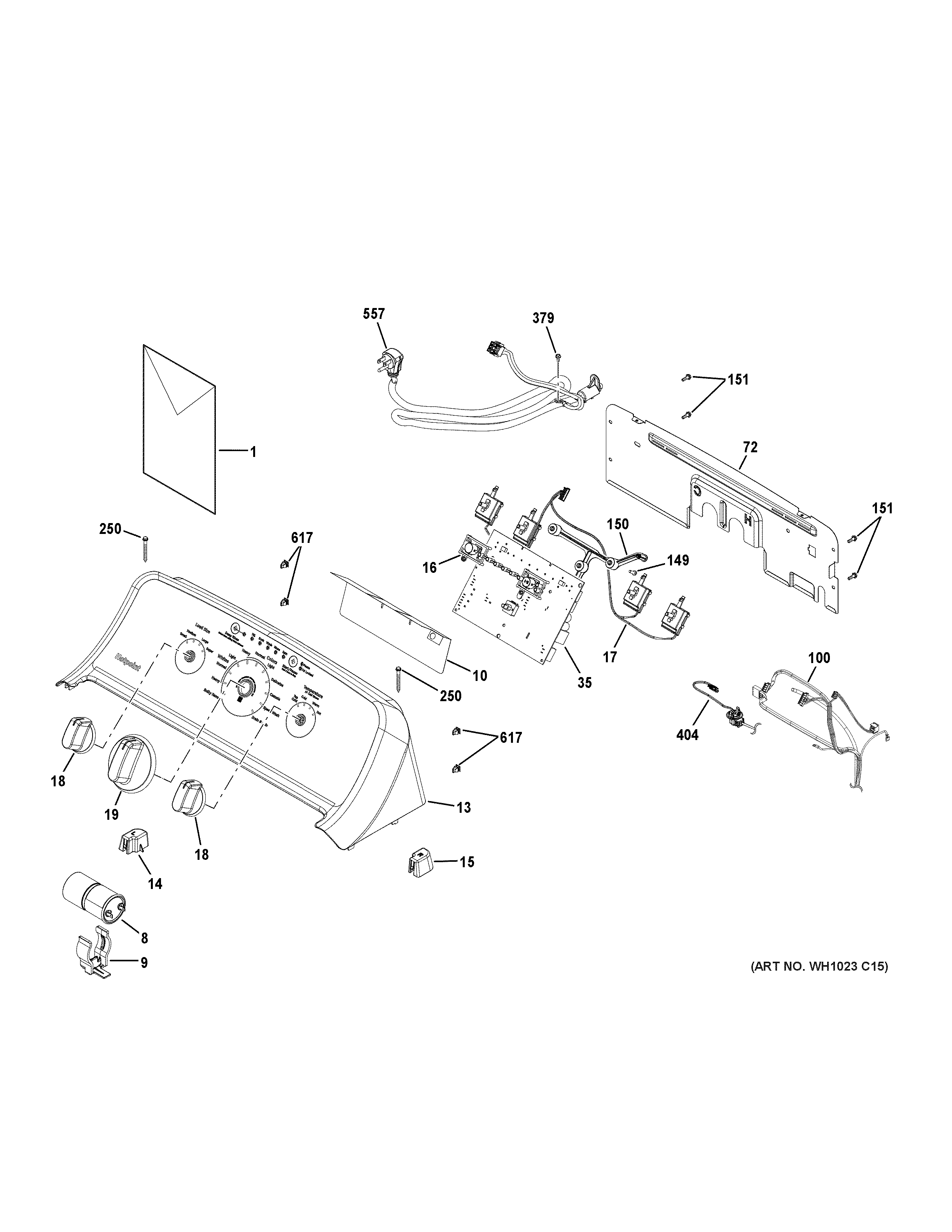

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Washer Shifter WH05X25036
#325

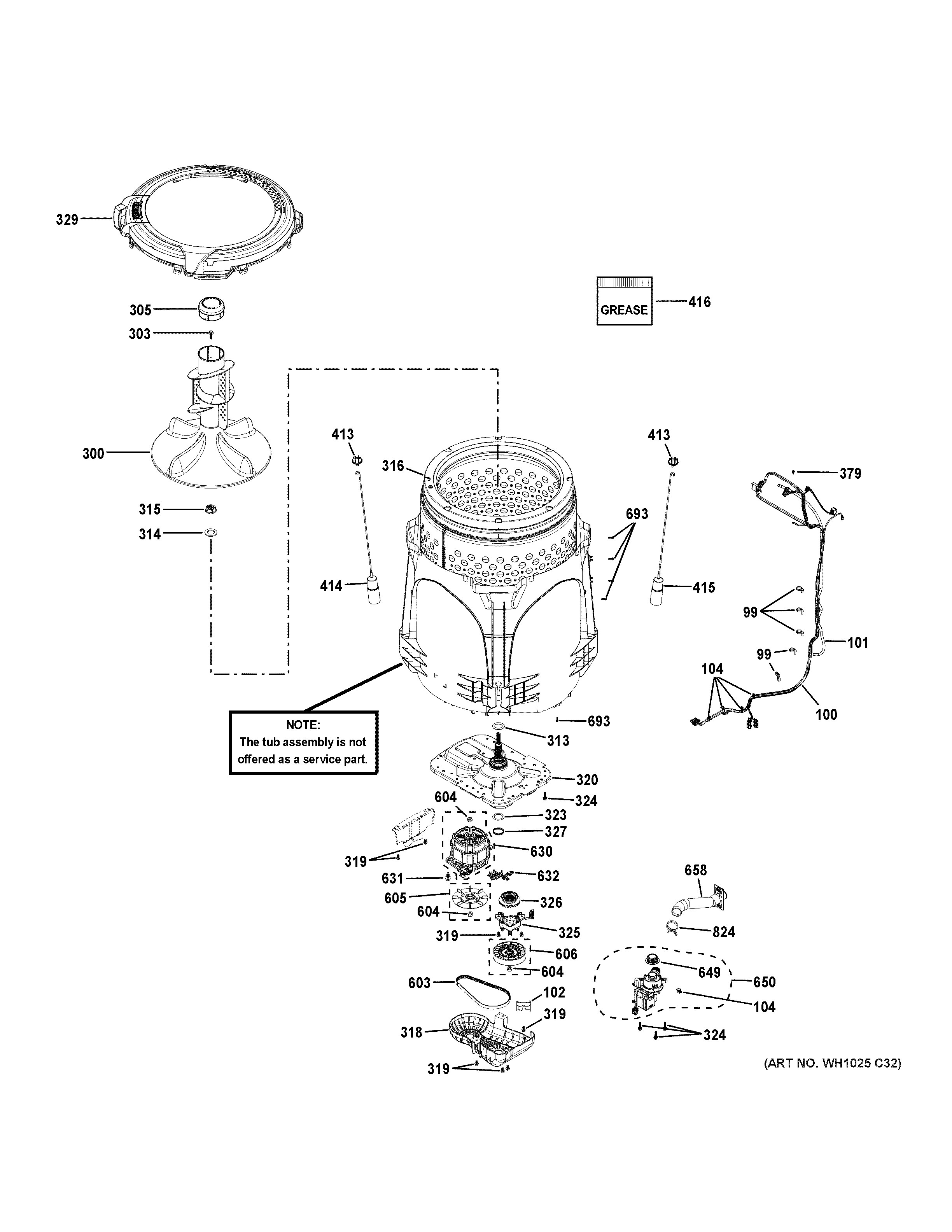

Tub & motor diagram

Washer shifter

Part #WH05X25036

Replaced by #WH03X30517

?
Manufacturer substitution
This part replaces WH05X25036. Substitute parts can look different from the original.
BEST SELLER
$52.89 |
10% OFF Phone Price : $58.89
In Stock
Washer Drain Pump Assembly WH23X27574
#650

Tub & motor diagram

Washer drain pump assembly

Part #WH23X27574

Replaced by #WH23X28418

?
Manufacturer substitution
This part replaces WH23X27574. Substitute parts can look different from the original.
BEST SELLER
$40.63 |
13% OFF Phone Price : $46.63
In Stock
Washer Gear Case Pulley And Nut WH03X28859
#606

Tub & motor diagram

Washer gear case pulley and nut

Part #WH03X28859

Replaced by #WH03X32097

?
Manufacturer substitution
This part replaces WH03X28859. Substitute parts can look different from the original.
BEST SELLER
$13.80
In Stock
Washer Clutch WH05X24185
#326

Tub & motor diagram

Washer clutch

Part #WH05X24185

BEST SELLER
$22.33 |
21% OFF Phone Price : $28.33
In Stock
Washer Speed Sensor WH12X25294
#632

Tub & motor diagram

Washer speed sensor

Part #WH12X25294

Replaced by #WH03X32158

?
Manufacturer substitution
This part replaces WH12X25294. Substitute parts can look different from the original.
BEST SELLER
$37.45
In Stock
Washer Gear Case (replaces Wh38x27335) WH03X33729
#320

Tub & motor diagram

Washer gear case (replaces wh38x27335)

Part #WH03X33729

BEST SELLER
$164.04 |
7% OFF Phone Price : $176.04
In Stock
Washer Hub Nut WH02X10363
#315

Tub & motor diagram

Washer hub nut

Part #WH02X10363

BEST SELLER
$13.21 |
13% OFF Phone Price : $15.21
In Stock
Washer Screw WH02X24374
#303

Tub & motor diagram

Washer screw

Part #WH02X24374

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer Water Inlet Valve Assembly (replaces Wh13x25296) WH13X26534
#805

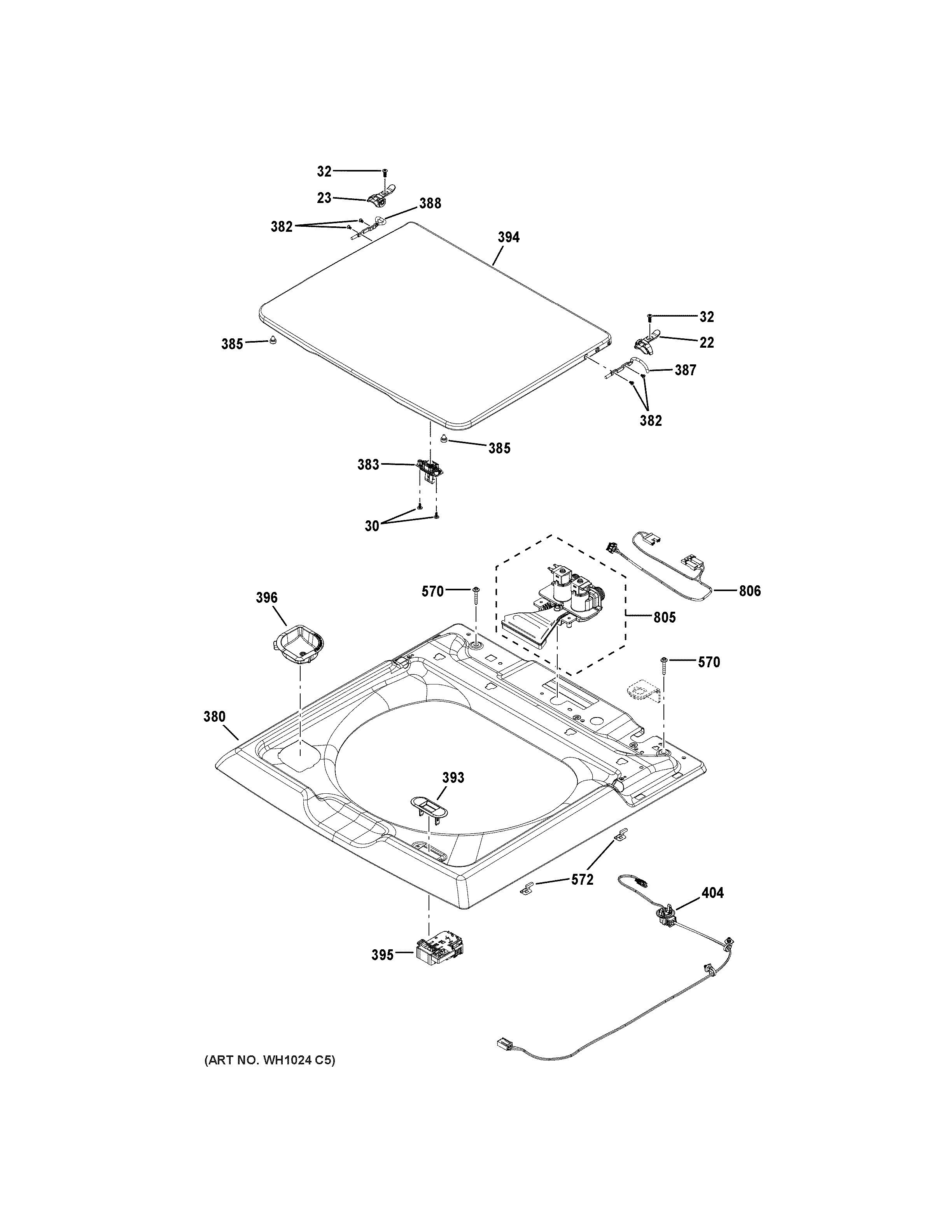

Top panel & lid diagram

Washer water inlet valve assembly (replaces wh13x25296)

Part #WH13X26534

BEST SELLER
$30.46 |
16% OFF Phone Price : $36.46
In Stock
Washer Drive Motor Pulley And Nut WH49X25378
#605

Tub & motor diagram

Washer drive motor pulley and nut

Part #WH49X25378

Replaced by #WH03X32218

?
Manufacturer substitution
This part replaces WH49X25378. Substitute parts can look different from the original.
BEST SELLER
$35.08
In Stock
