Model # 934716150 Official Craftsman 10-amp 12/24-v deep cycle battery charger
Here are the diagrams and repair parts for Official Craftsman 934716150 10-amp 12/24-v deep cycle battery charger, as well as links to manuals and error code tables, if available.

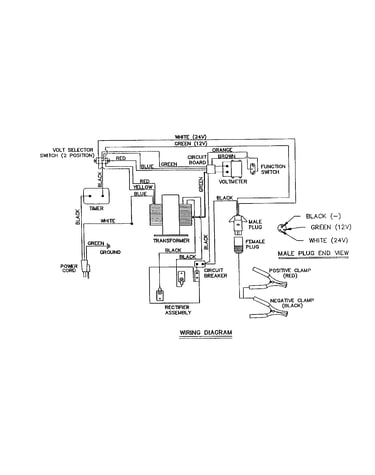

Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
934716150 10-Amp 12/24-V Deep Cycle Battery Charger
#13

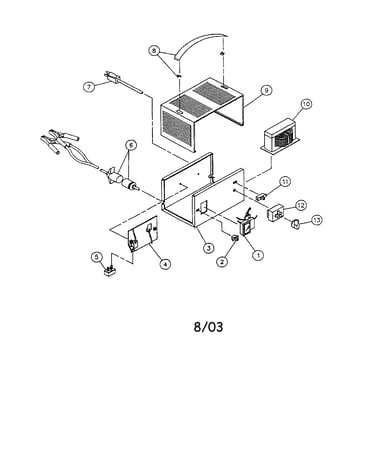

Deep cycle charger diagram
Welder selector switch knob
Part #246-041-666
The manufacturer no longer makes this part, and there's no substitute part
#9
Deep cycle charger diagram
Cover
Part #440-247-030
The manufacturer no longer makes this part, and there's no substitute part
#6
Deep cycle charger diagram
Cable assembly
Part #865-754-666
The manufacturer no longer makes this part, and there's no substitute part
#7
Deep cycle charger diagram
Power cord
Part #246-248-666
The manufacturer no longer makes this part, and there's no substitute part
#3
Deep cycle charger diagram
Base
Part #440-334-020
The manufacturer no longer makes this part, and there's no substitute part
#10
Deep cycle charger diagram
Transformer assembly
Part #865-755-888
The manufacturer no longer makes this part, and there's no substitute part
#5
Deep cycle charger diagram
Circuit breaker
Part #246-183-666
The manufacturer no longer makes this part, and there's no substitute part
#11
Deep cycle charger diagram
Volt selector switch
Part #246-297-666
The manufacturer no longer makes this part, and there's no substitute part
#12
Deep cycle charger diagram
Timer
Part #246-277-666
The manufacturer no longer makes this part, and there's no substitute part
#8
Deep cycle charger diagram
Handle w/clips
Part #412-260-666
The manufacturer no longer makes this part, and there's no substitute part
