GE
Gas Range

Model # JGBC15GER3 Official GE gas range - 1992

Here are the diagrams and repair parts for Official GE JGBC15GER3 gas range - 1992, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 172 parts  |
Igniter WB02X9154
#269

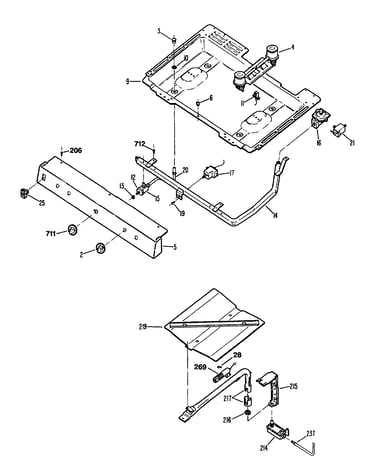

Burner manifold gas control diagram

Igniter

Part #WB02X9154

Replaced by #WB2X9154

?
Manufacturer substitution
This part replaces WB02X9154. Substitute parts can look different from the original.
BEST SELLER
$86.63 |
6% OFF Phone Price : $92.63
Back Order
Appliance Light Bulb, 40-watt 40A15
#235

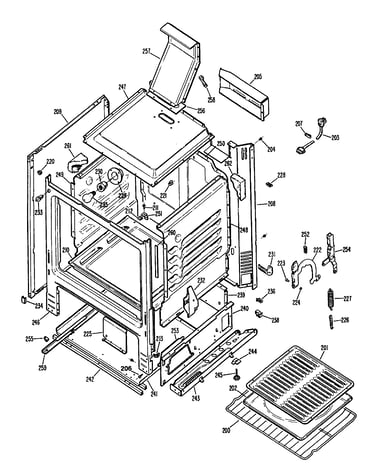

Body diagram

Appliance light bulb, 40-watt

Part #40A15

Replaced by #40A15

?
Manufacturer substitution
This part replaces 40A15. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Pushin Receptacle WB08K0002
#230

Body diagram

Pushin receptacle

Part #WB08K0002

Replaced by #WB08T10026

?
Manufacturer substitution
This part replaces WB08K0002. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Door Gasket WB32K0003
#318

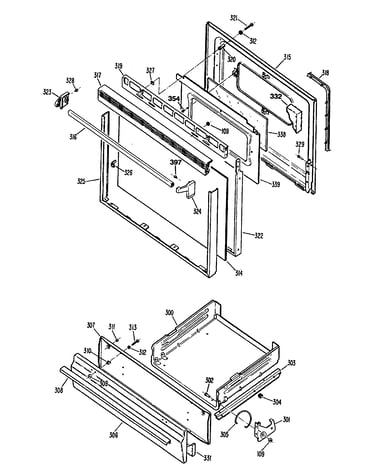

Door and drawer diagram

Door gasket

Part #WB32K0003

Replaced by #WB35X29720

?
Manufacturer substitution
This part replaces WB32K0003. Substitute parts can look different from the original.
$25.20 |
19% OFF Phone Price : $31.20
In Stock
Oven Rack WB48K5019
#200

Body diagram

Oven rack

Part #WB48K5019

Replaced by #WB48T10095

?
Manufacturer substitution
This part replaces WB48K5019. Substitute parts can look different from the original.
$49.92 |
11% OFF Phone Price : $55.92
In Stock
Bumper WB02K0015
#311

Door and drawer diagram

Bumper

Part #WB02K0015

Replaced by #WB2K15

?
Manufacturer substitution
This part replaces WB02K0015. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Surface Igniter Burner WB19K0020
#11

Burner manifold gas control diagram

Surface igniter burner

Part #WB19K0020

Replaced by #WB18X26988

?
Manufacturer substitution
This part replaces WB19K0020. Substitute parts can look different from the original.
$15.26 |
12% OFF Phone Price : $17.26
In Stock
Line Cord WB18K0007
#203

Body diagram

Line cord

Part #WB18K0007

Replaced by #WB18K10036

?
Manufacturer substitution
This part replaces WB18K0007. Substitute parts can look different from the original.
This item is not returnable
$20.49 |
23% OFF Phone Price : $26.49
In Stock
Mounting Screw WB01X5364
#108

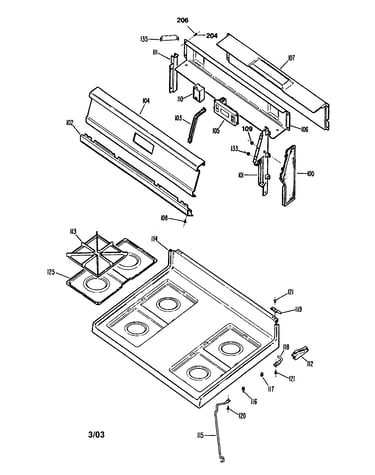

Cooktop diagram

Mounting screw

Part #WB01X5364

Replaced by #WB1X5364

?
Manufacturer substitution
This part replaces WB01X5364. Substitute parts can look different from the original.
$7.90 |
11% OFF Phone Price : $8.90
In Stock
Oven Door Gasket Seal WB32K0002
#260

Body diagram

Oven door gasket seal

Part #WB32K0002

Replaced by #WB32K2

?
Manufacturer substitution
This part replaces WB32K0002. Substitute parts can look different from the original.
$34.43 |
15% OFF Phone Price : $40.43
In Stock
