Model # SBP26ZZ-P1142795NL Official Amana gas range

Here are the diagrams and repair parts for Official Amana SBP26ZZ-P1142795NL gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Shield, Broiler Opening 06554000
#10

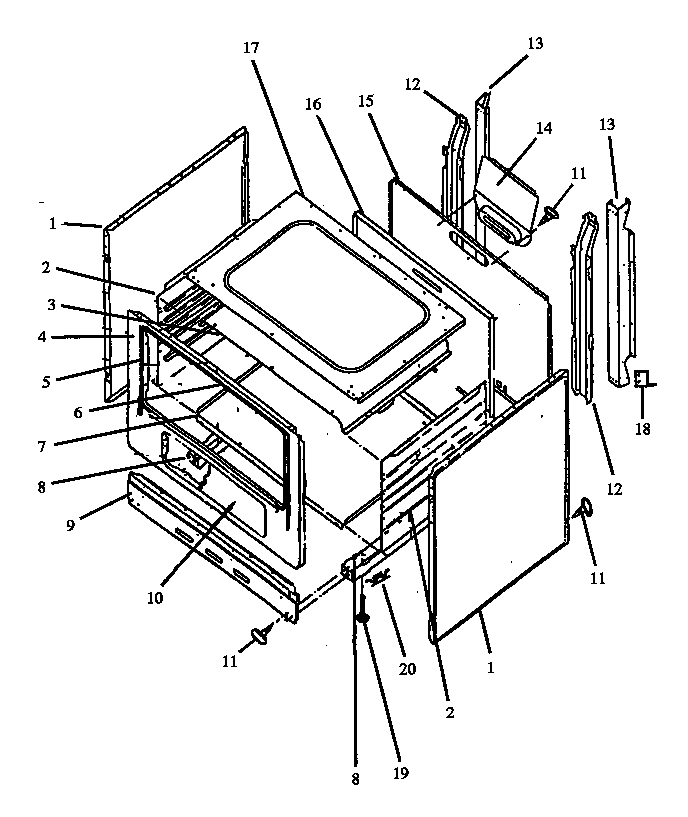

Cabinet assembly diagram

Shield, broiler opening

Part #06554000

The manufacturer no longer makes this part, and there's no substitute part

Locatind Stud Metal 0310036
#21

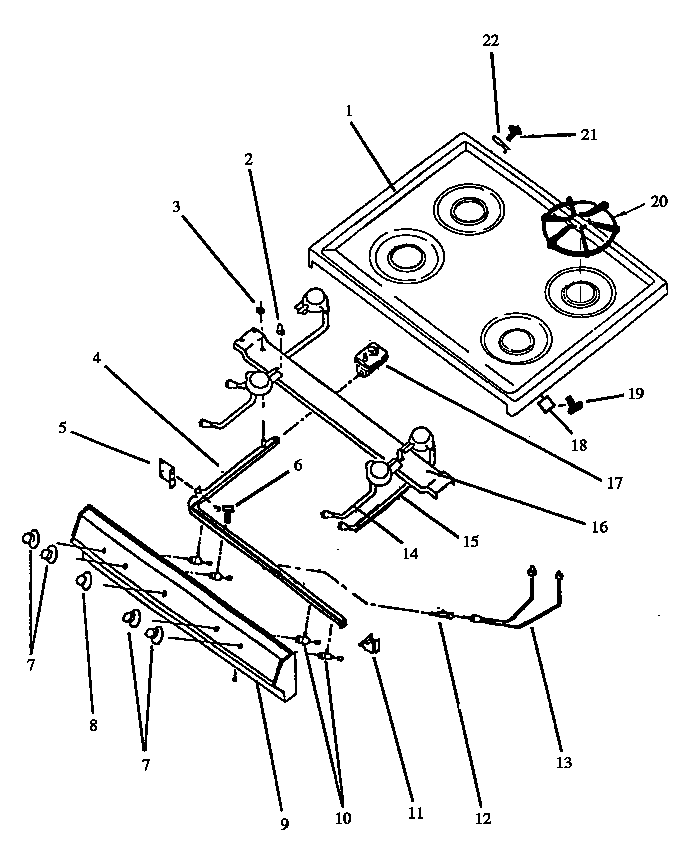

Maintop/control panel parts diagram

Locatind stud metal

Part #0310036

The manufacturer no longer makes this part, and there's no substitute part

Door Handle Spacer 0310818
#9

Oven door/fixed panel parts diagram

Door handle spacer

Part #0310818

The manufacturer no longer makes this part, and there's no substitute part

Oven Door Handle (white) 07498610W
#2B

Oven door/fixed panel parts diagram

Oven door handle (white)

Part #07498610W

The manufacturer no longer makes this part, and there's no substitute part

Panel, Oven Door, Almond 06480503L
#1A

Oven door/fixed panel parts diagram

Panel, oven door, almond

Part #06480503L

The manufacturer no longer makes this part, and there's no substitute part

Backguard Support, L.h. 0310811
#5

Backguard assembly diagram

Backguard support, l.h.

Part #0310811

The manufacturer no longer makes this part, and there's no substitute part

Filter, Pilot 0088789
#12

Maintop/control panel parts diagram

Filter, pilot

Part #0088789

The manufacturer no longer makes this part, and there's no substitute part

Baffle, Bottom 0311051
#7

Cabinet assembly diagram

Baffle, bottom

Part #0311051

The manufacturer no longer makes this part, and there's no substitute part

Backguard Base Screw 0310240
#3

Backguard assembly diagram

Backguard base screw

Part #0310240

The manufacturer no longer makes this part, and there's no substitute part

3/8 Tubing-safety Valve 0090761
#6

Oven components diagram

3/8 tubing-safety valve

Part #0090761

The manufacturer no longer makes this part, and there's no substitute part
