Model # RBD139D0 Official Frigidaire electric range - lf32087170

Here are the diagrams and repair parts for Official Frigidaire RBD139D0 electric range - lf32087170, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

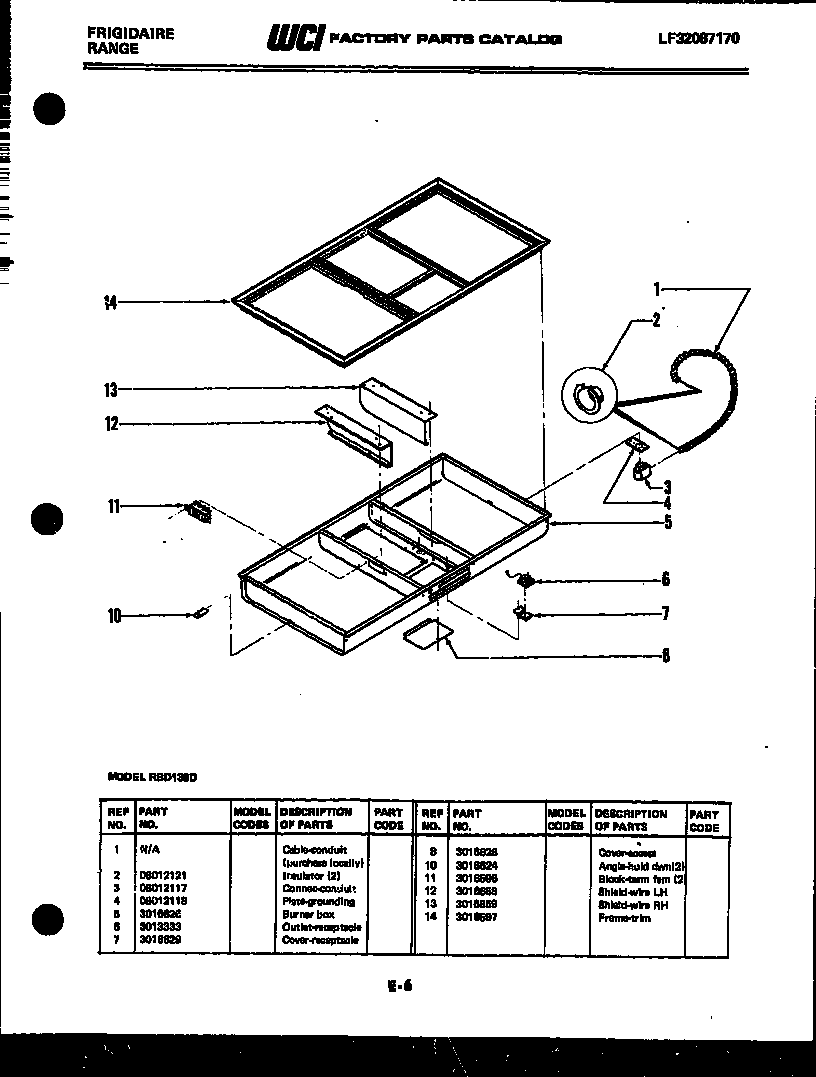

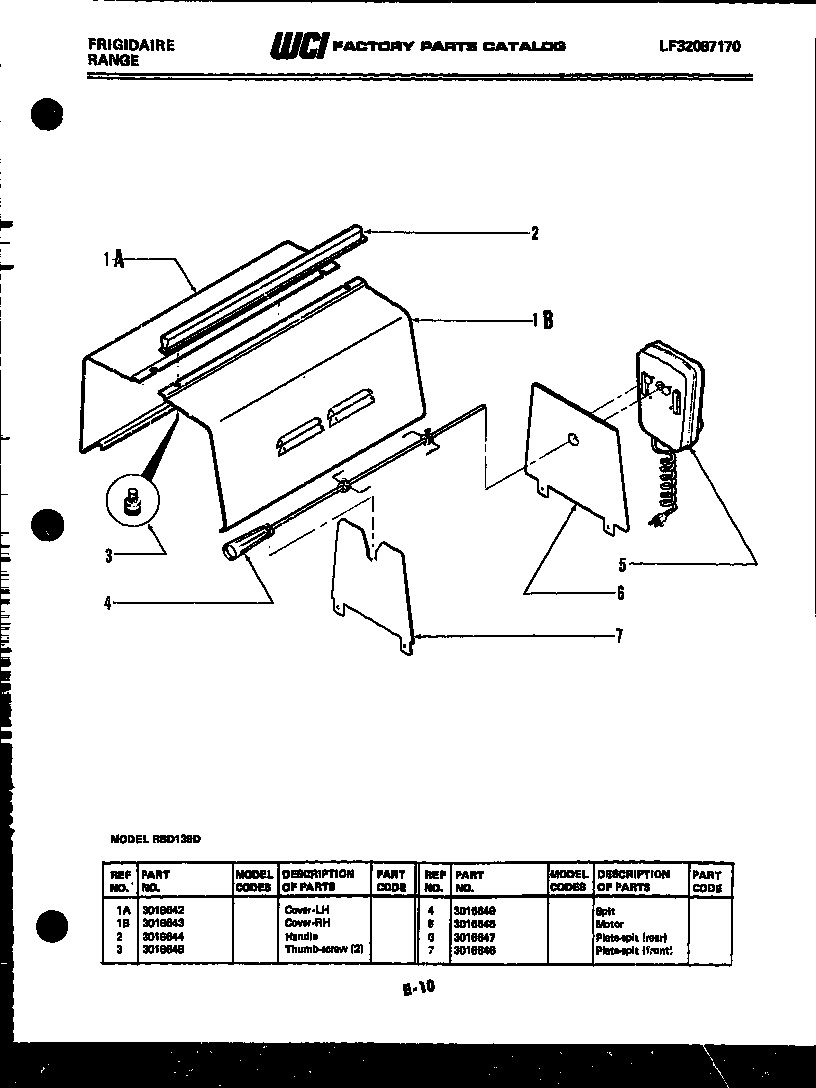

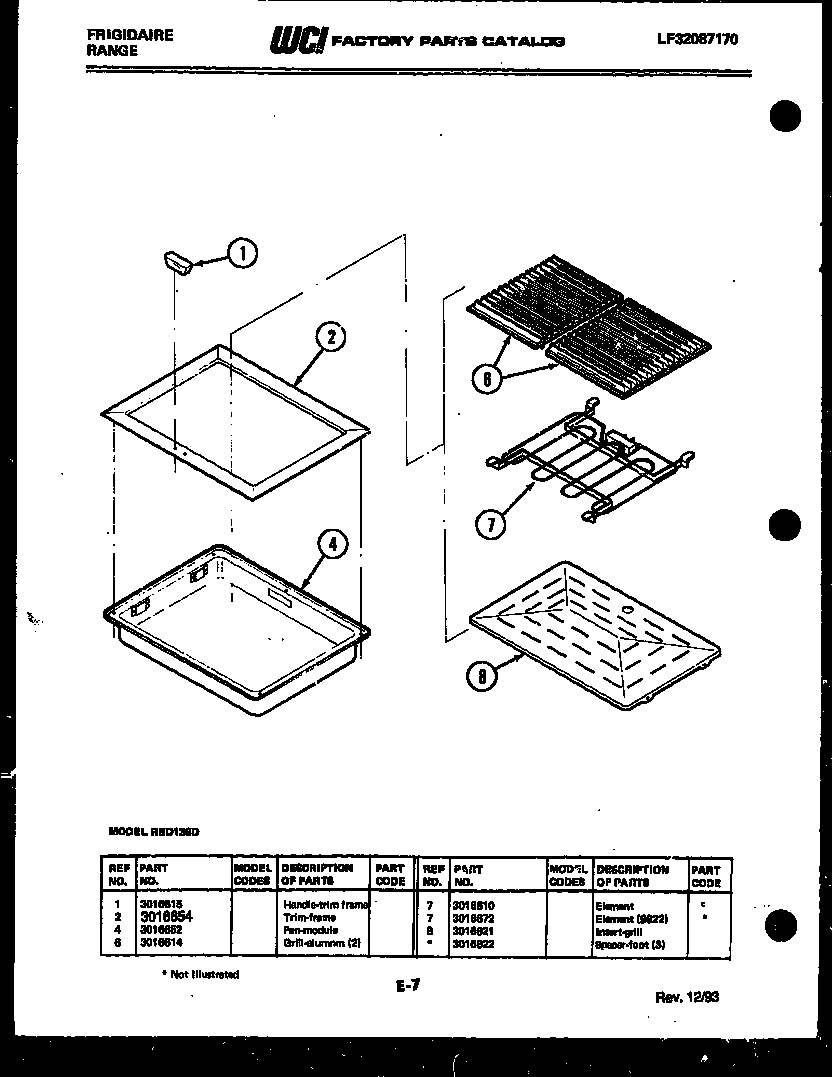

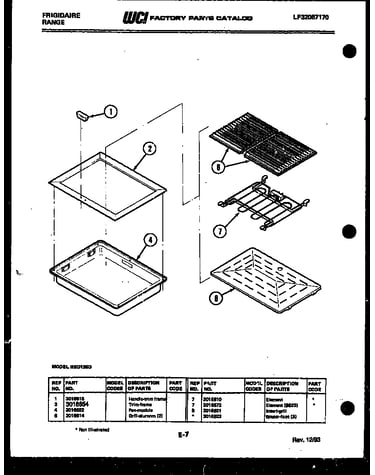

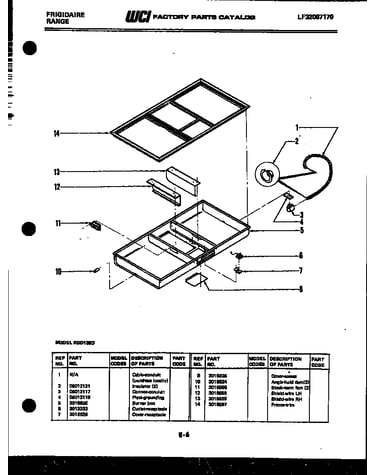

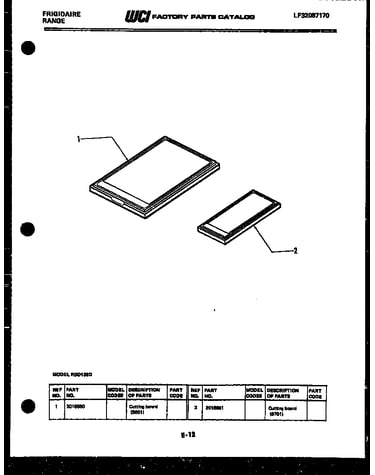

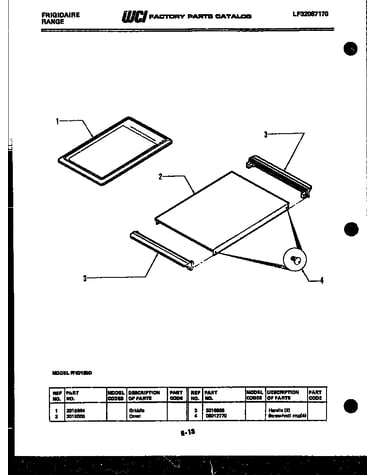

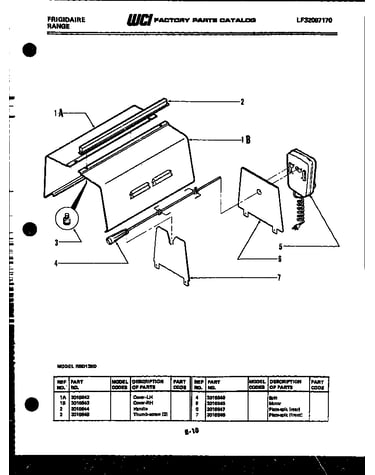

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Surface Element 08067763
#5

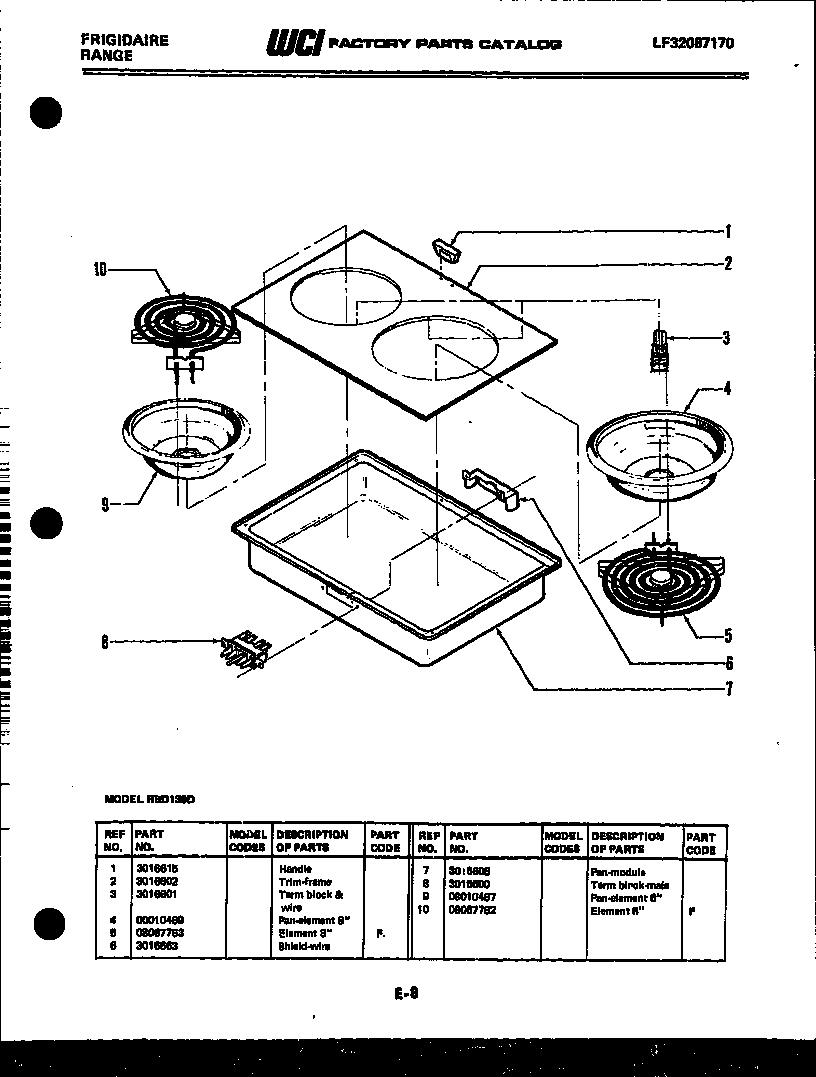

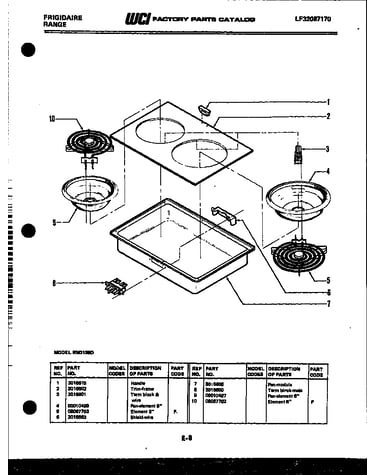

Cooktop parts diagram

Surface element

Part #08067763

Replaced by #316442301

?
Manufacturer substitution
This part replaces 08067763. Substitute parts can look different from the original.
BEST SELLER
$23.22 |
21% OFF Phone Price : $29.22
In Stock
Surface Pan 08010469
#4

Cooktop parts diagram

Surface pan

Part #08010469

Replaced by #316048413

?
Manufacturer substitution
This part replaces 08010469. Substitute parts can look different from the original.
BEST SELLER
$7.30 |
12% OFF Phone Price : $8.30
In Stock
Cooktop Surface Element 08067762
#10

Cooktop parts diagram

Cooktop surface element

Part #08067762

Replaced by #318372211

?
Manufacturer substitution
This part replaces 08067762. Substitute parts can look different from the original.
BEST SELLER
$37.93 |
14% OFF Phone Price : $43.93
In Stock
Surface Pan 08010467
#9

Cooktop parts diagram

Surface pan

Part #08010467

Replaced by #316048414

?
Manufacturer substitution
This part replaces 08010467. Substitute parts can look different from the original.
This item is not returnable
$5.97 |
14% OFF Phone Price : $6.97
In Stock
Clip 3016631
#14

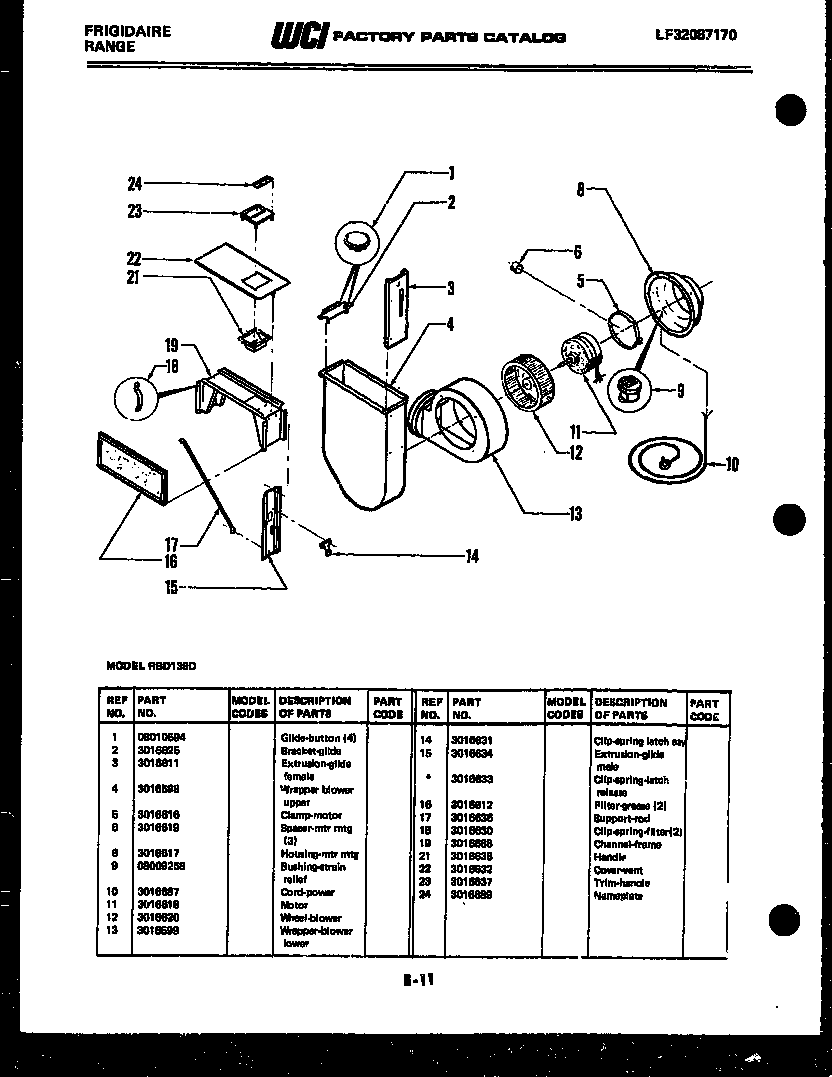

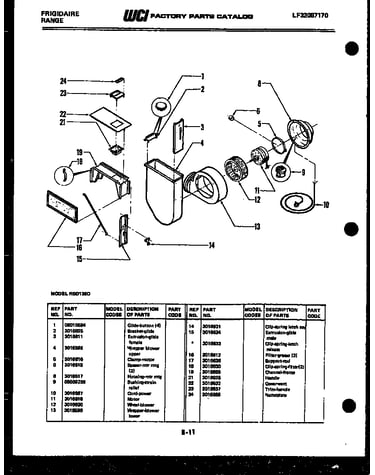

Wheel and wrapper blower parts diagram

Clip

Part #3016631

The manufacturer no longer makes this part, and there's no substitute part

Insulator 3016660
#8

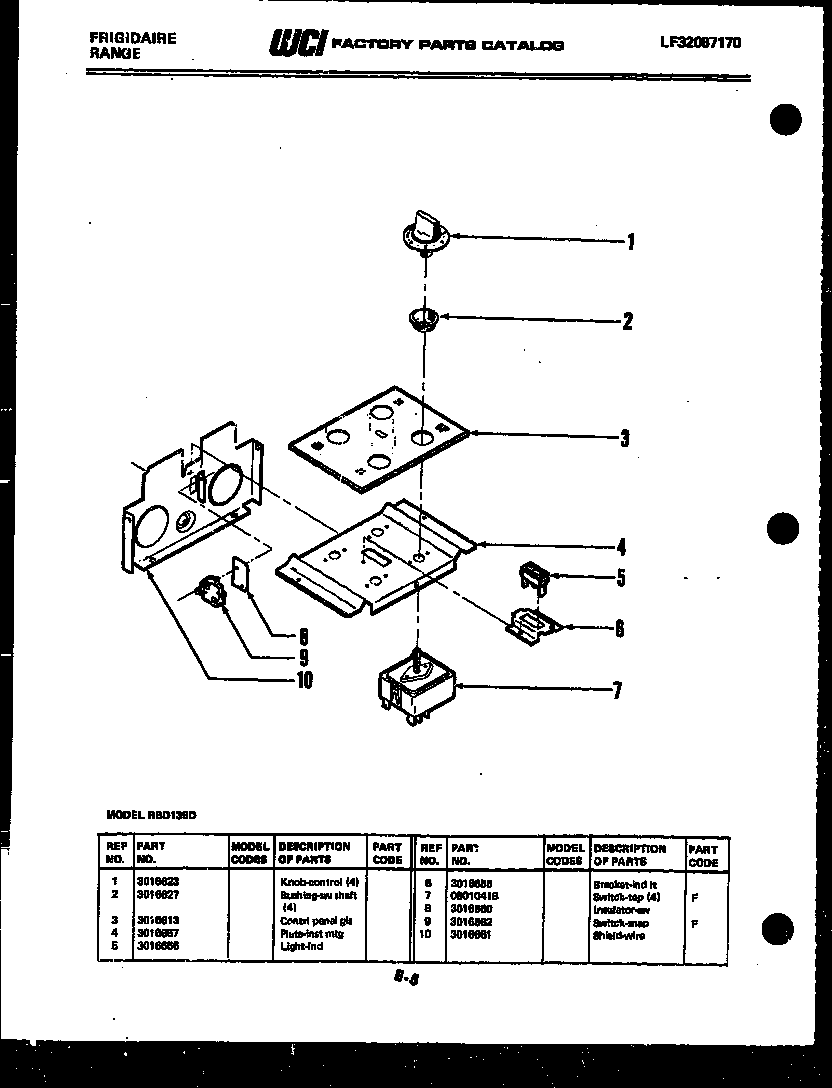

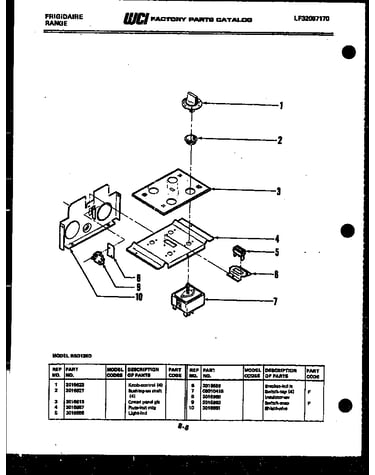

Control panel diagram

Insulator

Part #3016660

The manufacturer no longer makes this part, and there's no substitute part

Bushing 3016627
#2

Control panel diagram

Bushing

Part #3016627

The manufacturer no longer makes this part, and there's no substitute part

Cover 3016632
#22

Wheel and wrapper blower parts diagram

Cover

Part #3016632

The manufacturer no longer makes this part, and there's no substitute part

Element 3016603
#1

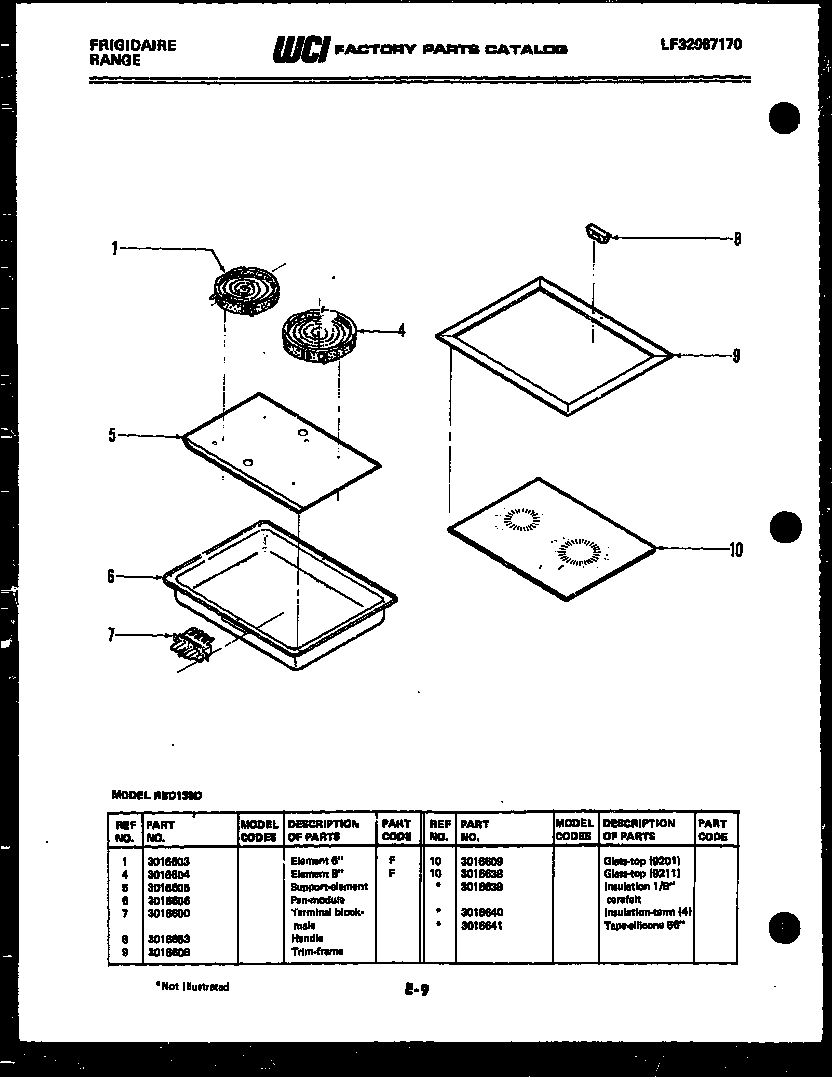

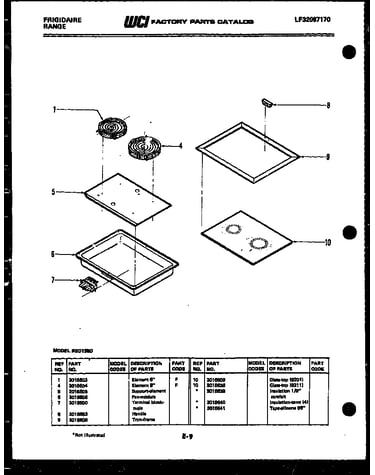

Element parts diagram

Element

Part #3016603

The manufacturer no longer makes this part, and there's no substitute part

Clamp 3016668
#1

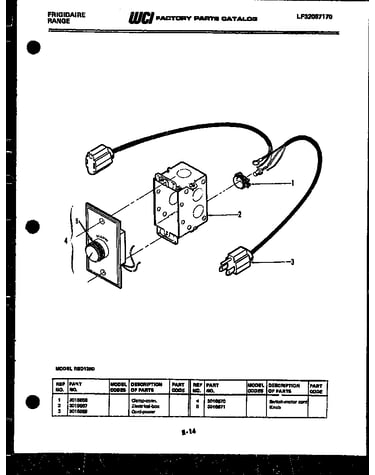

Electrical parts diagram

Clamp

Part #3016668

The manufacturer no longer makes this part, and there's no substitute part
