Model # 41797802791 Official Kenmore washer/dryer

Here are the diagrams and repair parts for Official Kenmore 41797802791 washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

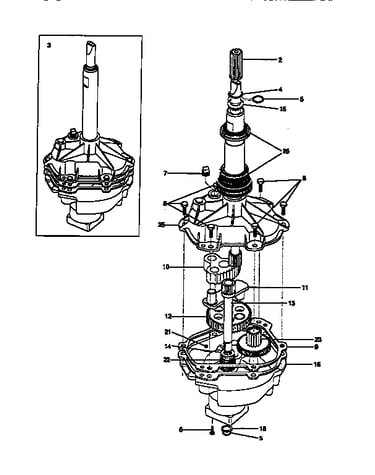

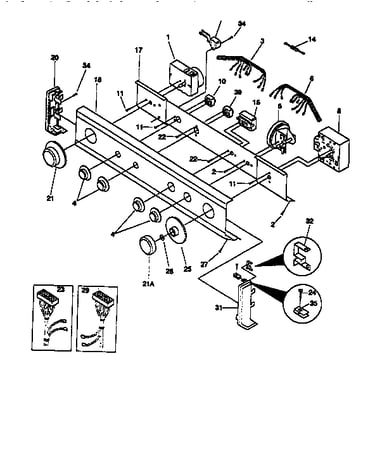

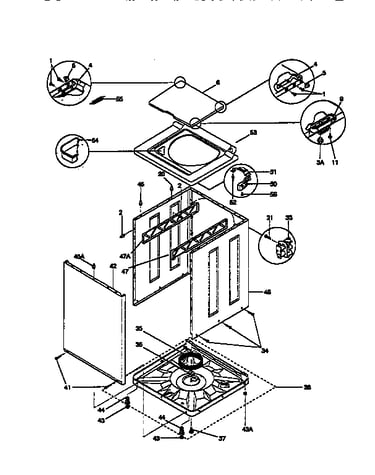

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 234 parts  |
Bearing 5303281008
#12

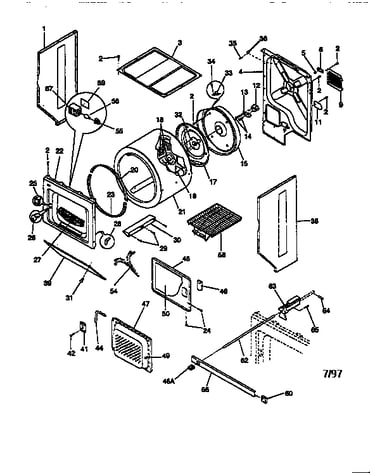

Cabinet, drum, heater diagram

Bearing

Part #5303281008

Replaced by #131825900

?
Manufacturer substitution
This part replaces 5303281008. Substitute parts can look different from the original.
BEST SELLER
$7.31 |
12% OFF Phone Price : $8.31
In Stock
Idler Arm 131623300
#23

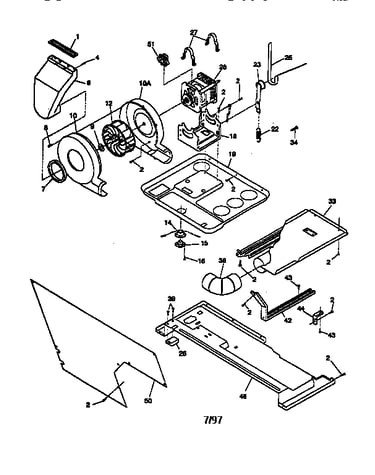

Motor, blower, belt diagram

Idler arm

Part #131623300

Replaced by #5304507499

?
Manufacturer substitution
This part replaces 131623300. Substitute parts can look different from the original.
BEST SELLER
$30.58 |
16% OFF Phone Price : $36.58
In Stock
Shaft Drum 131378400
#32

Cabinet, drum, heater diagram

Shaft drum

Part #131378400

Replaced by #131777700

?
Manufacturer substitution
This part replaces 131378400. Substitute parts can look different from the original.
BEST SELLER
$58.75 |
9% OFF Phone Price : $64.75
In Stock
Belt 131234000
#28

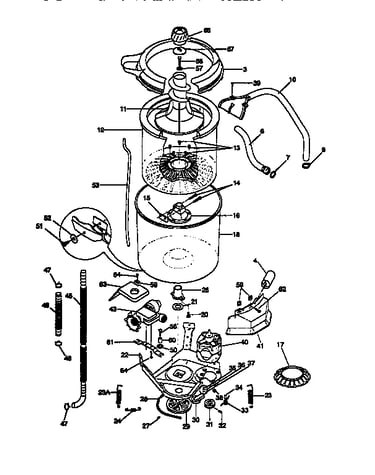

Tubs, hoses, motor diagram

Belt

Part #131234000

Replaced by #134511600

?
Manufacturer substitution
This part replaces 131234000. Substitute parts can look different from the original.
BEST SELLER
$20.17 |
23% OFF Phone Price : $26.17
In Stock
Lint Trap 131152700
#27

Cabinet, drum, heater diagram

Lint trap

Part #131152700

Replaced by #5304516871

?
Manufacturer substitution
This part replaces 131152700. Substitute parts can look different from the original.
BEST SELLER
$39.98 |
13% OFF Phone Price : $45.98
In Stock
Catch 5307521419
#25

Cabinet, drum, heater diagram

Catch

Part #5307521419

Replaced by #131658800

?
Manufacturer substitution
This part replaces 5307521419. Substitute parts can look different from the original.
BEST SELLER
$47.61 |
11% OFF Phone Price : $53.61
In Stock
Glide 5303937123
#20

Cabinet, drum, heater diagram

Glide

Part #5303937123

Replaced by #5303937139

?
Manufacturer substitution
This part replaces 5303937123. Substitute parts can look different from the original.
BEST SELLER
$35.84 |
14% OFF Phone Price : $41.84
In Stock
Electrolux Dryer Blower Wheel (replaces 5303212513) 131476300
#12

Motor, blower, belt diagram

Electrolux dryer blower wheel (replaces 5303212513)

Part #131476300

BEST SELLER
$46.20 |
11% OFF Phone Price : $52.20
In Stock
Heater Housing 131475300
#15

Cabinet, drum, heater diagram

Heater housing

Part #131475300

Replaced by #131475320

?
Manufacturer substitution
This part replaces 131475300. Substitute parts can look different from the original.
BEST SELLER
$139.24 |
8% OFF Phone Price : $151.24
In Stock
Thermostat 5303209192
#36

Cabinet, drum, heater diagram

Thermostat

Part #5303209192

Replaced by #134120900

?
Manufacturer substitution
This part replaces 5303209192. Substitute parts can look different from the original.
BEST SELLER
$26.79 |
18% OFF Phone Price : $32.79
In Stock
