Model # JBP89SM2SS Official GE electric range

Here are the diagrams and repair parts for Official GE JBP89SM2SS electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

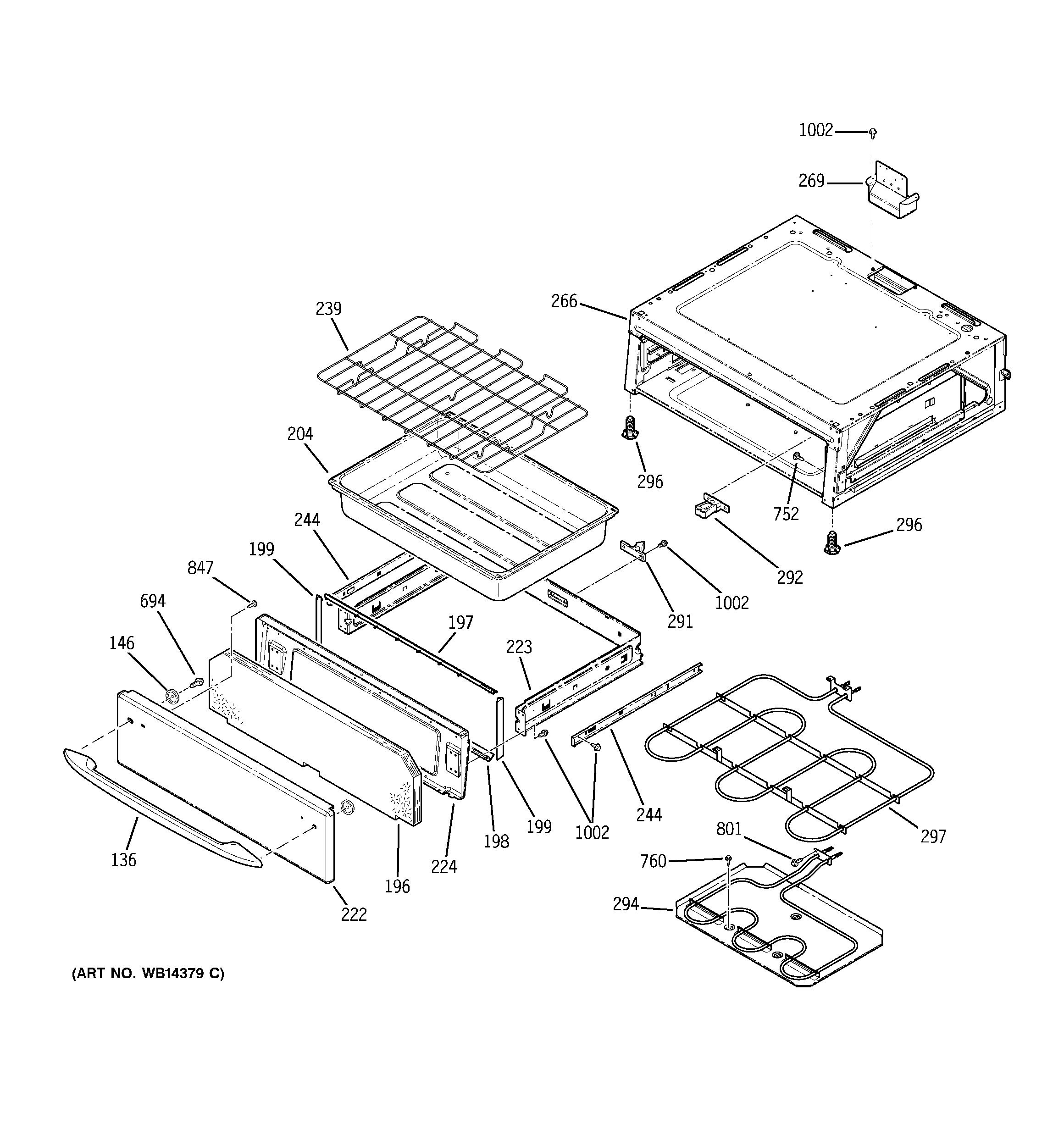

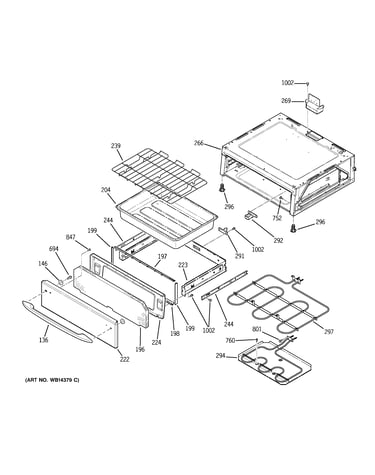

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Range Oven Light Bulb WX12X1510
#257

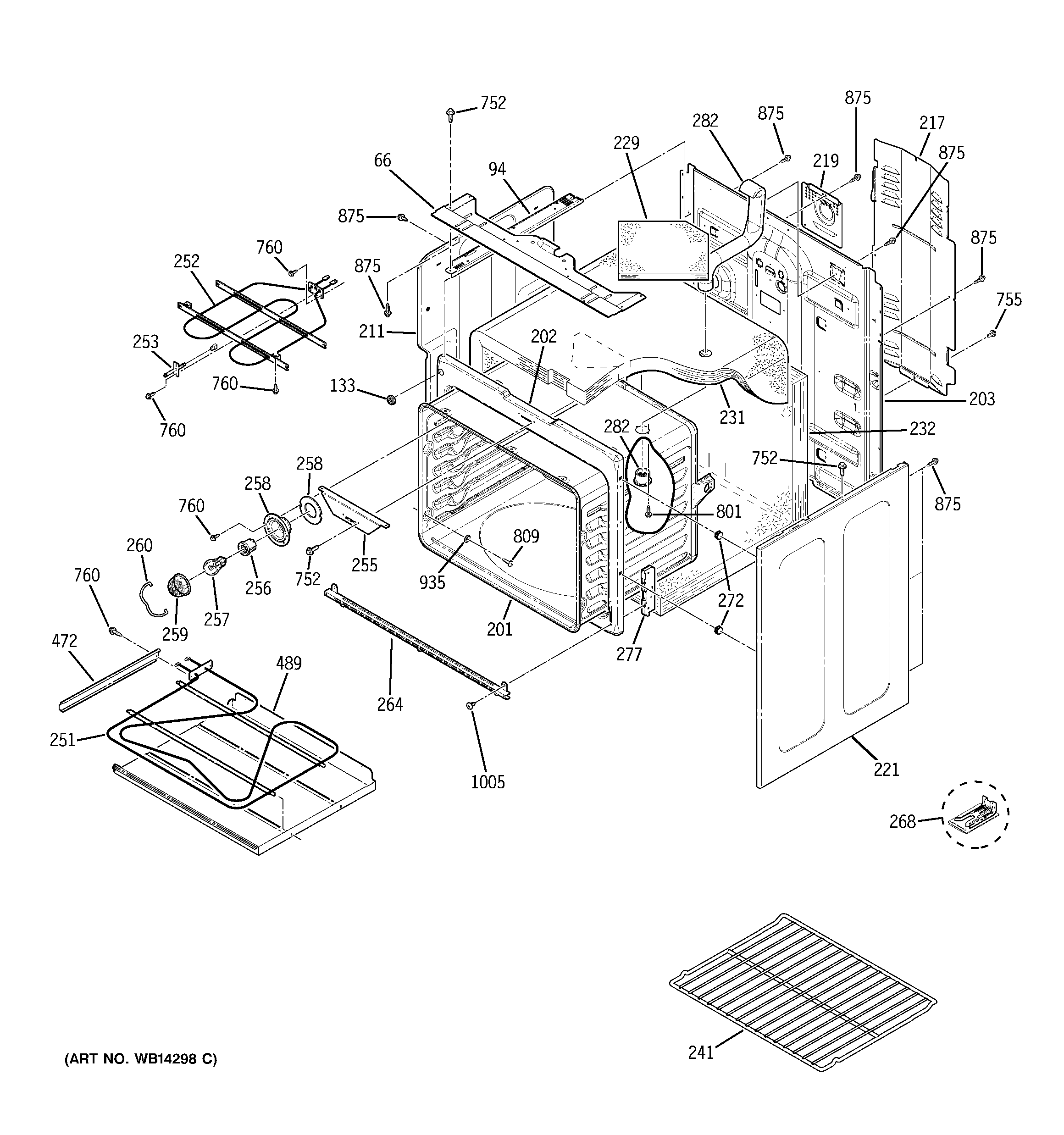

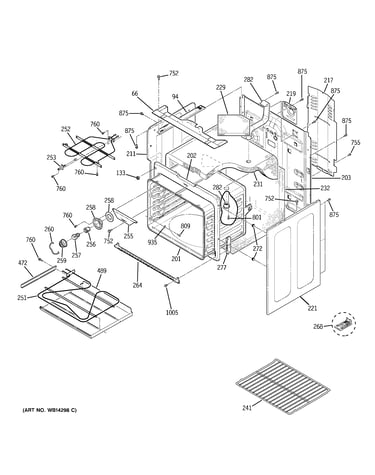

Body parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
Back Order
Oven Control WB27T10864
#16

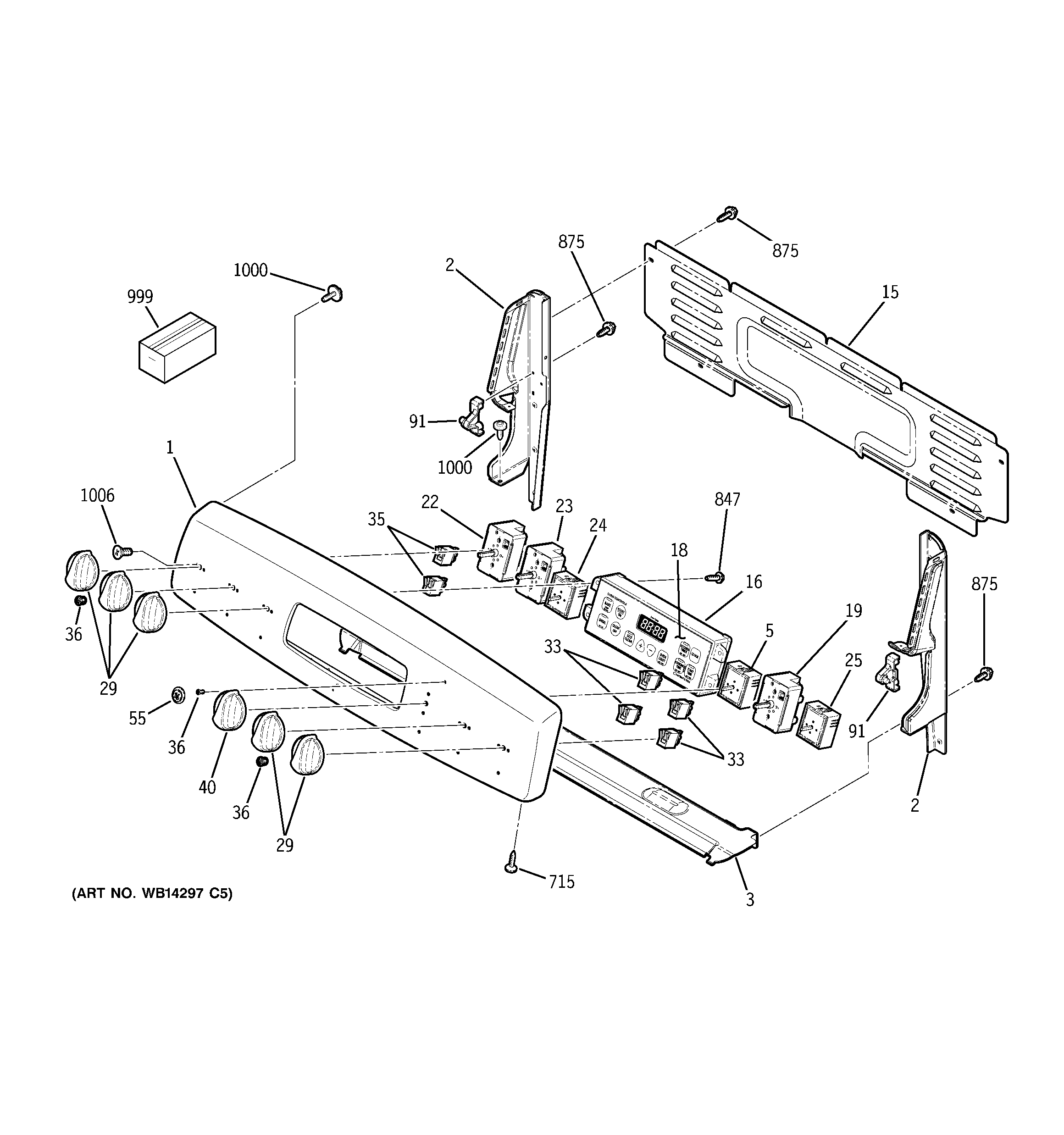

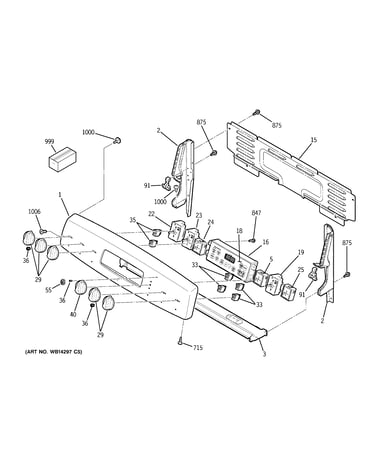

Control panel diagram

Oven control

Part #WB27T10864

Replaced by #WB27X45466

?
Manufacturer substitution
This part replaces WB27T10864. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$139.52 |
8% OFF Phone Price : $151.52
In Stock
Range Surface Element, Right Front WB30T10126
#58

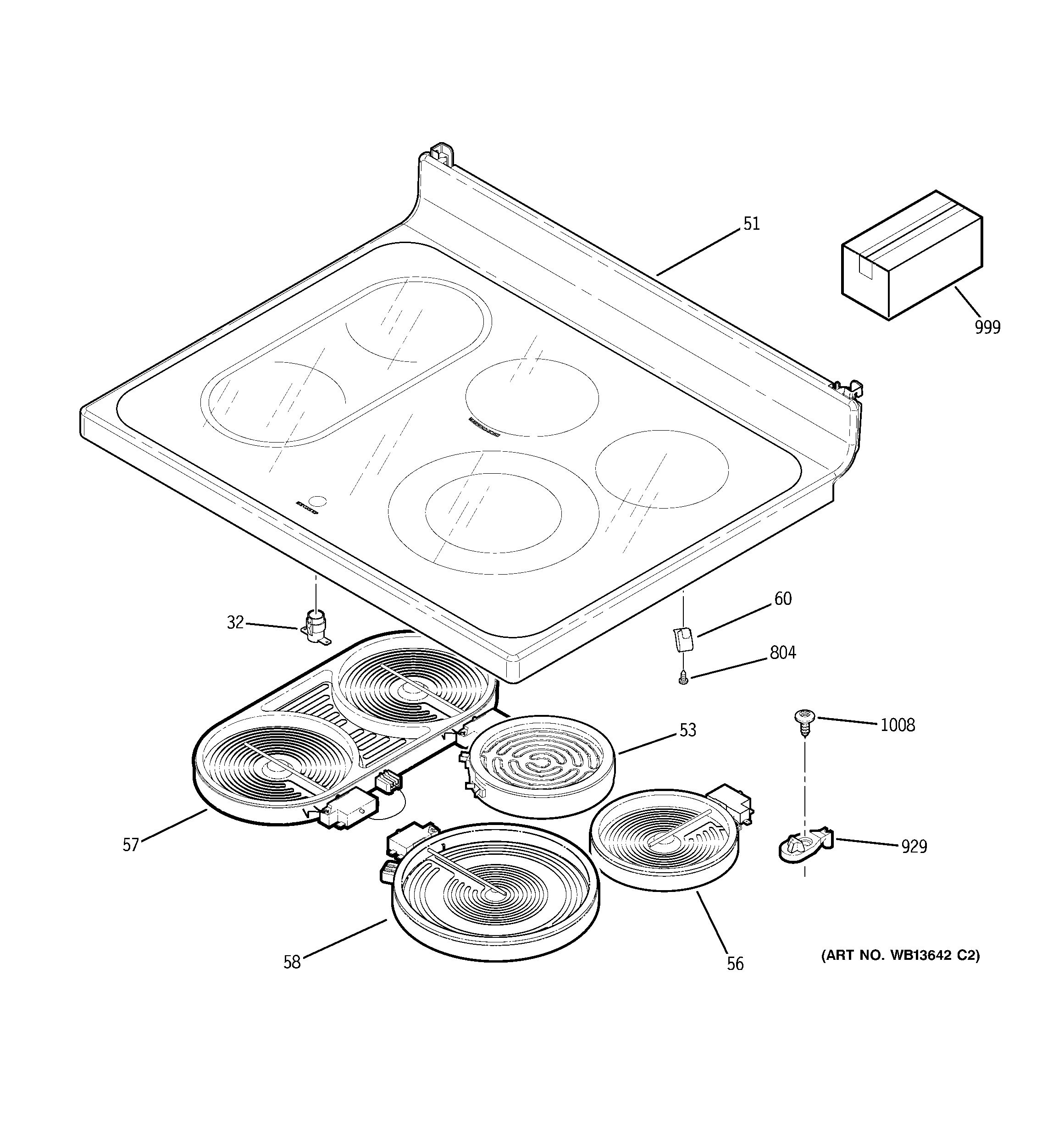

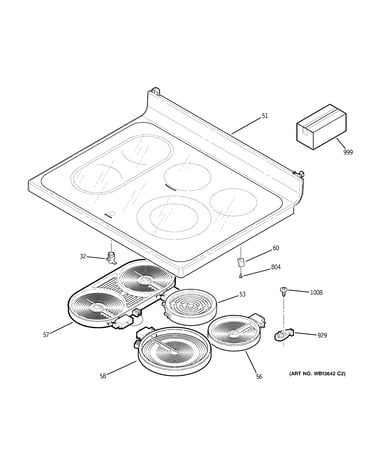

Cooktop diagram

Range surface element, right front

Part #WB30T10126

BEST SELLER
$175.49 |
6% OFF Phone Price : $187.49
In Stock
Range Dual Surface Element Control Switch (replaces Wb24t10031) WB24T10058
#24

Control panel diagram

Range dual surface element control switch (replaces wb24t10031)

Part #WB24T10058

BEST SELLER
$103.81 |
10% OFF Phone Price : $115.81
In Stock
Range Oven Door Middle Glass (replaces Wb55t10191) WB56T10105
#338

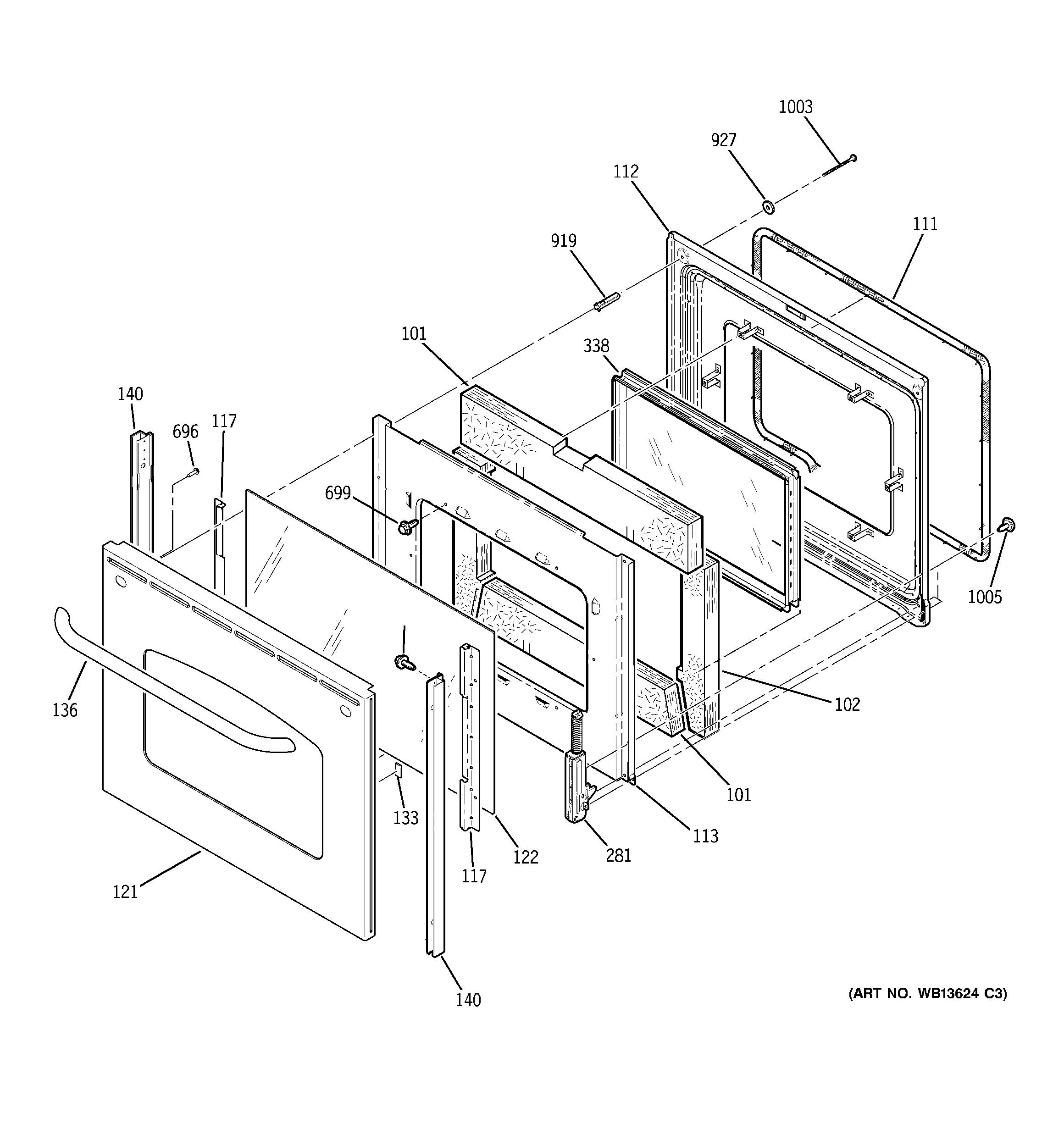

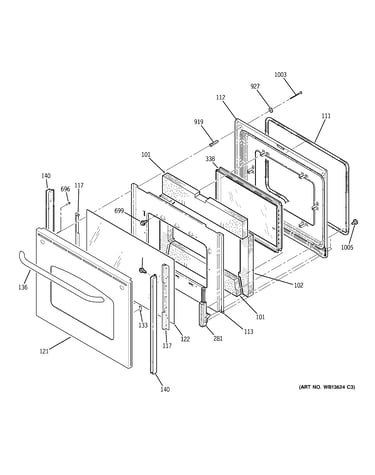

Door diagram

Range oven door middle glass (replaces wb55t10191)

Part #WB56T10105

BEST SELLER
$98.87 |
11% OFF Phone Price : $110.87
In Stock
Cooktop Indicator Light WB27T10668
#32

Cooktop diagram

Cooktop indicator light

Part #WB27T10668

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Halogen Element WB30T10125
#56

Cooktop diagram

Halogen element

Part #WB30T10125

Replaced by #WB30T10129

?
Manufacturer substitution
This part replaces WB30T10125. Substitute parts can look different from the original.
BEST SELLER
$112.74 |
10% OFF Phone Price : $124.74
In Stock
Range Oven Door Gasket WB04T10001
#111

Door diagram

Range oven door gasket

Part #WB04T10001

Replaced by #WB04T10086

?
Manufacturer substitution
This part replaces WB04T10001. Substitute parts can look different from the original.
$39.75 |
13% OFF Phone Price : $45.75
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB01M0001
Screw

Part #WB01M0001

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01M0001. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

  • Foam Tape WB01T10052
    Foam tape
    $7.88 |
    11% OFF Phone Price : $8.88
