Model # JGS750DEF4WW Official GE gas range
Here are the diagrams and repair parts for Official GE JGS750DEF4WW gas range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
JGS750DEF4WW Ranges
#217

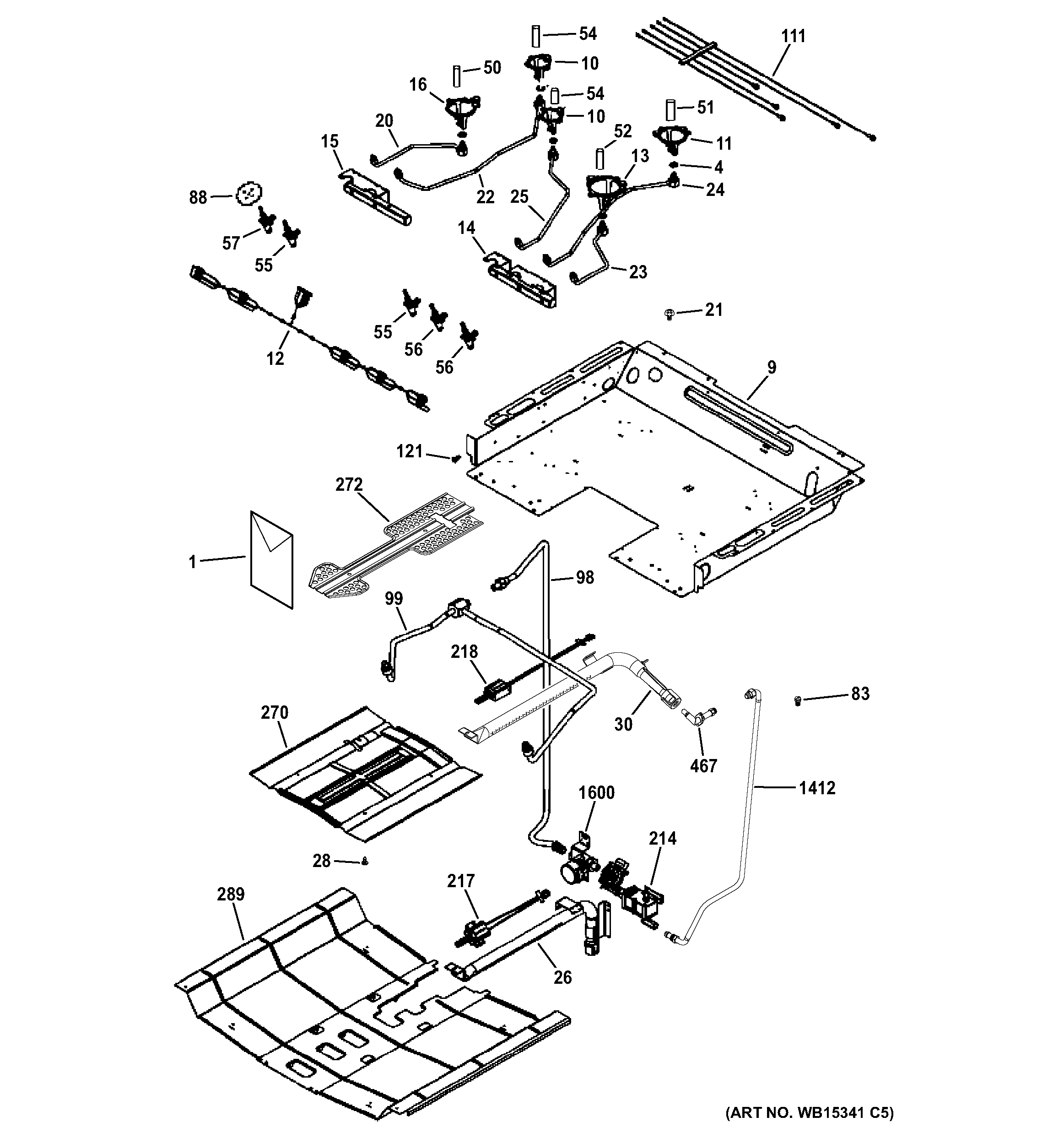

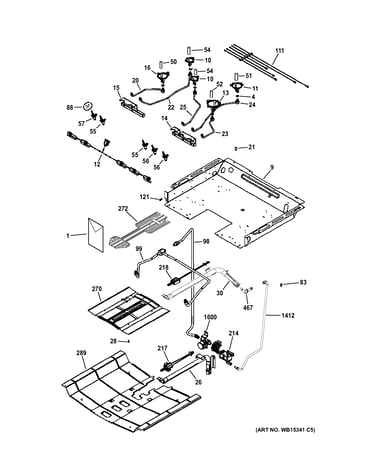

Gas & burner parts diagram
Oven igniter
Part #WB13K10026
Replaced by #WB13K21
?
Manufacturer substitution
This part replaces WB13K10026. Substitute parts can look different from the original.
$62.58 |
9% OFF Phone Price : $68.58
In Stock
#150

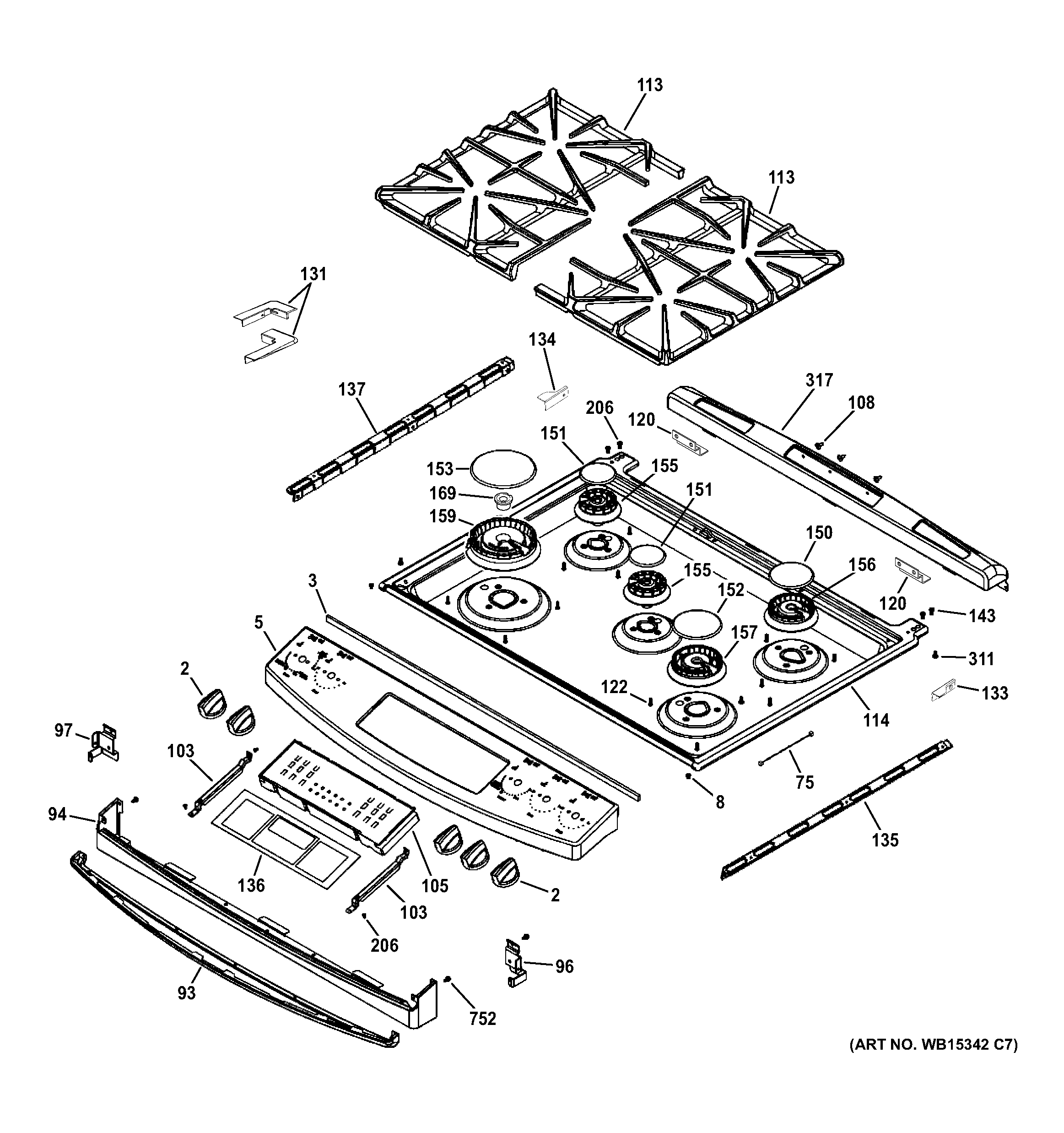

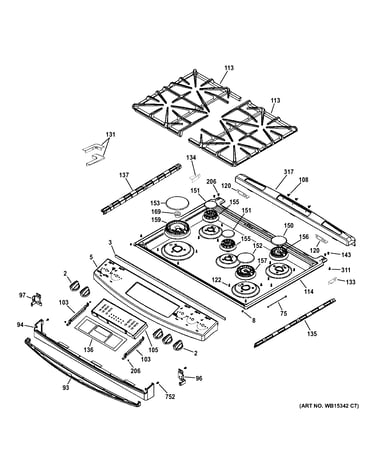

Control panel & cooktop diagram
Range surface burner cap
Part #WB29K10023
$29.22 |
17% OFF Phone Price : $35.22
In Stock
#57
Gas & burner parts diagram
Range surface burner valve
Part #WB21X20612
This item is not returnable
$23.97 |
20% OFF Phone Price : $29.97
In Stock
#110

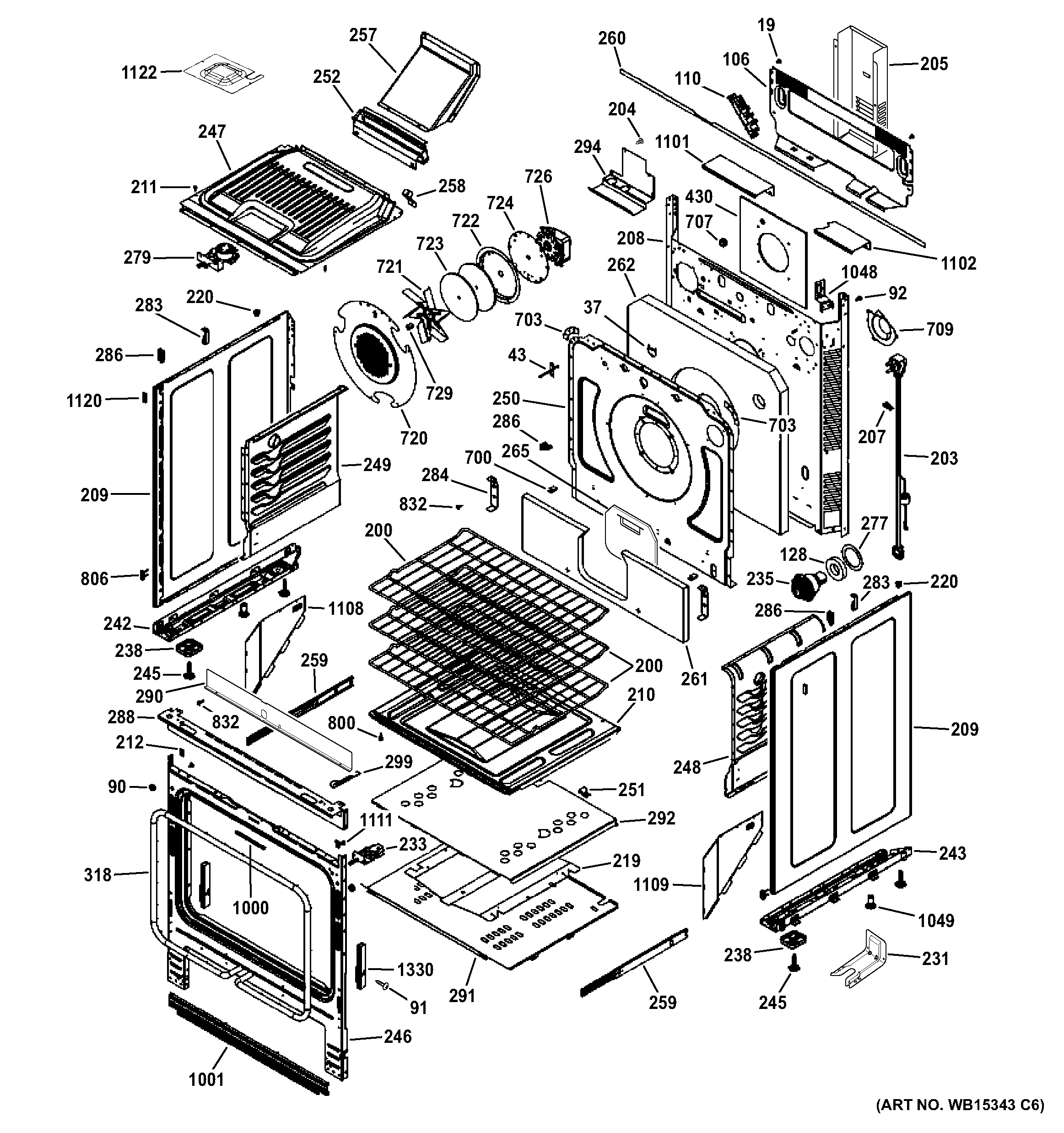

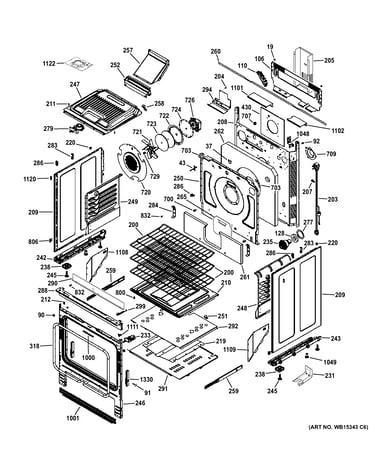

Body parts diagram
Range spark module
Part #WB13X24741
This item is not returnable
$23.82 |
20% OFF Phone Price : $29.82
In Stock
#152
Control panel & cooktop diagram
Range surface burner cap
Part #WB29K10024
$17.49 |
10% OFF Phone Price : $19.49
Back Order
#43
Body parts diagram
Sensor
Part #WB24X5340
Replaced by #WB23X5340
?
Manufacturer substitution
This part replaces WB24X5340. Substitute parts can look different from the original.
$134.63 |
8% OFF Phone Price : $146.63
In Stock
#151
Control panel & cooktop diagram
Range surface burner cap
Part #WB29K10022
$11.04 |
15% OFF Phone Price : $13.04
In Stock
#157
Control panel & cooktop diagram
Range surface burner head
Part #WB16T10046
$34.43 |
15% OFF Phone Price : $40.43
Back Order
#155
Control panel & cooktop diagram
Range surface burner head (replaces wb16k10024)
Part #WB16K10070
$31.16 |
16% OFF Phone Price : $37.16
Back Order
#338

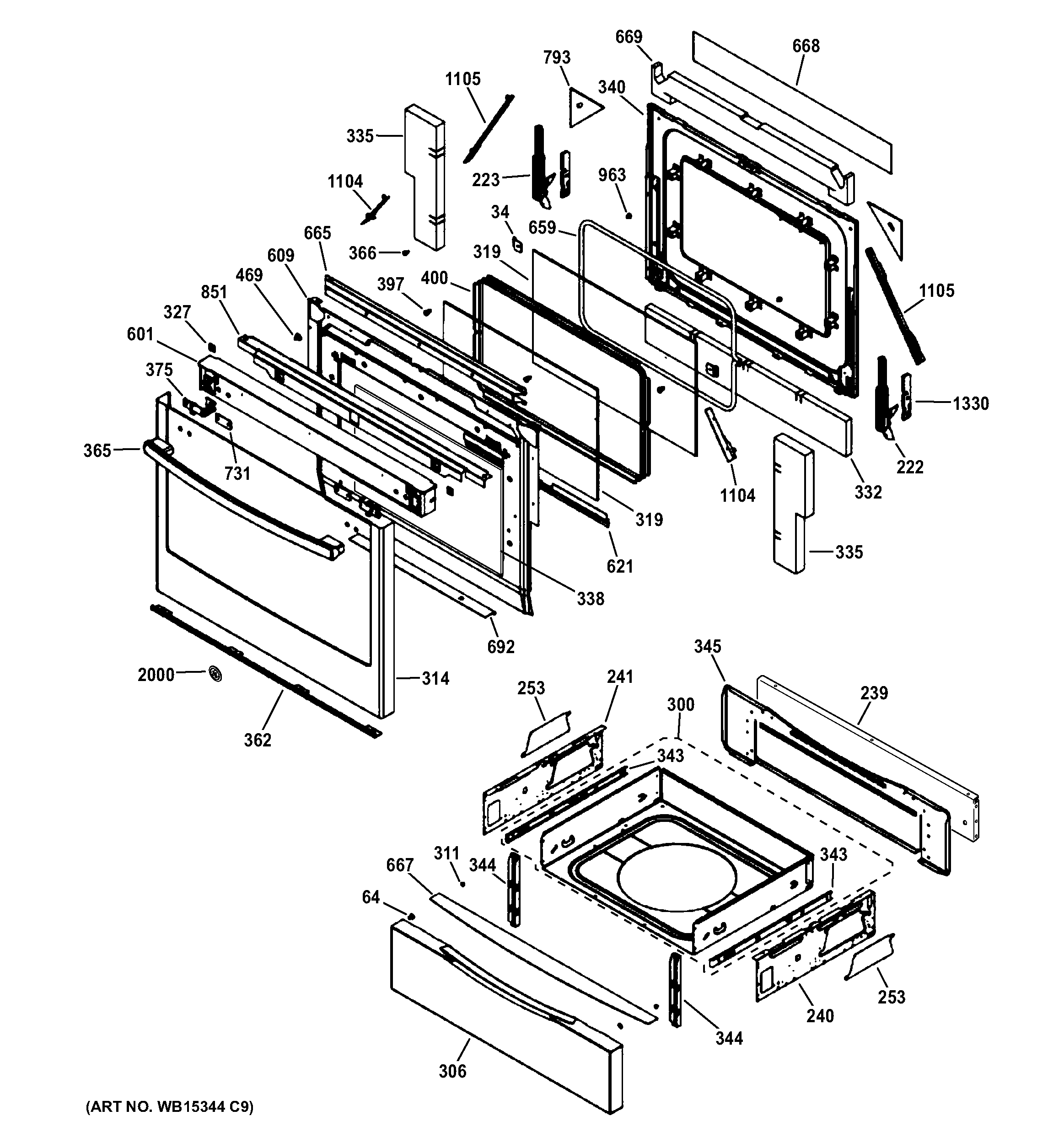

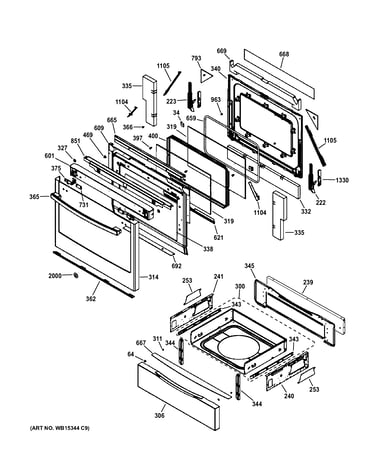

Door & drawer parts diagram
Range oven door outer glass
Part #WB56X23809
$90.18 |
6% OFF Phone Price : $96.18
In Stock
