Kenmore
Electric Cooktop

Model # 79041221903 Official Kenmore cooktop

Here are the diagrams and repair parts for Official Kenmore 79041221903 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

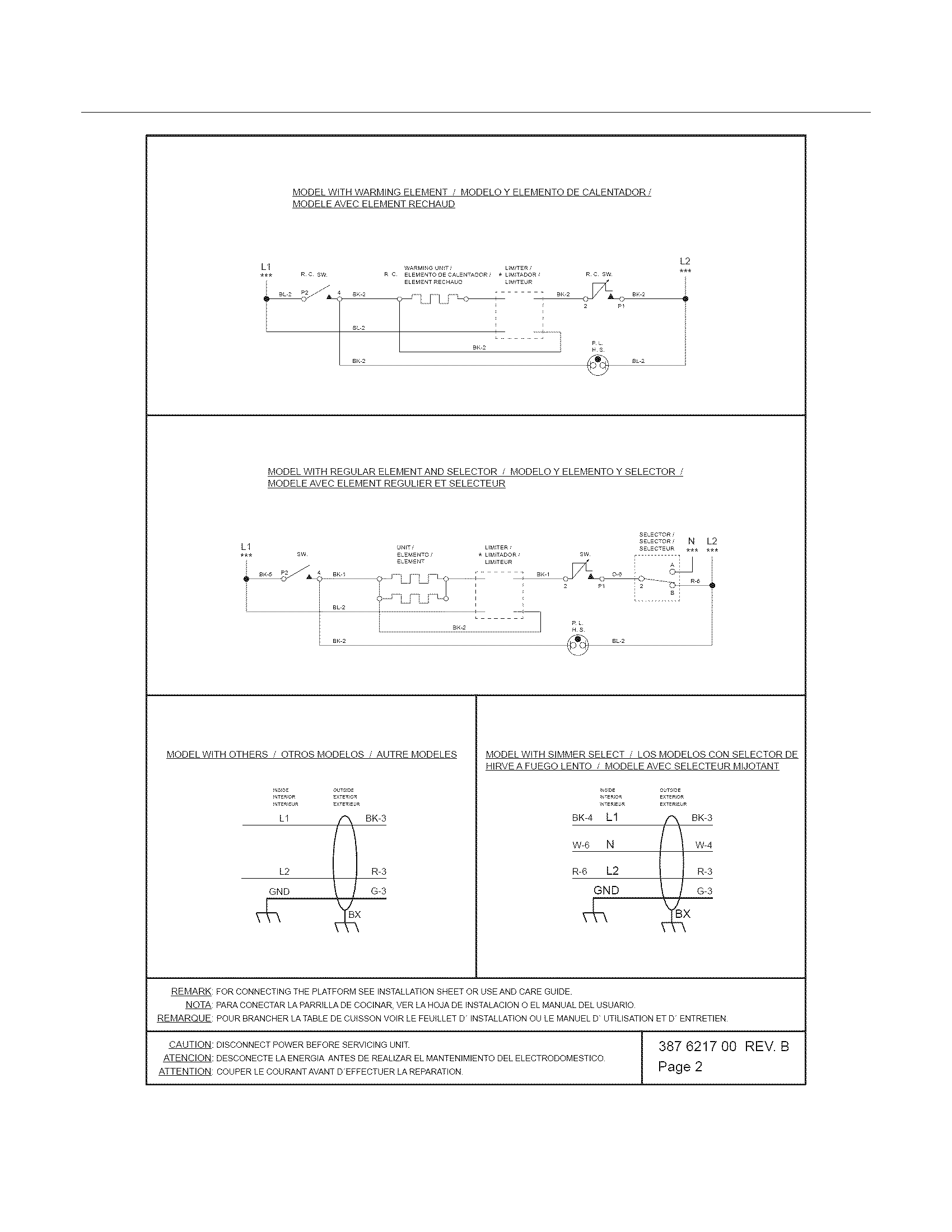

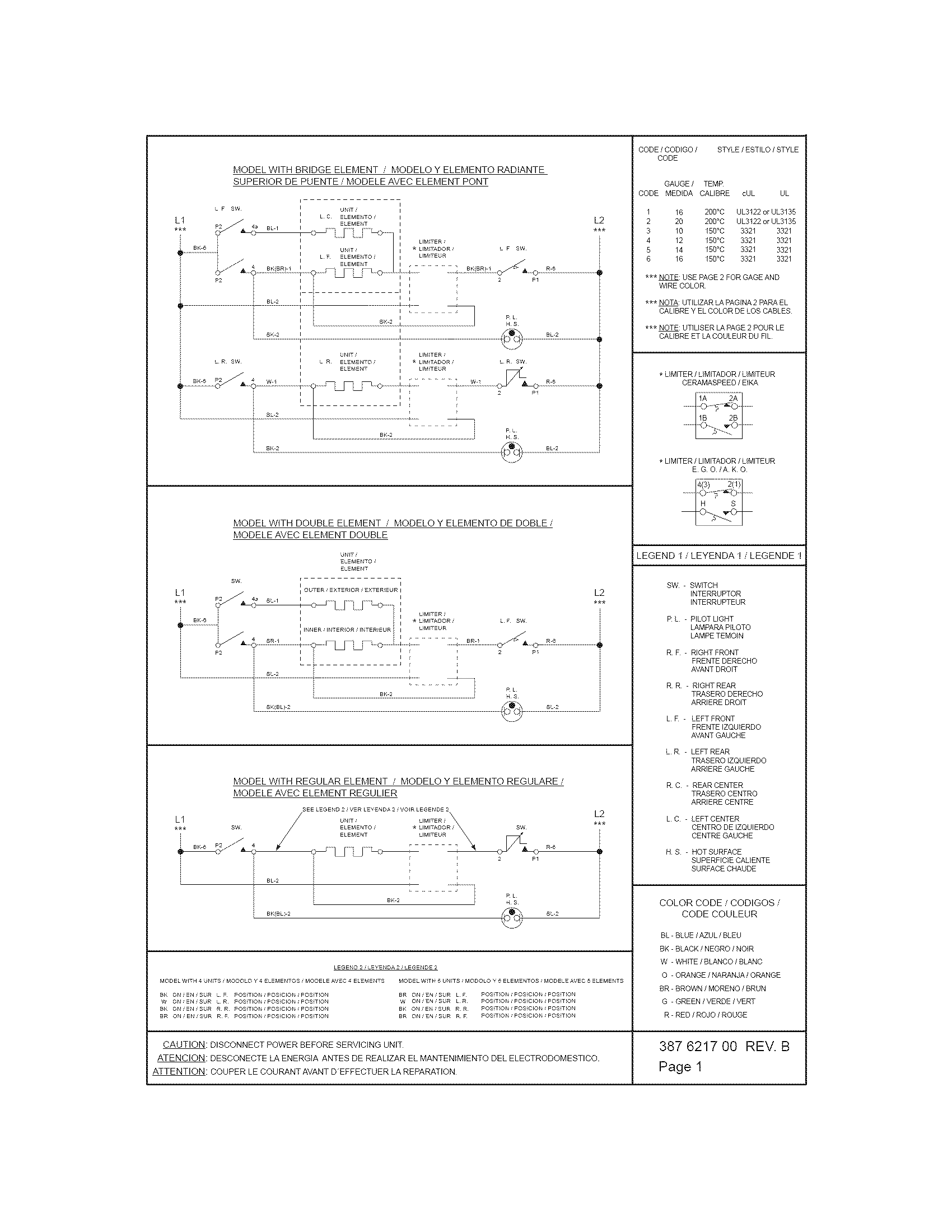

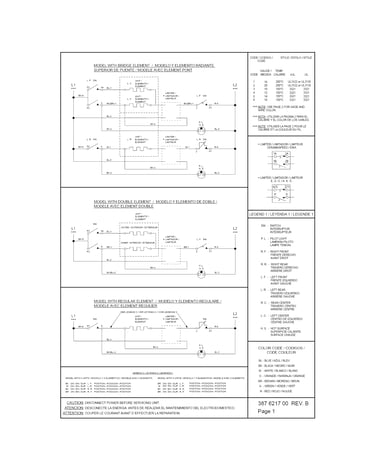

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Cooktop Element Control Switch 305458905
#5

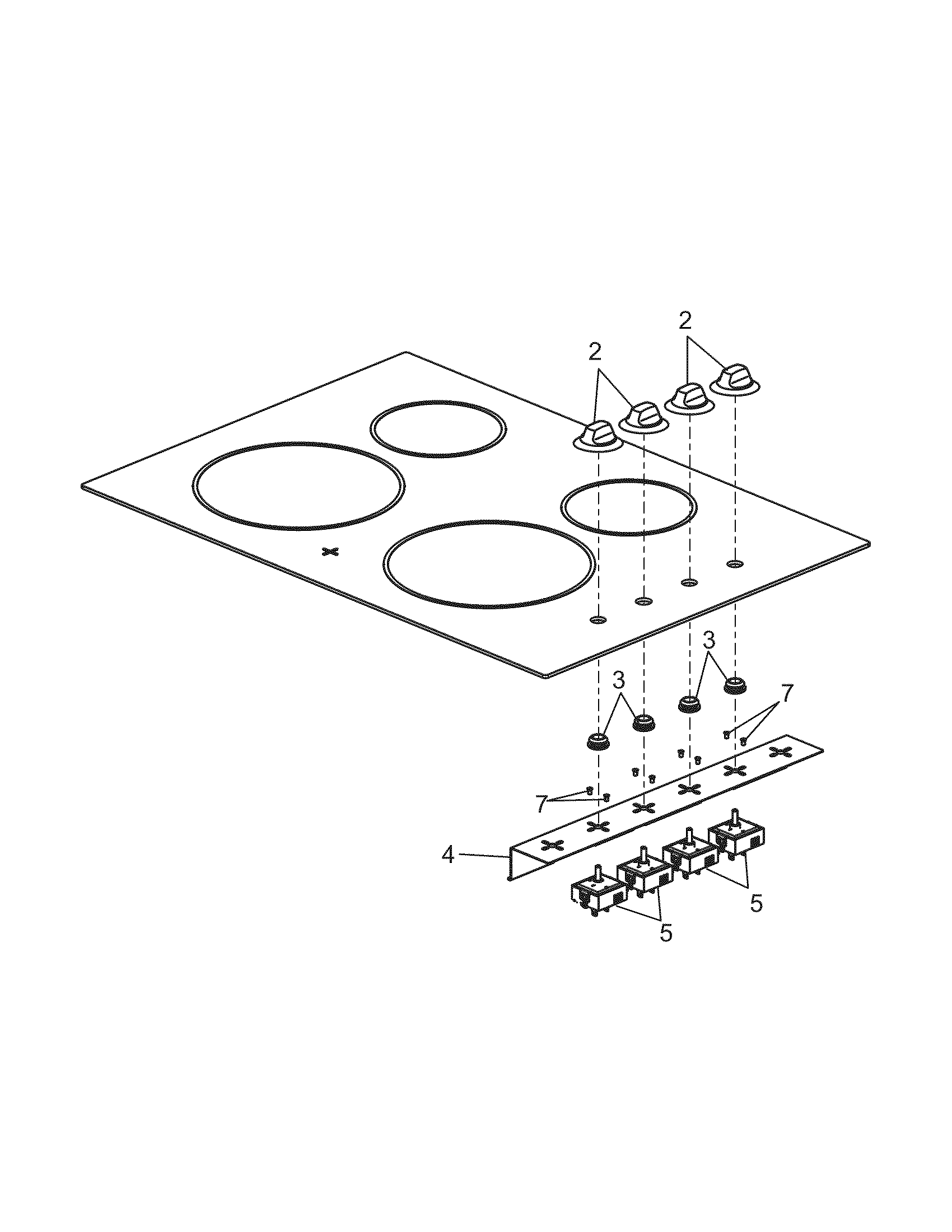

Controls diagram

Cooktop element control switch

Part #305458905

Replaced by #5304526190

?
Manufacturer substitution
This part replaces 305458905. Substitute parts can look different from the original.
$57.30 |
9% OFF Phone Price : $63.30
In Stock
Screw 305376101
#NI

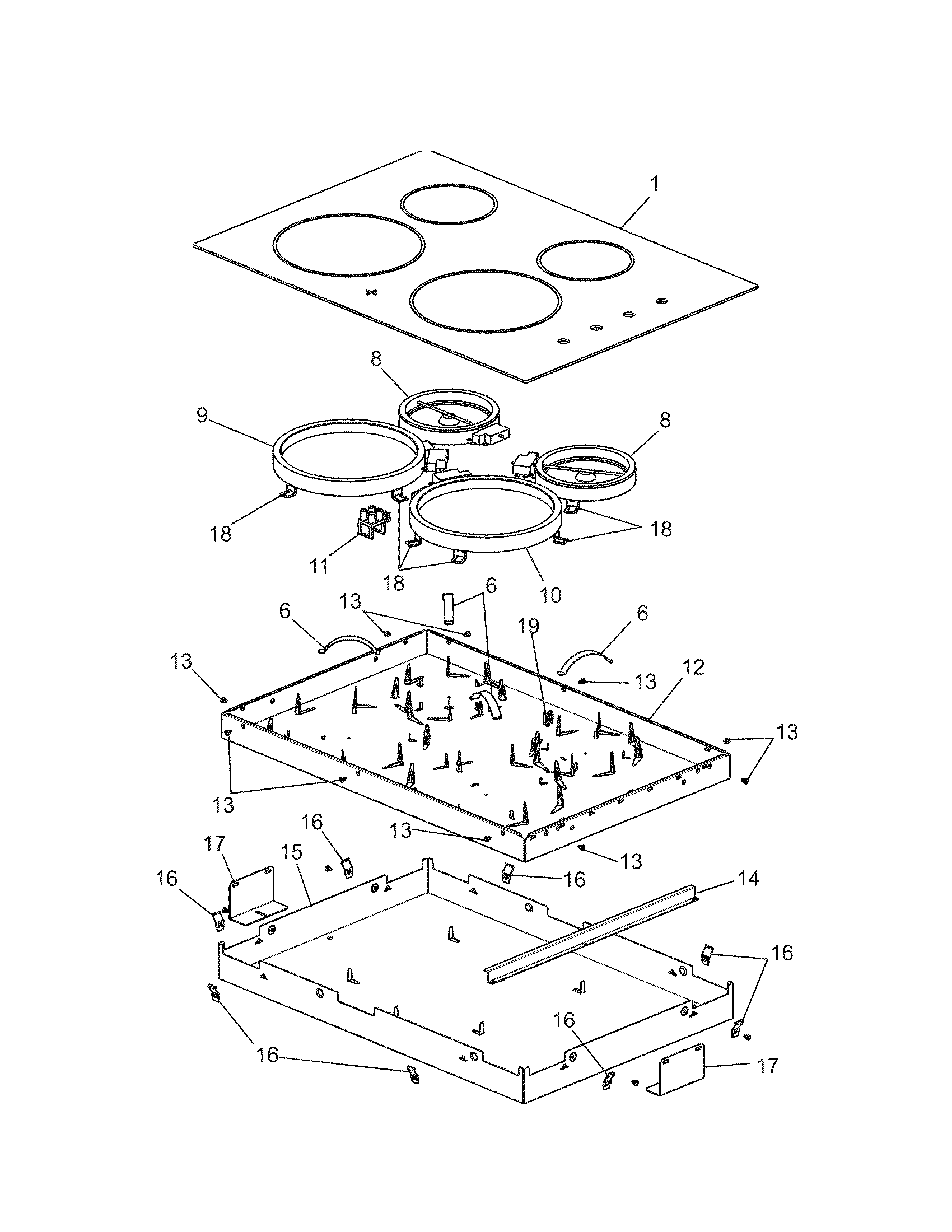

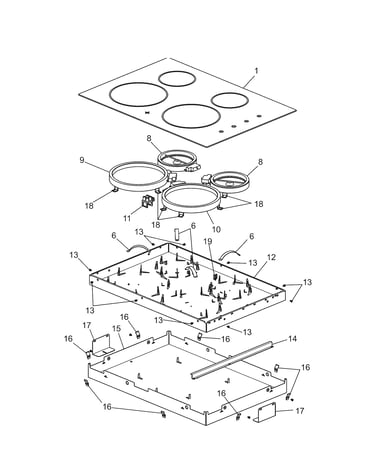

Maintop diagram

Screw

Part #305376101

Replaced by #5308014215

?
Manufacturer substitution
This part replaces 305376101. Substitute parts can look different from the original.
This item is not returnable
$2.49
In Stock
Ikea Cooktop Radiant Element, 9-in 305440417
#10

Maintop diagram

Ikea cooktop radiant element, 9-in

Part #305440417

$170.89 |
7% OFF Phone Price : $182.89
In Stock
Cooktop Installation Bracket 387627700
#17

Maintop diagram

Cooktop installation bracket

Part #387627700

$26.63 |
18% OFF Phone Price : $32.63
In Stock
Cooktop Centering Spring 387174602
#16

Maintop diagram

Cooktop centering spring

Part #387174602

This item is not returnable
$6.63
In Stock
Cooktop Element Control Knob Bushing 387316100
#3

Controls diagram

Cooktop element control knob bushing

Part #387316100

$13.26
In Stock
Installation 318205404
#NI

Controls diagram

Installation

Part #318205404

This item is not returnable
$4.14
In Stock
Retainer 387727700
#19

Maintop diagram

Retainer

Part #387727700

$13.29
In Stock
Support 387683500
#14

Maintop diagram

Support

Part #387683500

$22.37
In Stock
Range Screw 5303307980
#NI

Maintop diagram

Range screw

Part #5303307980

$21.34 |
22% OFF Phone Price : $27.34
In Stock
