Amana
Upright Freezer

Model # 19B Official Amana upright freezer

Here are the diagrams and repair parts for Official Amana 19B upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

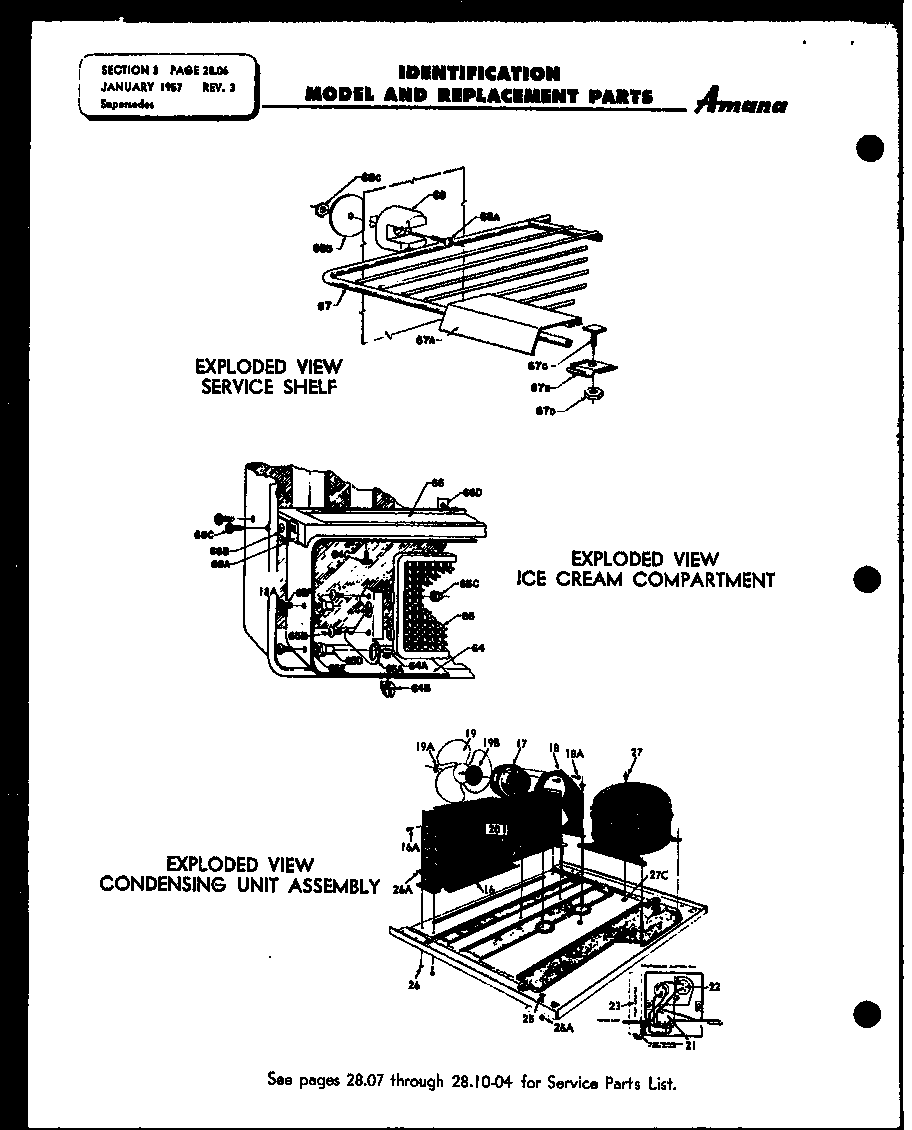

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 518 parts  |
Lawn & Garden Equipment Washer 30590A

#NI

All parts diagram

Lawn & garden equipment washer

Part #30590A

Replaced by #651080

?
Manufacturer substitution
This part replaces 30590A. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Screw, Can Shelf Mtg. 10b X 5/8 Hex. Washer Hd. Slotted A0303501
Screw, can shelf mtg. 10b x 5/8 hex. washer hd. slotted

Part #A0303501

The manufacturer no longer makes this part, and there's no substitute part

Inner Door Liner, Steel D0755101
#45C

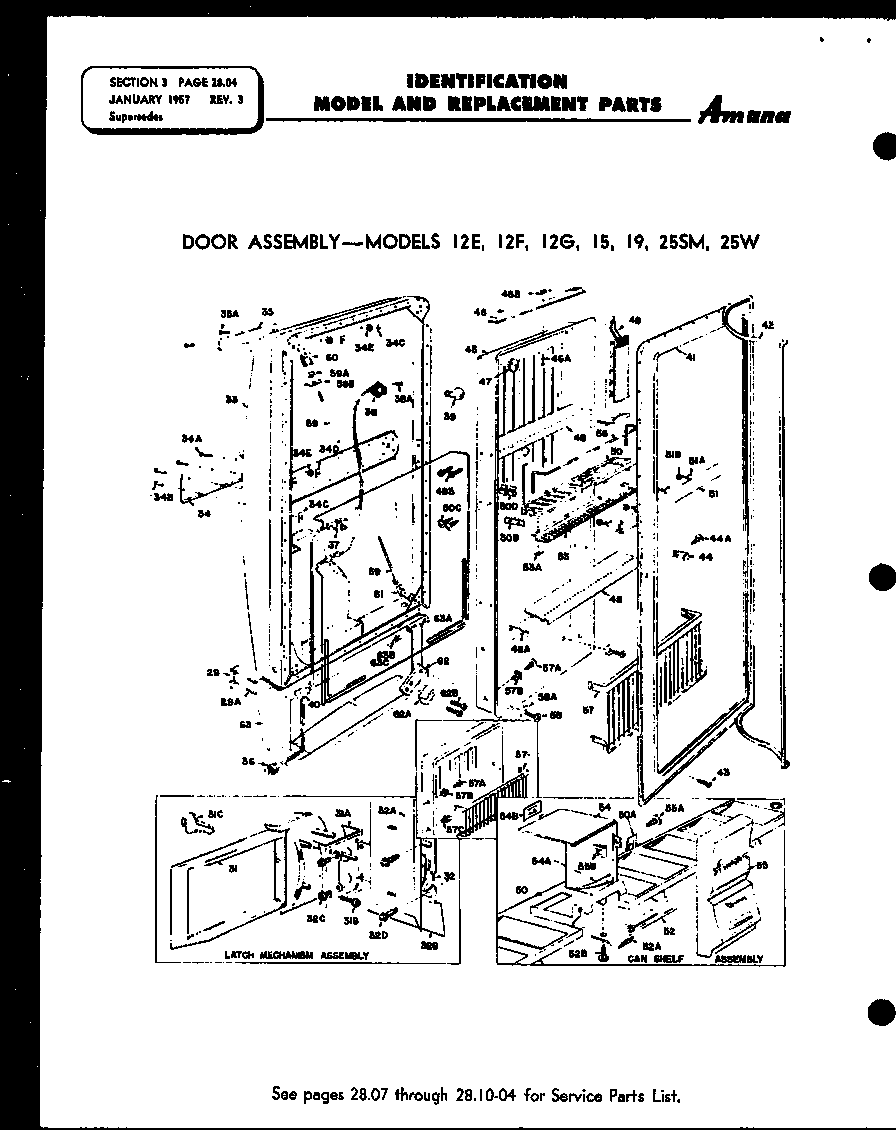

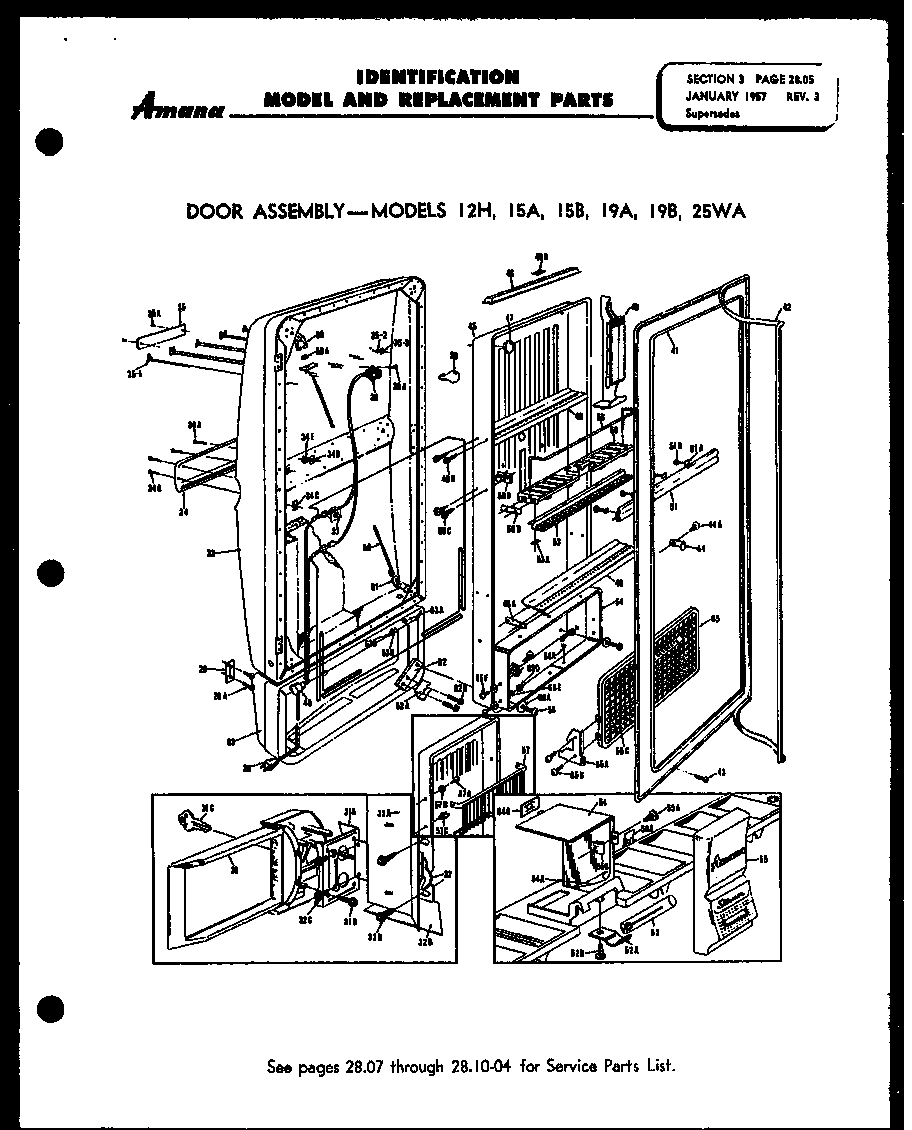

Door assembly - models 12e, 12f, 12g, 15, 19 diagram

Inner door liner, steel

Part #D0755101

The manufacturer no longer makes this part, and there's no substitute part

Heater Wire, Cabinet 168" Lg. B0475607
#9C

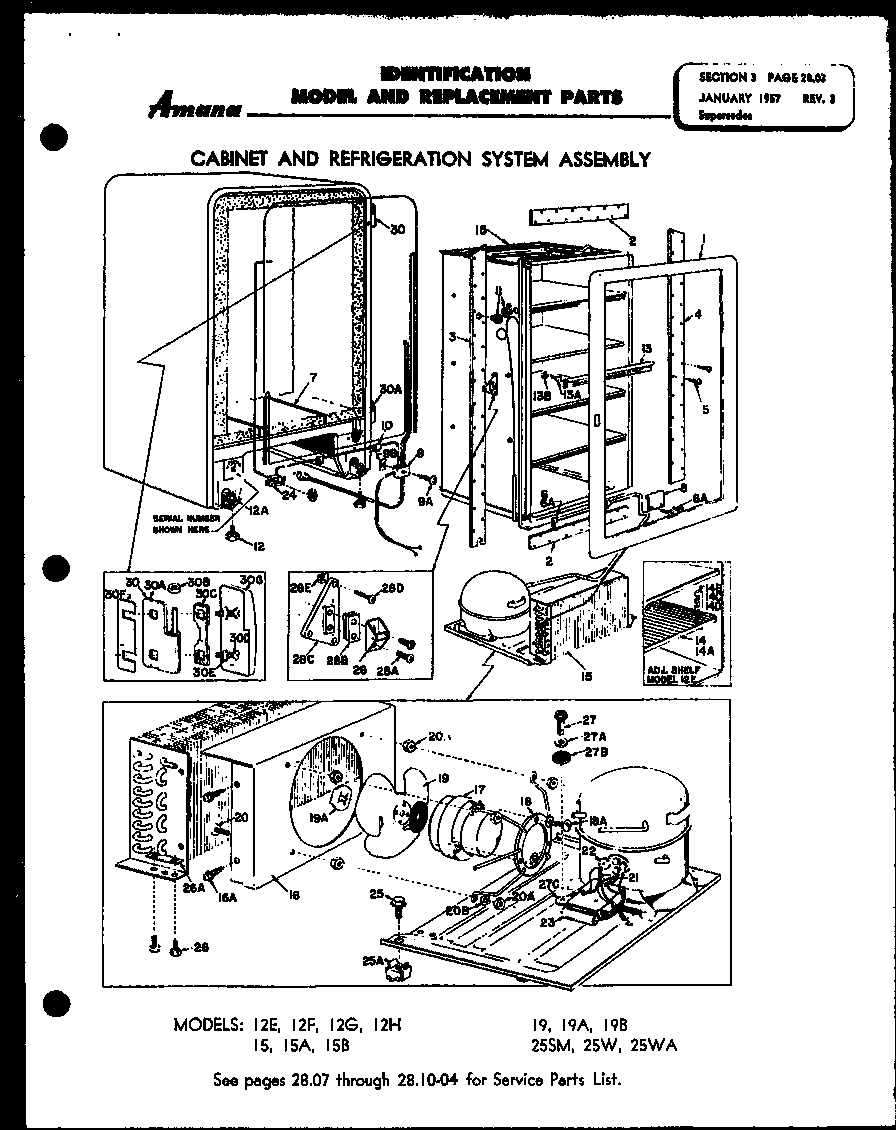

Models 12e, 12f, 12g, 12h, 15, 15a, 15b, 19, 19a, 19b diagram

Heater wire, cabinet 168" lg.

Part #B0475607

The manufacturer no longer makes this part, and there's no substitute part

Clip, Tubing, Heat Exchanger To Condenser A0251501
#6C

Models 12e, 12f, 12g, 12h, 15, 15a, 15b, 19, 19a, 19b diagram

Clip, tubing, heat exchanger to condenser

Part #A0251501

The manufacturer no longer makes this part, and there's no substitute part

Strike Plate 10179

#NI

All parts diagram

Strike plate

Part #10179

The manufacturer no longer makes this part, and there's no substitute part

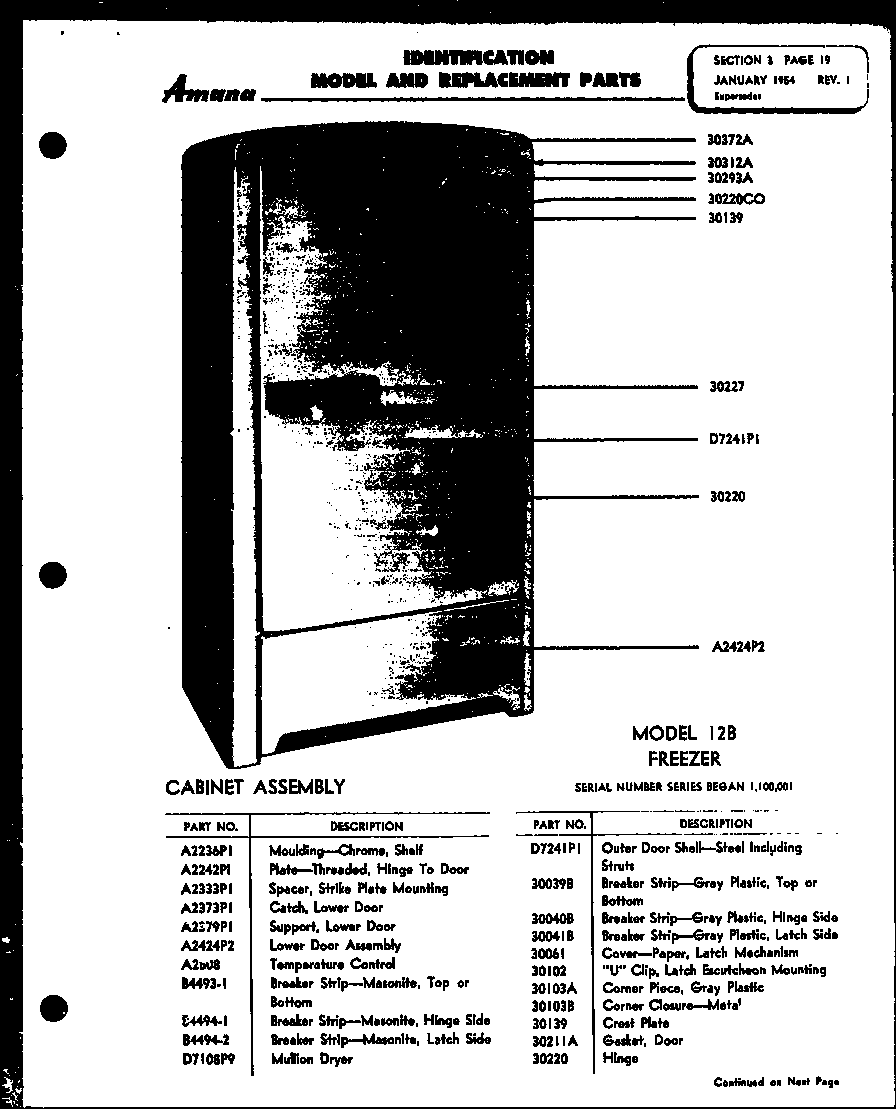

Breaker Strip-gray Plastic, Hinge Side 30040B

#NI

All parts diagram

Breaker strip-gray plastic, hinge side

Part #30040B

The manufacturer no longer makes this part, and there's no substitute part

Trim, Liner Shelf, Oxanal Red B0464703
#13K

Models 12e, 12f, 12g, 12h, 15, 15a, 15b, 19, 19a, 19b diagram

Trim, liner shelf, oxanal red

Part #B0464703

The manufacturer no longer makes this part, and there's no substitute part

Inner Door Liner, Plastic D3728001
#45G

Door assembly - models 12e, 12f, 12g, 15, 19 diagram

Inner door liner, plastic

Part #D3728001

The manufacturer no longer makes this part, and there's no substitute part

Sems Fastener Bolt, Metal & Thermal Spacer Mtg. 1/4-20 N A0285001
#62B

Door assembly - models 12e, 12f, 12g, 15, 19 diagram

Sems fastener bolt, metal & thermal spacer mtg. 1/4-20 n

Part #A0285001

The manufacturer no longer makes this part, and there's no substitute part
