Wall Oven/Microwave Combo

Model # KEMC308HBL2 Official KitchenAid electric built-in oven with microwave

Here are the diagrams and repair parts for Official KitchenAid KEMC308HBL2 electric built-in oven with microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part

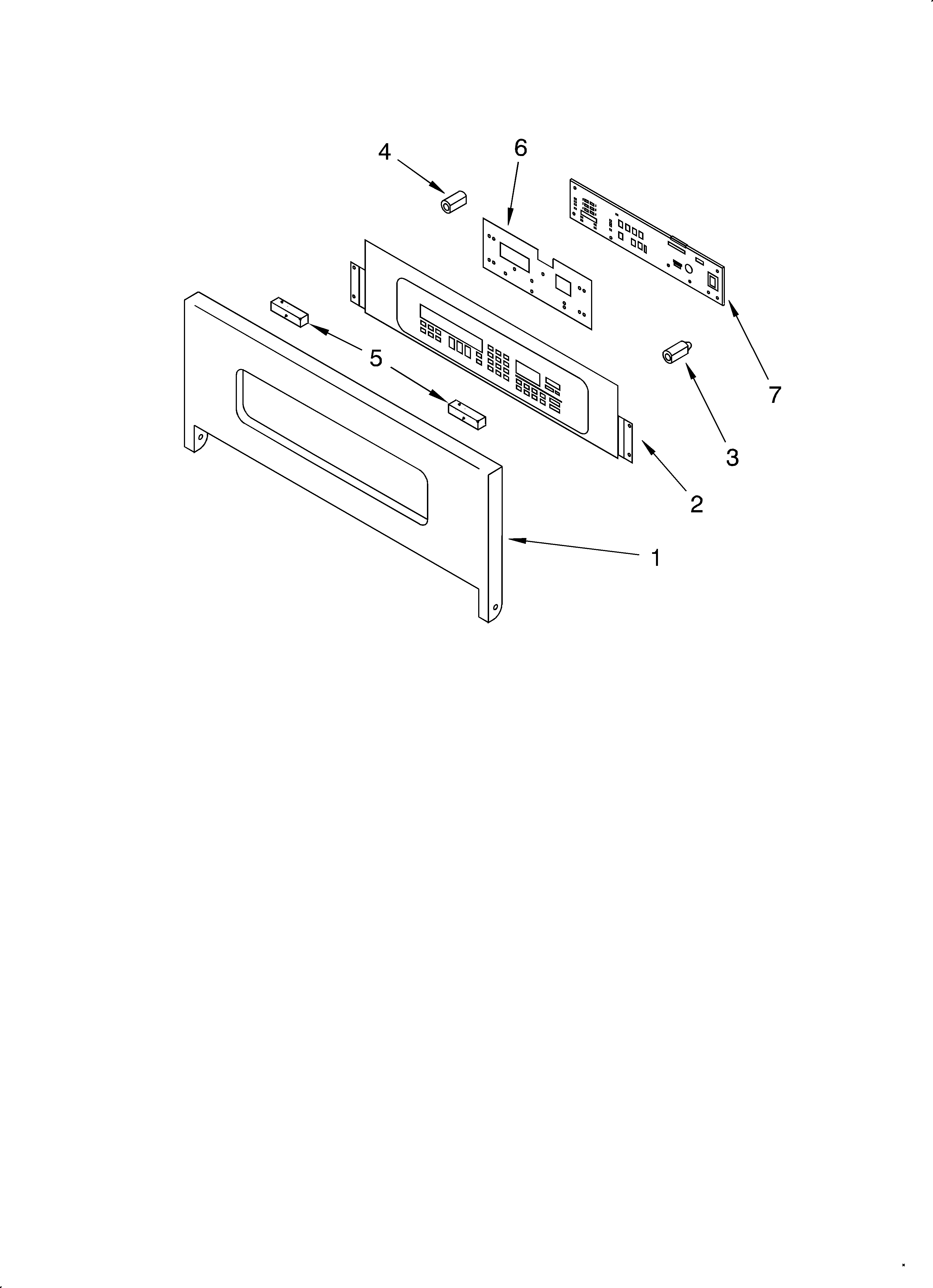

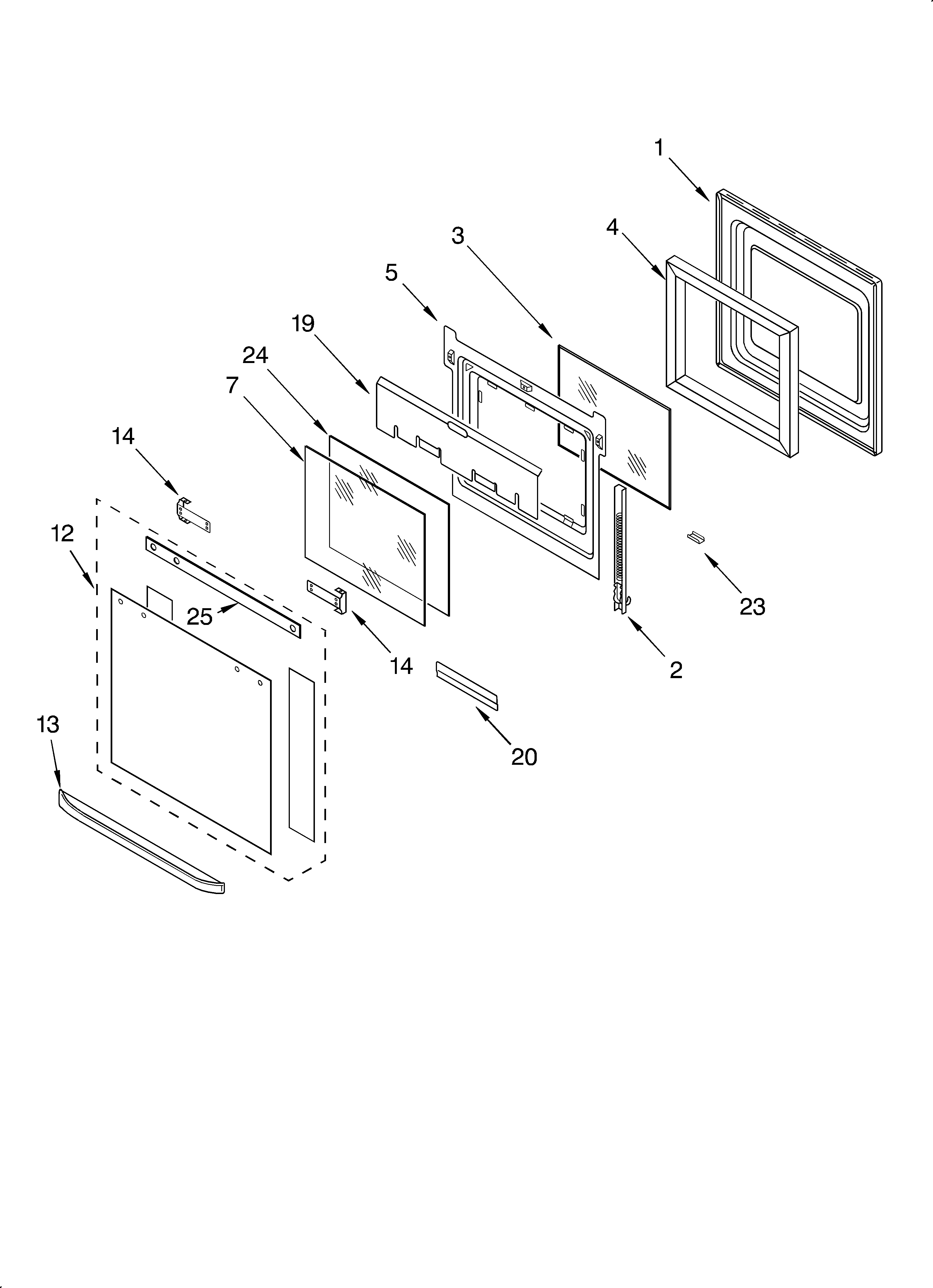

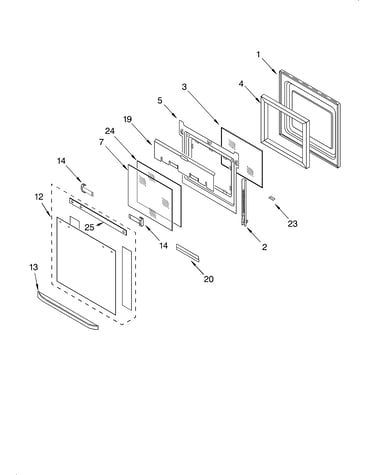

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
KEMC308HBL2 Electric Built-In Oven with Microwave
Microwave Door Interlock Switch 4375346
#73

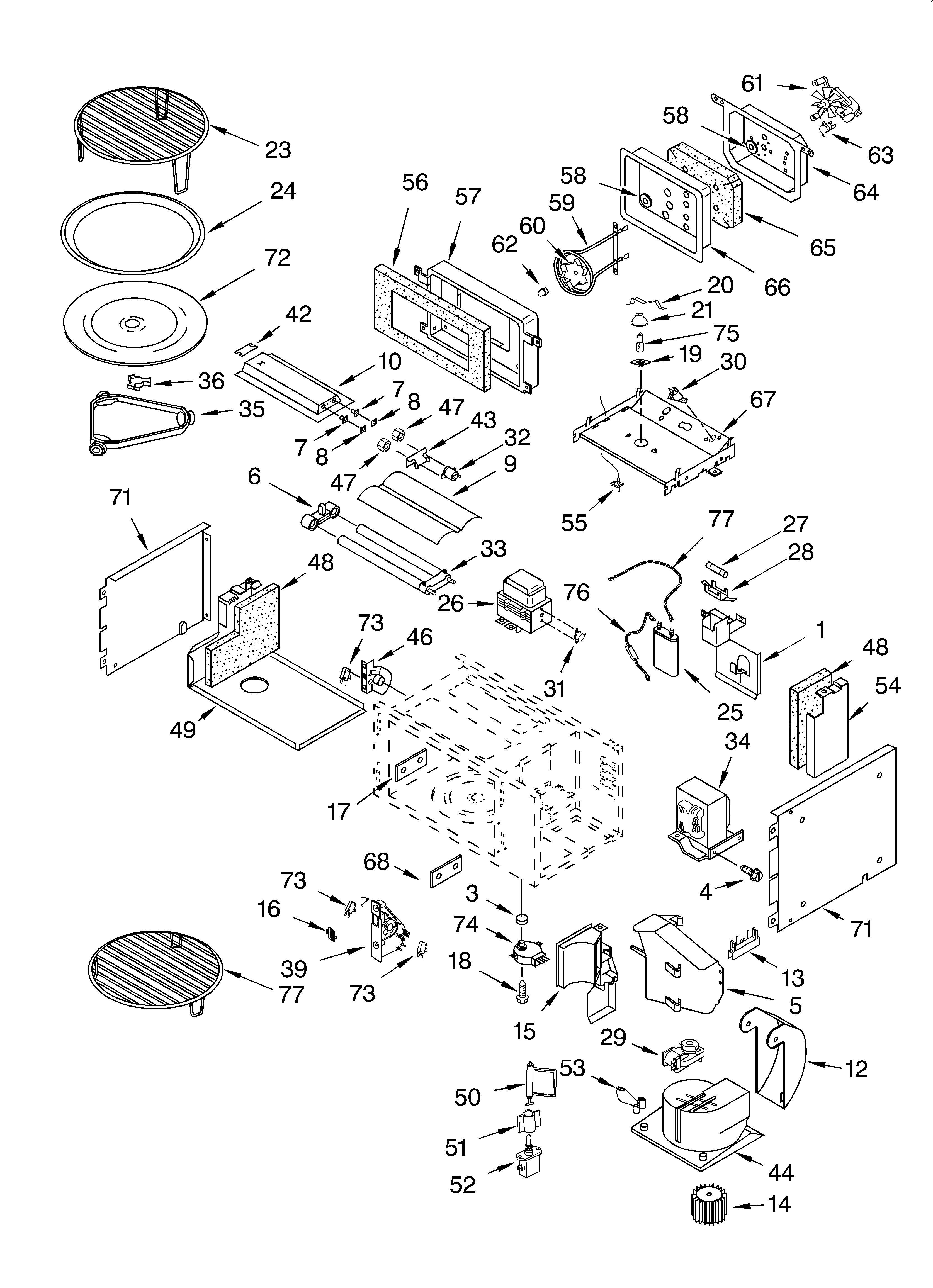

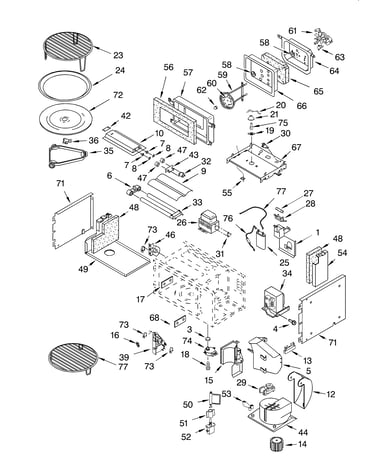

Cabinet and stirrer diagram

Microwave door interlock switch

Part #4375346

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 4375346. Substitute parts can look different from the original.
BEST SELLER
$28.80 |
17% OFF Phone Price : $34.80
In Stock

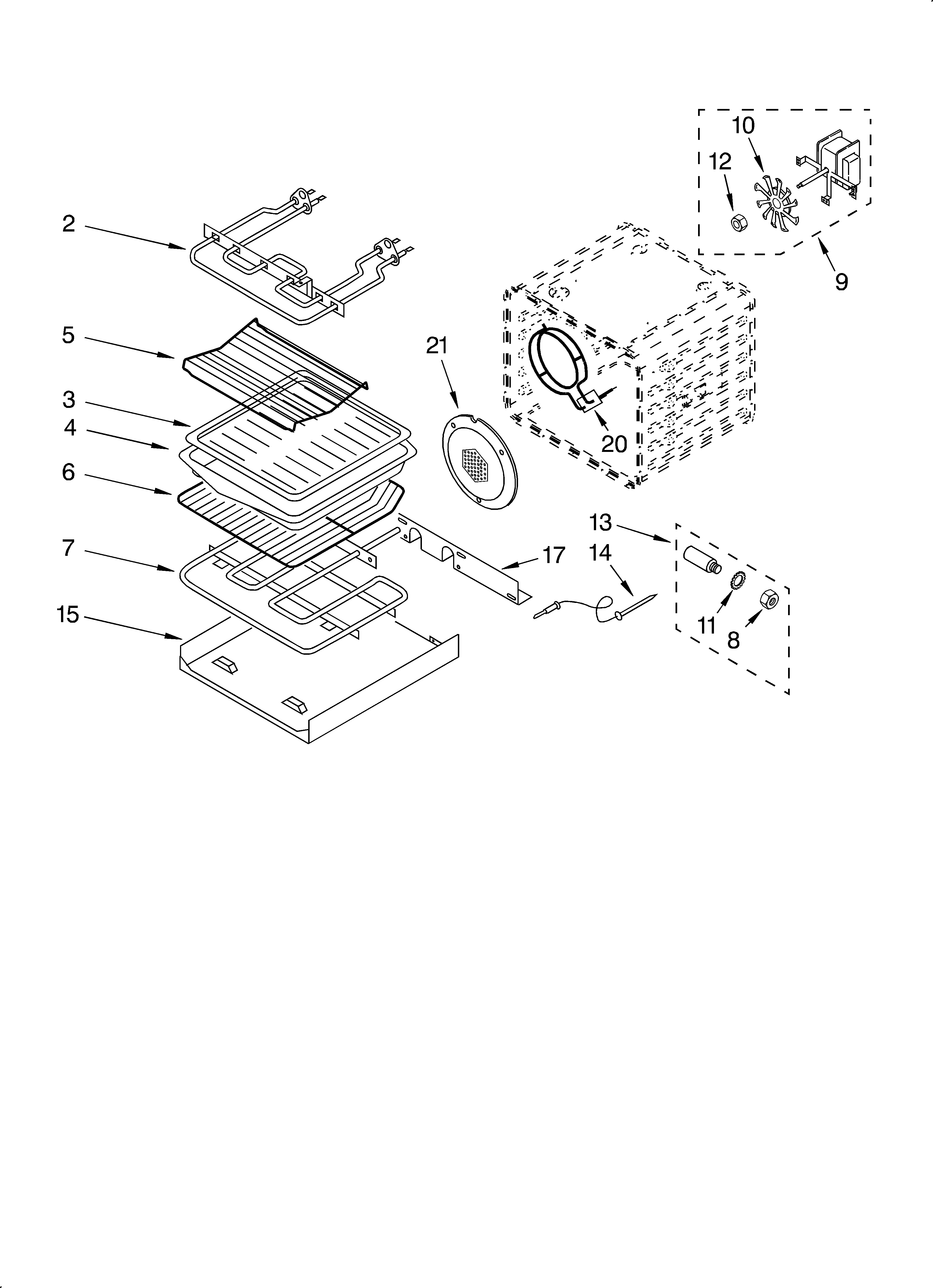

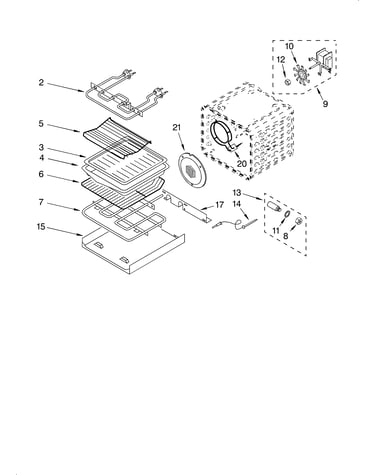

Wall Oven Temperature Sensor 4455636
#29

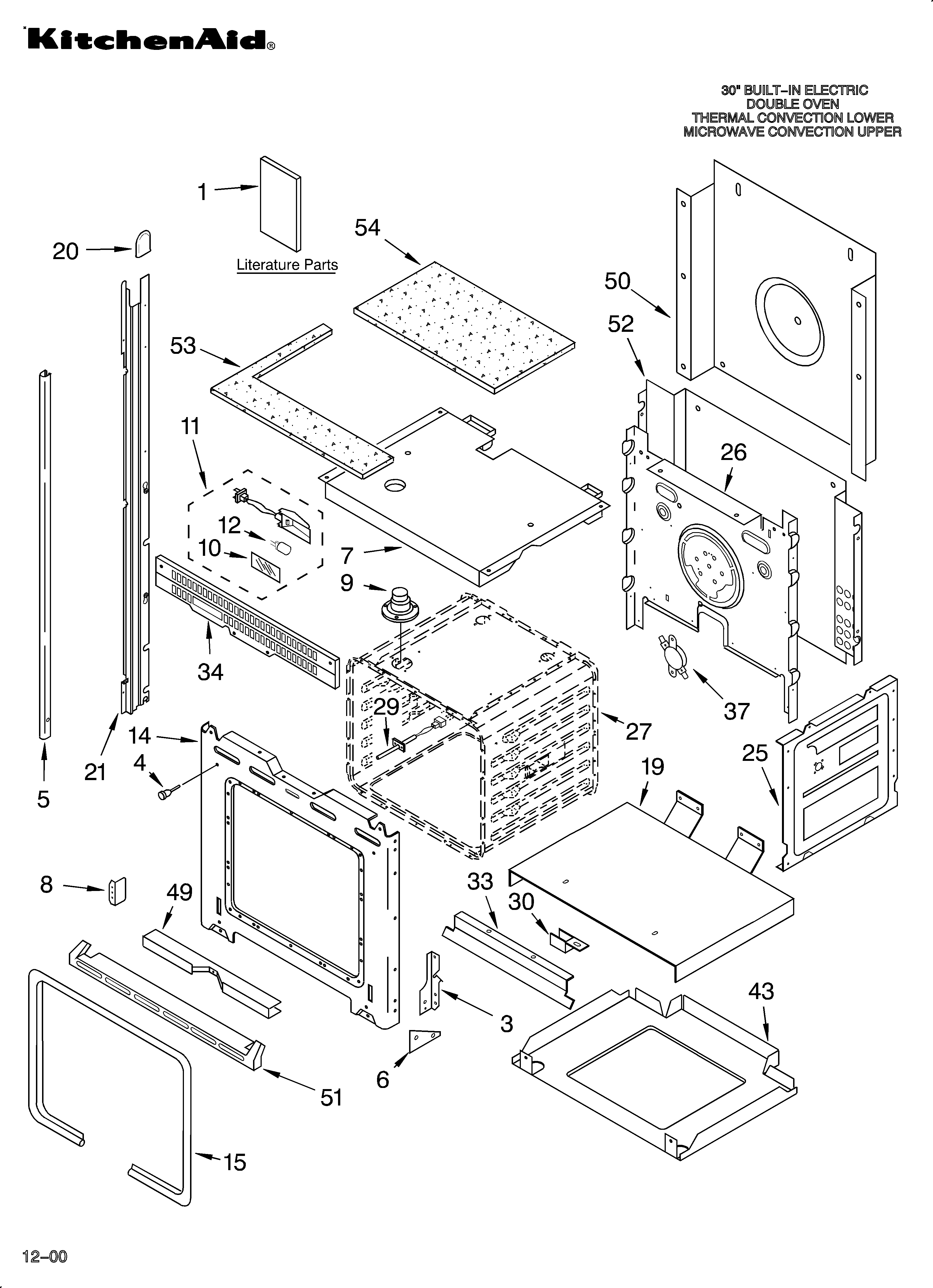

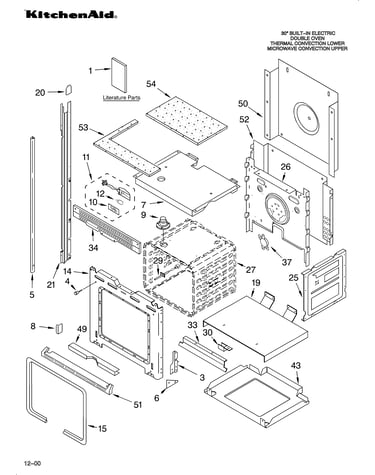

Oven/literature diagram

Wall oven temperature sensor

Part #4455636

Replaced by #WPW10131825

?
Manufacturer substitution
This part replaces 4455636. Substitute parts can look different from the original.
BEST SELLER
$59.66 |
9% OFF Phone Price : $65.66
In Stock
Spray W 350930
#NI

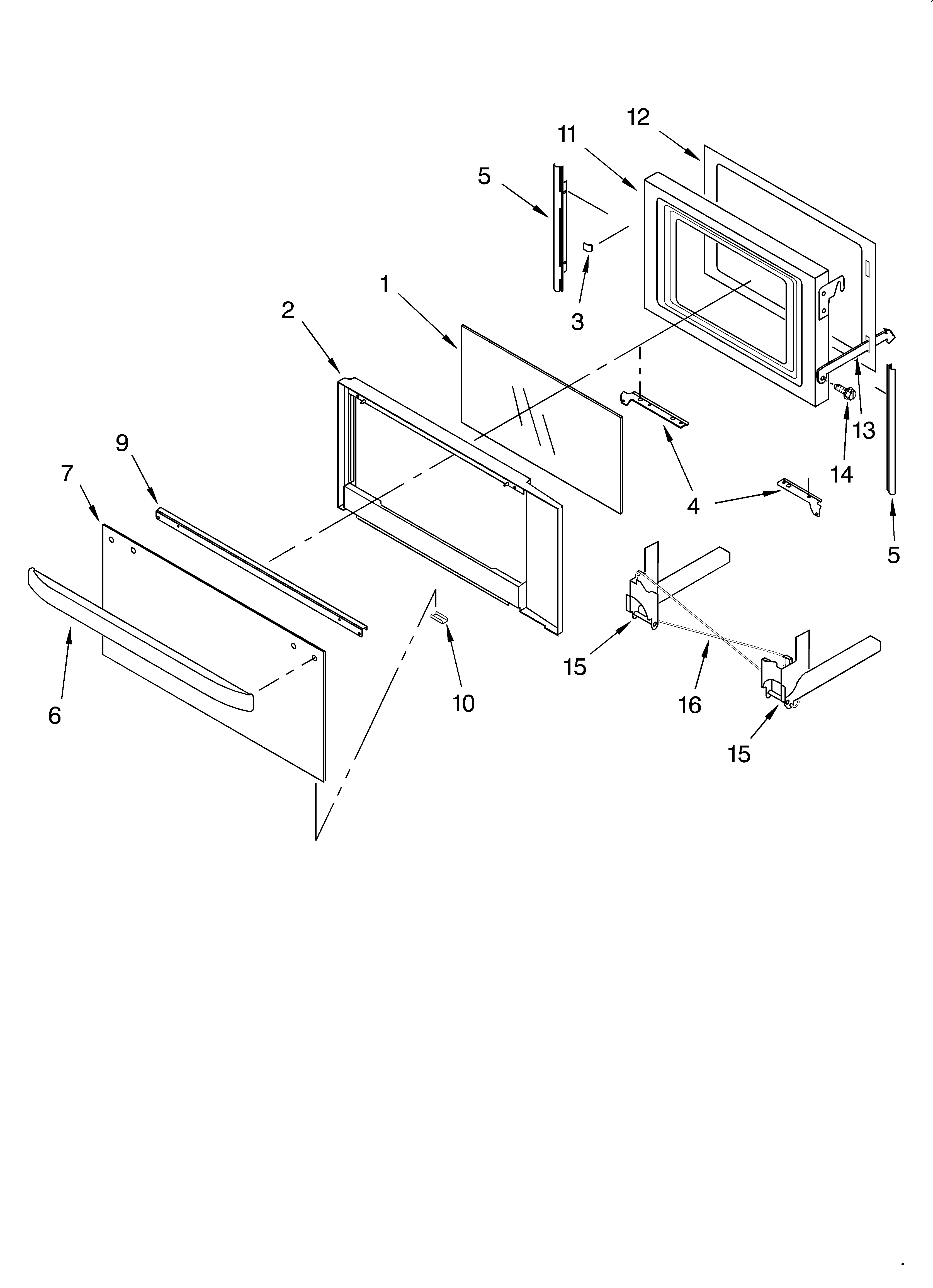

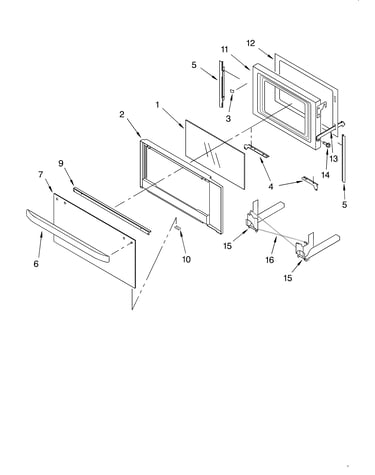

Microwave door/optional diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Diode 4375349
#76

Cabinet and stirrer diagram

Diode

Part #4375349

Replaced by #WPW10687786

?
Manufacturer substitution
This part replaces 4375349. Substitute parts can look different from the original.
BEST SELLER
$20.49 |
23% OFF Phone Price : $26.49
In Stock
Mounting Bracket 4375413
Mounting bracket

Part #4375413

Replaced by #W10727408

?
Manufacturer substitution
This part replaces 4375413. Substitute parts can look different from the original.
BEST SELLER
$88.84 |
6% OFF Phone Price : $94.84
In Stock
Mounting Bracket 4375412
Mounting bracket

Part #4375412

Replaced by #W10727408

?
Manufacturer substitution
This part replaces 4375412. Substitute parts can look different from the original.
BEST SELLER
$88.84 |
6% OFF Phone Price : $94.84
In Stock

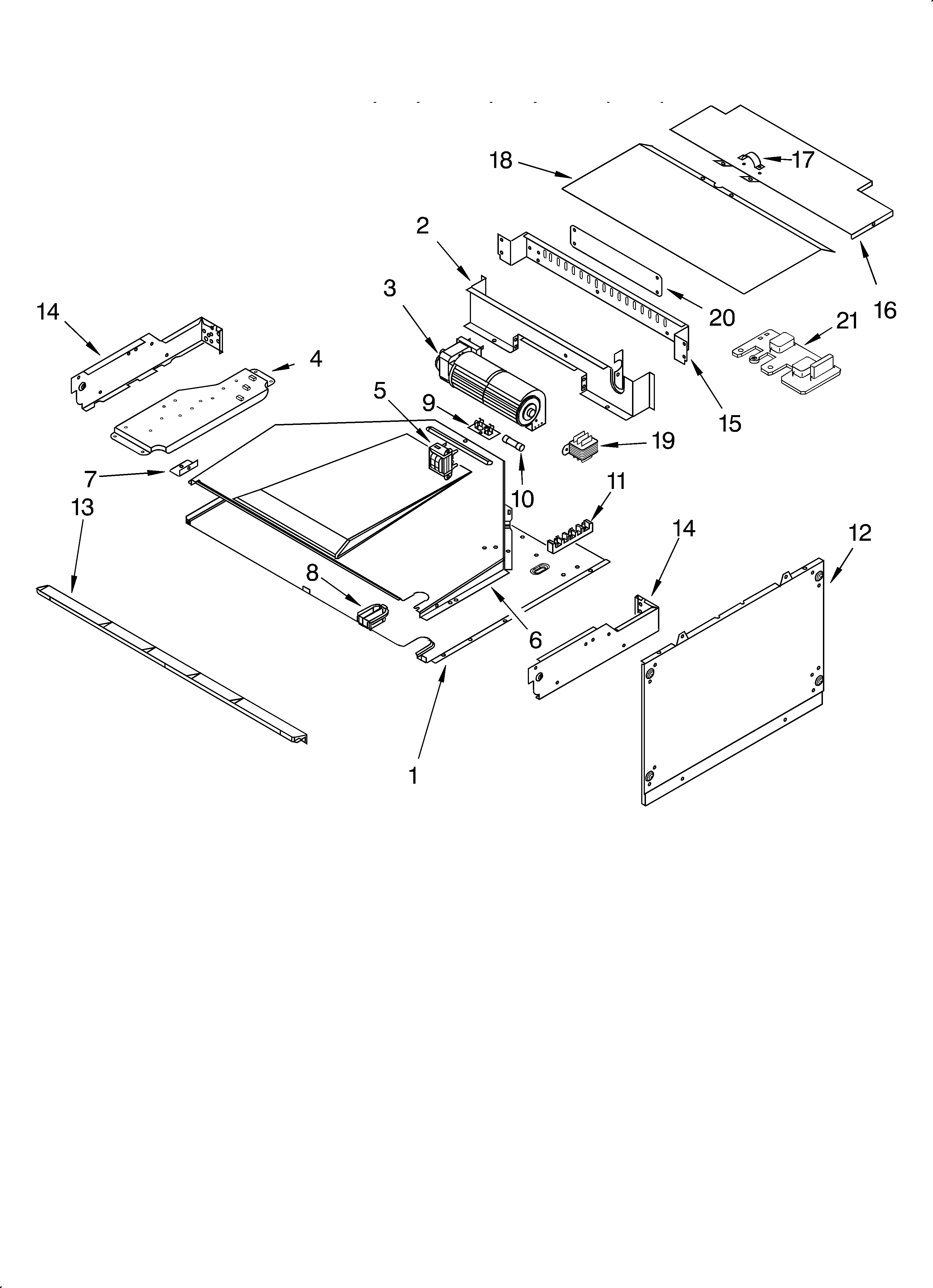

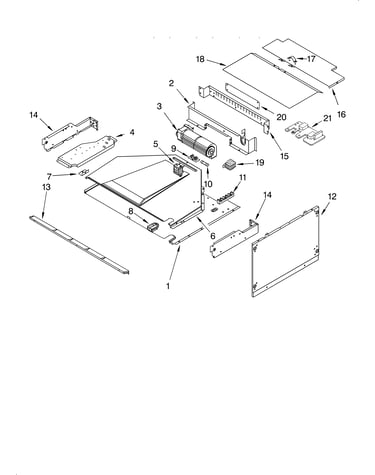

Blower 6610168
#16

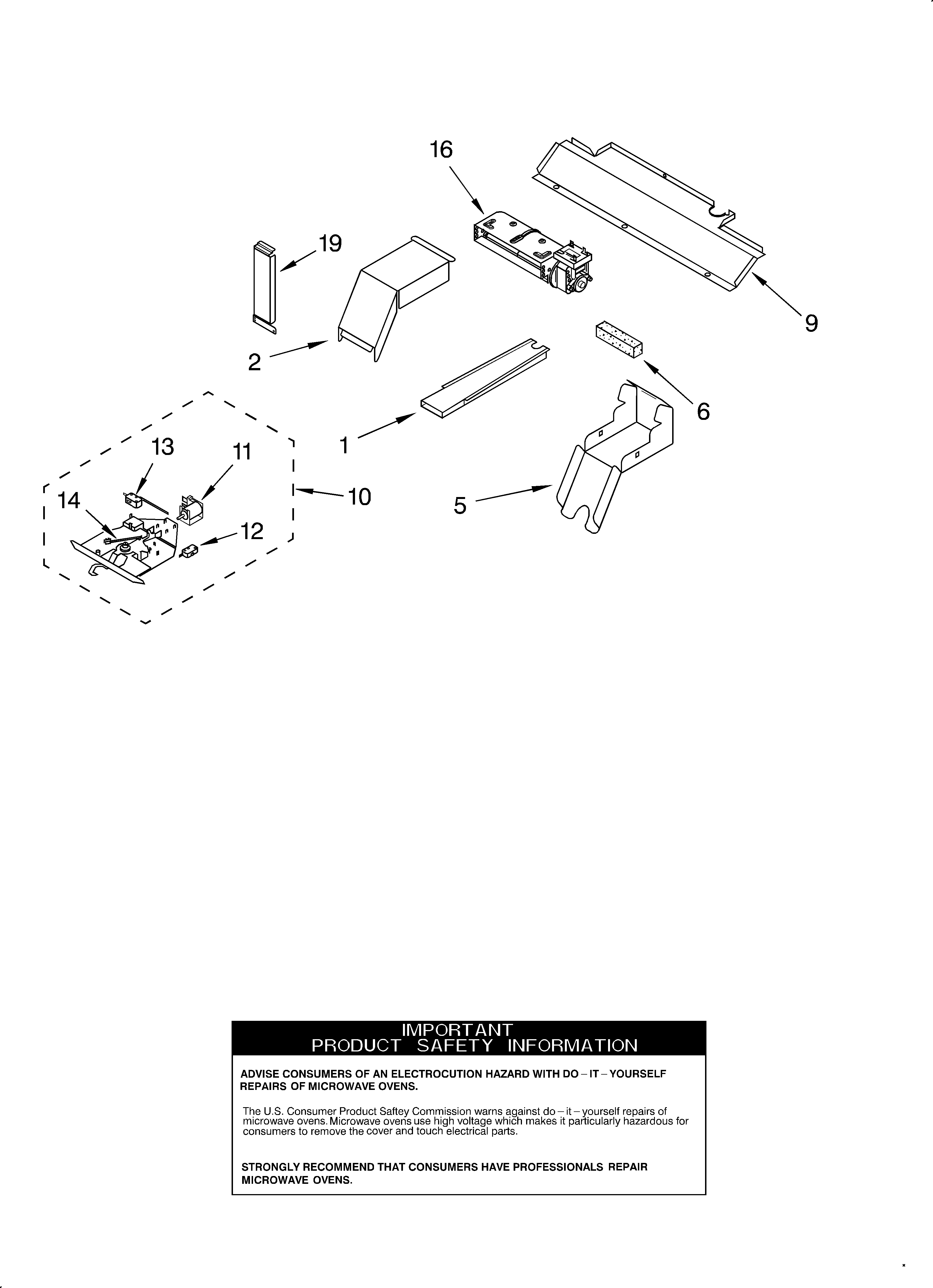

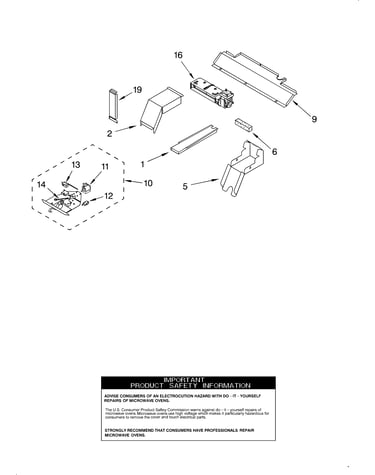

Latch diagram

Blower

Part #6610168

Replaced by #WPW10016550

?
Manufacturer substitution
This part replaces 6610168. Substitute parts can look different from the original.
BEST SELLER
$153.62 |
7% OFF Phone Price : $165.62
In Stock
Capacitor 4375436
#25

Cabinet and stirrer diagram

Capacitor

Part #4375436

Replaced by #WP4375020

?
Manufacturer substitution
This part replaces 4375436. Substitute parts can look different from the original.
BEST SELLER
$108.39 |
10% OFF Phone Price : $120.39
In Stock
Microwave Magnetron 4375424
#26

Cabinet and stirrer diagram

Microwave magnetron

Part #4375424

The manufacturer no longer makes this part, and there's no substitute part

Touch-up Paint (black) 72032
#NI

Microwave door/optional diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
