Model # SMH7175WE/XAA Official Samsung microwave
Here are the diagrams and repair parts for Official Samsung SMH7175WE/XAA microwave, as well as links to manuals and error code tables, if available.

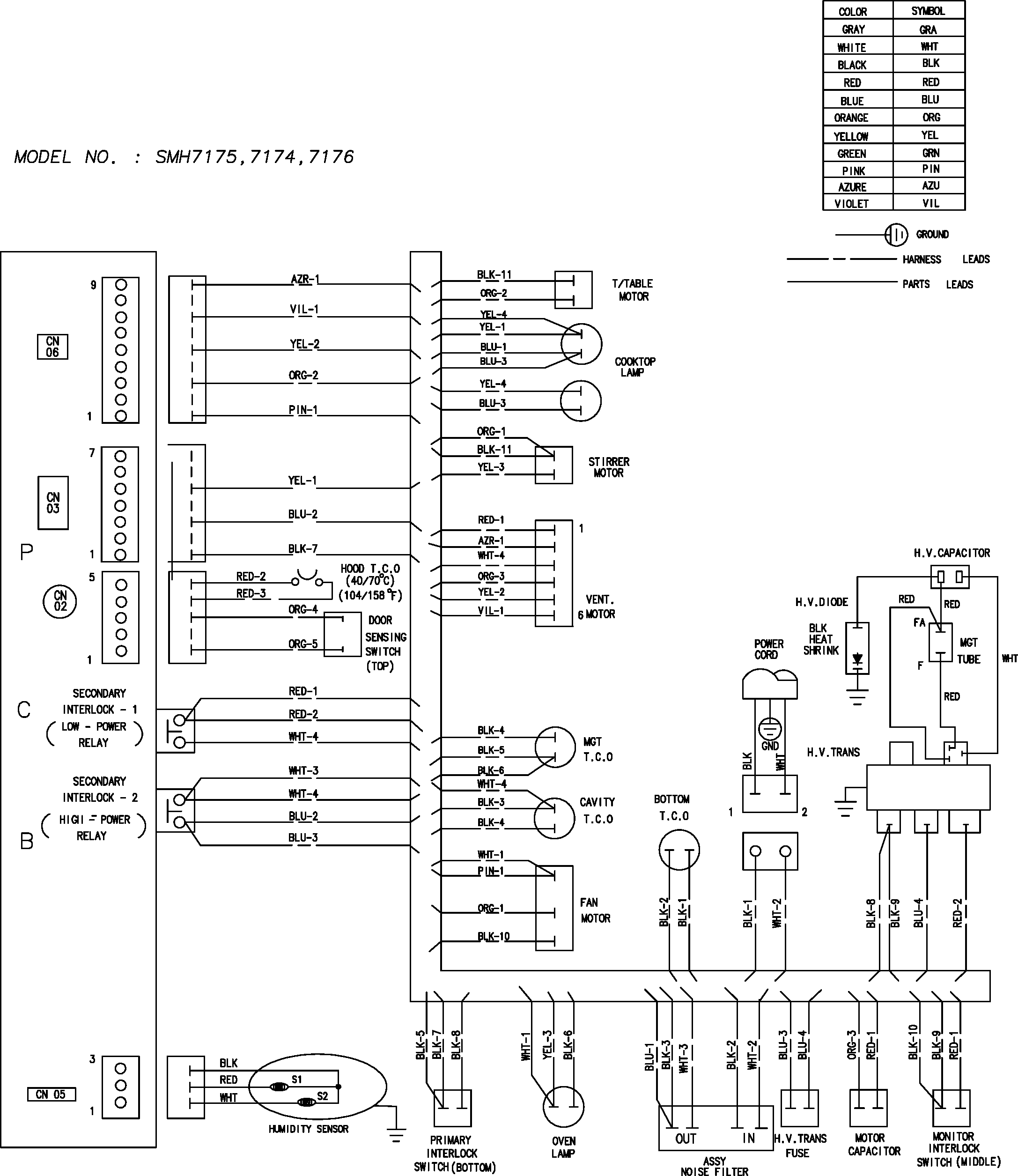

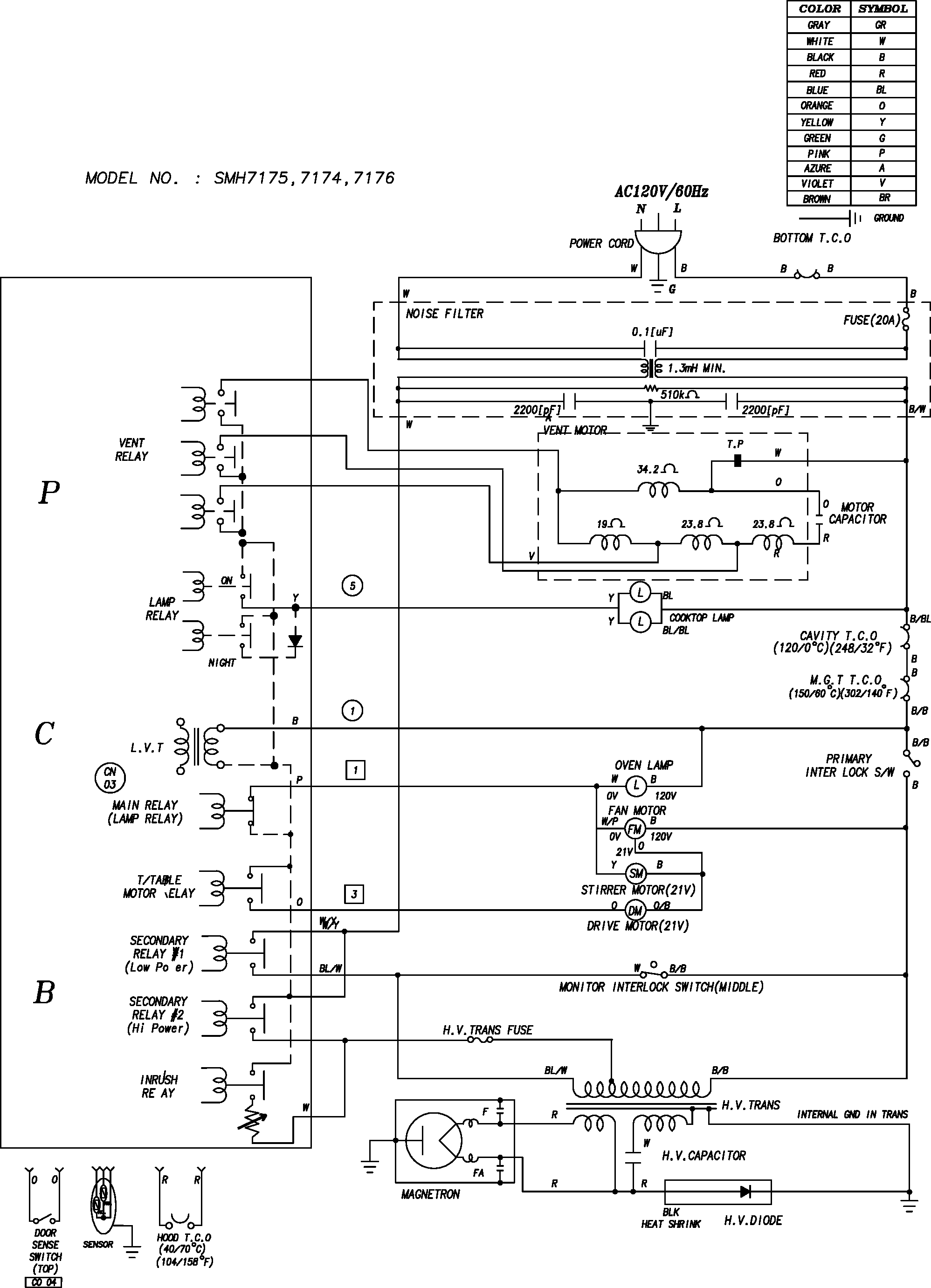

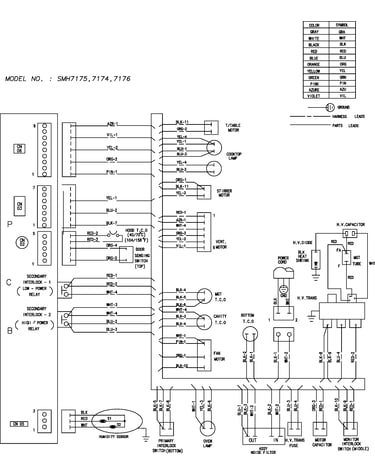

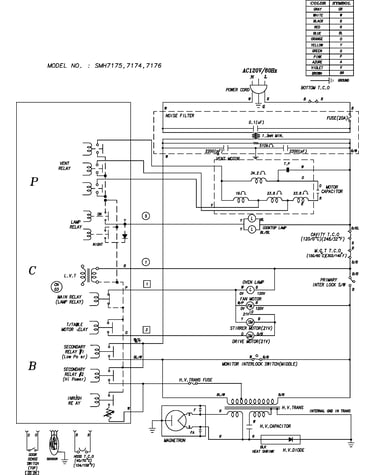

Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for
SMH7175WE/XAA Microwave
#7

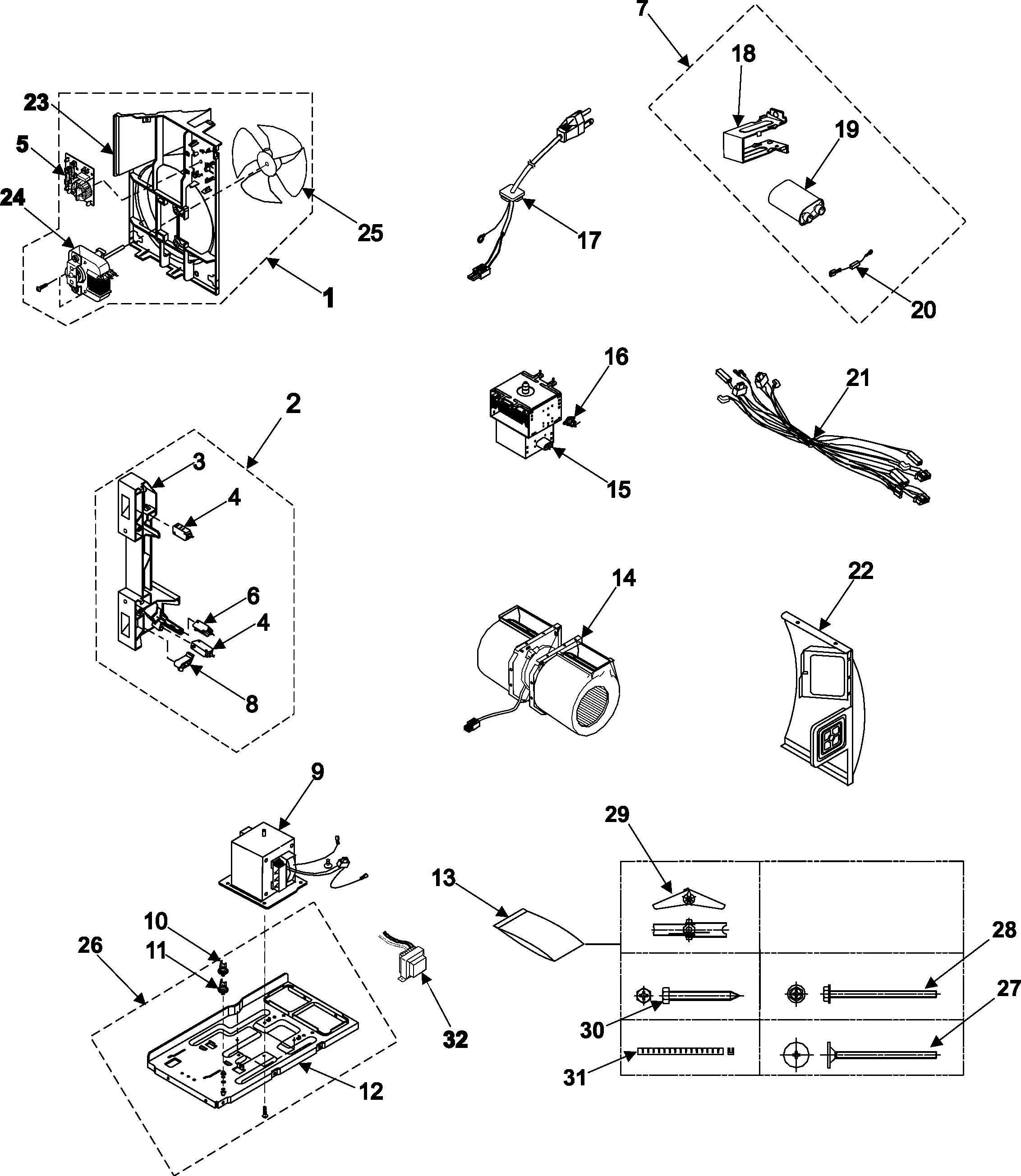

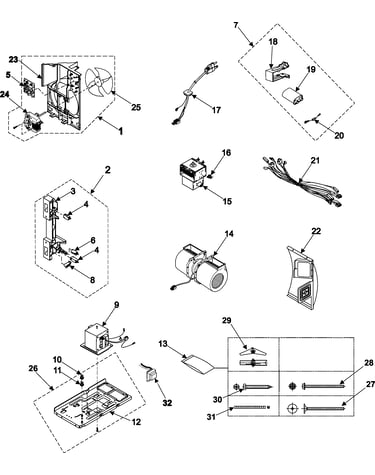

Internal control/latch asy/base diagram
Microwave high-voltage capacitor
Part #DE96-00269A
$37.02 |
14% OFF Phone Price : $43.02
In Stock
#20
Internal control/latch asy/base diagram
Microwave high-voltage diode (replaces de91-70063a, de91-70063b, de91-70063e)
Part #DE91-70063D
$18.36 |
10% OFF Phone Price : $20.36
In Stock
#19
Internal control/latch asy/base diagram
Microwave high-voltage capacitor (replaces 2501-000258)
Part #2501-001011
$65.83 |
8% OFF Phone Price : $71.83
In Stock
#5

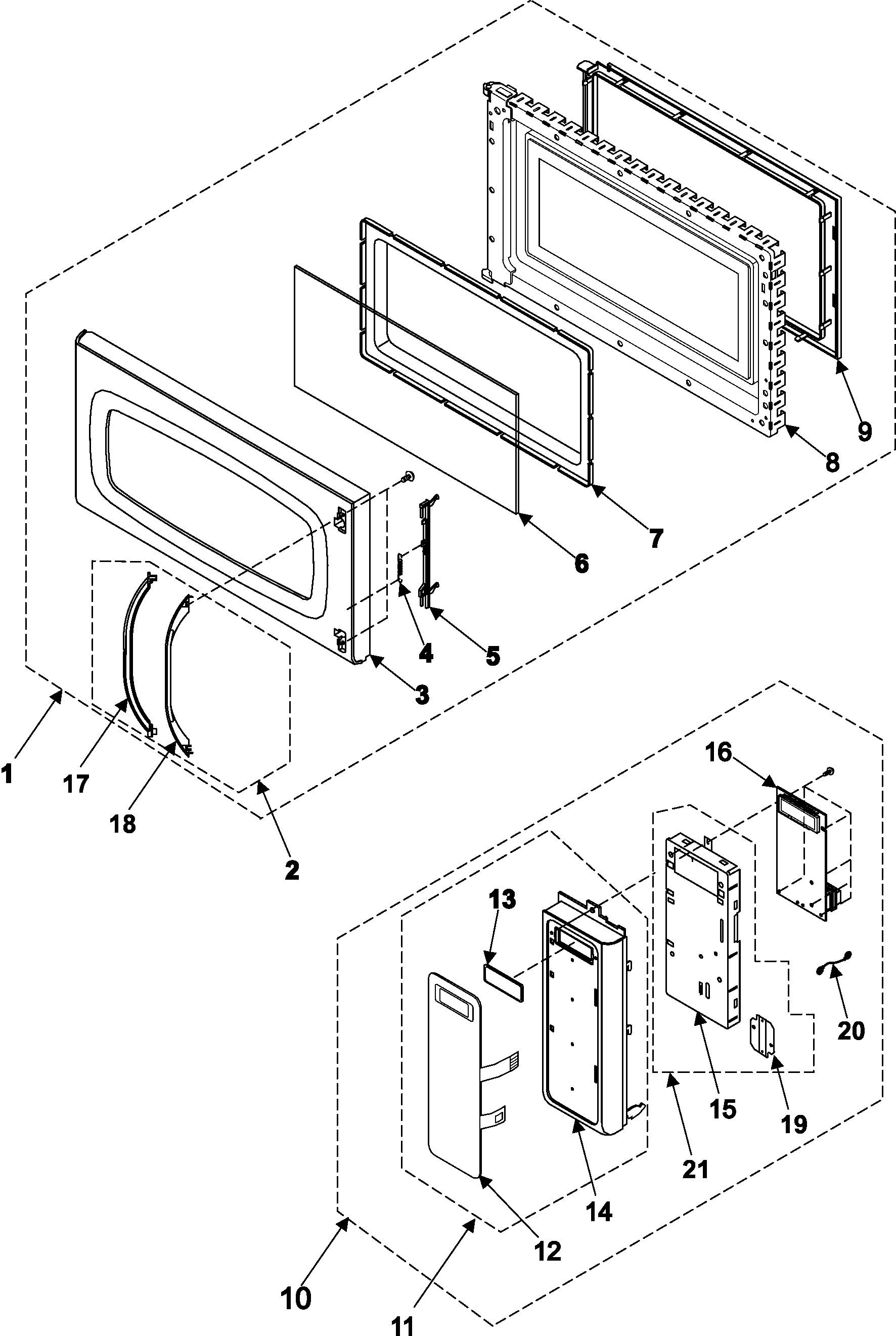

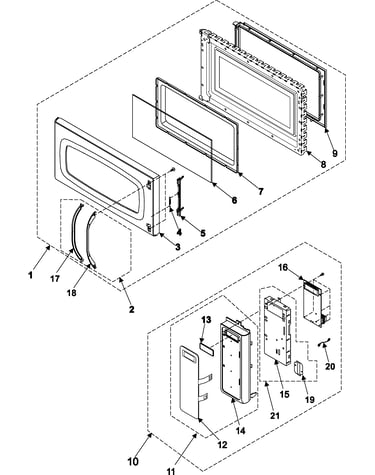

Control panel/door assembly diagram
Microwave door latch
Part #DE64-00760A
This item is not returnable
$19.90 |
9% OFF Phone Price : $21.90
In Stock
#4
Internal control/latch asy/base diagram
Microwave door interlock switch (replaces 3405-000178)
Part #3405-001034
$23.60 |
20% OFF Phone Price : $29.60
Back Order
#16
Internal control/latch asy/base diagram
Thermostat
Part #DE47-20007A
Replaced by #DE47-20007B
?
Manufacturer substitution
This part replaces DE47-20007A. Substitute parts can look different from the original.
$14.09 |
12% OFF Phone Price : $16.09
In Stock
#6
Internal control/latch asy/base diagram
Microwave door micro-switch
Part #3405-001033
$21.02 |
22% OFF Phone Price : $27.02
In Stock
#11

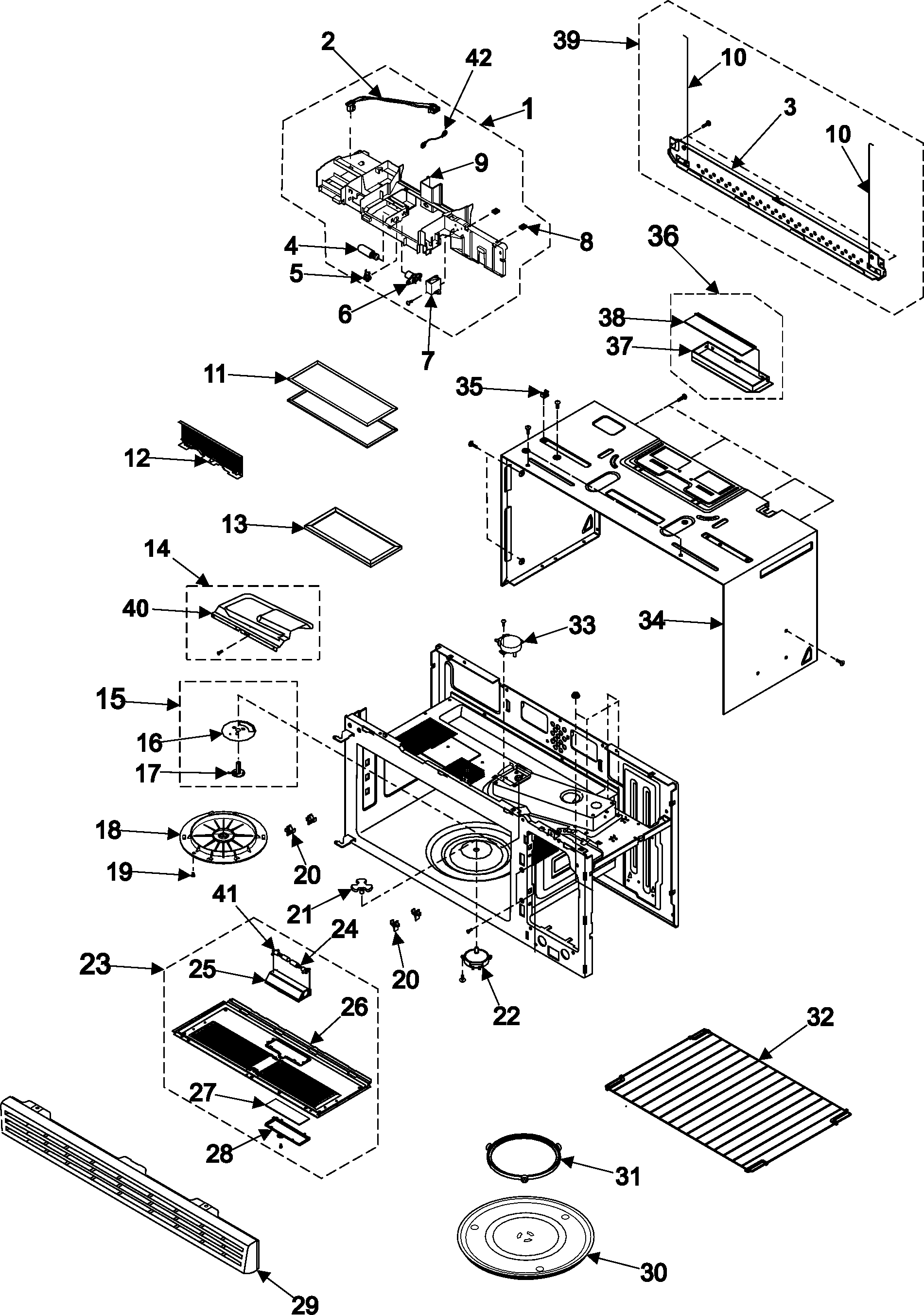

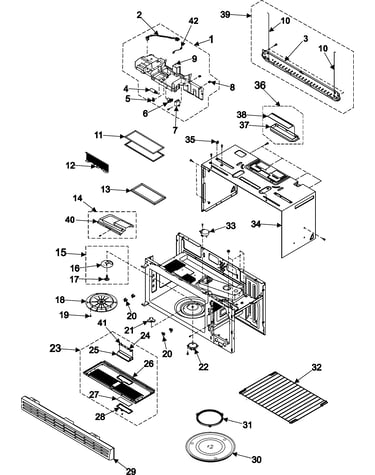

Body/cavity/elements diagram
Microwave grease filter (replaces de63-00196b)
Part #DE63-00196A
$21.83 |
22% OFF Phone Price : $27.83
In Stock
#22
Body/cavity/elements diagram
Microwave turntable motor
Part #DE31-10172A
Replaced by #DE31-10172D
?
Manufacturer substitution
This part replaces DE31-10172A. Substitute parts can look different from the original.
$124.00
In Stock
Microwave light bulb (replaces de07-90015a)
Part #4713-001013
$16.00 |
11% OFF Phone Price : $18.00
In Stock
