Model # 536250931 Official Craftsman 36" 8-hp lawn tractor
Here are the diagrams and repair parts for Official Craftsman 536250931 36" 8-hp lawn tractor, as well as links to manuals and error code tables, if available.
By Schematic
By Part

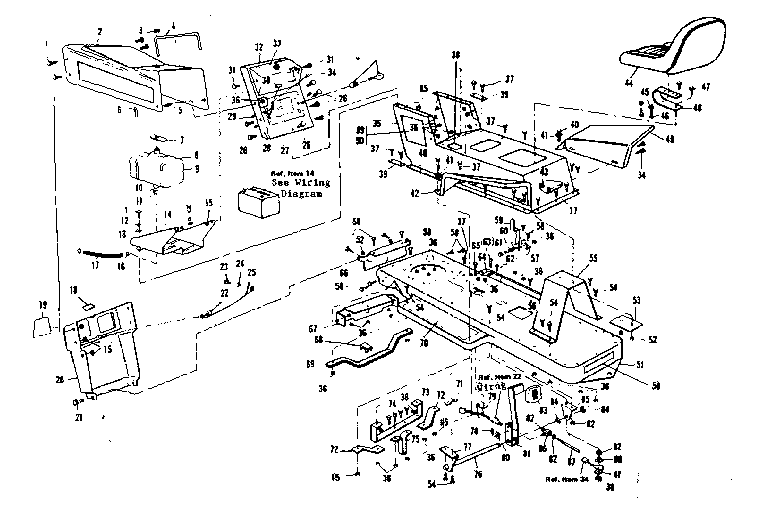

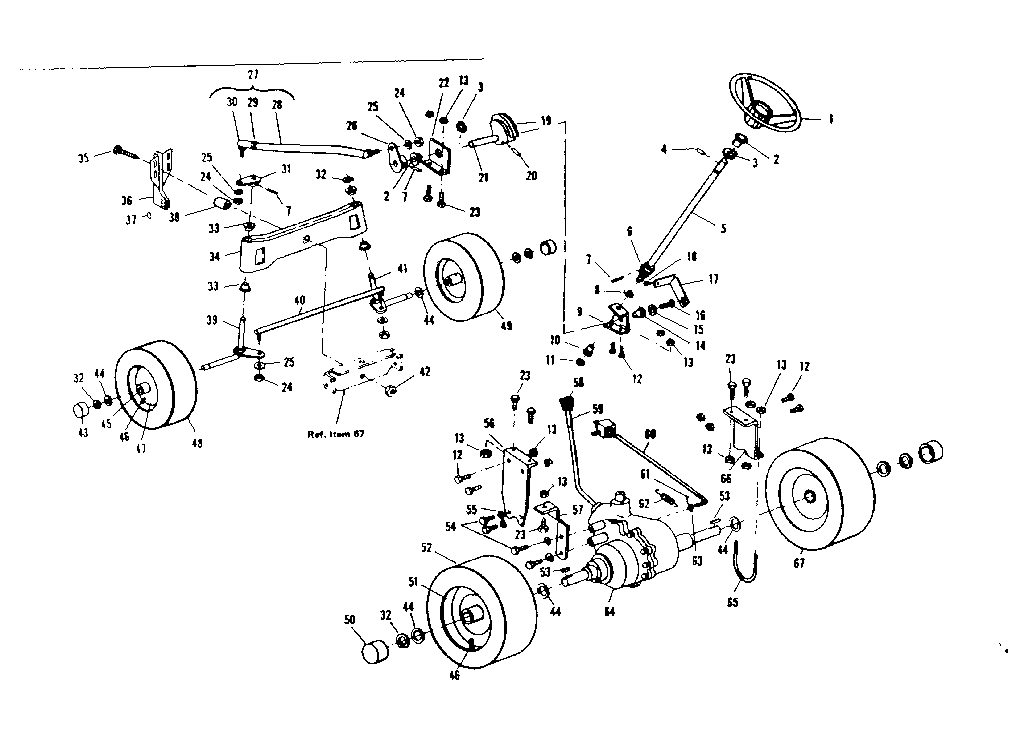

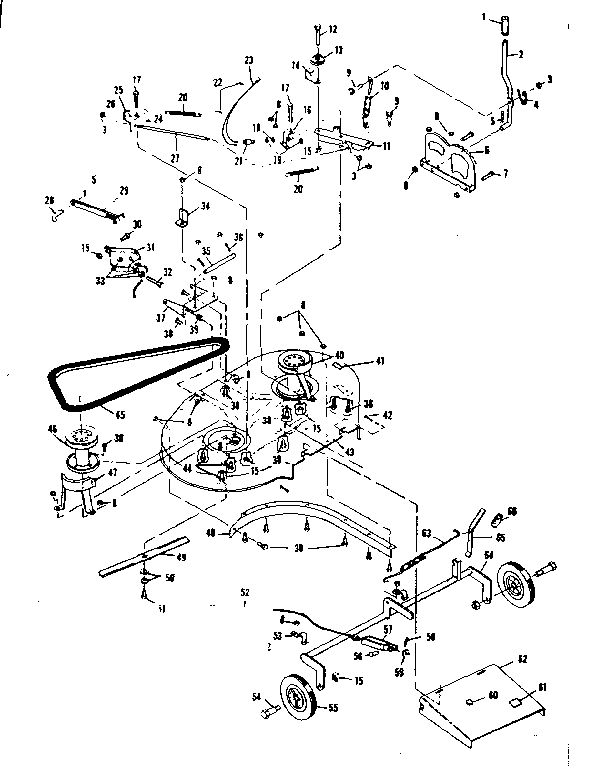

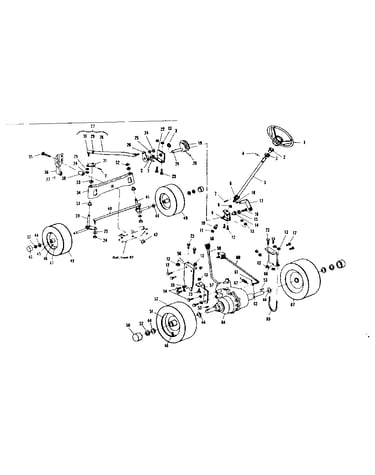

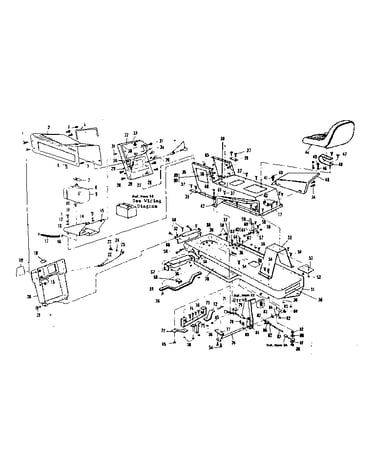

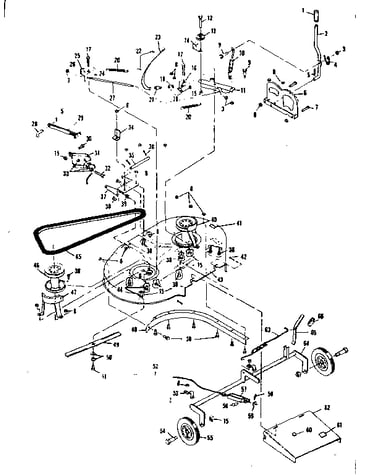

SELECT DIAGRAM
Browse Parts for
536250931 Riding Mowers & Tractors
#19

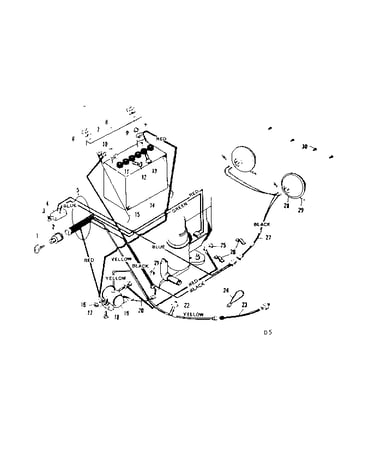

Wiring diagram diagram
Solenoid
Part #44429
Replaced by #532146154
?
Manufacturer substitution
This part replaces 44429. Substitute parts can look different from the original.
$28.33 |
17% OFF Phone Price : $34.33
In Stock
#80

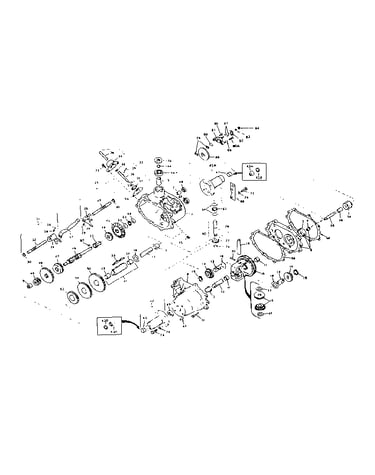

Transaxle diagram
Plate
Part #790007
Replaced by #790007
?
Manufacturer substitution
This part replaces 790007. Substitute parts can look different from the original.
This item is not returnable
$5.29 |
16% OFF Phone Price : $6.29
In Stock
#81
Transaxle diagram
Holder
Part #790005
Replaced by #790025
?
Manufacturer substitution
This part replaces 790005. Substitute parts can look different from the original.
This item is not returnable
$18.30 |
10% OFF Phone Price : $20.30
In Stock
#67
Transaxle diagram
Dowel pin
Part #786026
Replaced by #786026B
?
Manufacturer substitution
This part replaces 786026. Substitute parts can look different from the original.
This item is not returnable
$4.60 |
18% OFF Phone Price : $5.60
In Stock
#18
Transaxle diagram
Washer
Part #780001
Replaced by #780001
?
Manufacturer substitution
This part replaces 780001. Substitute parts can look different from the original.
This item is not returnable
$4.34
In Stock
#35
Engine diagram
Woodruff key
Part #431787
Replaced by #703891
?
Manufacturer substitution
This part replaces 431787. Substitute parts can look different from the original.
This item is not returnable
$8.11 |
11% OFF Phone Price : $9.11
In Stock
#83
Transaxle diagram
Flat washer
Part #792076
Replaced by #792076A
?
Manufacturer substitution
This part replaces 792076. Substitute parts can look different from the original.
This item is not returnable
$4.37
In Stock
#3
Transaxle diagram
Chute cable
Part #780059
Replaced by #780059MA
?
Manufacturer substitution
This part replaces 780059. Substitute parts can look different from the original.
$39.21 |
13% OFF Phone Price : $45.21
In Stock
#38
Transaxle diagram
Quad ring
Part #792001
Replaced by #792001
This item is not returnable
$4.37
In Stock
#29
Transaxle diagram
Ball
Part #792004
Replaced by #792004
?
Manufacturer substitution
This part replaces 792004. Substitute parts can look different from the original.
This item is not returnable
$4.37
In Stock
