Troybilt
Gas Line Trimmer

Model # 41ADT75C063-2001 Official Troybilt gas line trimmer

Here are the diagrams and repair parts for Official Troybilt 41ADT75C063-2001 gas line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Rope Guide 753-1200
#27

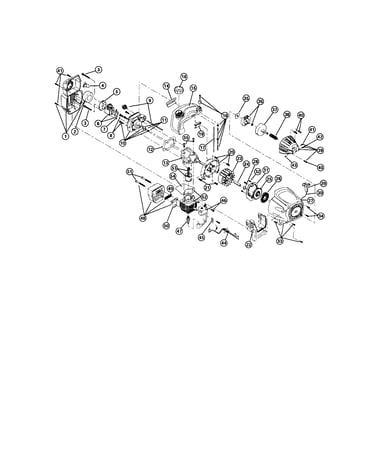

Engine parts/fuel tank diagram

Rope guide

Part #753-1200

$20.63
In Stock
Line Trimmer Handle 791-182167
#9

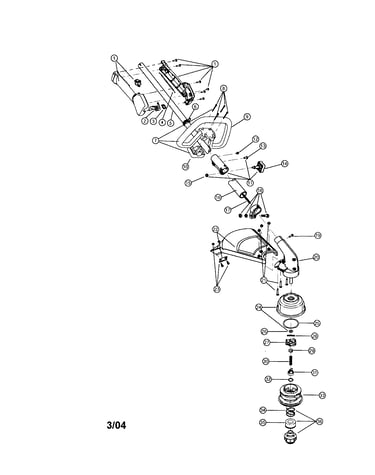

Boom and trimmer diagram

Line trimmer handle

Part #791-182167

$102.80
In Stock
Clamp Assembly 791-153597
#18

Boom and trimmer diagram

Clamp assembly

Part #791-153597

The manufacturer no longer makes this part, and there's no substitute part

Throttle Housing Assembly 753-1211
#1

Boom and trimmer diagram

Throttle housing assembly

Part #753-1211

The manufacturer no longer makes this part, and there's no substitute part

Primer 791-181801
#9

Engine parts/fuel tank diagram

Primer

Part #791-181801

The manufacturer no longer makes this part, and there's no substitute part

Blade Assembly 791-181823
#23

Boom and trimmer diagram

Blade assembly

Part #791-181823

The manufacturer no longer makes this part, and there's no substitute part

Gearbox 791-180549
#20

Boom and trimmer diagram

Gearbox

Part #791-180549

The manufacturer no longer makes this part, and there's no substitute part

Asm, Crank C 791-182791
#13

Engine parts/fuel tank diagram

Asm, crank c

Part #791-182791

The manufacturer no longer makes this part, and there's no substitute part

Screw 791-182057
#12

Boom and trimmer diagram

Screw

Part #791-182057

The manufacturer no longer makes this part, and there's no substitute part

Cover Assembly 753-1192
#1

Engine parts/fuel tank diagram

Cover assembly

Part #753-1192

The manufacturer no longer makes this part, and there's no substitute part
