Model # GHDA690P04BB Official GE dishwasher

Here are the diagrams and repair parts for Official GE GHDA690P04BB dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Dishwasher Door Seal WD08X10062
#59

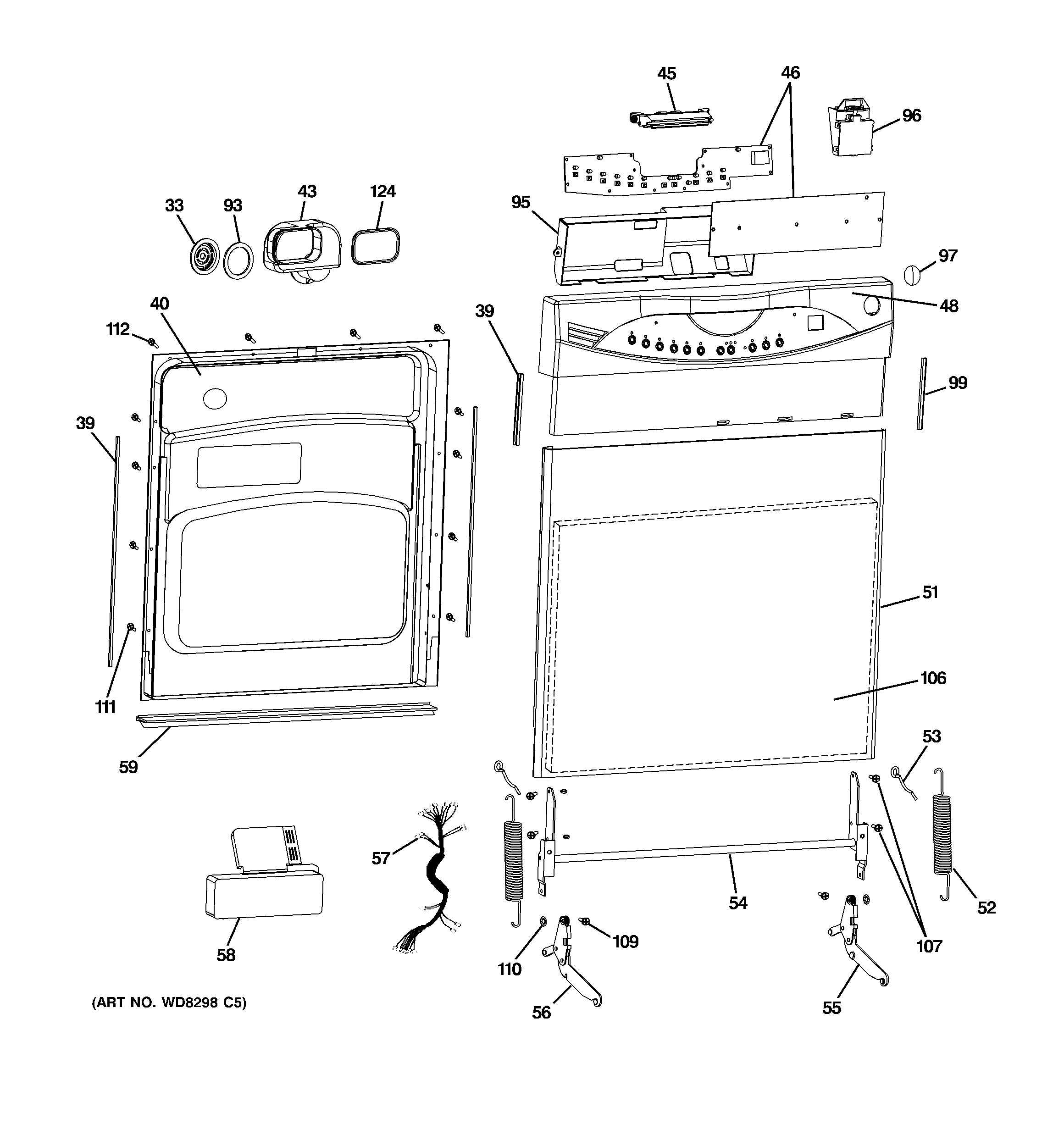

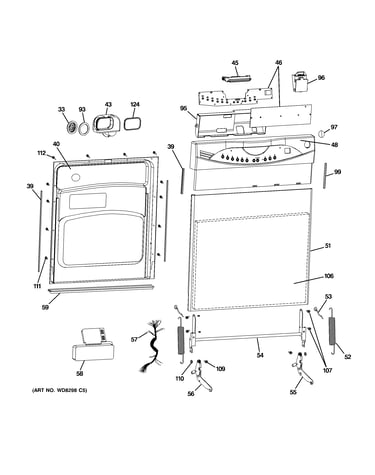

Escutcheon & door assembly diagram

Dishwasher door seal

Part #WD08X10062

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Dishwasher Dishrack Track Roller Assembly WD12X10231
#84

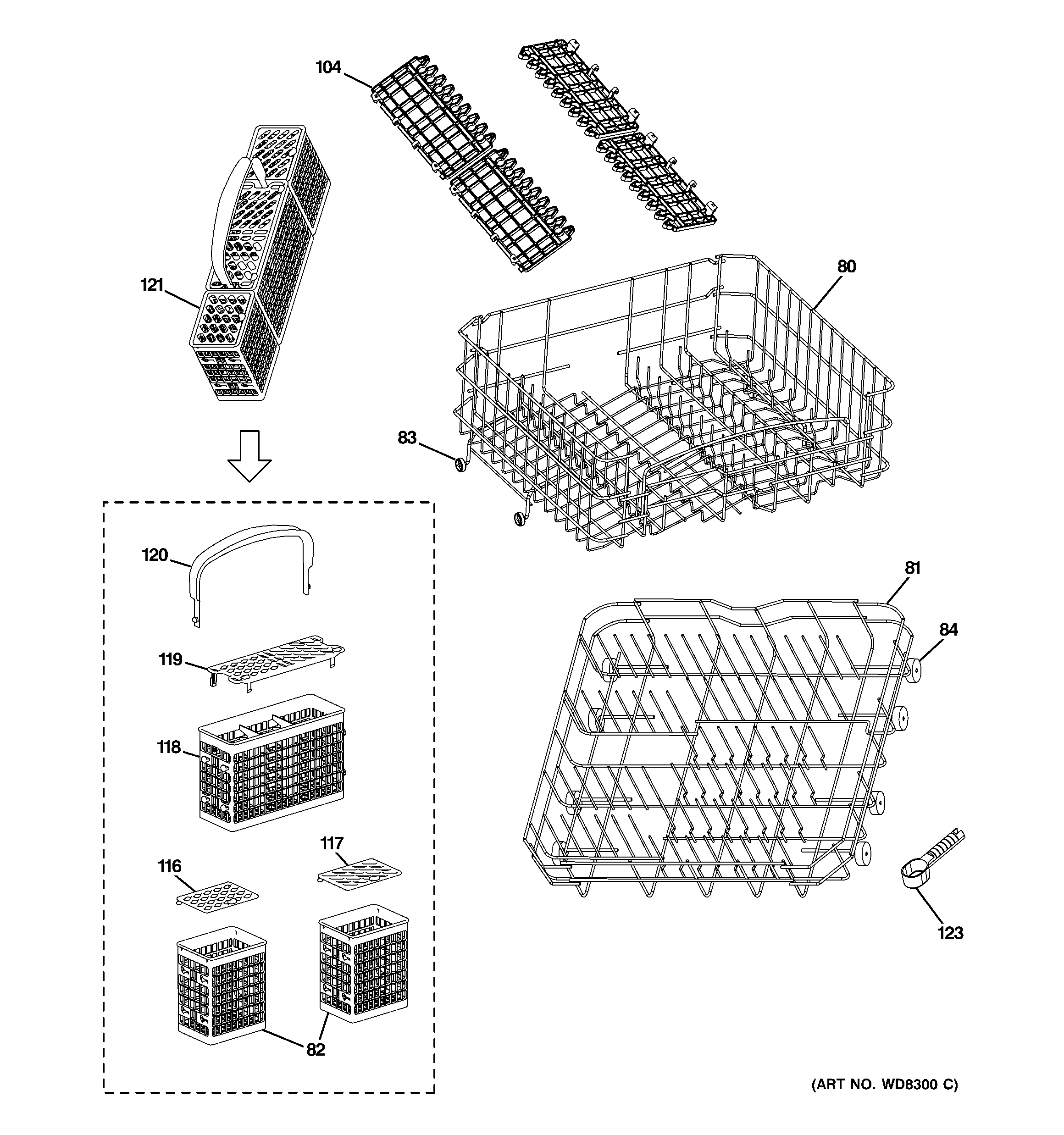

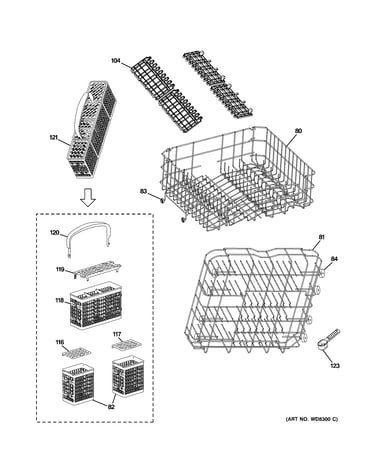

Rack assemblies diagram

Dishwasher dishrack track roller assembly

Part #WD12X10231

$7.09 |
12% OFF Phone Price : $8.09
In Stock
Dishwasher Tub Gasket WD08X10063
#66

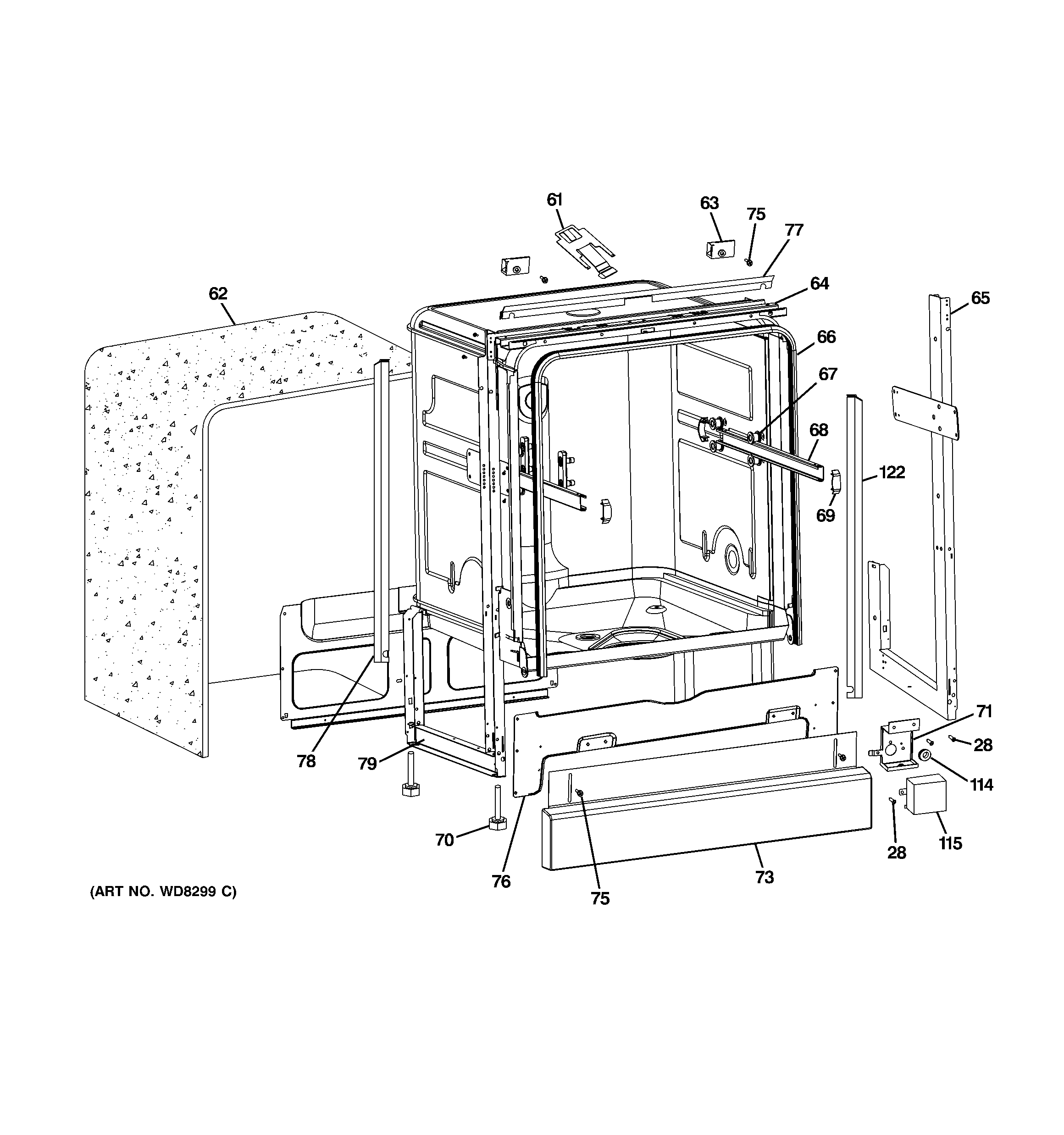

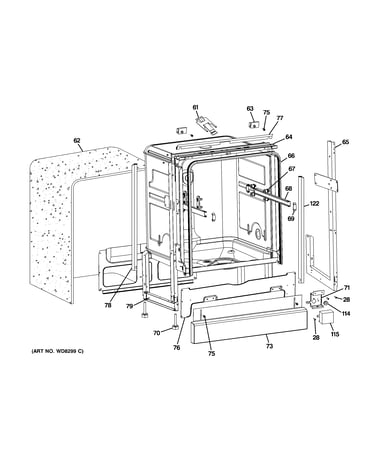

Body parts diagram

Dishwasher tub gasket

Part #WD08X10063

$27.07 |
18% OFF Phone Price : $33.07
In Stock
Connecting D WD18X10036
#13

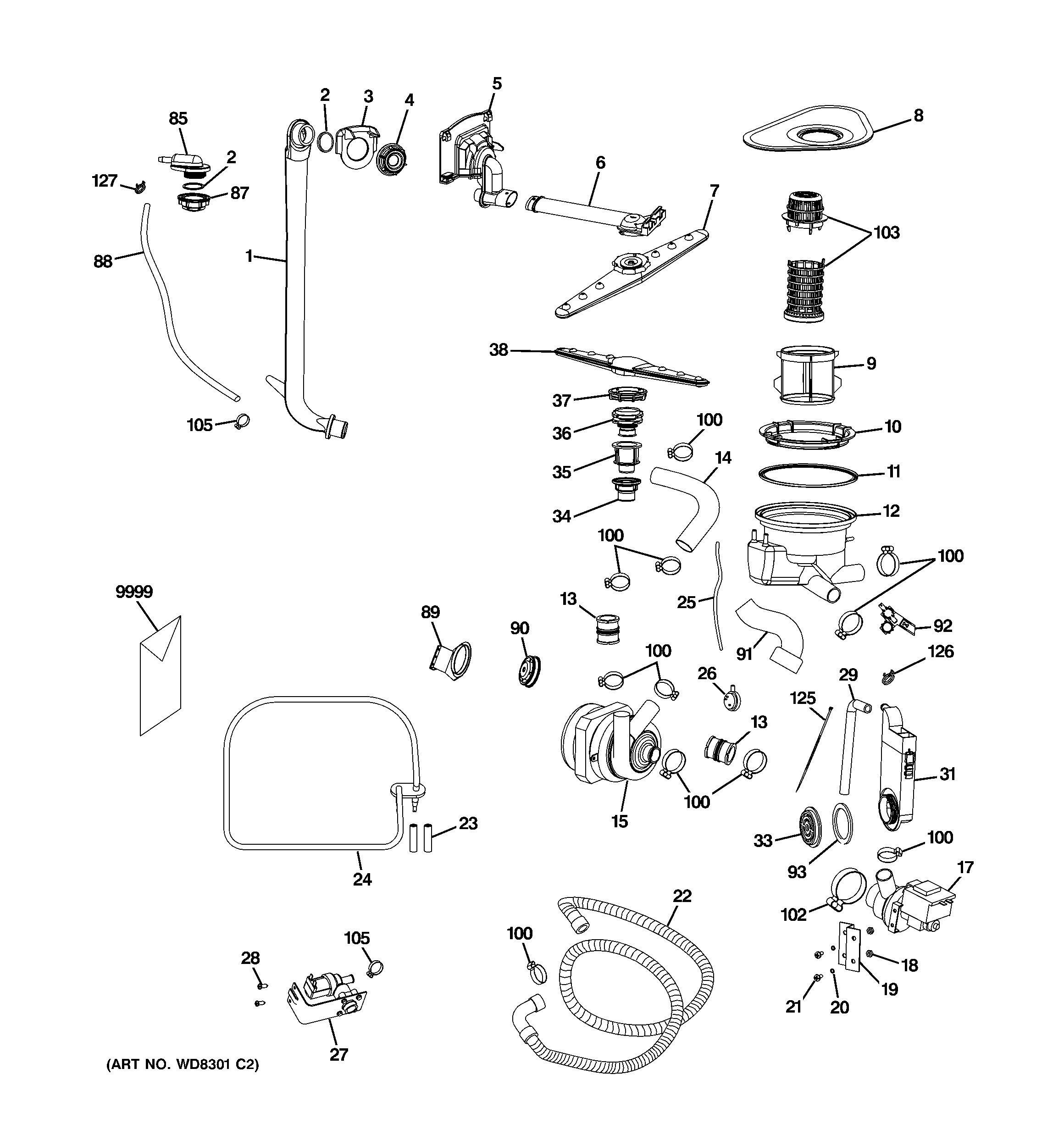

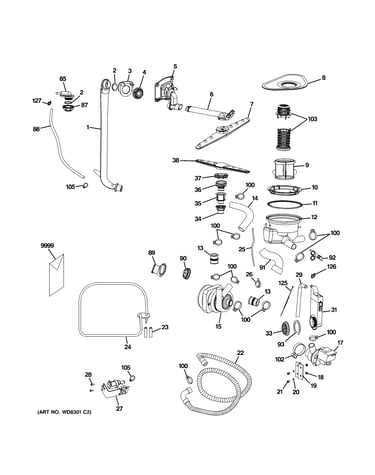

Motor-pump mechanism diagram

Connecting d

Part #WD18X10036

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Dishwasher Hose Clamp, 15/16 X 1-1/2-in WD01X10322
#100

Motor-pump mechanism diagram

Dishwasher hose clamp, 15/16 x 1-1/2-in

Part #WD01X10322

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Filter St/st WD22X10051
#8

Motor-pump mechanism diagram

Filter st/st

Part #WD22X10051

Replaced by #WD12X23634

?
Manufacturer substitution
This part replaces WD22X10051. Substitute parts can look different from the original.
$79.19 |
7% OFF Phone Price : $85.19
In Stock
Conduit Main WD12X10216
#5

Motor-pump mechanism diagram

Conduit main

Part #WD12X10216

Replaced by #WD12X23662

?
Manufacturer substitution
This part replaces WD12X10216. Substitute parts can look different from the original.
This item is not returnable
$20.49 |
23% OFF Phone Price : $26.49
In Stock
Upper & L0we WD12X10228
#103

Motor-pump mechanism diagram

Upper & l0we

Part #WD12X10228

Replaced by #WD12X23634

?
Manufacturer substitution
This part replaces WD12X10228. Substitute parts can look different from the original.
$79.19 |
7% OFF Phone Price : $85.19
In Stock
Dishwasher Water Feed Tube Manifold Seal WD01X10240
#2

Motor-pump mechanism diagram

Dishwasher water feed tube manifold seal

Part #WD01X10240

Replaced by #WD08X23648

?
Manufacturer substitution
This part replaces WD01X10240. Substitute parts can look different from the original.
$7.71
In Stock
Pressure Switch WD21X10191
#26

Motor-pump mechanism diagram

Pressure switch

Part #WD21X10191

Replaced by #WD21X23650

?
Manufacturer substitution
This part replaces WD21X10191. Substitute parts can look different from the original.
$52.57 |
10% OFF Phone Price : $58.57
In Stock
