Model # PAVT144AWW Official Maytag washer/dryer

Here are the diagrams and repair parts for Official Maytag PAVT144AWW washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

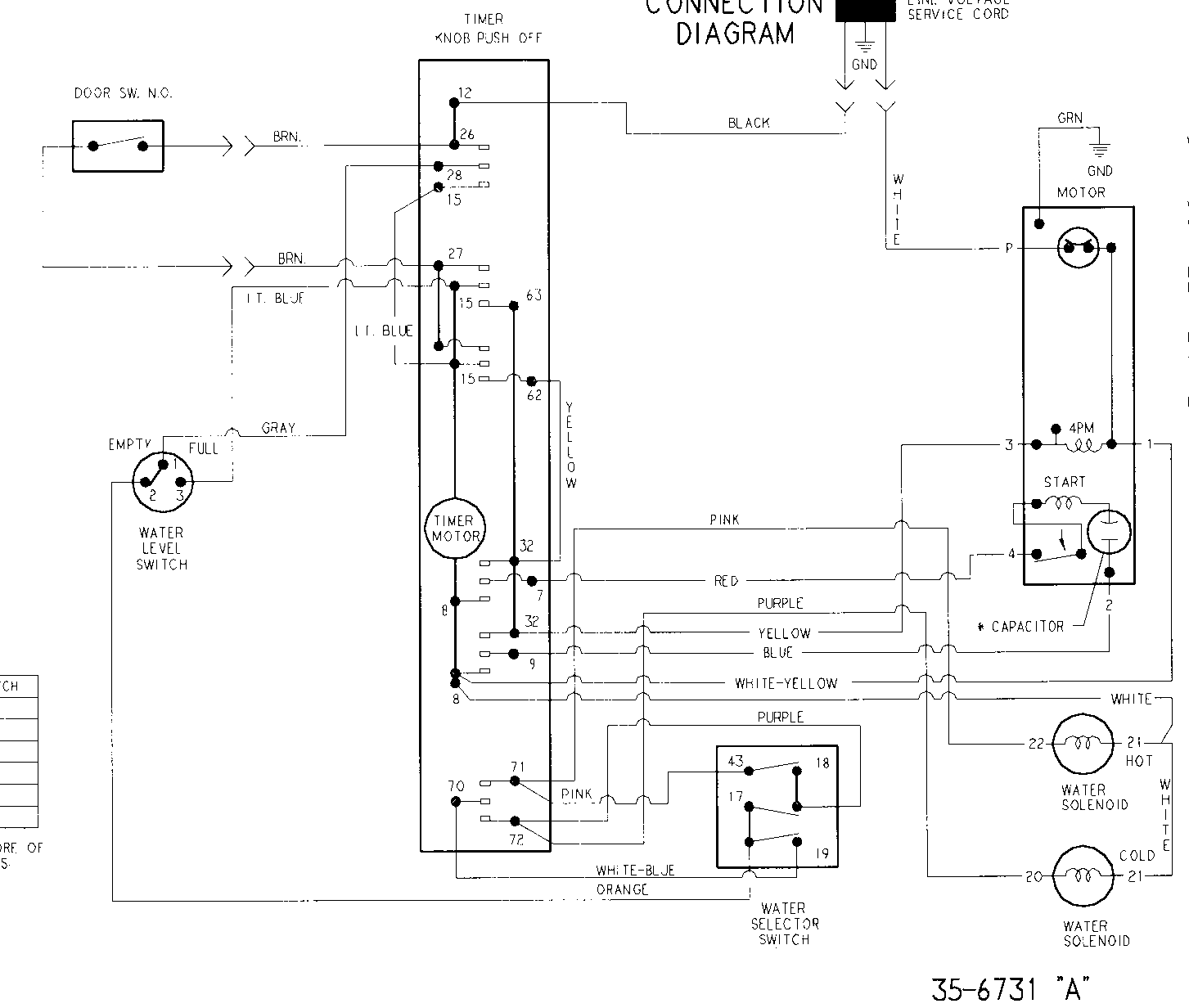

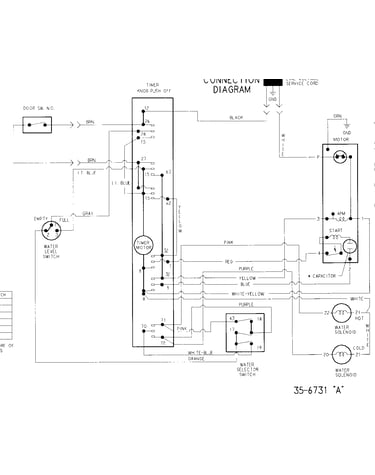

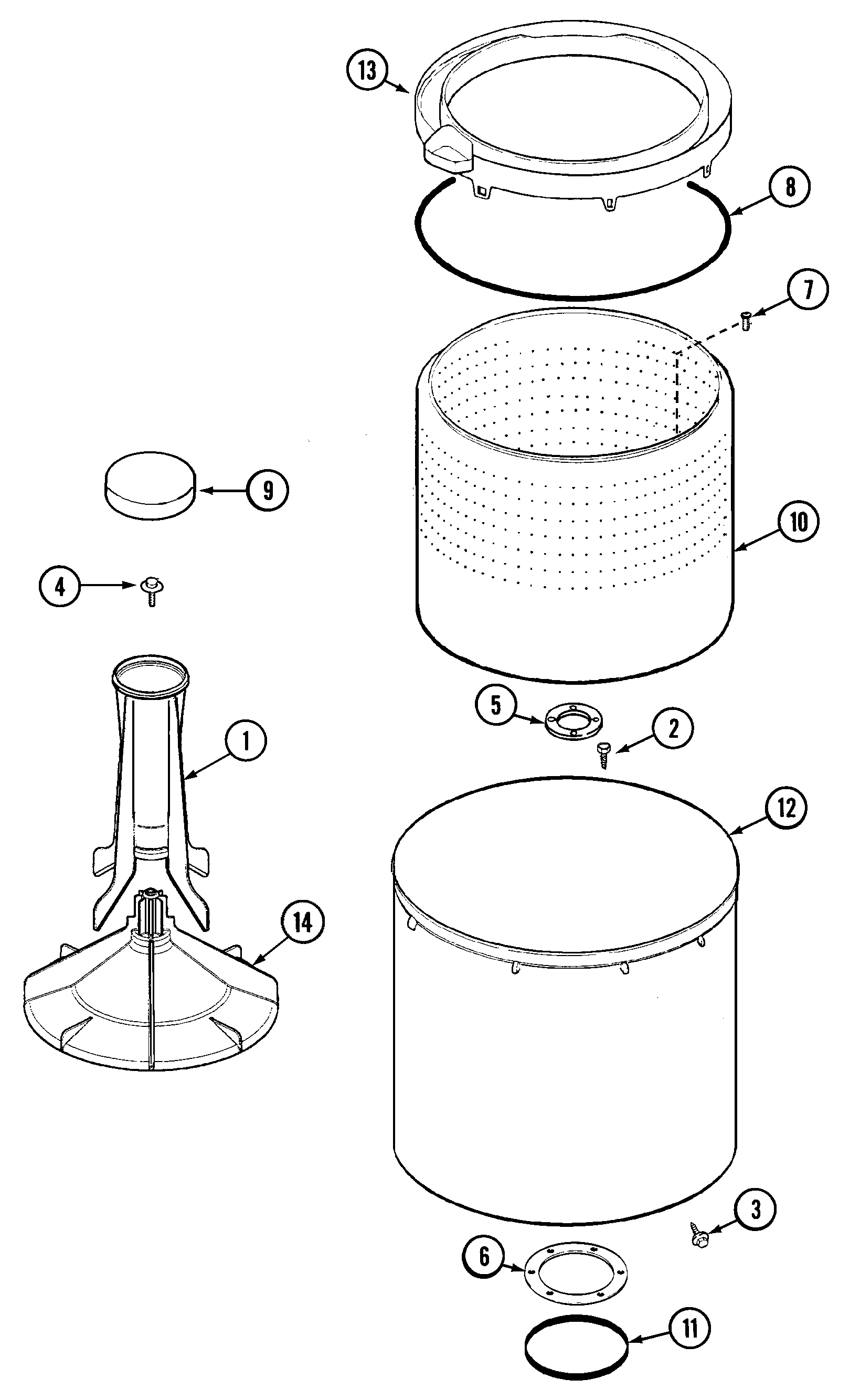

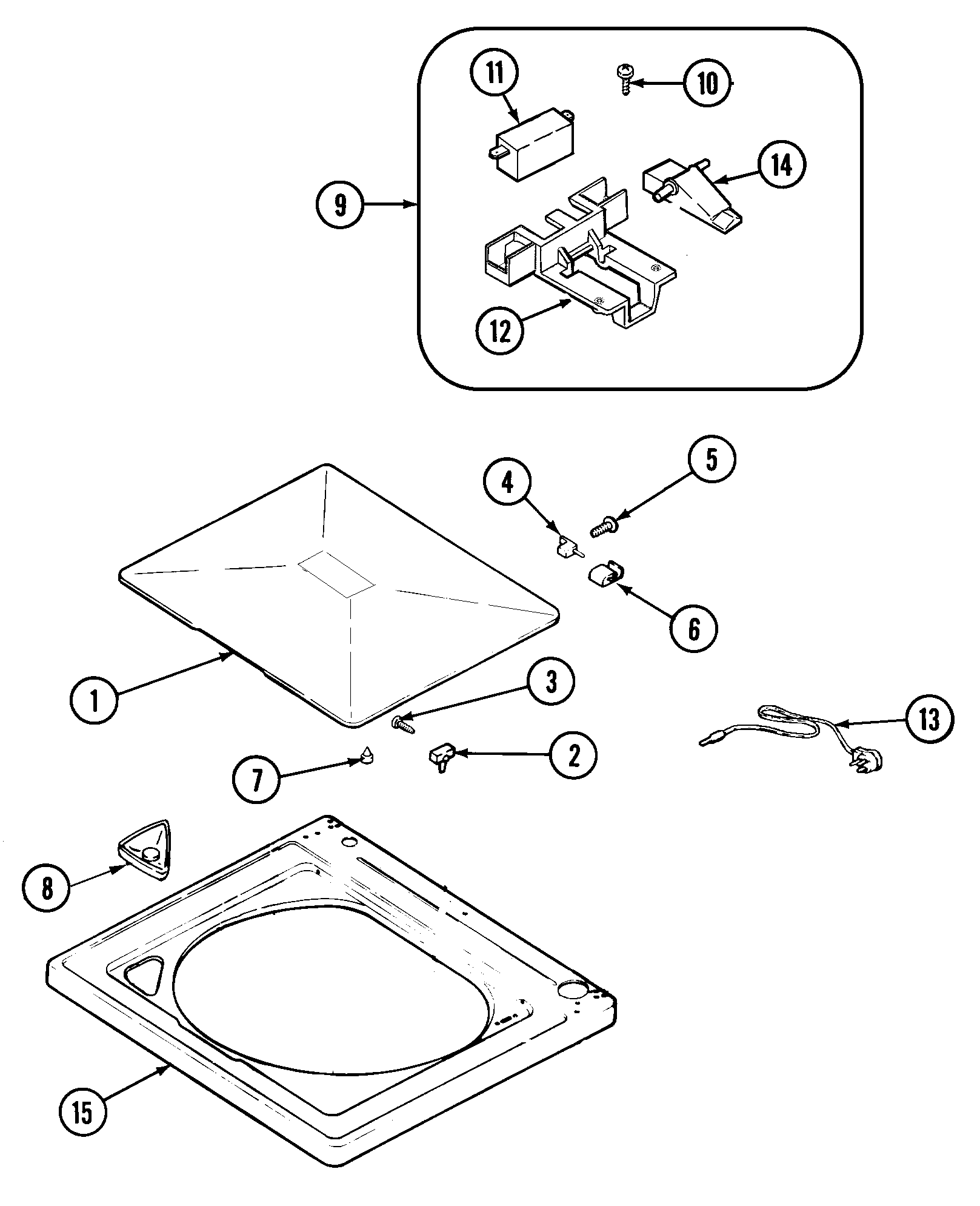

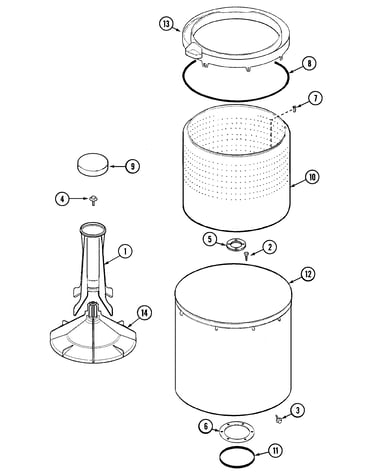

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Clamp, Pressure Switch Hose 25-7796
#21

Cabinet diagram

Clamp, pressure switch hose

Part #25-7796

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 25-7796. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Hose Clamp 25-7867
#18

Cabinet diagram

Hose clamp

Part #25-7867

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 25-7867. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Motor Pulley 21001922
#2

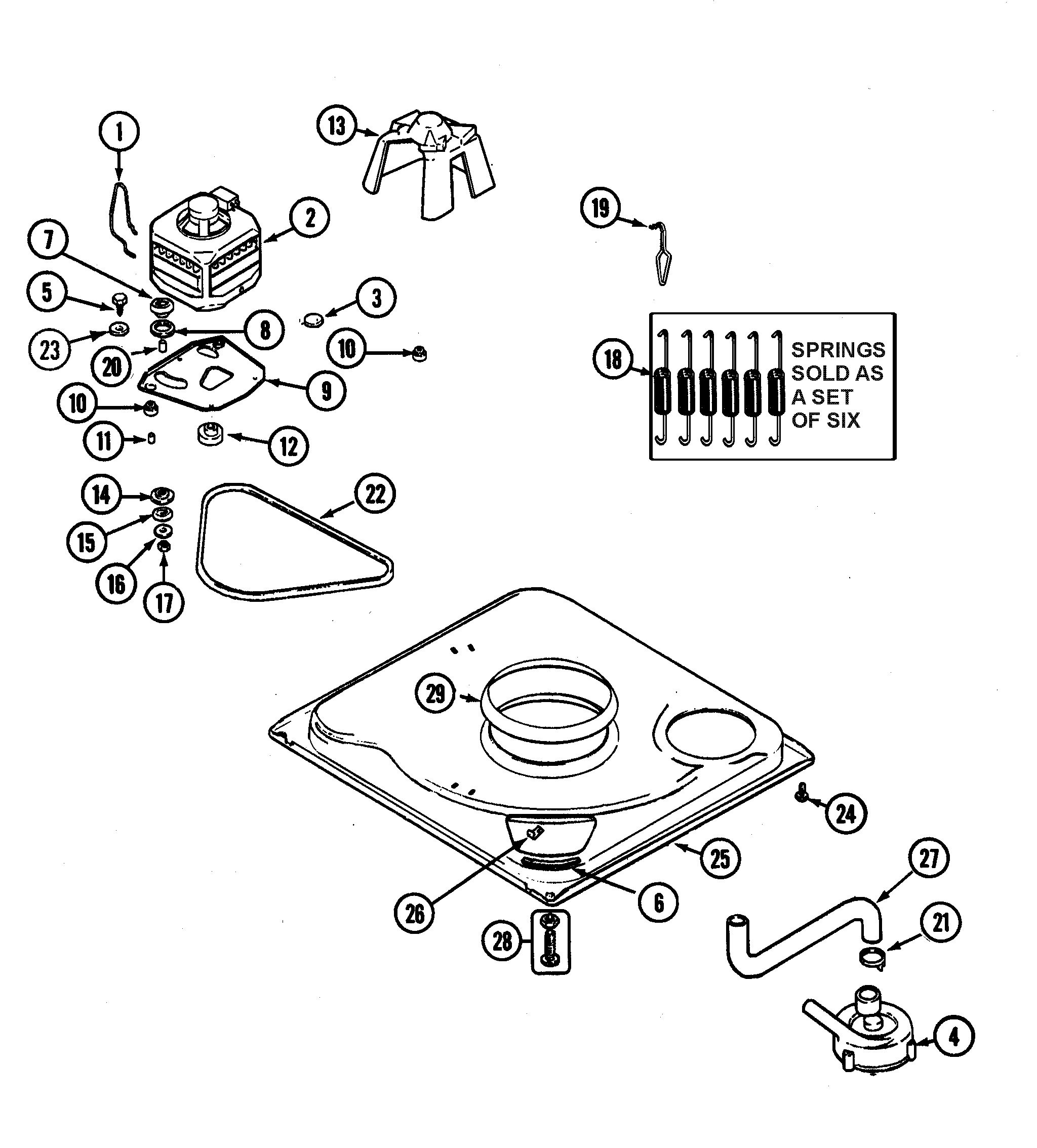

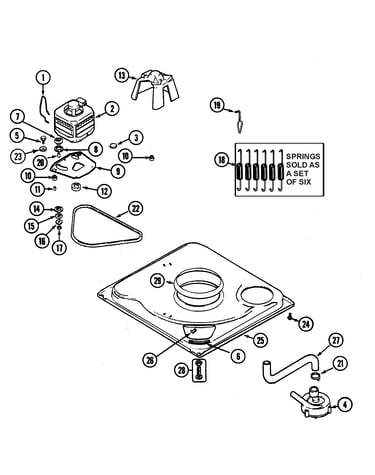

Base diagram

Motor pulley

Part #21001922

Replaced by #WP21001950

?
Manufacturer substitution
This part replaces 21001922. Substitute parts can look different from the original.
BEST SELLER
$128.96 |
9% OFF Phone Price : $140.96
In Stock
Washer Drive Motor 21001506
#12

Base diagram

Washer drive motor

Part #21001506

Replaced by #WP21001950

?
Manufacturer substitution
This part replaces 21001506. Substitute parts can look different from the original.
BEST SELLER
$128.96 |
9% OFF Phone Price : $140.96
In Stock
Screw, Suppo 25-7828
#24

Base diagram

Screw, suppo

Part #25-7828

Replaced by #WP489483

?
Manufacturer substitution
This part replaces 25-7828. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Locator Nut 25-0224
#6A

Cabinet diagram

Locator nut

Part #25-0224

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 25-0224. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Snubber 21001161
Snubber

Part #21001161

Replaced by #WP21002026

?
Manufacturer substitution
This part replaces 21001161. Substitute parts can look different from the original.
This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
Washer Snubber Ring 21002026
Washer snubber ring

Part #21002026

Replaced by #WP21002026

?
Manufacturer substitution
This part replaces 21002026. Substitute parts can look different from the original.
This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
Washer Water Inlet Valve 21001932
#17

Cabinet diagram

Washer water inlet valve

Part #21001932

Replaced by #WP21001932

?
Manufacturer substitution
This part replaces 21001932. Substitute parts can look different from the original.
$89.02 |
6% OFF Phone Price : $95.02
In Stock
Washer Timer 21001522
#11

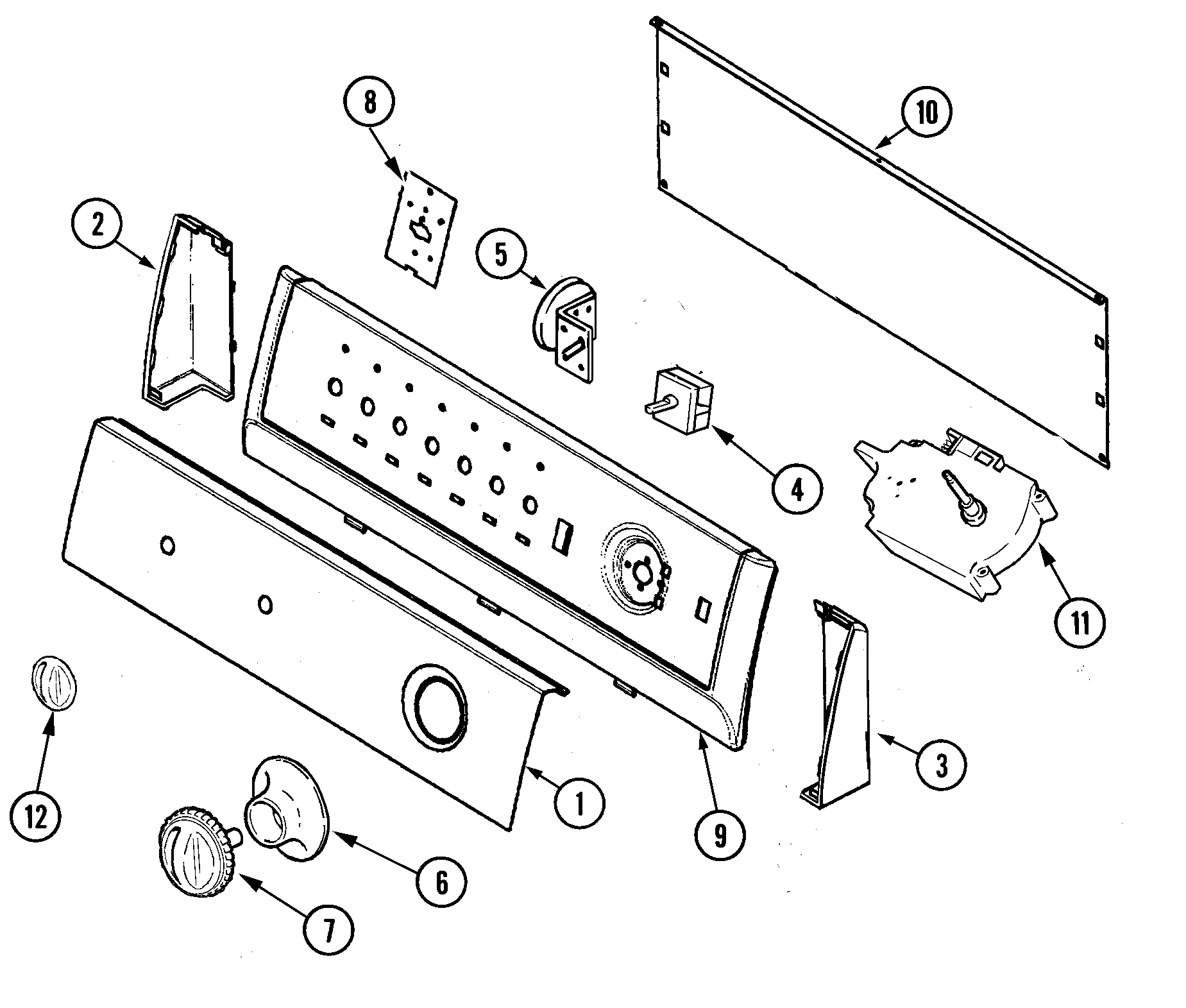

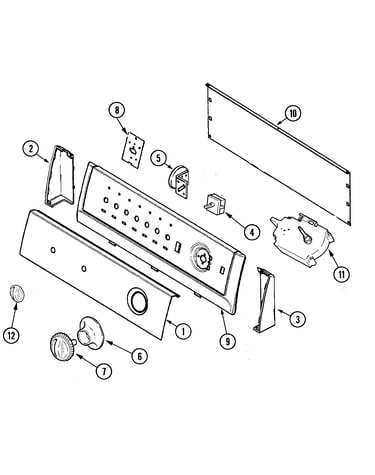

Control panel diagram

Washer timer

Part #21001522

The manufacturer no longer makes this part, and there's no substitute part
