Craftsman
Gas Walk-Behind Mower

Model # 917377312 Official Craftsman rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917377312 rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 270 parts  |
Pipe Fitting 132010
#31

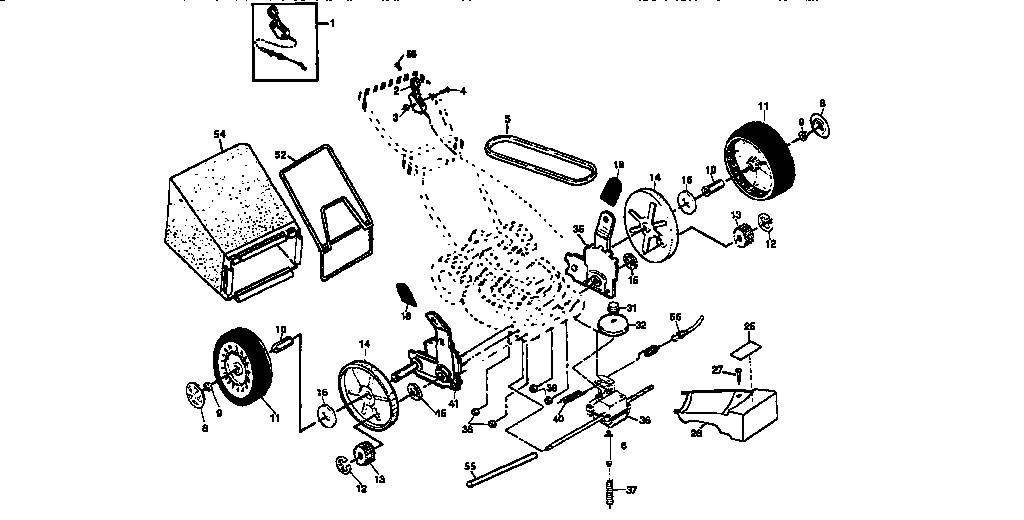

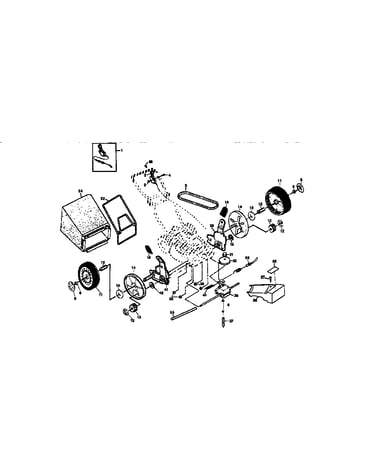

Drive assembly diagram

Pipe fitting

Part #132010

Replaced by #532409149

?
Manufacturer substitution
This part replaces 132010. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hex Flange Lock Nut 145212
#9

Drive assembly diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lock Nut 83923
#26

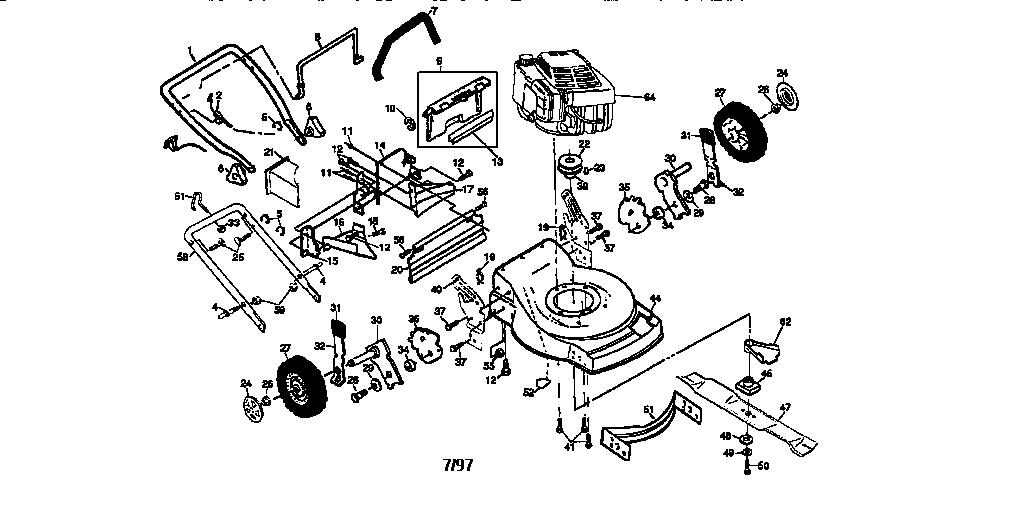

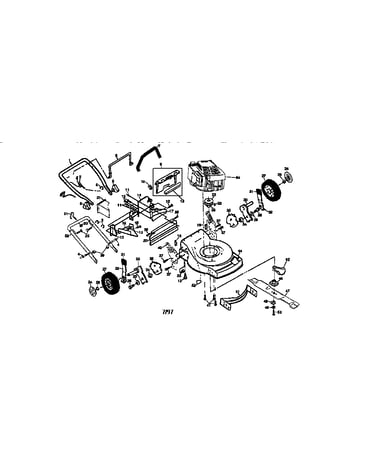

Main frame diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Mulching Blade 157101
#47

Main frame diagram

Lawn mower mulching blade

Part #157101

Replaced by #532406713

?
Manufacturer substitution
This part replaces 157101. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$28.29 |
17% OFF Phone Price : $34.29
In Stock
Handle Bolt 131959
#25

Main frame diagram

Handle bolt

Part #131959

Replaced by #532191574

?
Manufacturer substitution
This part replaces 131959. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Mower Height Adjuster Knob 701037
Lawn mower height adjuster knob

Part #701037

Replaced by #532701037

?
Manufacturer substitution
This part replaces 701037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn Mower Blade Adapter 851514
#46

Main frame diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$18.44 |
10% OFF Phone Price : $20.44
In Stock
Lawn Mower Wheel 150341
#27

Main frame diagram

Lawn mower wheel

Part #150341

Replaced by #532150341

?
Manufacturer substitution
This part replaces 150341. Substitute parts can look different from the original.
BEST SELLER
$38.96 |
13% OFF Phone Price : $44.96
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#56

Main frame diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Rope Guide 132001
#61

Main frame diagram

Rope guide

Part #132001

Replaced by #586122501

?
Manufacturer substitution
This part replaces 132001. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
