Model # 63876 Official Craftsman motor

Here are the diagrams and repair parts for Official Craftsman 63876 motor, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
63876 Motor
Power Tool Washer 64551
#5

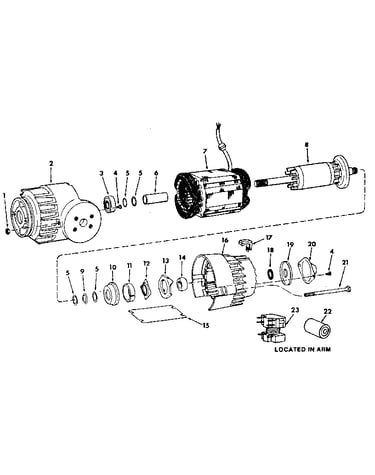

Motor assembly 63876 diagram

Power tool washer

Part #64551

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 37886
#9

Motor assembly 63876 diagram

Spring washer

Part #37886

The manufacturer no longer makes this part, and there's no substitute part

Bearing 60251
#3

Motor assembly 63876 diagram

Bearing

Part #60251

The manufacturer no longer makes this part, and there's no substitute part

Felt 64556
#11

Motor assembly 63876 diagram

Felt

Part #64556

The manufacturer no longer makes this part, and there's no substitute part

End Shield 64560
#16

Motor assembly 63876 diagram

End shield

Part #64560

The manufacturer no longer makes this part, and there's no substitute part

Guard 64563
#20

Motor assembly 63876 diagram

Guard

Part #64563

The manufacturer no longer makes this part, and there's no substitute part

Retainer 64565
#12

Motor assembly 63876 diagram

Retainer

Part #64565

The manufacturer no longer makes this part, and there's no substitute part

Screw 64564
#21

Motor assembly 63876 diagram

Screw

Part #64564

The manufacturer no longer makes this part, and there's no substitute part

Washer-rubr 30768
#18

Motor assembly 63876 diagram

Washer-rubr

Part #30768

The manufacturer no longer makes this part, and there's no substitute part

Shield 64550
#2

Motor assembly 63876 diagram

Shield

Part #64550

The manufacturer no longer makes this part, and there's no substitute part
