Amana
Bottom-Mount Refrigerator

Model # ABB1921DEW14 Official Amana bottom-mount refrigerator

Here are the diagrams and repair parts for Official Amana ABB1921DEW14 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 184 parts  |
Refrigerator Drier 2317845
#27

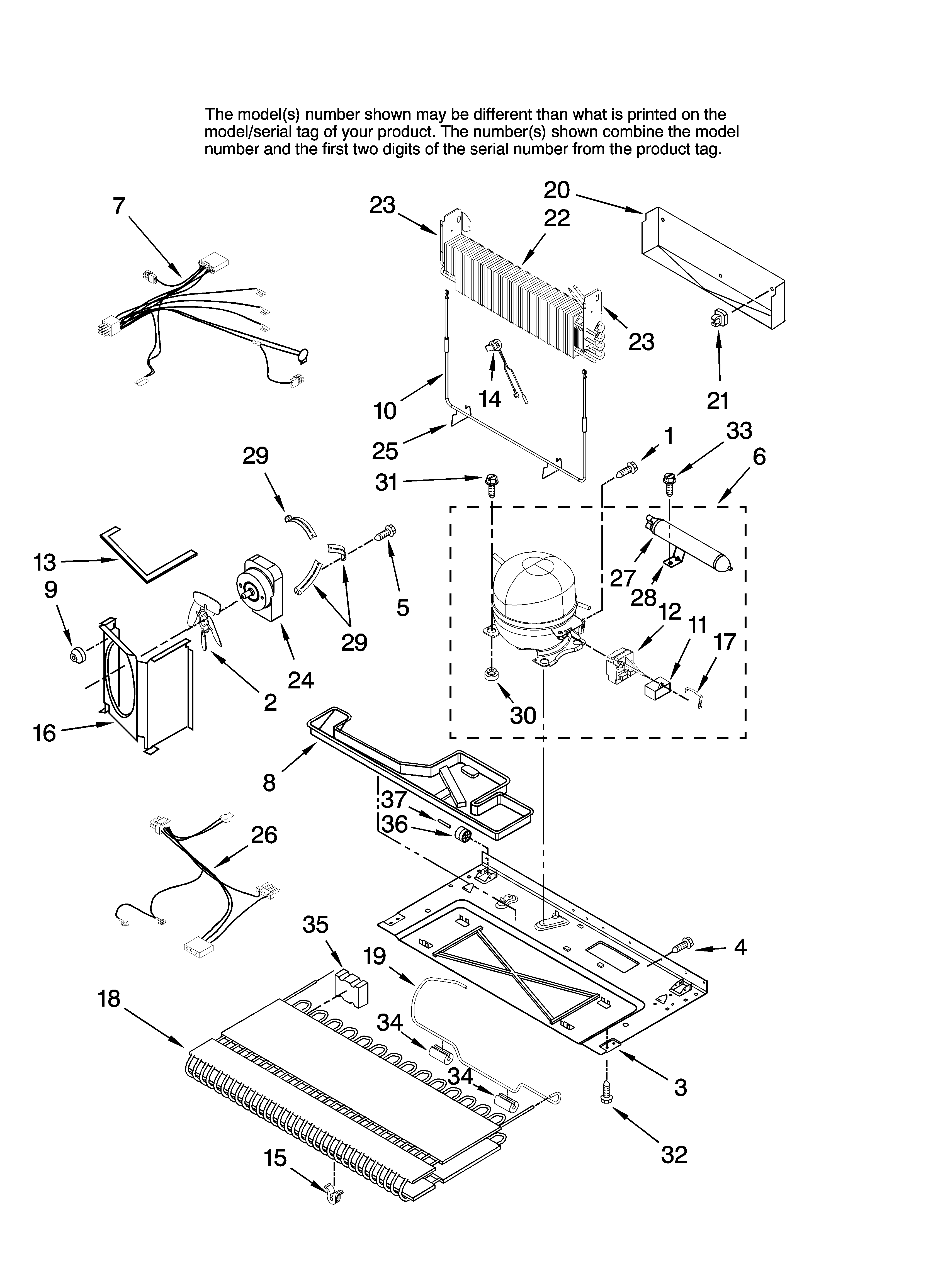

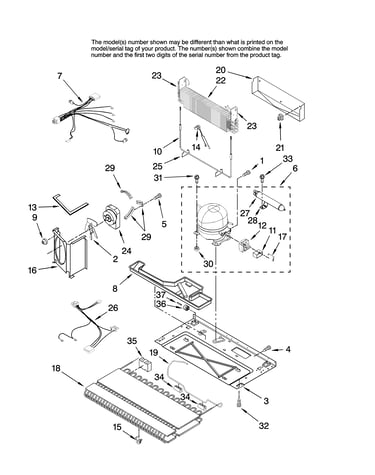

Unit parts diagram

Refrigerator drier

Part #2317845

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 2317845. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Lamp 40 Watt 67003568
Lamp 40 watt

Part #67003568

Replaced by #40A15

?
Manufacturer substitution
This part replaces 67003568. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Light Switch C3680310
#6

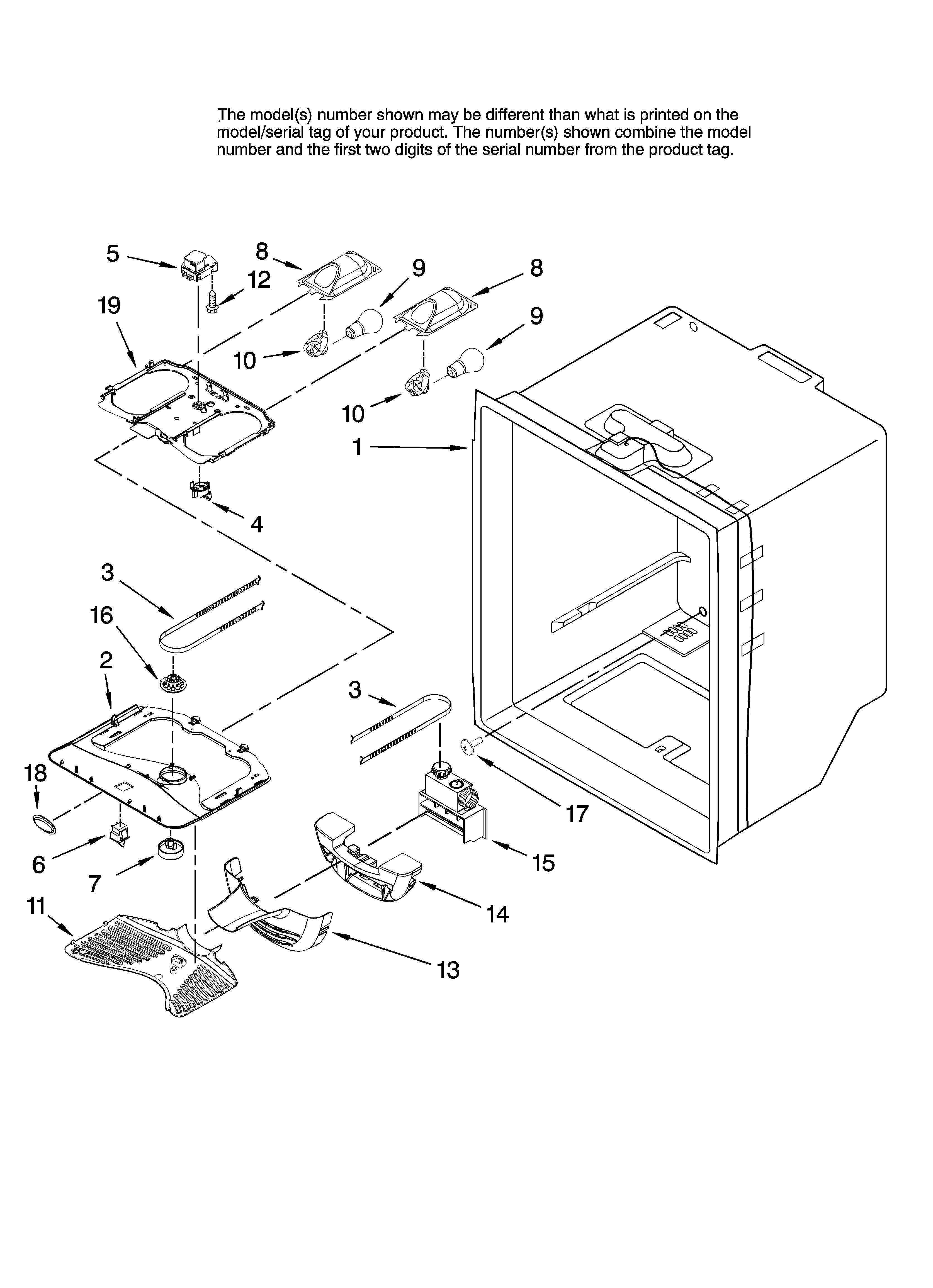

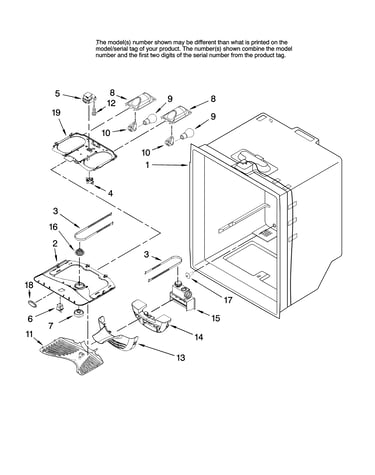

Refrigerator liner parts diagram

Refrigerator light switch

Part #C3680310

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Capacitor W/ 67005562
#11

Unit parts diagram

Capacitor w/

Part #67005562

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 67005562. Substitute parts can look different from the original.
BEST SELLER
$56.27 |
10% OFF Phone Price : $62.27
In Stock
Refrigerator Crisper Drawer Support Rail, Center 67001057
#22

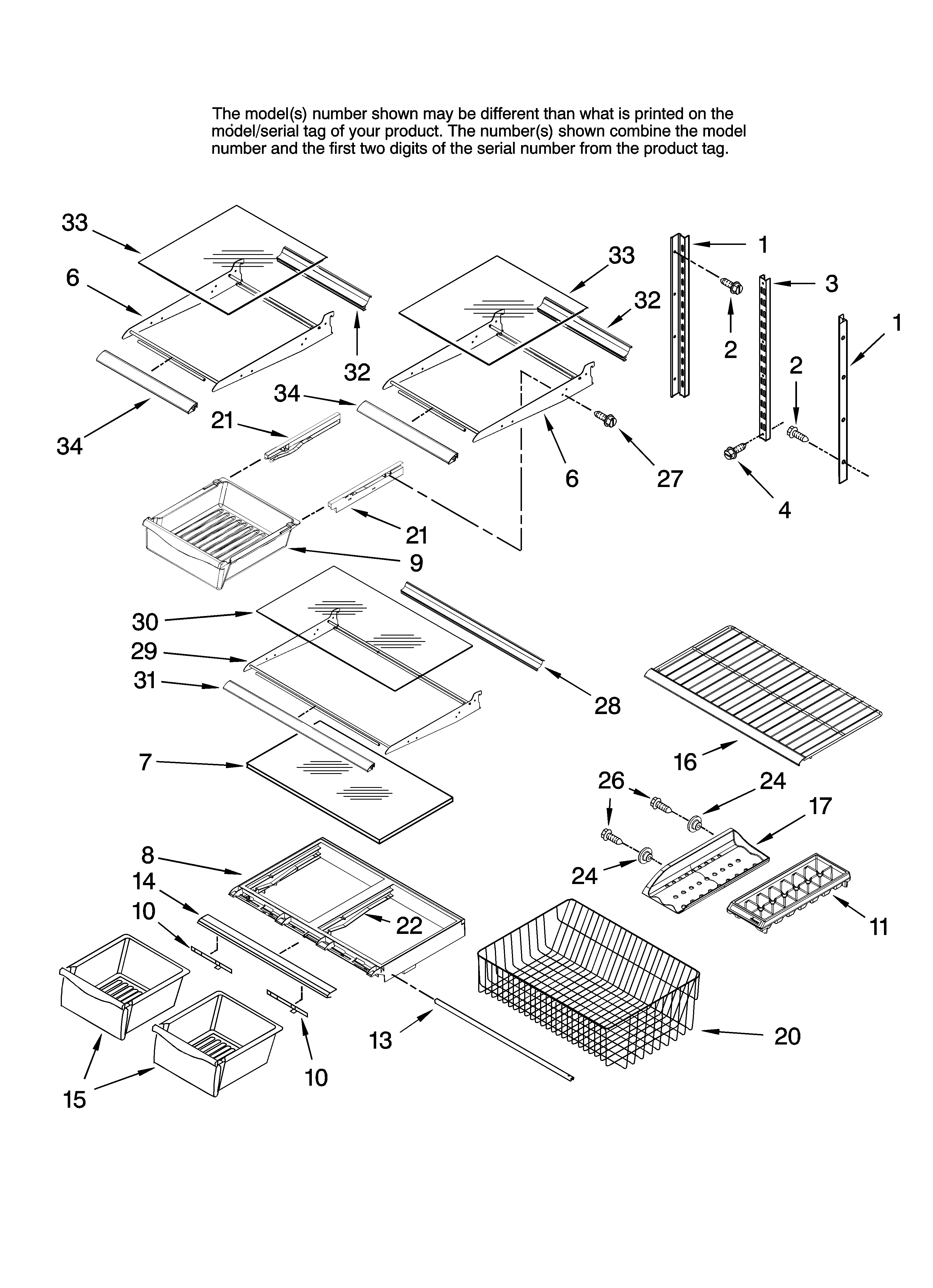

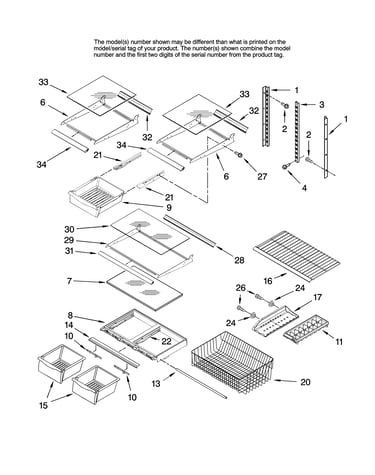

Shelf parts diagram

Refrigerator crisper drawer support rail, center

Part #67001057

Replaced by #WPW10671238

?
Manufacturer substitution
This part replaces 67001057. Substitute parts can look different from the original.
BEST SELLER
$45.01 |
12% OFF Phone Price : $51.01
In Stock
Refrigerator Light Switch 67005653
#11

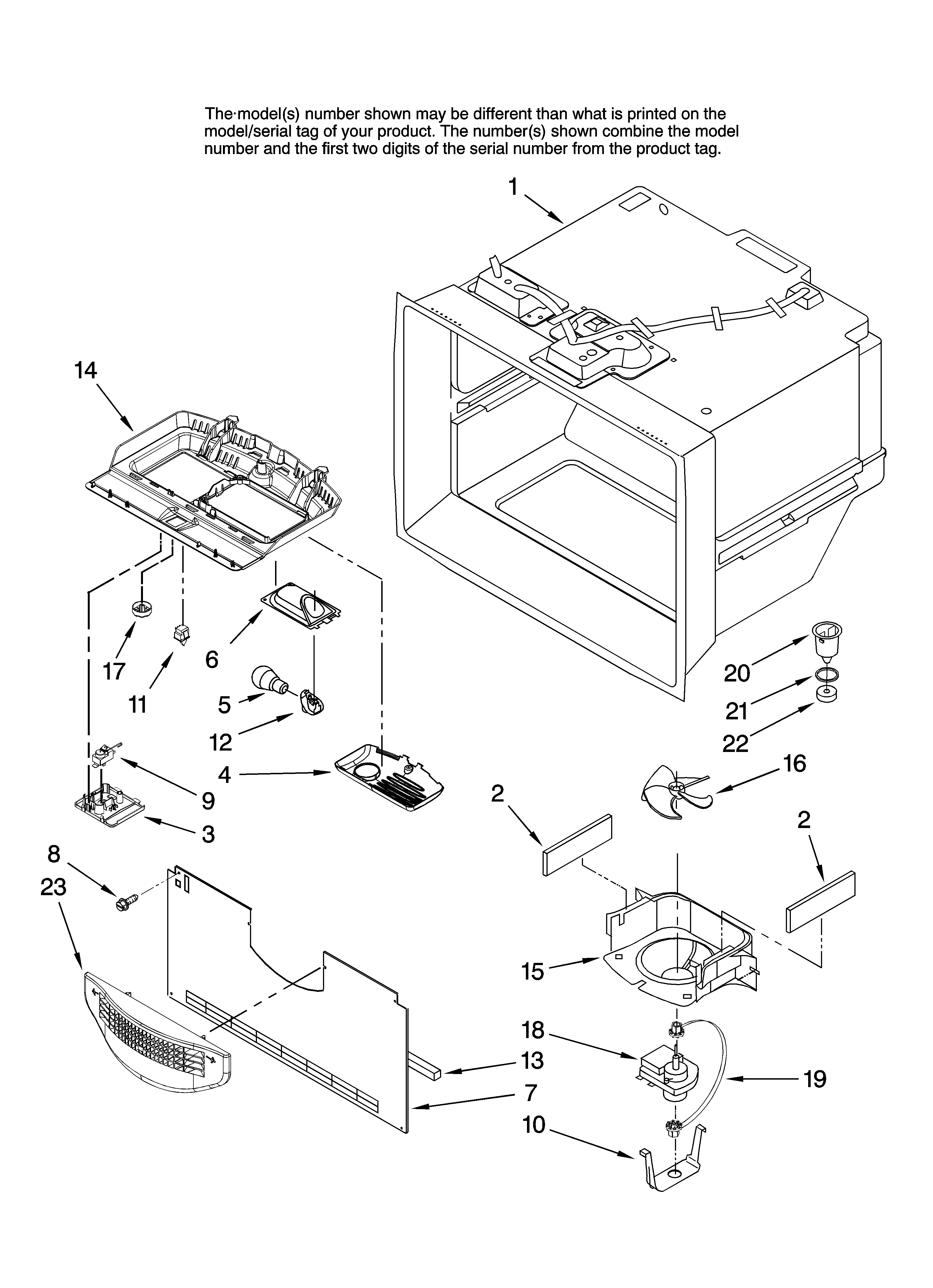

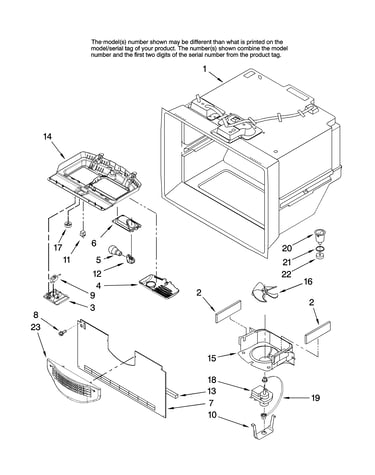

Freezer liner parts diagram

Refrigerator light switch

Part #67005653

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 67005653. Substitute parts can look different from the original.
BEST SELLER
$21.08 |
22% OFF Phone Price : $27.08
In Stock
Refrigerator Defrost Bi-metal Thermostat 67003426
#14

Unit parts diagram

Refrigerator defrost bi-metal thermostat

Part #67003426

Replaced by #WP67003426

?
Manufacturer substitution
This part replaces 67003426. Substitute parts can look different from the original.
BEST SELLER
$44.85 |
12% OFF Phone Price : $50.85
In Stock
Refrigerator Fan Blade W10162928
#2

Unit parts diagram

Refrigerator fan blade

Part #W10162928

Replaced by #W10156818

?
Manufacturer substitution
This part replaces W10162928. Substitute parts can look different from the original.
BEST SELLER
$42.67 |
12% OFF Phone Price : $48.67
In Stock
Refrigerator Grille W10175909
#23

Freezer liner parts diagram

Refrigerator grille

Part #W10175909

Replaced by #WPW10175909

?
Manufacturer substitution
This part replaces W10175909. Substitute parts can look different from the original.
BEST SELLER
$33.88 |
15% OFF Phone Price : $39.88
In Stock
Gasket, Fz D W10130150
#3

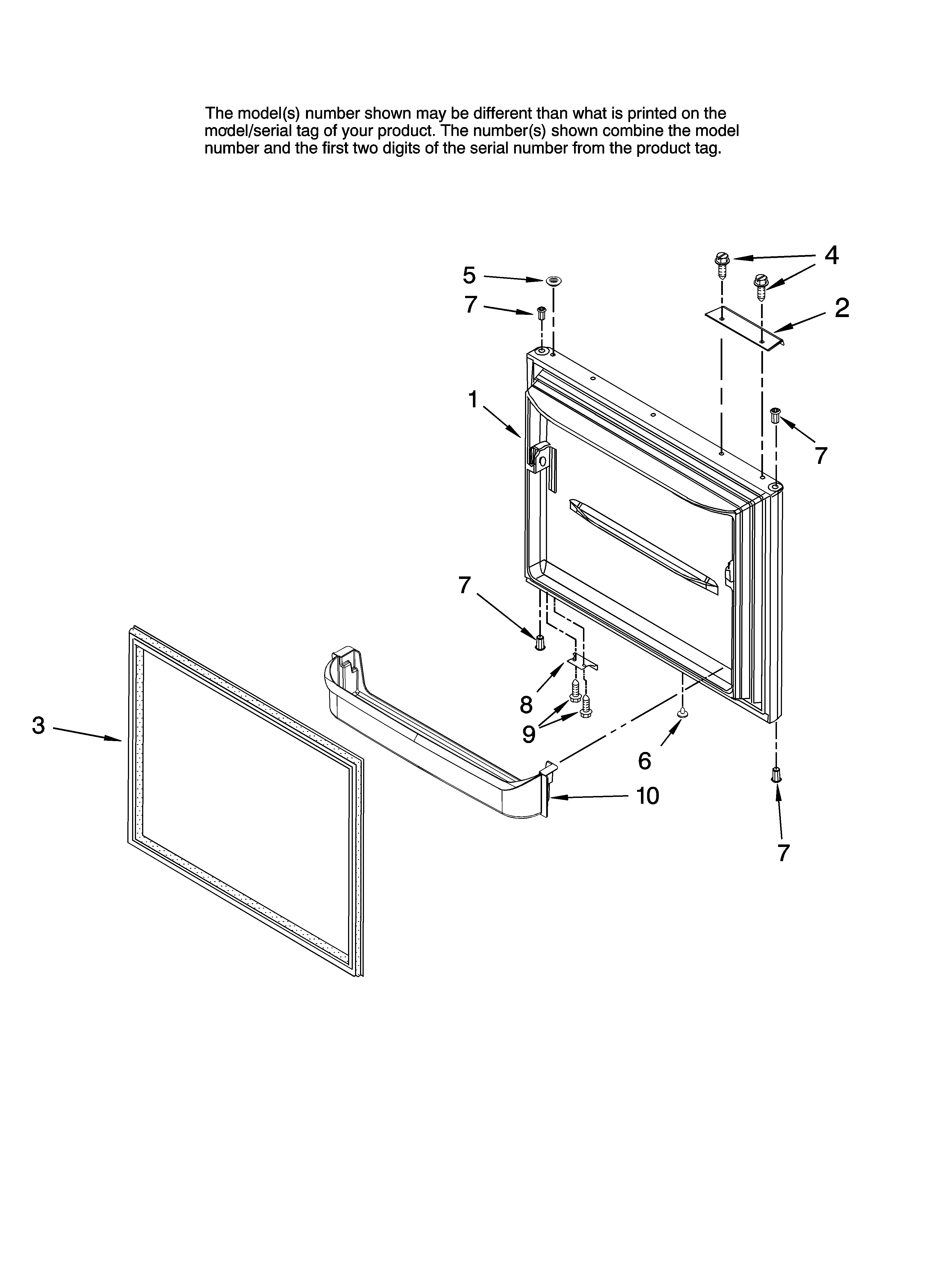

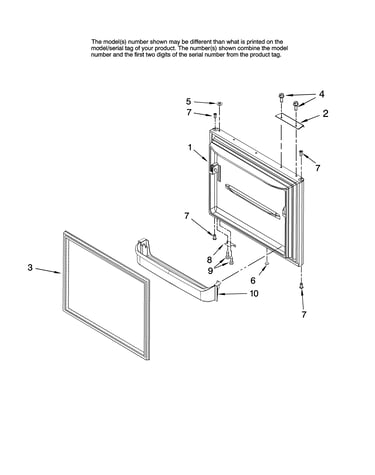

Freezer door parts diagram

Gasket, fz d

Part #W10130150

Replaced by #WPW10443311

?
Manufacturer substitution
This part replaces W10130150. Substitute parts can look different from the original.
BEST SELLER
$166.10 |
7% OFF Phone Price : $178.10
In Stock
