Model # PDT720SGH7WW Official GE dishwasher

Here are the diagrams and repair parts for Official GE PDT720SGH7WW dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part

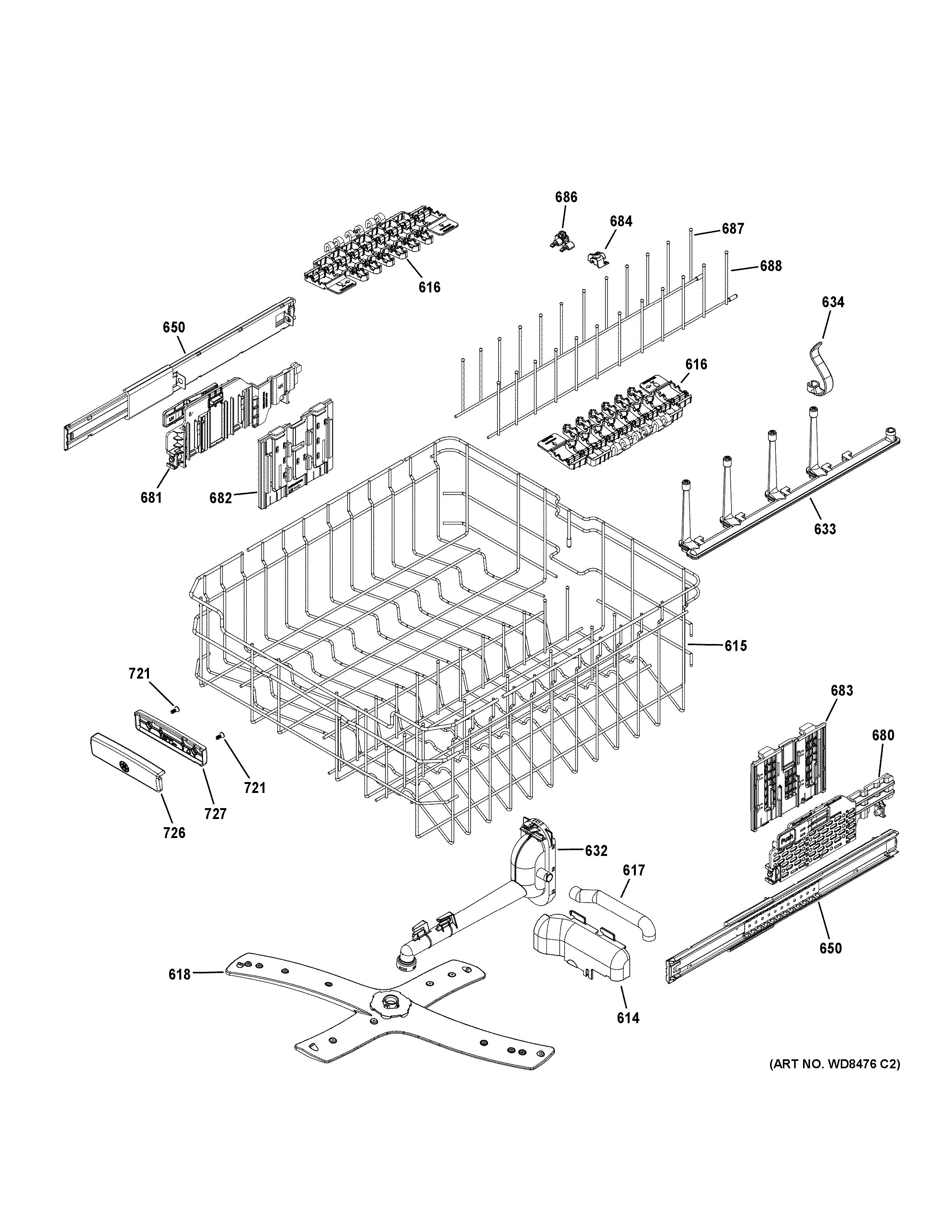

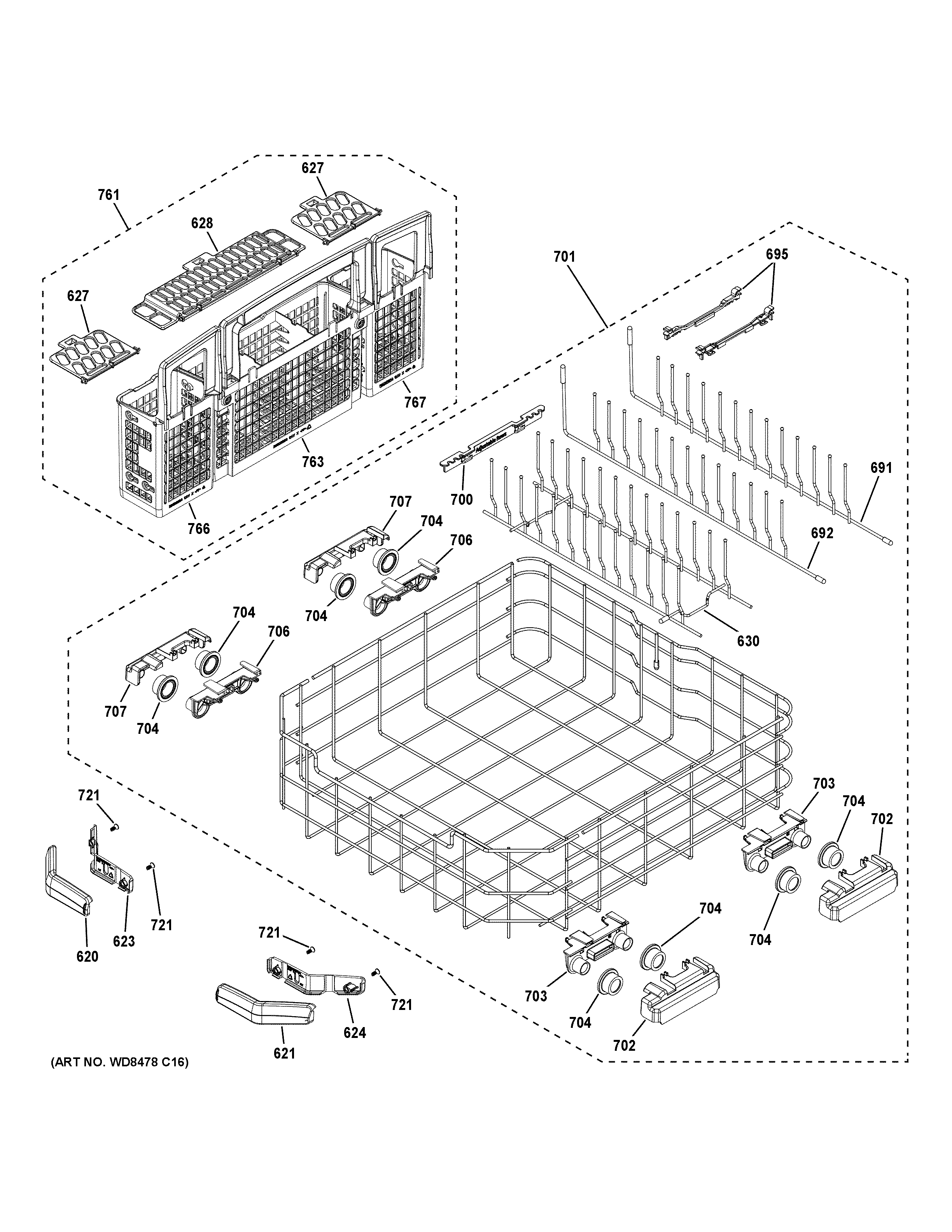

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forPDT720SGH7WW Dishwasher

  • G.e. Dishwasher Door Latch Lock WD21X10490
    #803

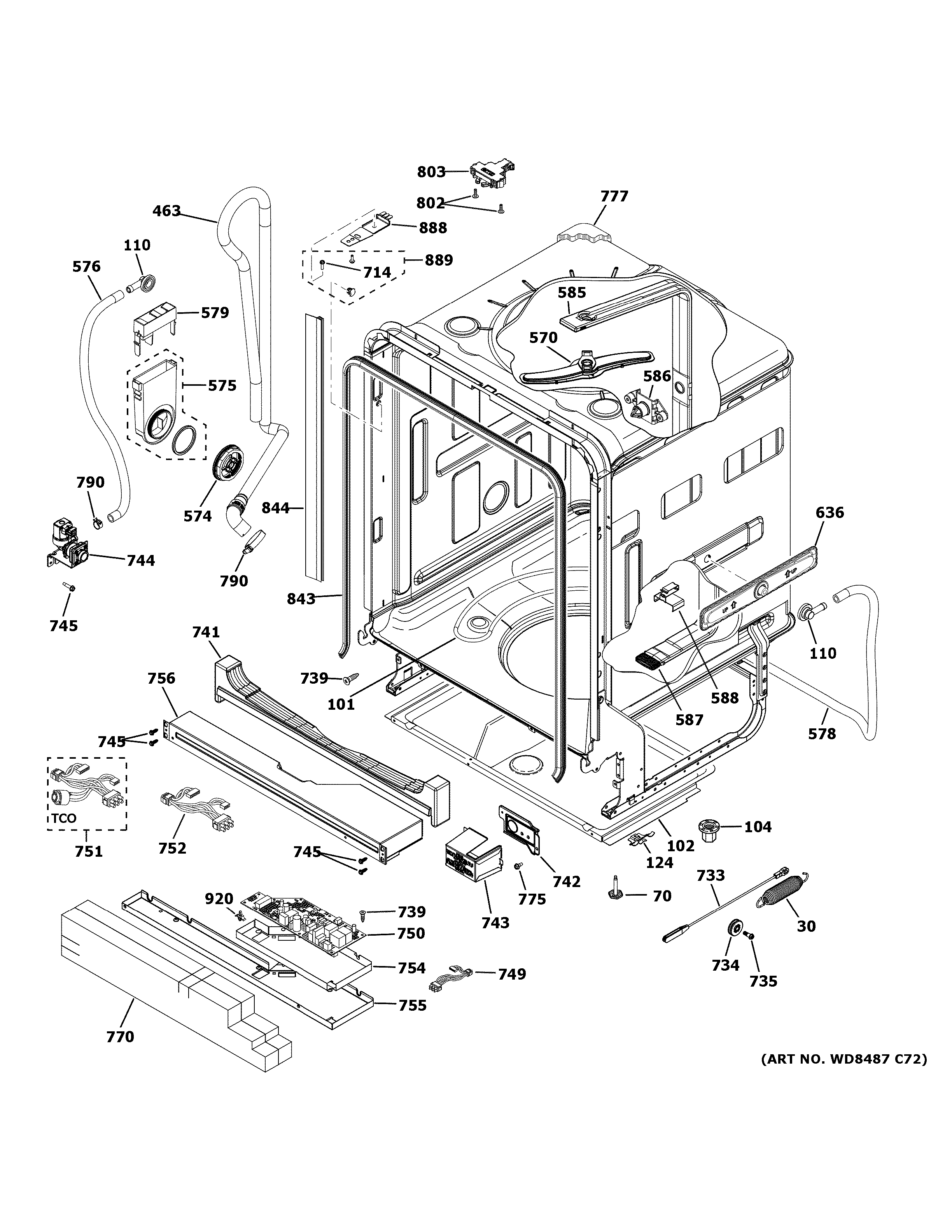

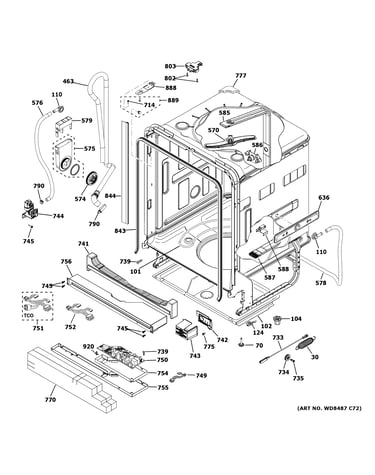

    Body parts diagram

    G.e. dishwasher door latch lock

    Part #WD21X10490

    BEST SELLER
    $29.18
    17% OFF Phone Price : $35.18
    In Stock
  • Dishwasher Circulation Pump WD26X22285
    #310

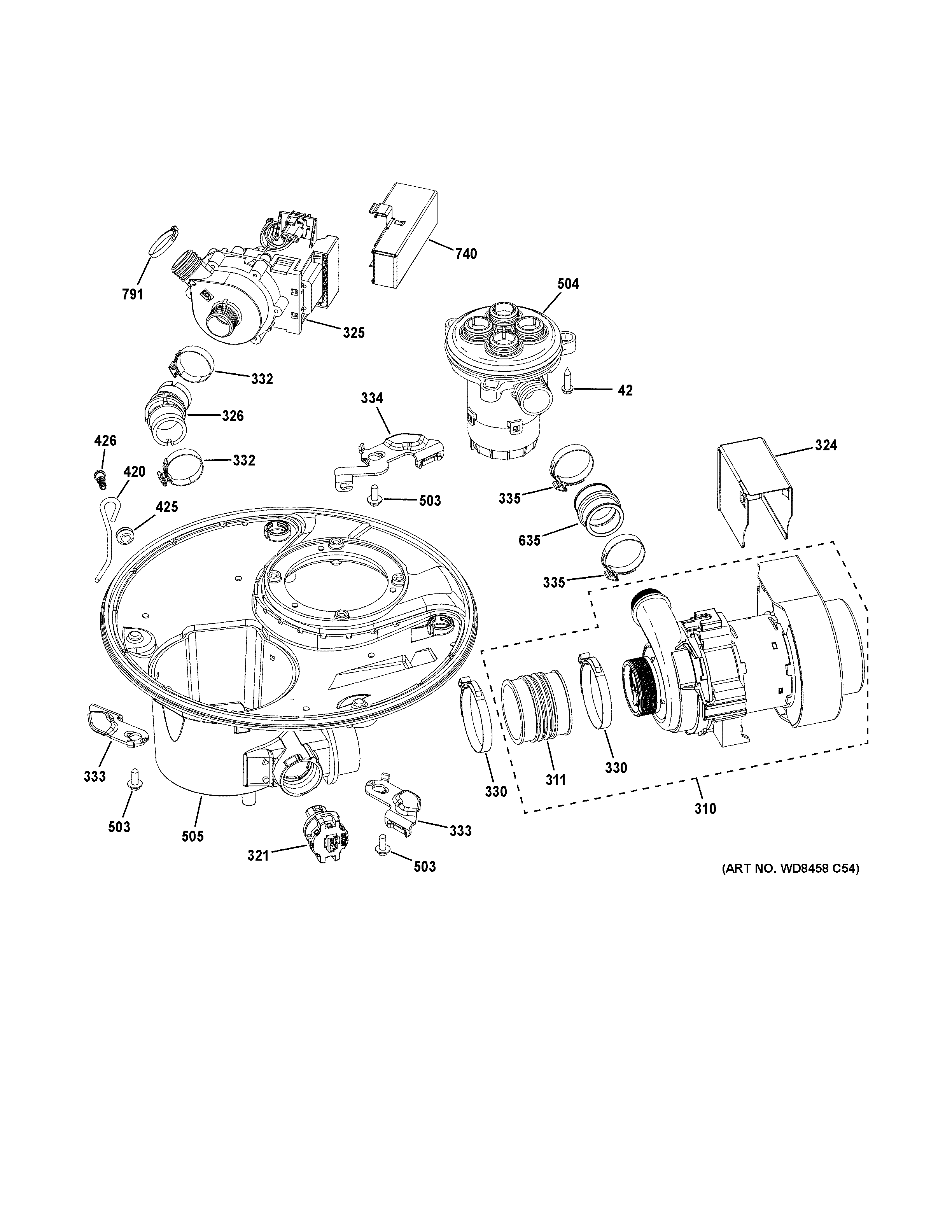

    Sump & motor mechanism diagram

    Dishwasher circulation pump

    Part #WD26X22285

    Replaced by #WD26X23258

    ?
    Manufacturer substitution
    This part replaces WD26X22285. Substitute parts can look different from the original.
    BEST SELLER
    $137.64
    8% OFF Phone Price : $149.64
    In Stock
  • Kit - Piranh WD01X10572
    #335

    Sump & motor mechanism diagram

    Kit - piranh

    Part #WD01X10572

    Replaced by #WD35X10382

    ?
    Manufacturer substitution
    This part replaces WD01X10572. Substitute parts can look different from the original.
    BEST SELLER
    $59.51
    9% OFF Phone Price : $65.51
    In Stock
  • Kit - Piranh WD01X10573
    #332

    Sump & motor mechanism diagram

    Kit - piranh

    Part #WD01X10573

    Replaced by #WD35X10382

    ?
    Manufacturer substitution
    This part replaces WD01X10573. Substitute parts can look different from the original.
    BEST SELLER
    $59.51
    9% OFF Phone Price : $65.51
    In Stock
  • Kit - Piranh WD01X10571
    #330

    Sump & motor mechanism diagram

    Kit - piranh

    Part #WD01X10571

    Replaced by #WD35X10382

    ?
    Manufacturer substitution
    This part replaces WD01X10571. Substitute parts can look different from the original.
    BEST SELLER
    $59.51
    9% OFF Phone Price : $65.51
    In Stock
  • Flood Switch WD21X20204
    #308

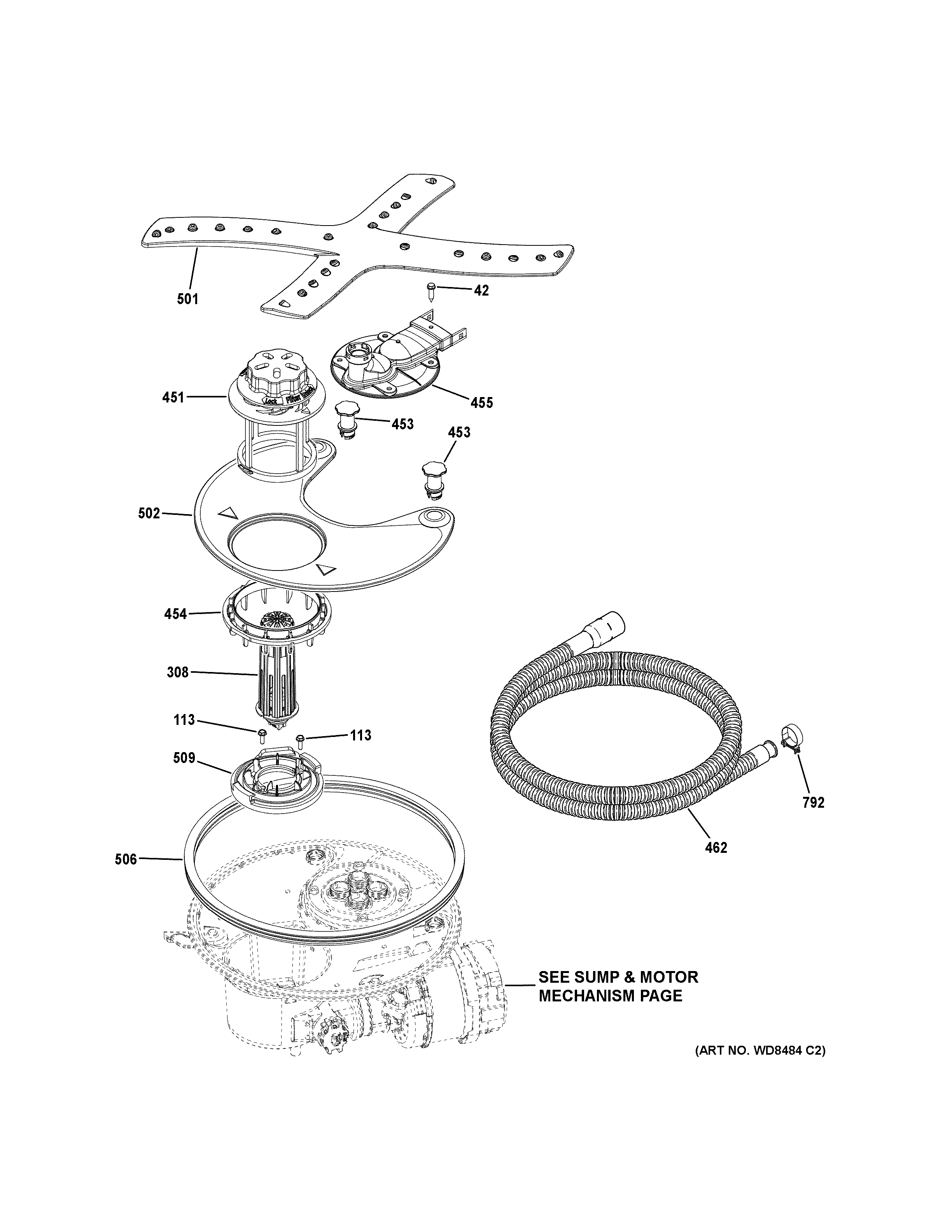

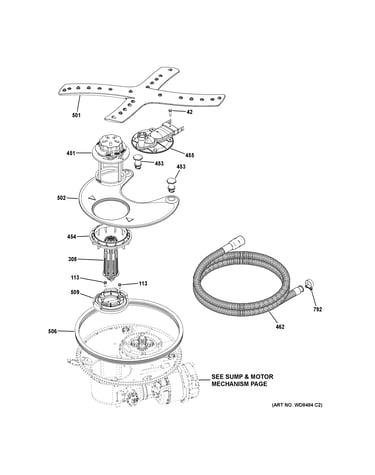

    Sump & filter assembly diagram

    Flood switch

    Part #WD21X20204

    Replaced by #WD21X10519

    ?
    Manufacturer substitution
    This part replaces WD21X20204. Substitute parts can look different from the original.
    BEST SELLER
    $45.65
    18% OFF Phone Price : $55.77
    In Stock
  • Dishwasher Heating Element WD05X21294
    #101

    Body parts diagram

    Dishwasher heating element

    Part #WD05X21294

    Replaced by #WD05X30818

    ?
    Manufacturer substitution
    This part replaces WD05X21294. Substitute parts can look different from the original.
    BEST SELLER
    $37.40
    14% OFF Phone Price : $43.40
    In Stock
  • Dishwasher Control Panel Button Guide WD12X20184
    #723

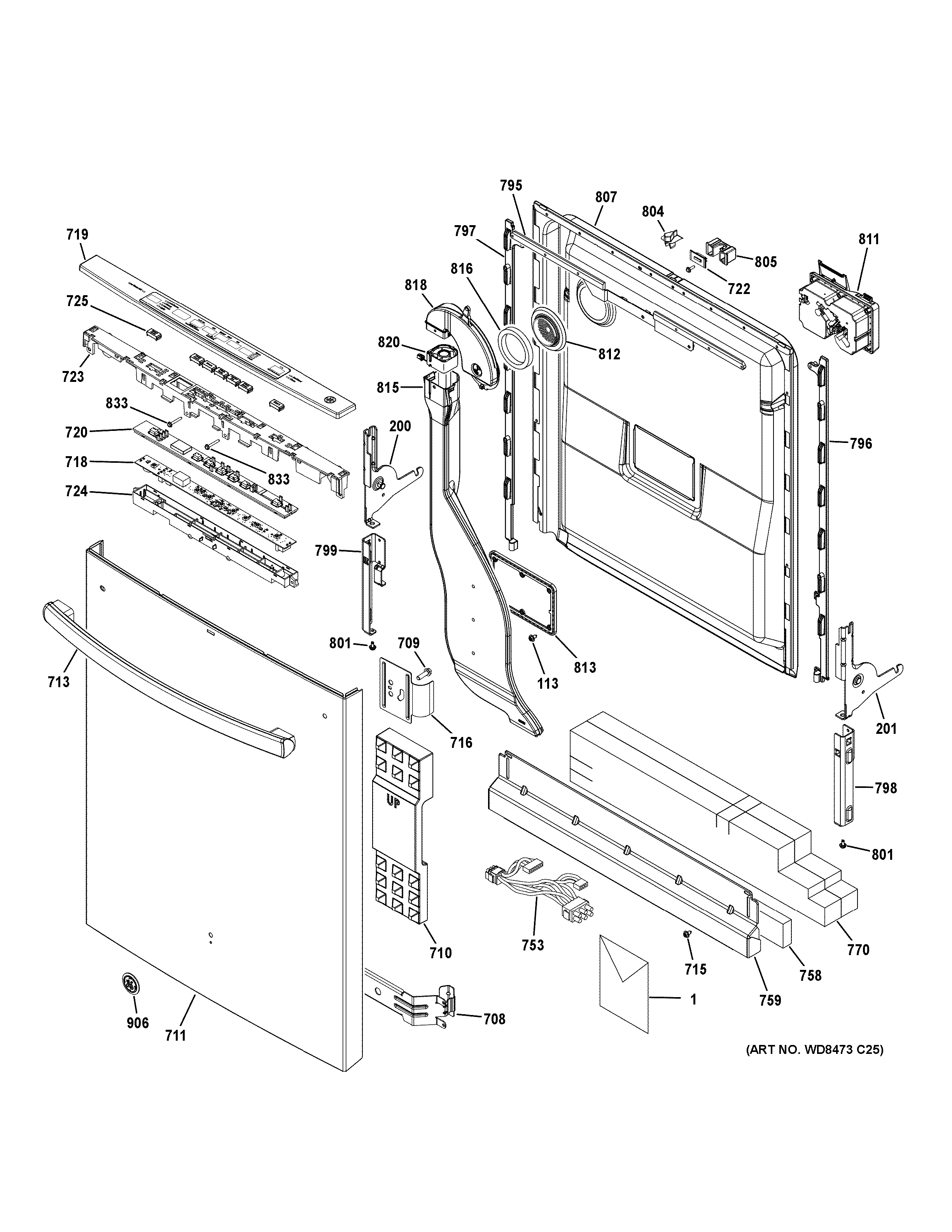

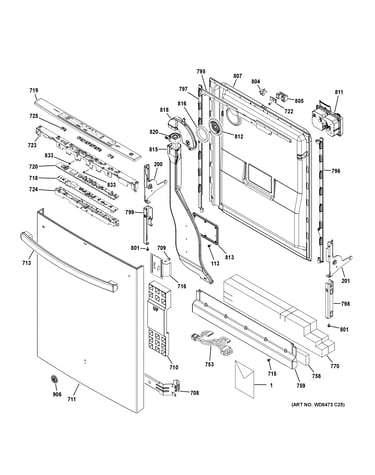

    Escutcheon & door assembly diagram

    Dishwasher control panel button guide

    Part #WD12X20184

    BEST SELLER
    $10.96
    15% OFF Phone Price : $12.96
    In Stock
  • Dishwasher Hose Clamp WD01X10611
    #791

    Sump & motor mechanism diagram

    Dishwasher hose clamp

    Part #WD01X10611

    Replaced by #WD01X24246

    ?
    Manufacturer substitution
    This part replaces WD01X10611. Substitute parts can look different from the original.
    BEST SELLER
    $9.44
    10% OFF Phone Price : $10.44
    In Stock
  • Dishwasher Drain Hose WD24X10067
    #463

    Body parts diagram

    Dishwasher drain hose

    Part #WD24X10067

    Replaced by #WD24X29378

    ?
    Manufacturer substitution
    This part replaces WD24X10067. Substitute parts can look different from the original.
    BEST SELLER
    In Stock

Loading...
