Model # 15QMAX Official Ingersoll Rand impact wrench

Here are the diagrams and repair parts for Official Ingersoll Rand 15QMAX impact wrench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |

Pneumatic Wrench Variable Throttle Valve 2131-A329
#NI

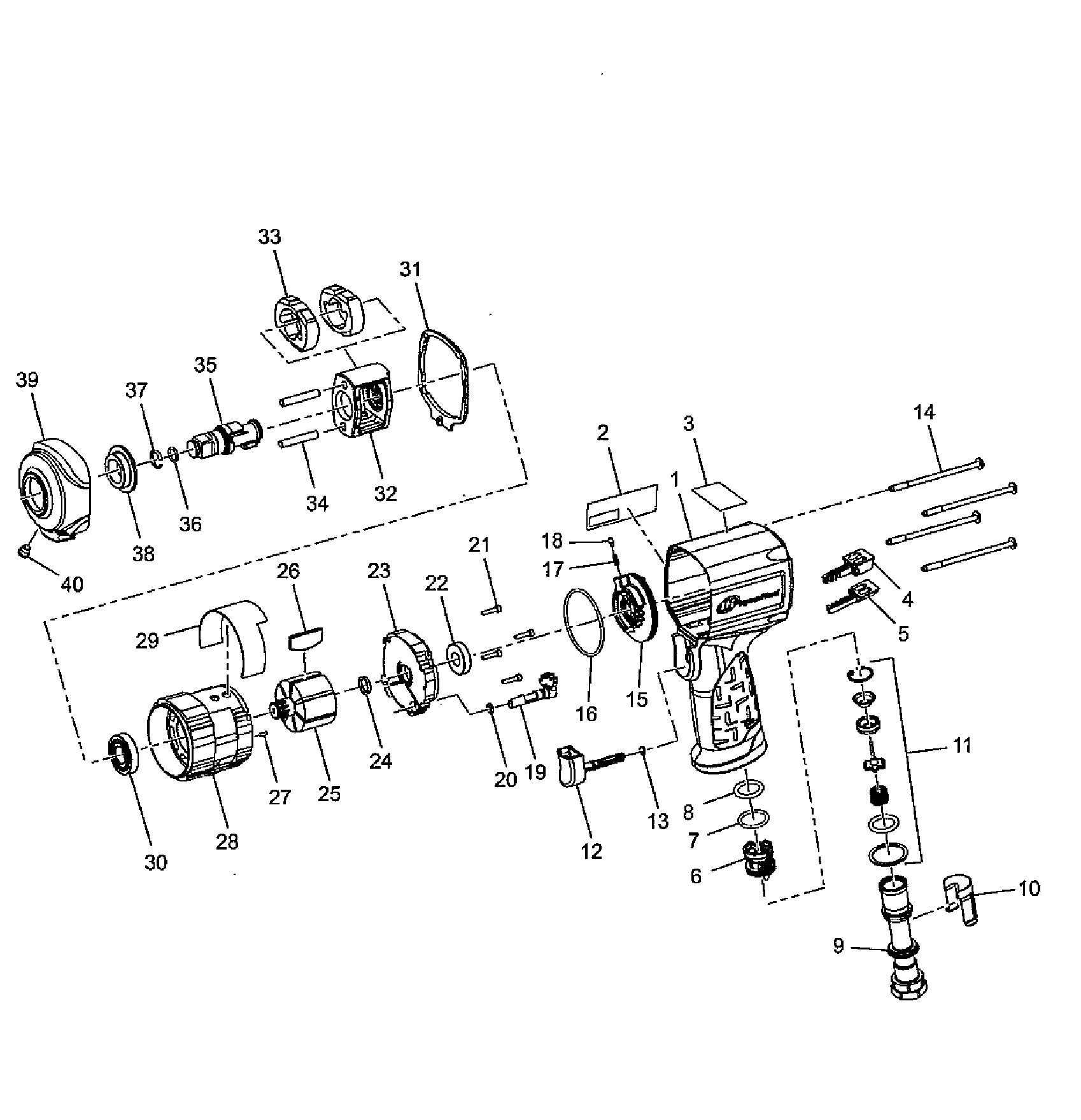

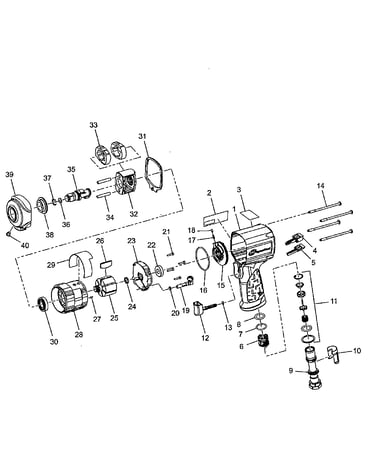

Main asy diagram

Pneumatic wrench variable throttle valve

Part #2131-A329

The manufacturer no longer makes this part, and there's no substitute part

Bush Assembly 2135-D565A
#NI

Main asy diagram

Bush assembly

Part #2135-D565A

The manufacturer no longer makes this part, and there's no substitute part

Grease Fit 131-188
#NI

Main asy diagram

Grease fit

Part #131-188

The manufacturer no longer makes this part, and there's no substitute part

Pneumatic Wrench Air Inlet Repair Kit 2135-K303
#11

Main asy diagram

Pneumatic wrench air inlet repair kit

Part #2135-K303

The manufacturer no longer makes this part, and there's no substitute part

Craftsman 8lb Grease 105-8LB
#NI

Main asy diagram

Craftsman 8lb grease

Part #105-8LB

The manufacturer no longer makes this part, and there's no substitute part

Beuring 4U-97
#30

Main asy diagram

Beuring

Part #4U-97

The manufacturer no longer makes this part, and there's no substitute part

Care Kit 105-LBK1
#NI

Main asy diagram

Care kit

Part #105-LBK1

The manufacturer no longer makes this part, and there's no substitute part

Remover 2131-322
#NI

Main asy diagram

Remover

Part #2131-322

The manufacturer no longer makes this part, and there's no substitute part

Trigger 2135-D93
#NI

Main asy diagram

Trigger

Part #2135-D93

The manufacturer no longer makes this part, and there's no substitute part

Grease 105-4T
#NI

Main asy diagram

Grease

Part #105-4T

The manufacturer no longer makes this part, and there's no substitute part
