Model # 113201530 Official Craftsman ac arc welder

Here are the diagrams and repair parts for Official Craftsman 113201530 ac arc welder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Clamp Ground 61190
#17

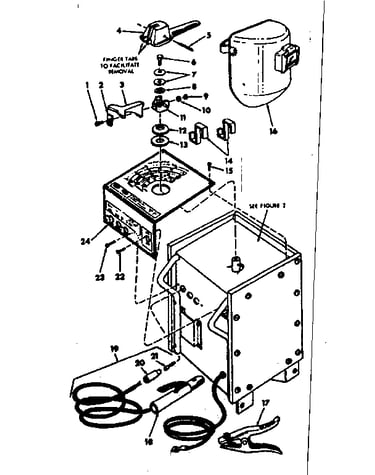

Unit diagram

Clamp ground

Part #61190

The manufacturer no longer makes this part, and there's no substitute part

Washer 30509
#18

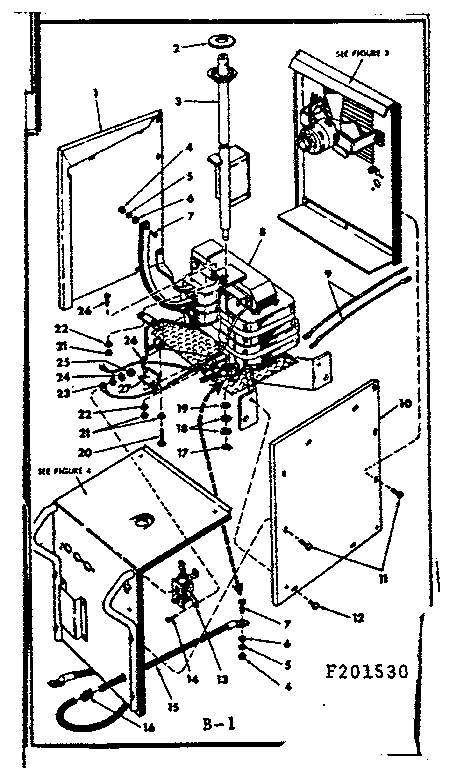

Transformer assembly diagram

Washer

Part #30509

The manufacturer no longer makes this part, and there's no substitute part

Collar Lock 61135
#12

Unit diagram

Collar lock

Part #61135

The manufacturer no longer makes this part, and there's no substitute part

Transformer 61198
#8

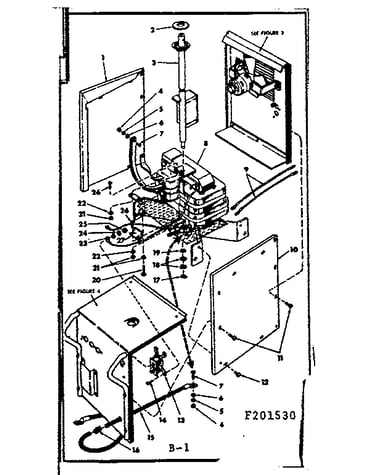

Transformer assembly diagram

Transformer

Part #61198

The manufacturer no longer makes this part, and there's no substitute part

Helmet 61186
#16

Unit diagram

Helmet

Part #61186

The manufacturer no longer makes this part, and there's no substitute part

Screw 125932
#15

Unit diagram

Screw

Part #125932

The manufacturer no longer makes this part, and there's no substitute part

Baffle 61196
#16

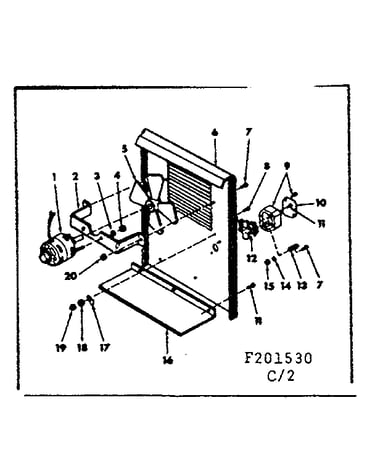

Fan motor assembly diagram

Baffle

Part #61196

The manufacturer no longer makes this part, and there's no substitute part

Cable Assembly 61197
#15

Transformer assembly diagram

Cable assembly

Part #61197

The manufacturer no longer makes this part, and there's no substitute part

Core Assembly 61155
#3

Transformer assembly diagram

Core assembly

Part #61155

The manufacturer no longer makes this part, and there's no substitute part

Screw 134432
#9

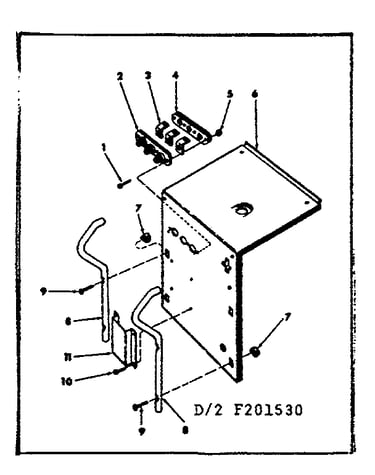

Handle assembly diagram

Screw

Part #134432

The manufacturer no longer makes this part, and there's no substitute part
