Frigidaire
Dishwasher

Model # FFID2426TD5A Official Frigidaire dishwasher

Here are the diagrams and repair parts for Official Frigidaire FFID2426TD5A dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

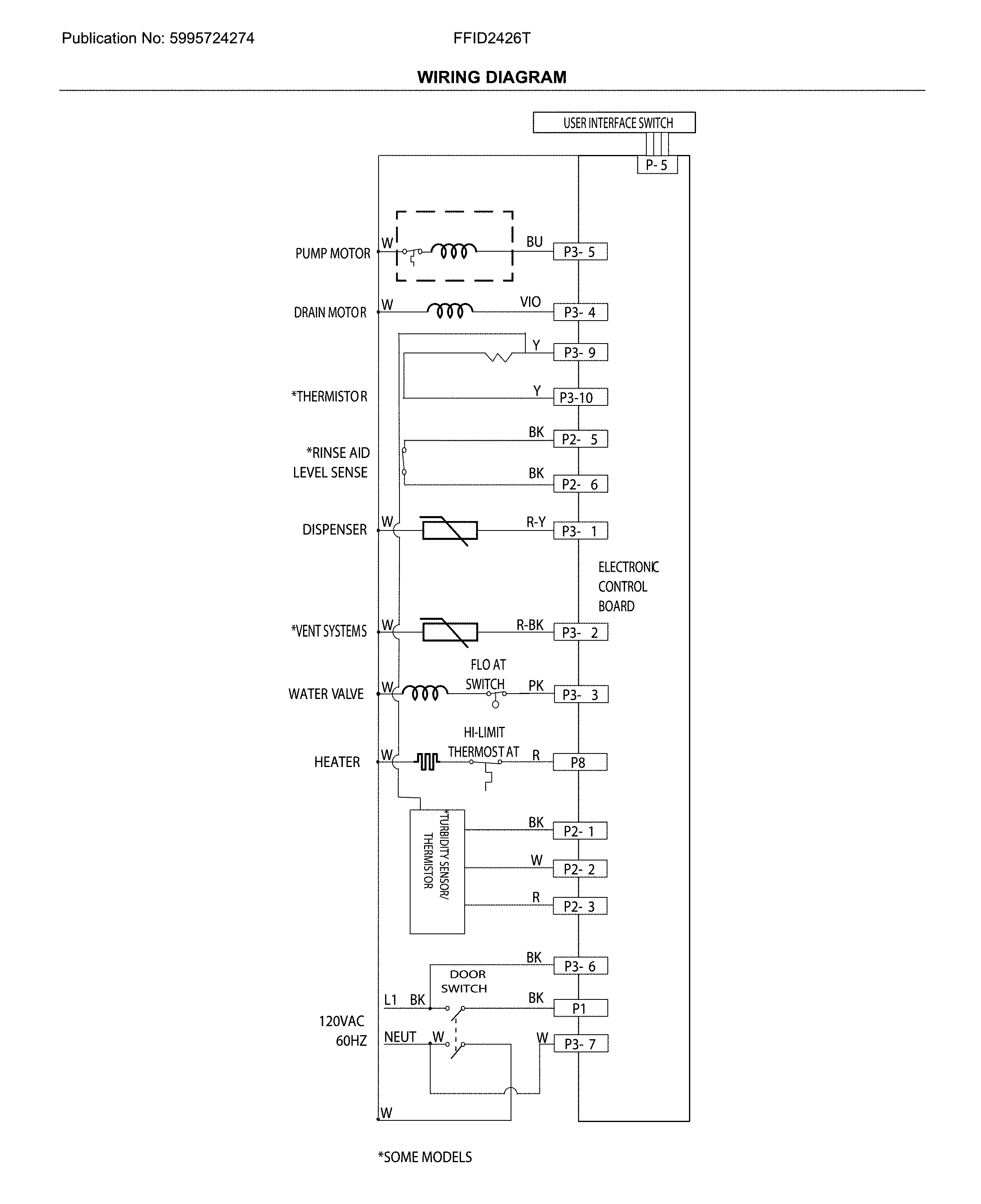

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Dishwasher Door Seal (replaces 154845301) 154827601
#3

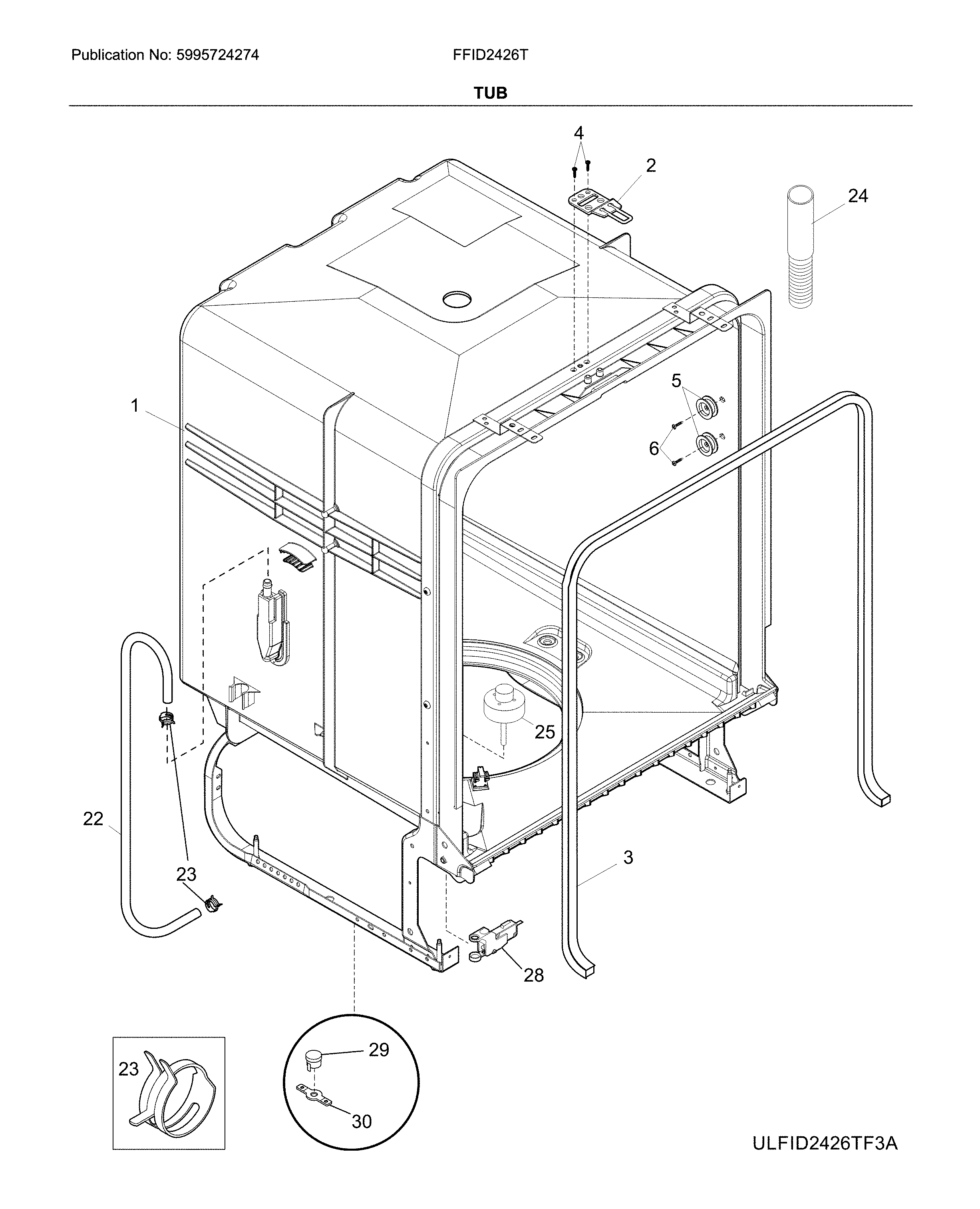

Tub diagram

Dishwasher door seal (replaces 154845301)

Part #154827601

BEST SELLER
$31.02 |
16% OFF Phone Price : $37.02
In Stock
Drain Pump A 5304492415
#60

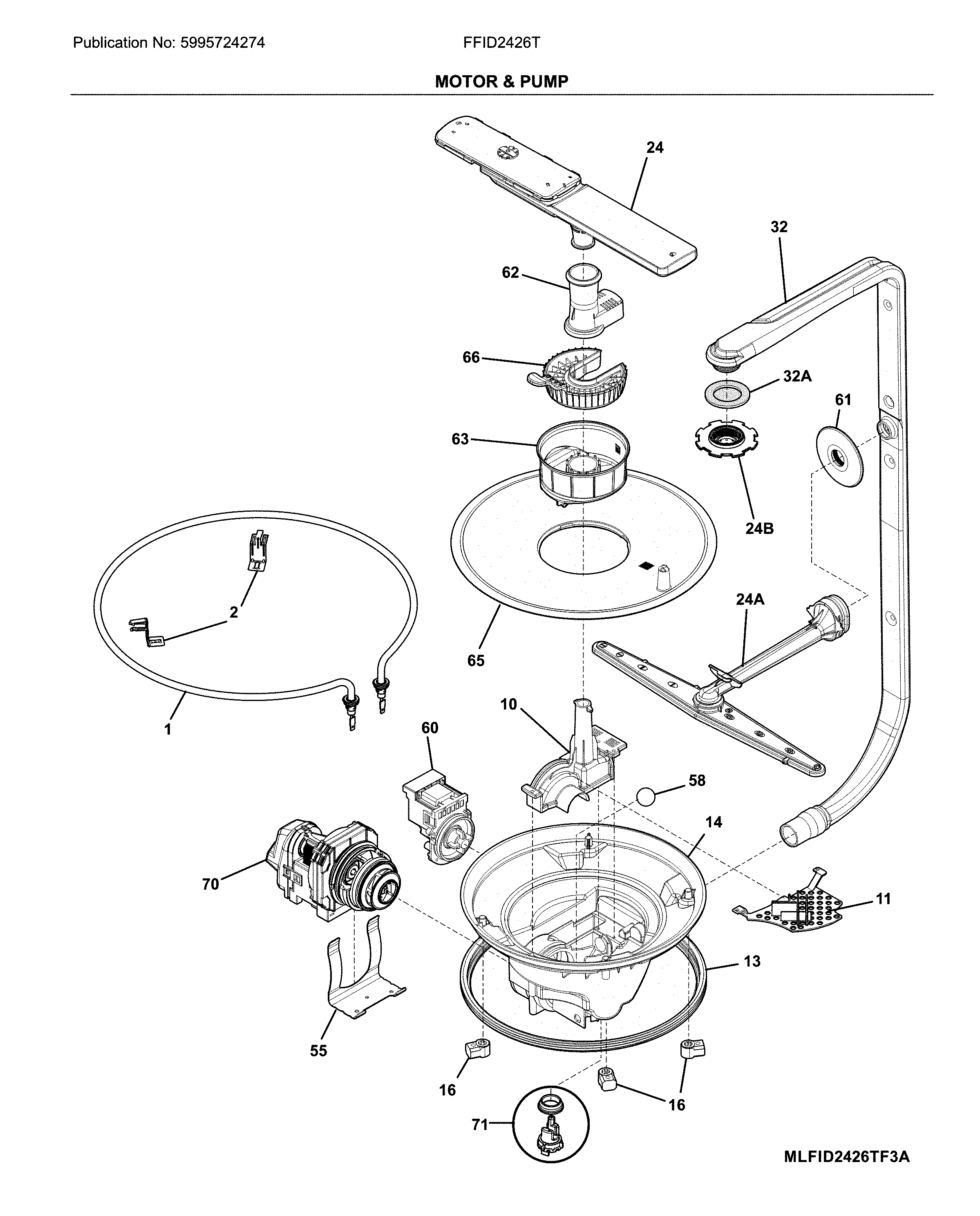

Motor & pump diagram

Drain pump a

Part #5304492415

Replaced by #A00126401

?
Manufacturer substitution
This part replaces 5304492415. Substitute parts can look different from the original.
BEST SELLER
$83.54 |
7% OFF Phone Price : $89.54
In Stock
Dishwasher Door Latch (replaces 5304516818) 5304525218
#12

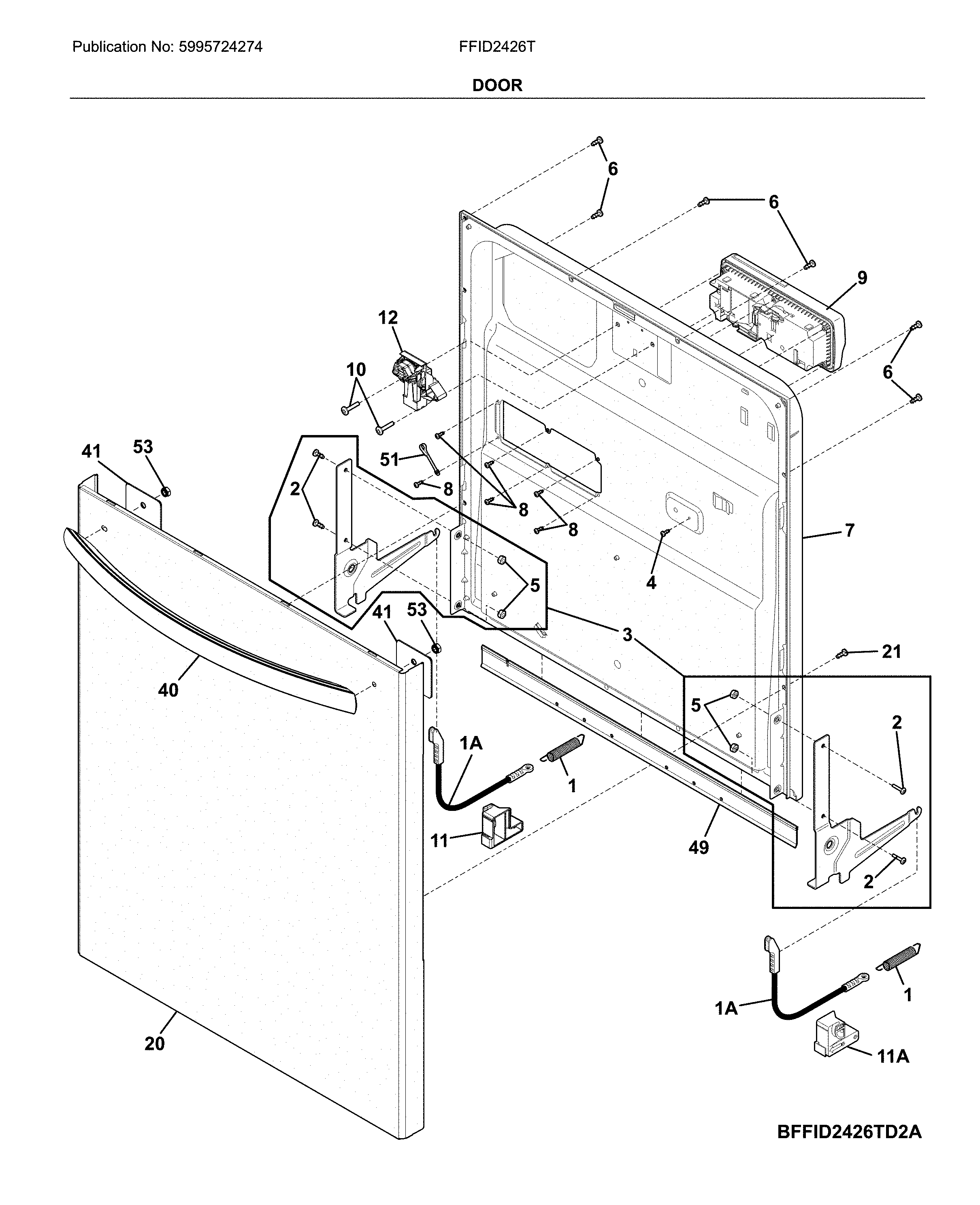

Door diagram

Dishwasher door latch (replaces 5304516818)

Part #5304525218

BEST SELLER
$40.59 |
13% OFF Phone Price : $46.59
In Stock
Crosley Dishwasher Pump And Motor Assembly 5304519906
#70

Motor & pump diagram

Crosley dishwasher pump and motor assembly

Part #5304519906

BEST SELLER
$143.19 |
8% OFF Phone Price : $155.19
In Stock
Dishwasher Lower Spray Arm Support (replaces 5304506515) 5304518968
#62

Motor & pump diagram

Dishwasher lower spray arm support (replaces 5304506515)

Part #5304518968

BEST SELLER
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Dishwasher Door Bottom Seal 5304500204
#49

Door diagram

Dishwasher door bottom seal

Part #5304500204

BEST SELLER
$25.89 |
19% OFF Phone Price : $31.89
In Stock
Dishwasher Heating Element (replaces 154663801) 154825001
#1

Motor & pump diagram

Dishwasher heating element (replaces 154663801)

Part #154825001

BEST SELLER
$58.92 |
9% OFF Phone Price : $64.92
In Stock
Dishwasher Electronic Control Board 5304518470
#3

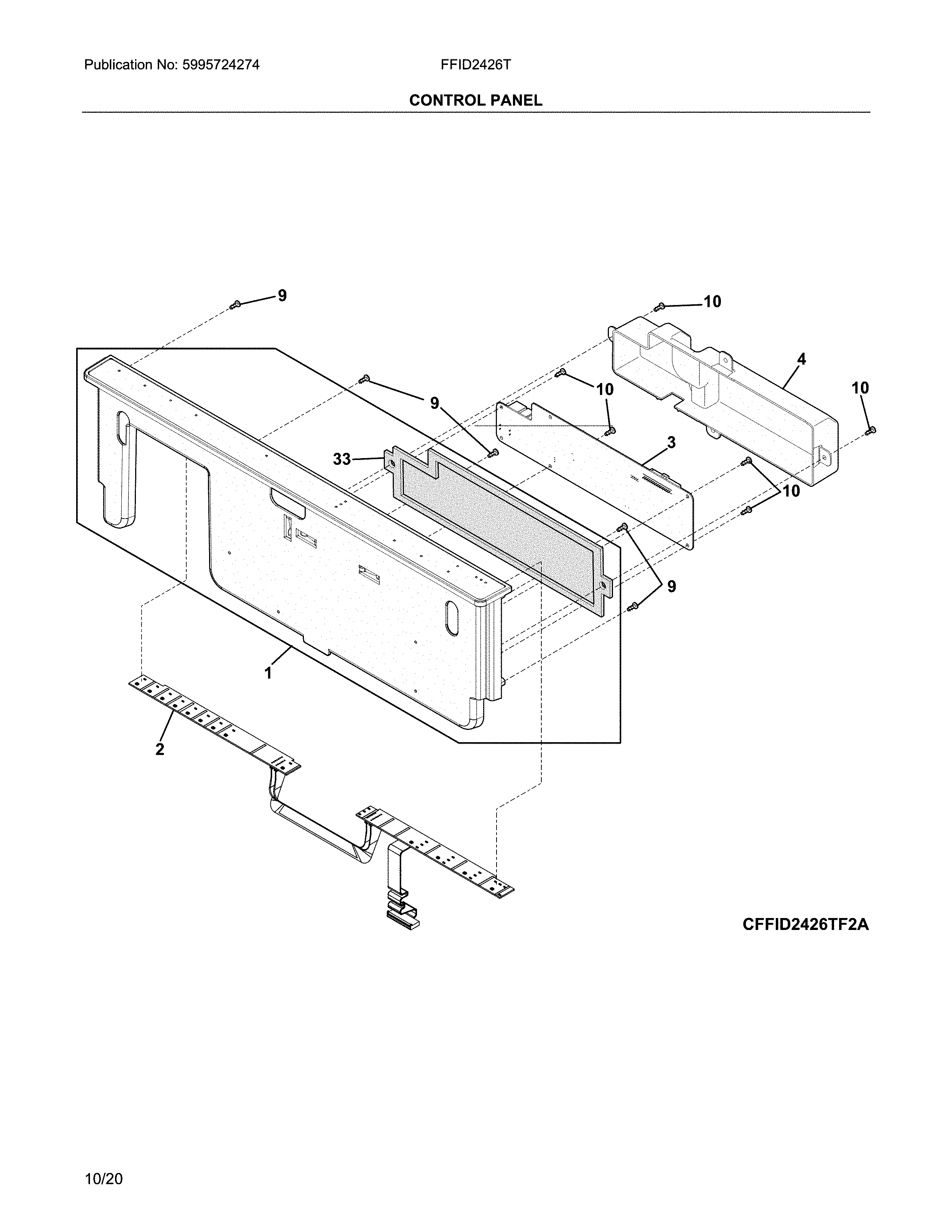

Control panel diagram

Dishwasher electronic control board

Part #5304518470

BEST SELLER
$139.83 |
8% OFF Phone Price : $151.83
In Stock
Dishwasher User Interface Control Button Assembly 5304518467
#2

Control panel diagram

Dishwasher user interface control button assembly

Part #5304518467

BEST SELLER
$71.05 |
8% OFF Phone Price : $77.05
In Stock
Crosley Dishwasher Water Inlet Valve (replaces 5304521660) 5304525044
#3

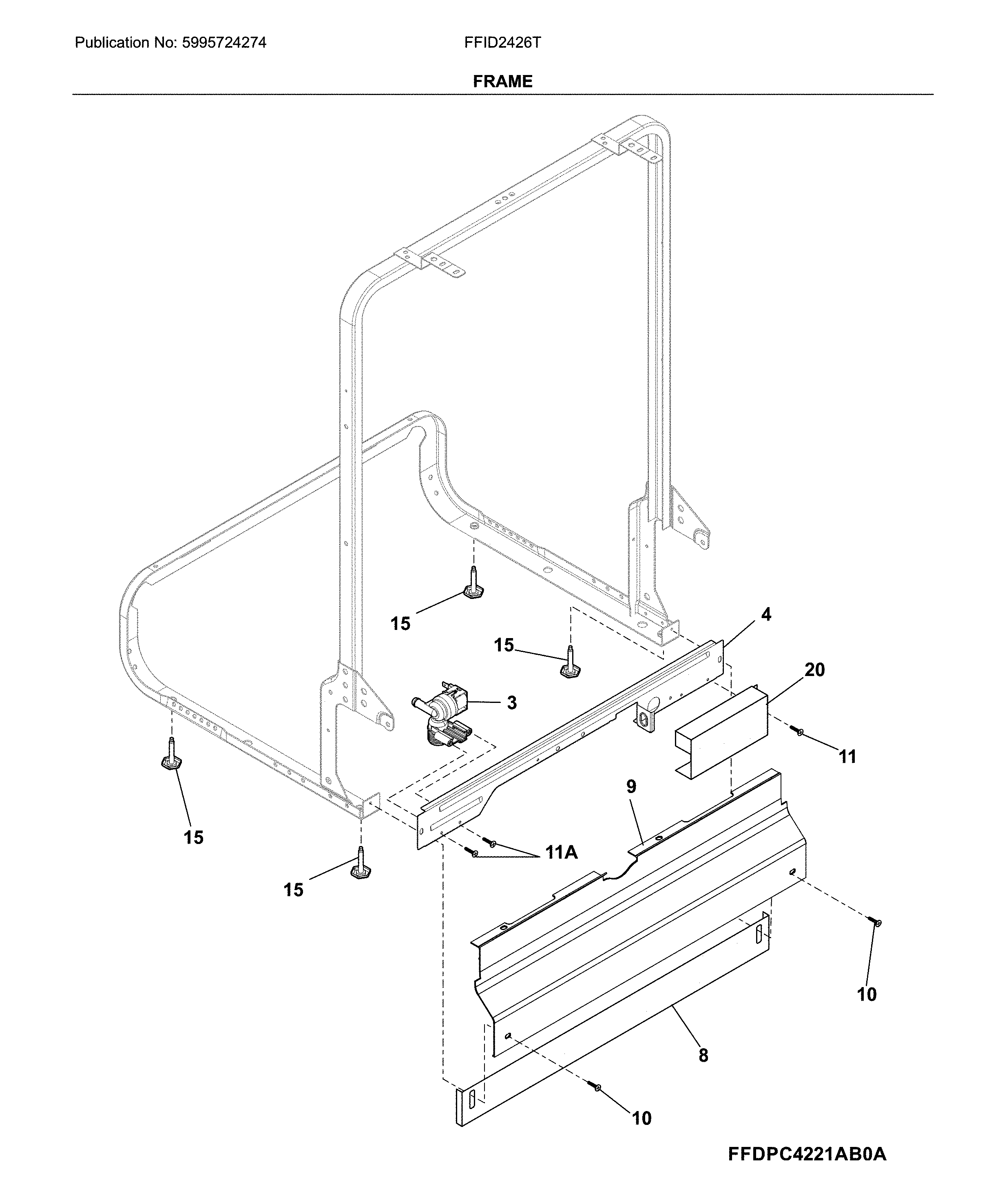

Frame diagram

Crosley dishwasher water inlet valve (replaces 5304521660)

Part #5304525044

BEST SELLER
$28.02 |
18% OFF Phone Price : $34.02
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your dishwashers

Choose a symptom to see related dishwasher repairs.

View all

Why does my dishwasher door drop open too fast?

Main causes: broken door spring, damaged or broken door hinge…

Read more

Why don't my dishes get dry?

Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan f…

Read more

Why won't my dishwasher fill?

Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure…

Read more

Why won't my dishwasher start?

Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure,…

Read more

Why isn't my dishwasher getting dishes clean?

Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm …

Read more

Why is my dishwasher noisy?

Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in was…

Read more

Why won't my dishwasher drain?

Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control syst…

Read more

Why can't I adjust the dishwasher rack height?

Main cause: damaged rack height adjuster…

Read more

Why is my dishwasher leaking?

Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracke…

Read more
