Model # 72163763300 Official Kenmore microwave/hood combo

Here are the diagrams and repair parts for Official Kenmore 72163763300 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

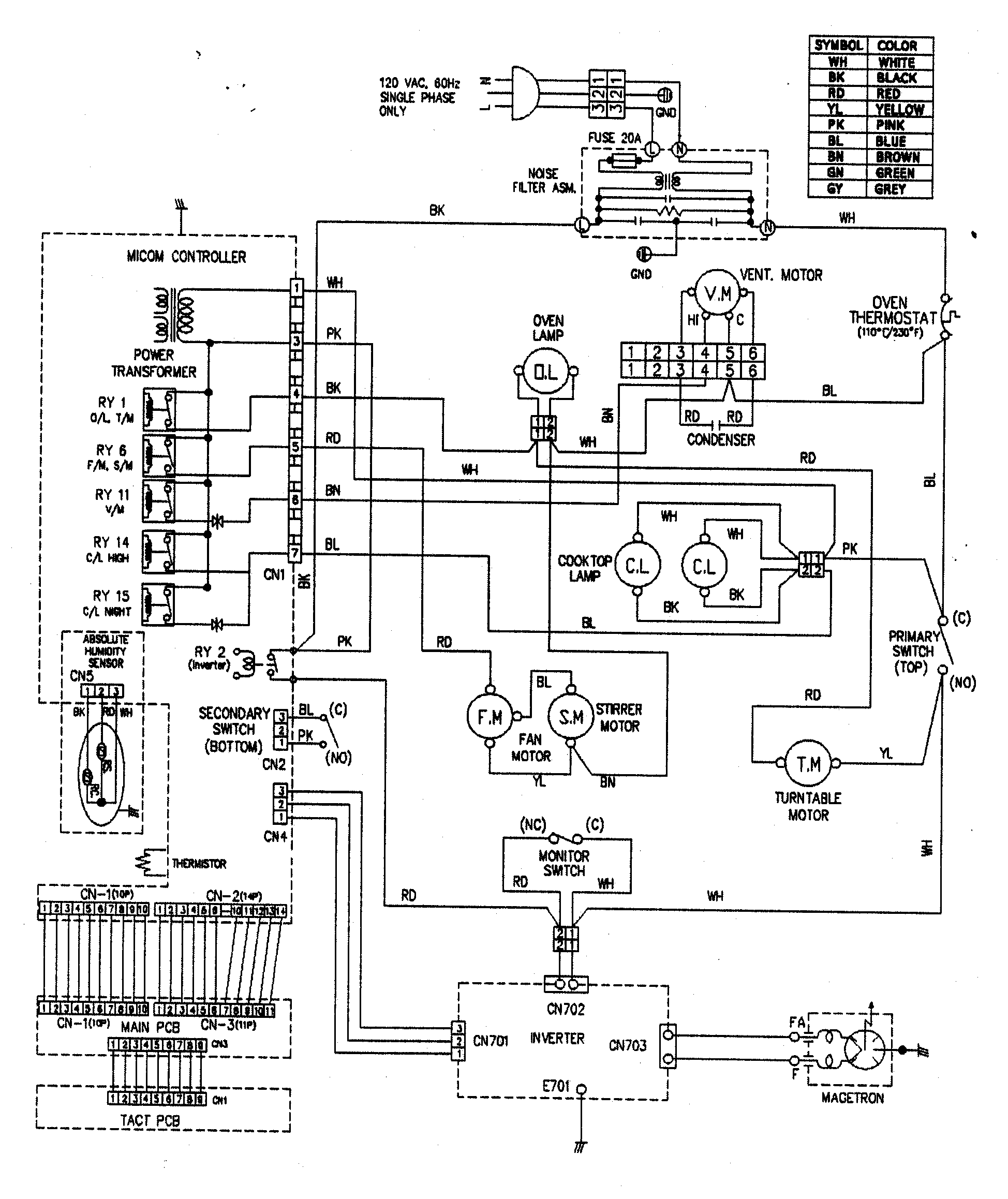

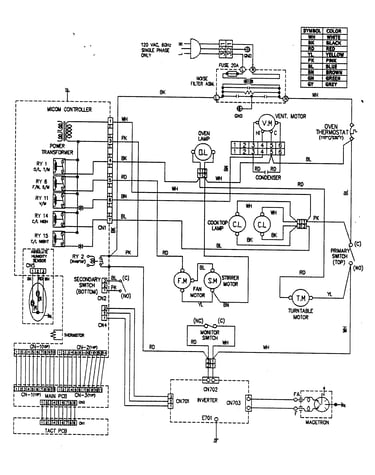

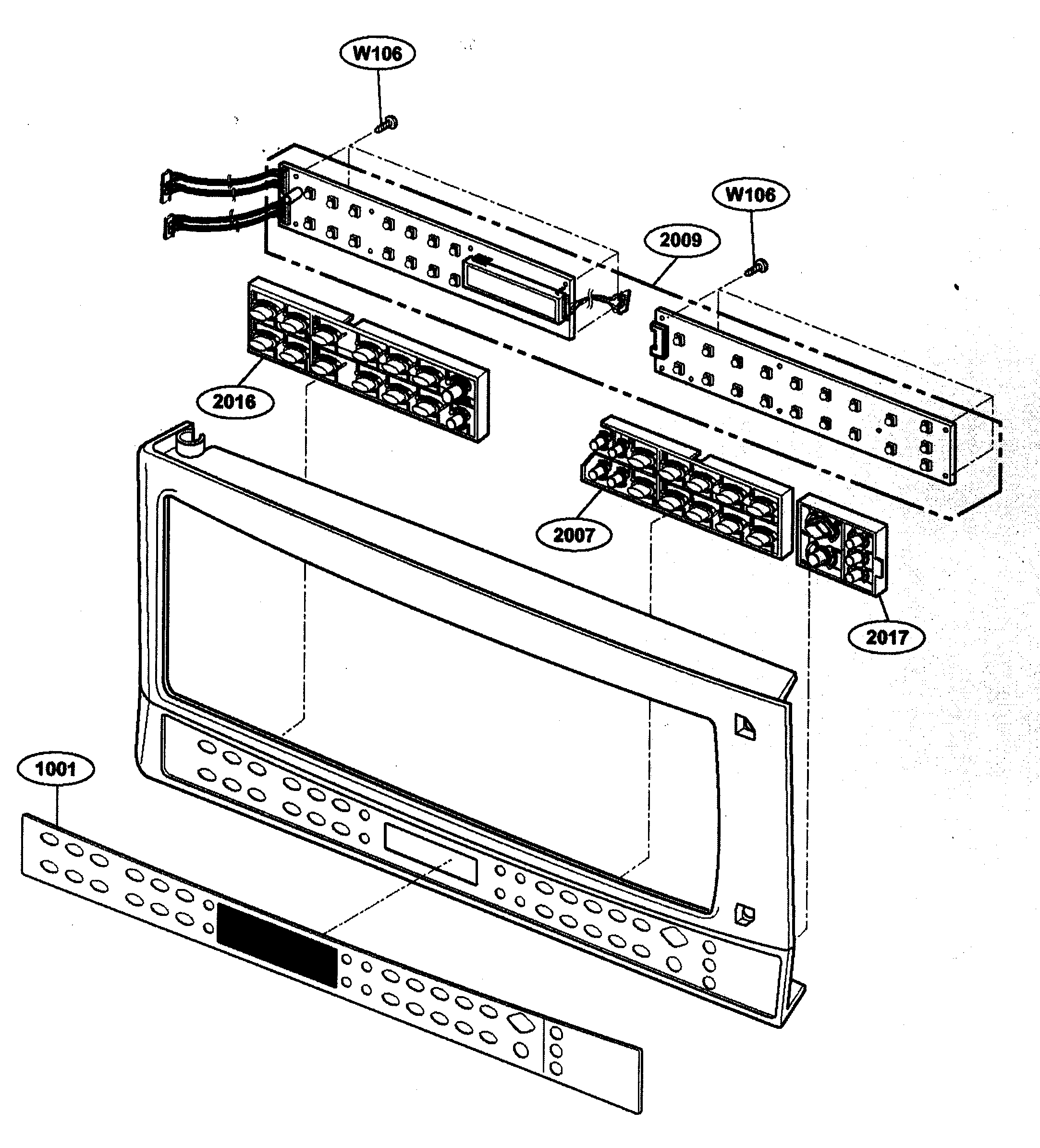

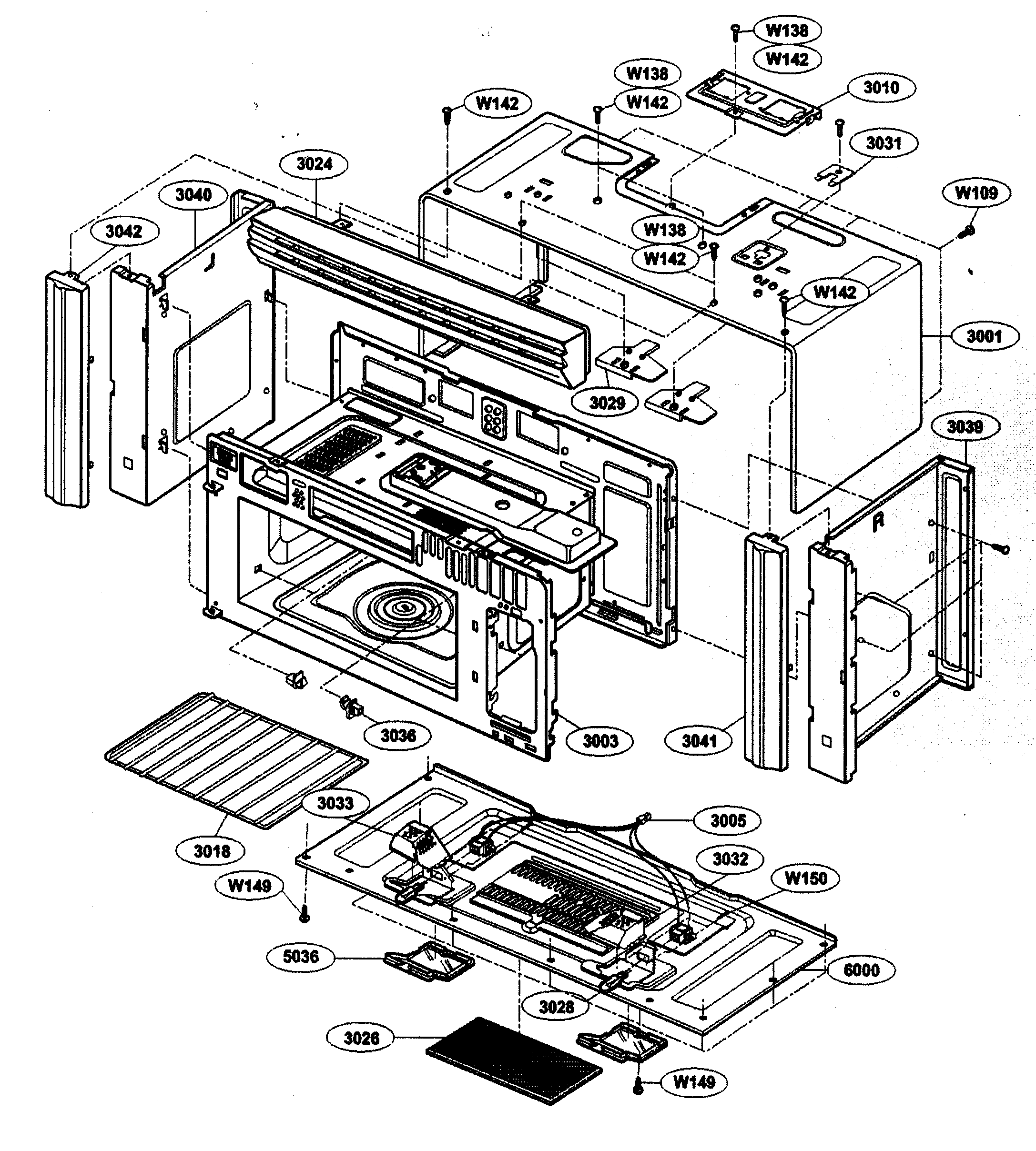

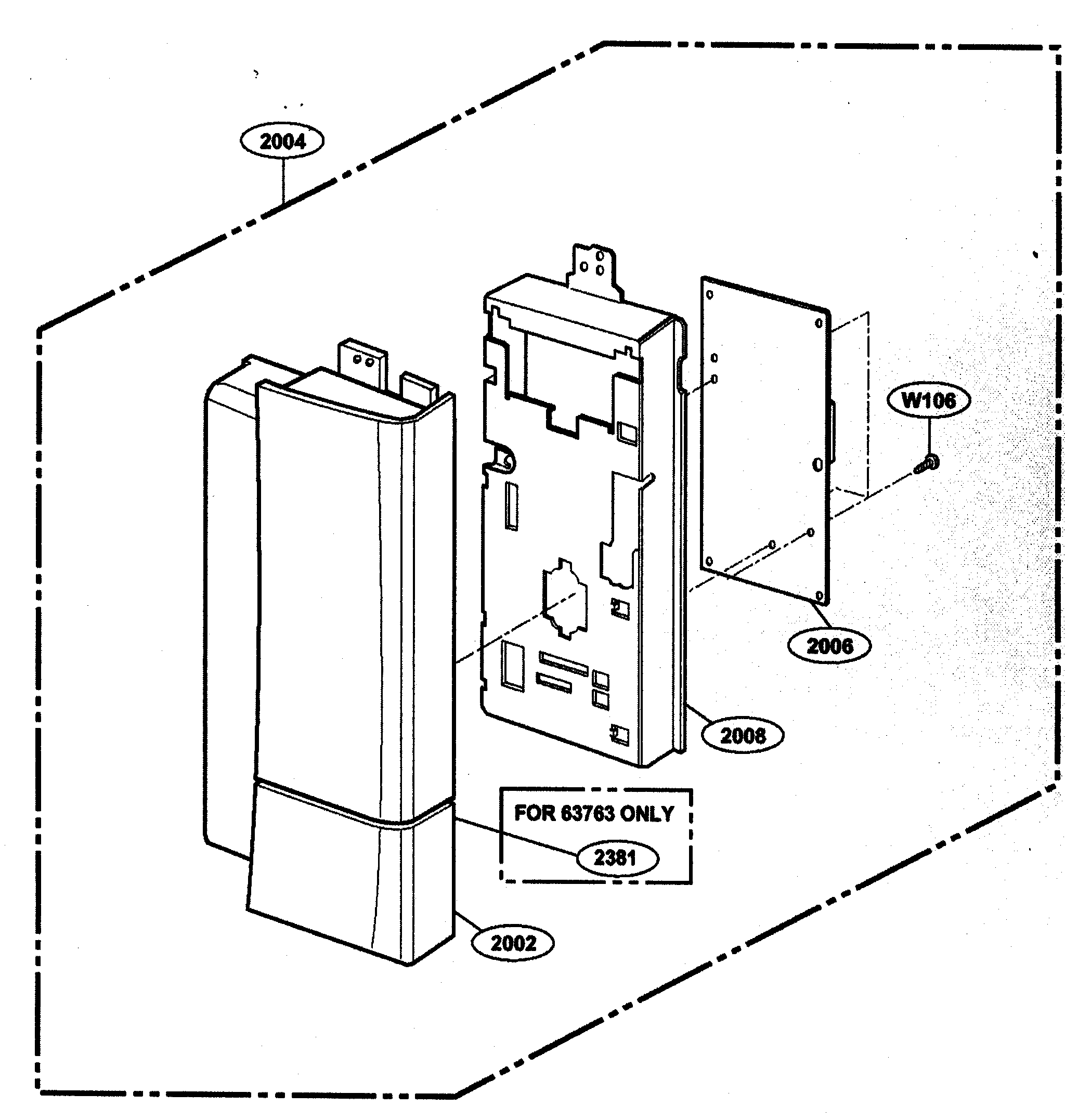

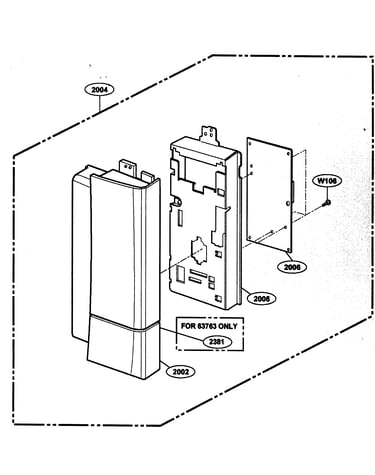

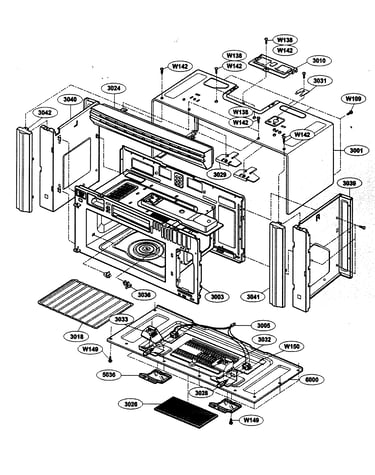

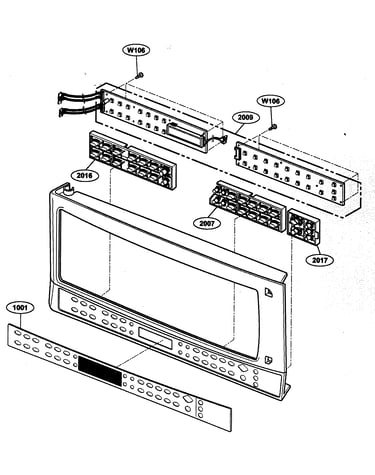

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Lg Microwave Charcoal Filter 5230W1A003A
#5037

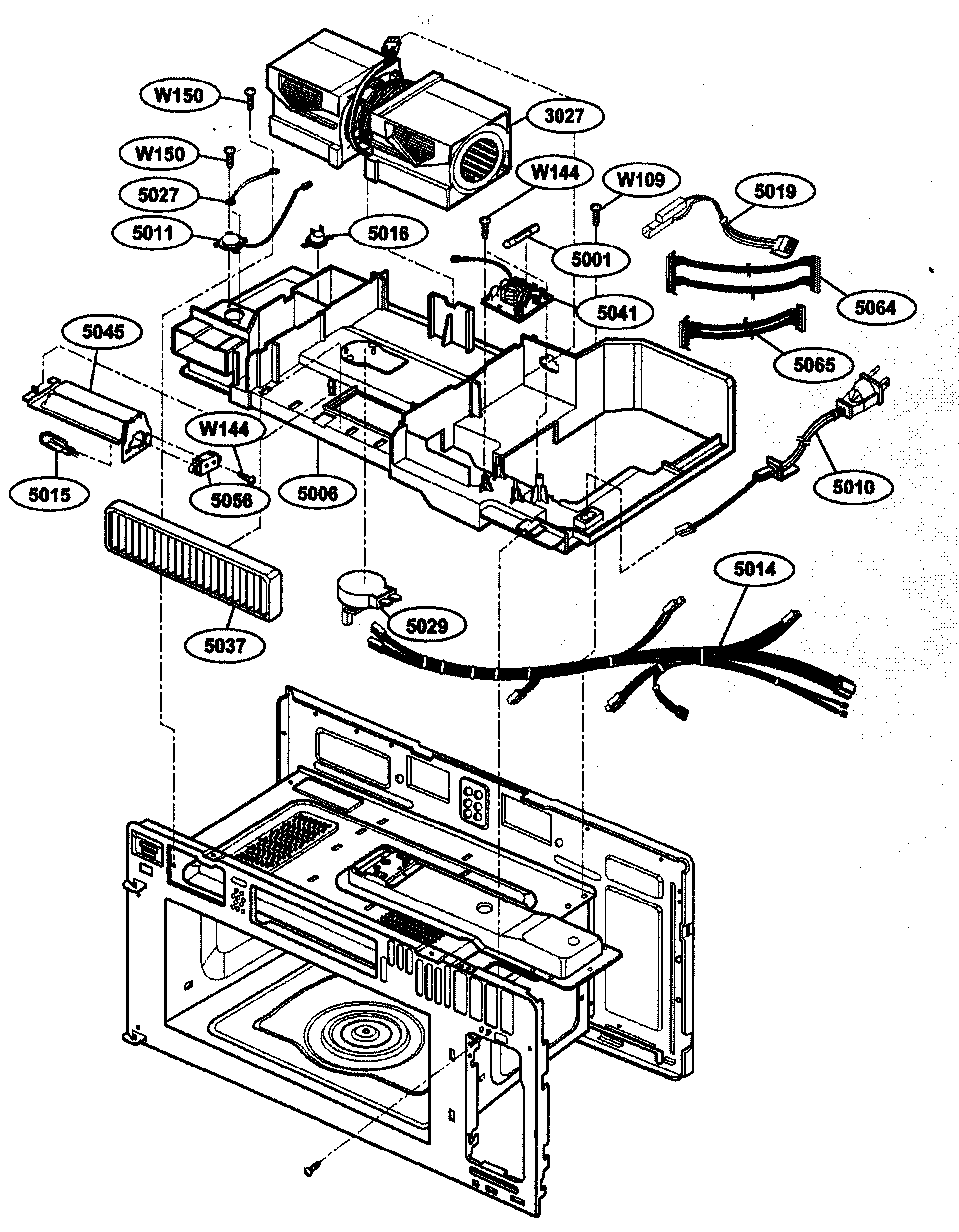

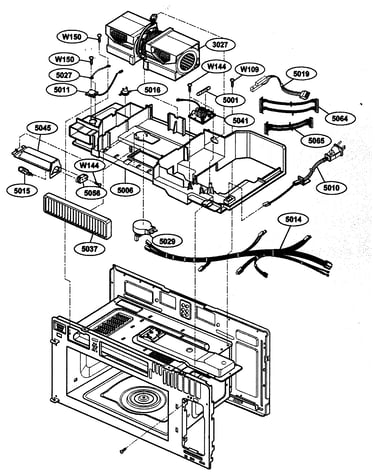

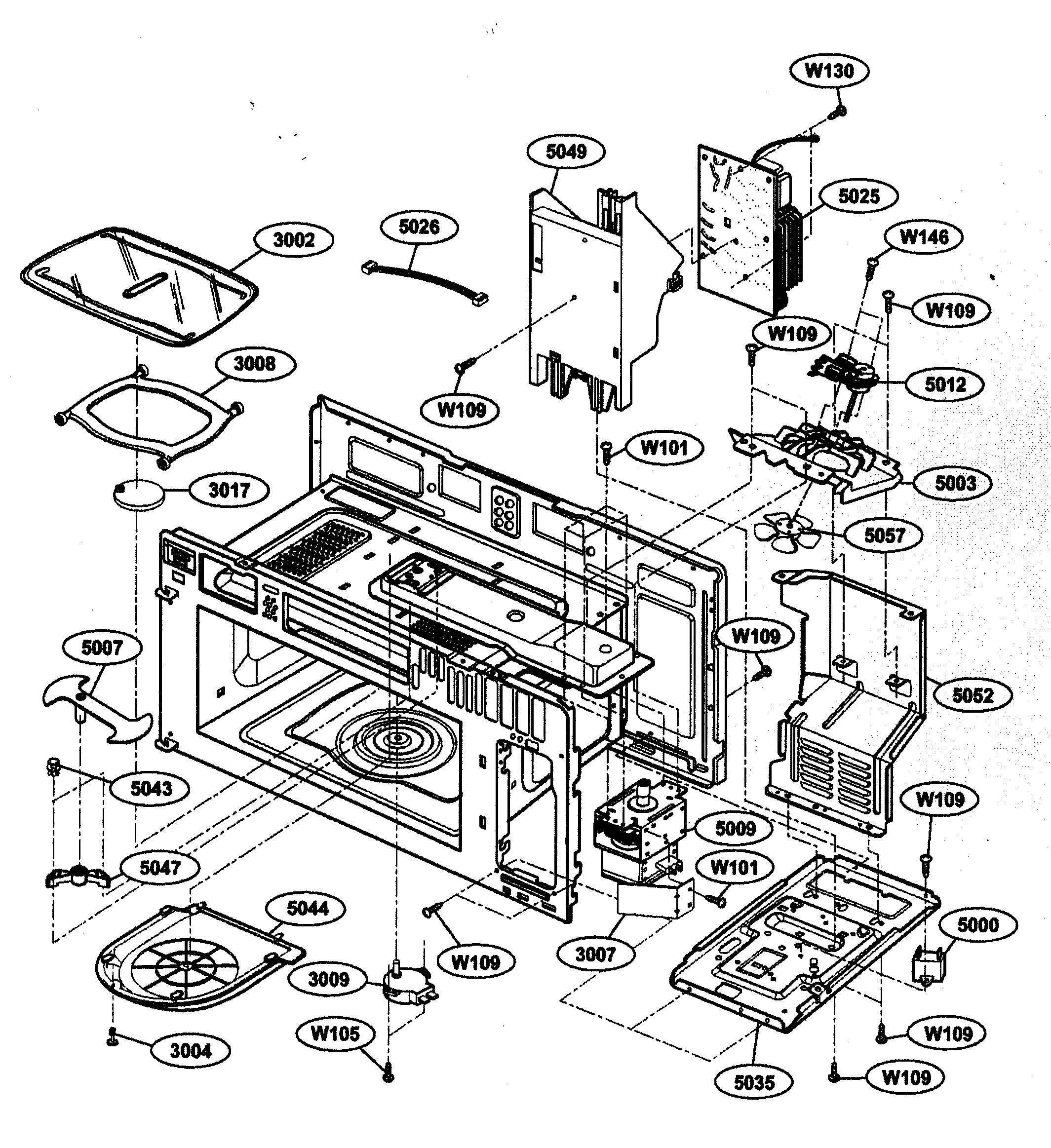

Interior parts(2) diagram

Lg microwave charcoal filter

Part #5230W1A003A

BEST SELLER
$32.13 |
16% OFF Phone Price : $38.13
In Stock
Microwave Door Interlock Switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f) 6600W1K001C
#4003

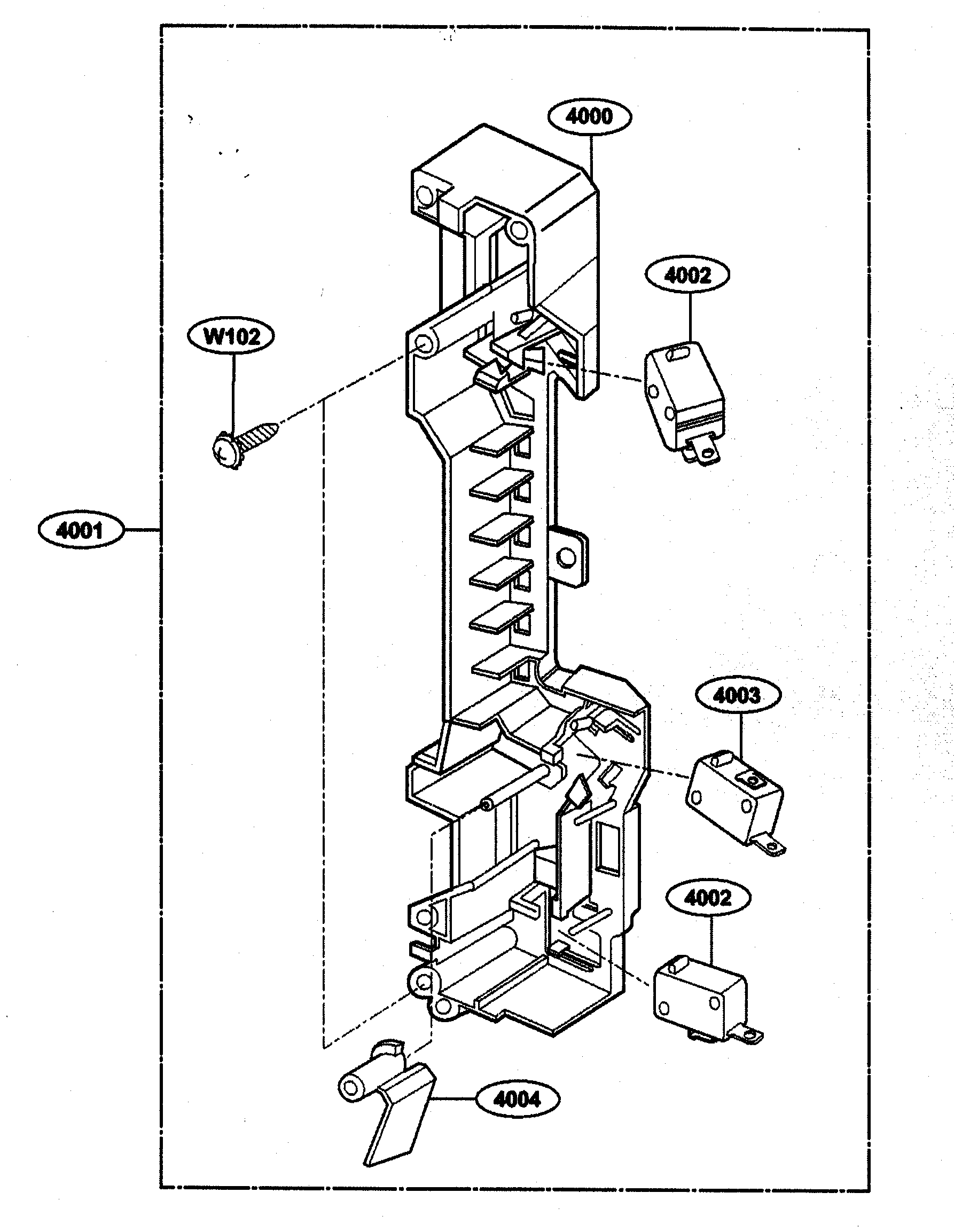

Latch board parts diagram

Microwave door interlock switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f)

Part #6600W1K001C

BEST SELLER
$12.12 |
14% OFF Phone Price : $14.12
In Stock
Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D
#4002

Latch board parts diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

BEST SELLER
$10.58 |
16% OFF Phone Price : $12.58
In Stock
Us Pressed Steel Microwave Fuse 3B74133K
#5001

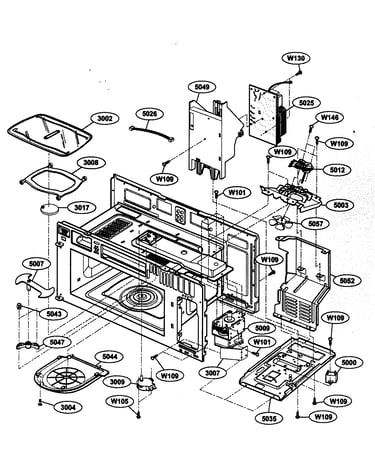

Interior parts(2) diagram

Us pressed steel microwave fuse

Part #3B74133K

BEST SELLER
$7.62 |
12% OFF Phone Price : $8.62
In Stock
Microwave Door Latch Hook 4026W2A015A
#1006

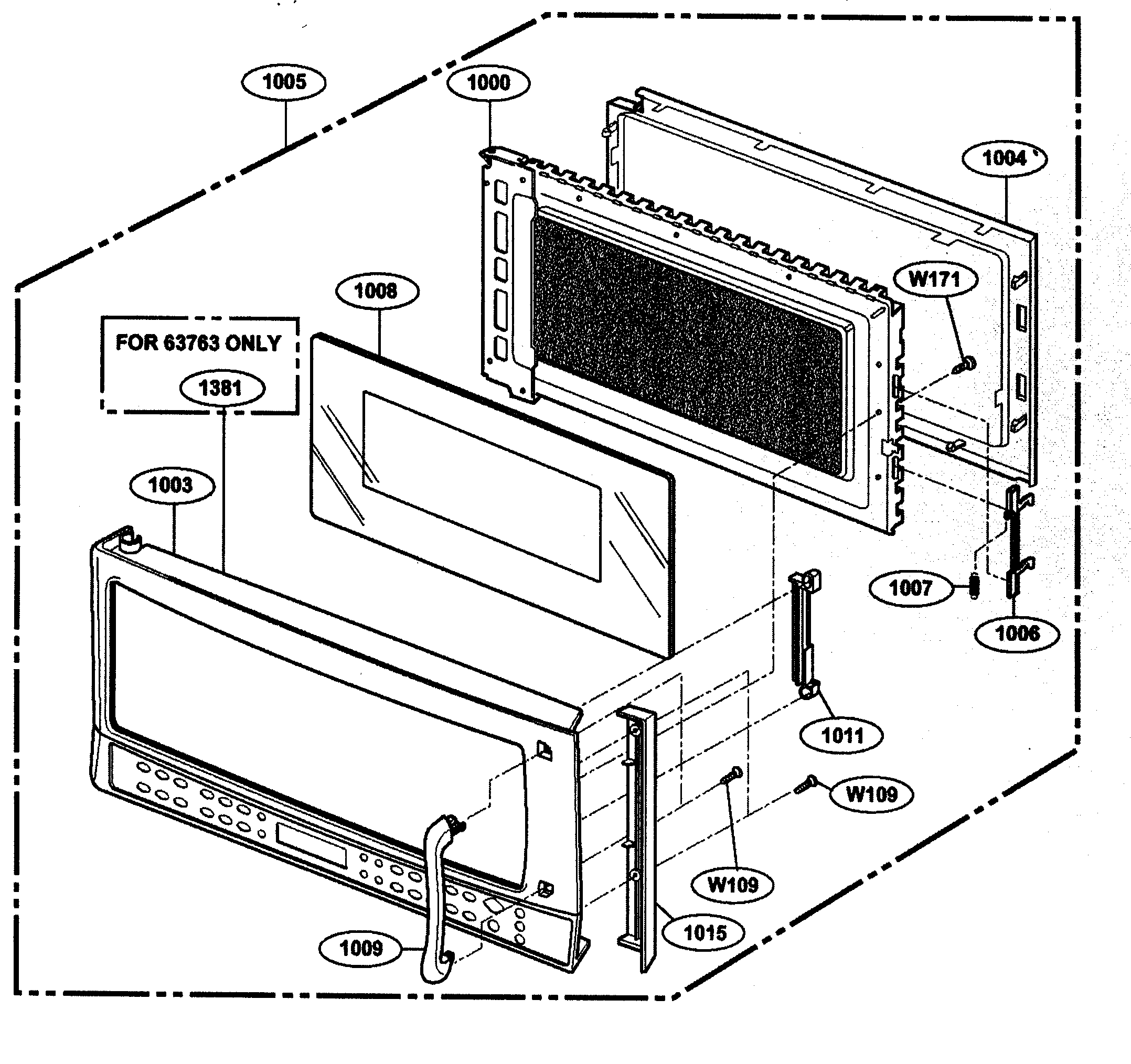

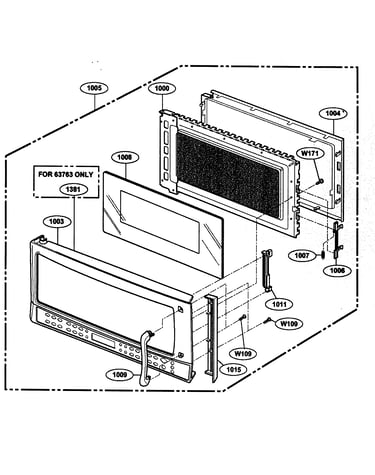

Door parts diagram

Microwave door latch hook

Part #4026W2A015A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A015A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Damper 3B71432A
#6011

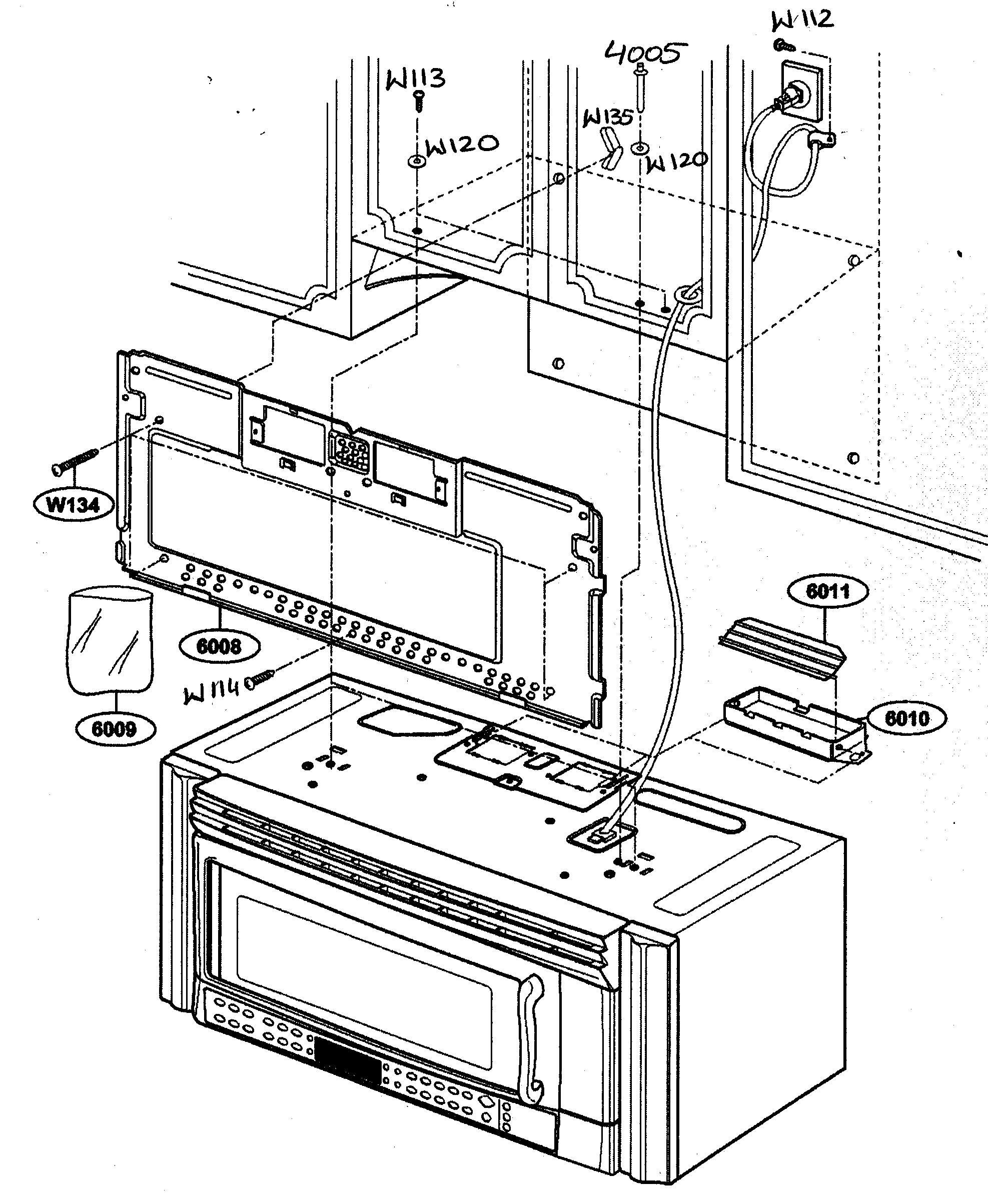

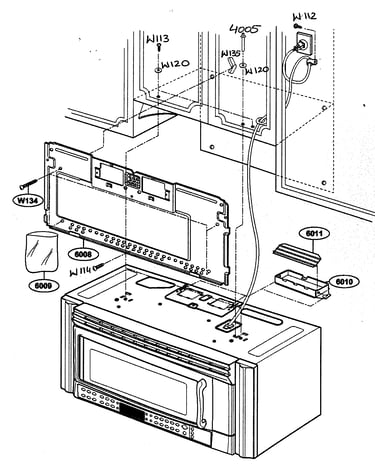

Installation parts diagram

Damper

Part #3B71432A

Replaced by #4900W1A001B

?
Manufacturer substitution
This part replaces 3B71432A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Microwave Door Latch Spring 4970WRA001G
#1007

Door parts diagram

Microwave door latch spring

Part #4970WRA001G

BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Bolt 4B72059B
#W134

Installation parts diagram

Bolt

Part #4B72059B

Replaced by #3861W1A043C

?
Manufacturer substitution
This part replaces 4B72059B. Substitute parts can look different from the original.
This item is not returnable
$25.20 |
19% OFF Phone Price : $31.20
In Stock
Microwave Mounting Bolt (replaces 500797) 4B72059C
#W135

Installation parts diagram

Microwave mounting bolt (replaces 500797)

Part #4B72059C

Replaced by #3861W1A043C

?
Manufacturer substitution
This part replaces 4B72059C. Substitute parts can look different from the original.
This item is not returnable
$25.20 |
19% OFF Phone Price : $31.20
In Stock
Installation Kit 2B72771G
#6009

Installation parts diagram

Installation kit

Part #2B72771G

Replaced by #3861W1A043C

?
Manufacturer substitution
This part replaces 2B72771G. Substitute parts can look different from the original.
This item is not returnable
$25.20 |
19% OFF Phone Price : $31.20
In Stock
