Model # 39028490 Official Craftsman standard submersible pump

Here are the diagrams and repair parts for Official Craftsman 39028490 standard submersible pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Screen P8-20
#10

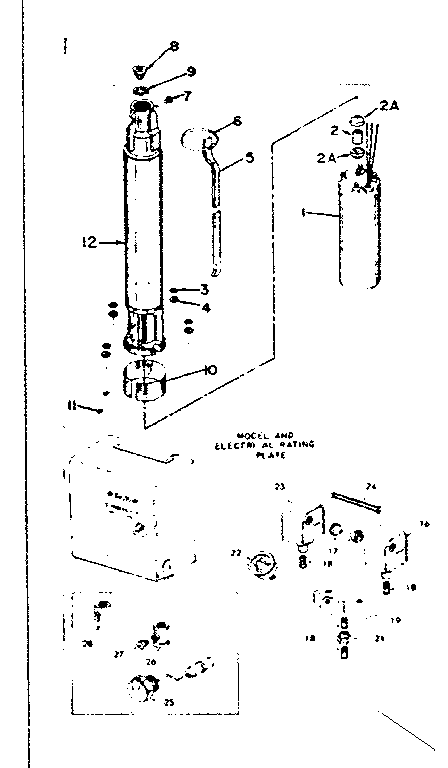

Replacement parts diagram

Screen

Part #P8-20

This item is not returnable
$5.19
In Stock
Control E238-2
#25

Replacement parts diagram

Control

Part #E238-2

$68.79
In Stock
Pipe Nipple U37-17GP
#18

Replacement parts diagram

Pipe nipple

Part #U37-17GP

This item is not returnable
$6.98
In Stock
Pump Start Relay U18-811
#4

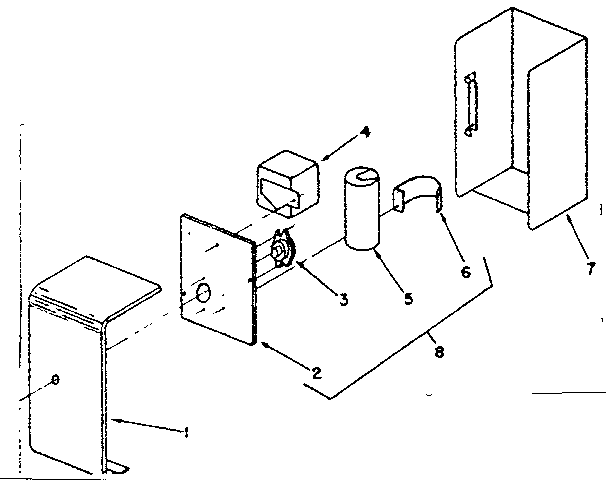

Control box diagram

Pump start relay

Part #U18-811

$190.39 |
6% OFF Phone Price : $202.39
In Stock
Nut U36-41SS
#3

Replacement parts diagram

Nut

Part #U36-41SS

Replaced by #B76087

?
Manufacturer substitution
This part replaces U36-41SS. Substitute parts can look different from the original.
$53.74
In Stock
Gauge U239-3
#22

Replacement parts diagram

Gauge

Part #U239-3

Replaced by #TC104-P2

?
Manufacturer substitution
This part replaces U239-3. Substitute parts can look different from the original.
$27.99 |
18% OFF Phone Price : $33.99
In Stock
Guarantee F642-8771A

#NI

All parts diagram

Guarantee

Part #F642-8771A

The manufacturer no longer makes this part, and there's no substitute part

Motor 3/4 Hp P564-14
#1B

Replacement parts diagram

Motor 3/4 hp

Part #P564-14

The manufacturer no longer makes this part, and there's no substitute part

Pump 1/2 Hp P364-2
#12A

Replacement parts diagram

Pump 1/2 hp

Part #P364-2

The manufacturer no longer makes this part, and there's no substitute part

Switch U217-363
#23

Replacement parts diagram

Switch

Part #U217-363

The manufacturer no longer makes this part, and there's no substitute part
