Model # SHS5AVF6UC/22 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHS5AVF6UC-22 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

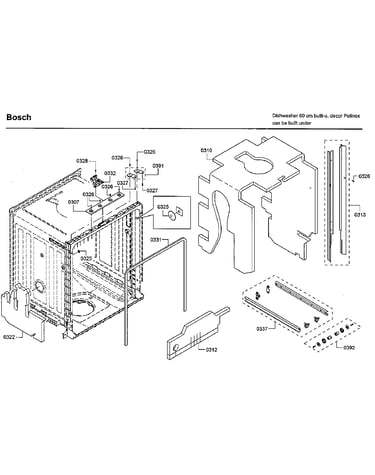

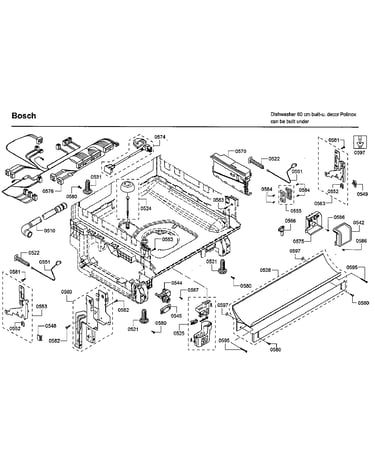

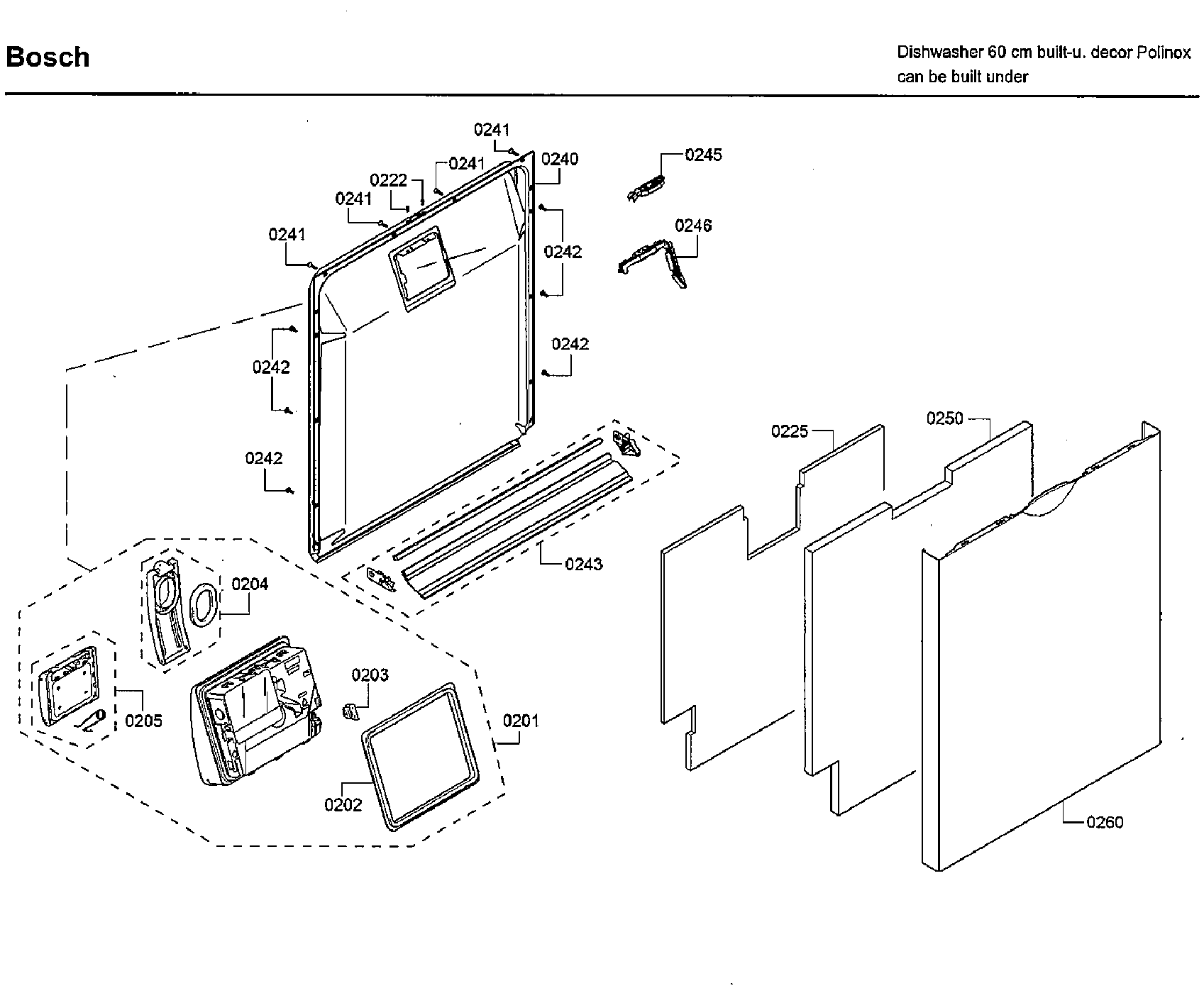

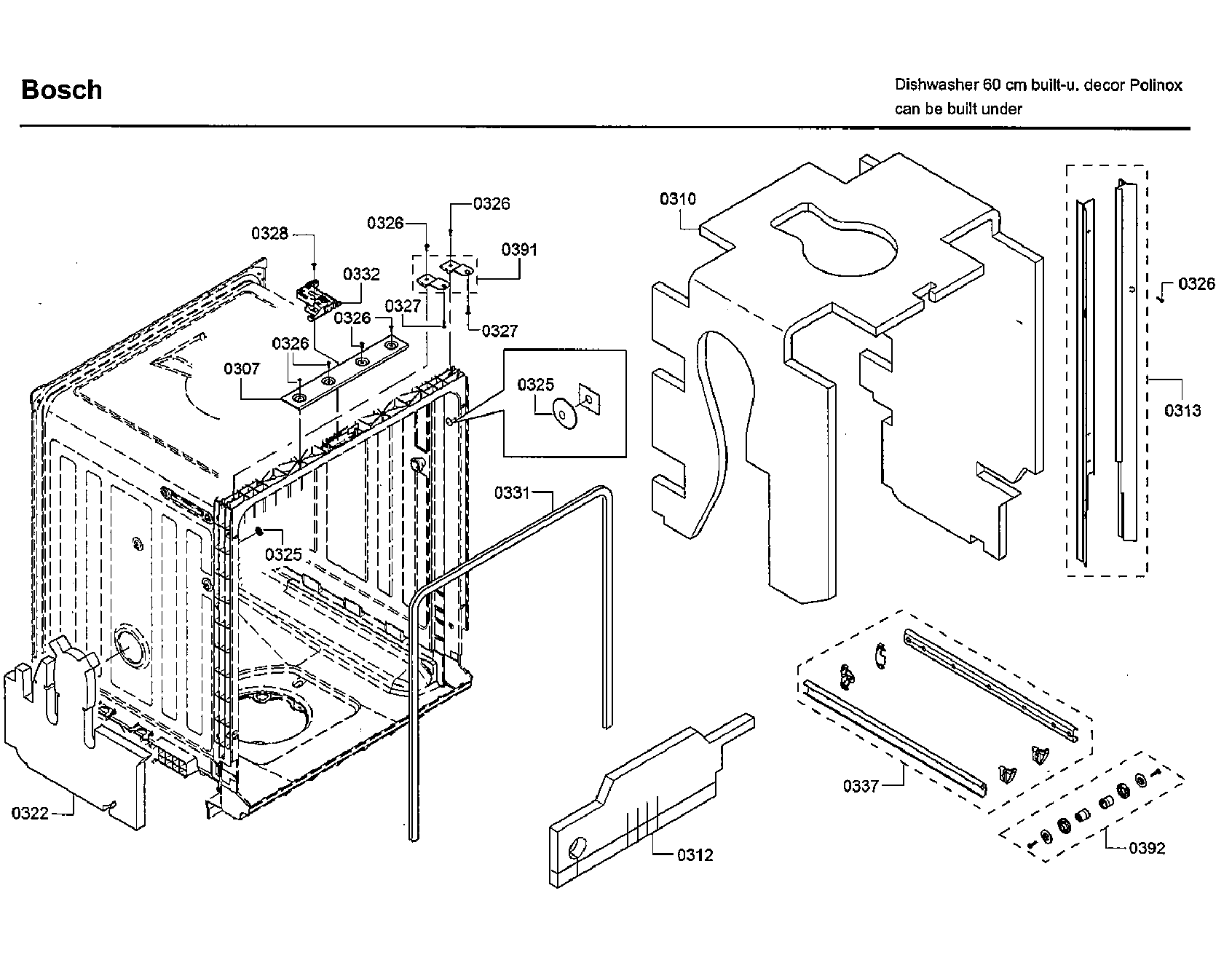

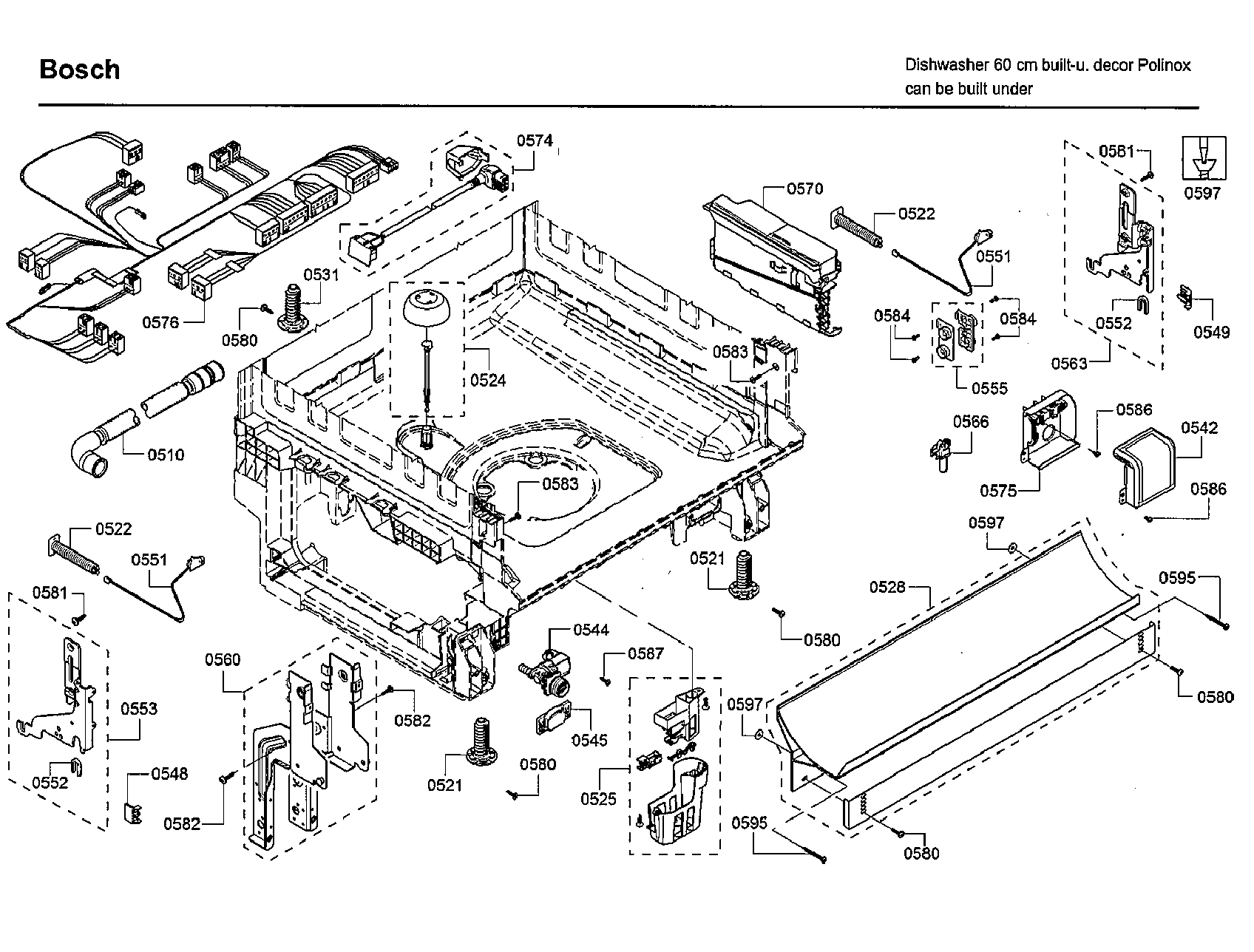

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Dishwasher Circulation Pump With Heater 12008381
#450

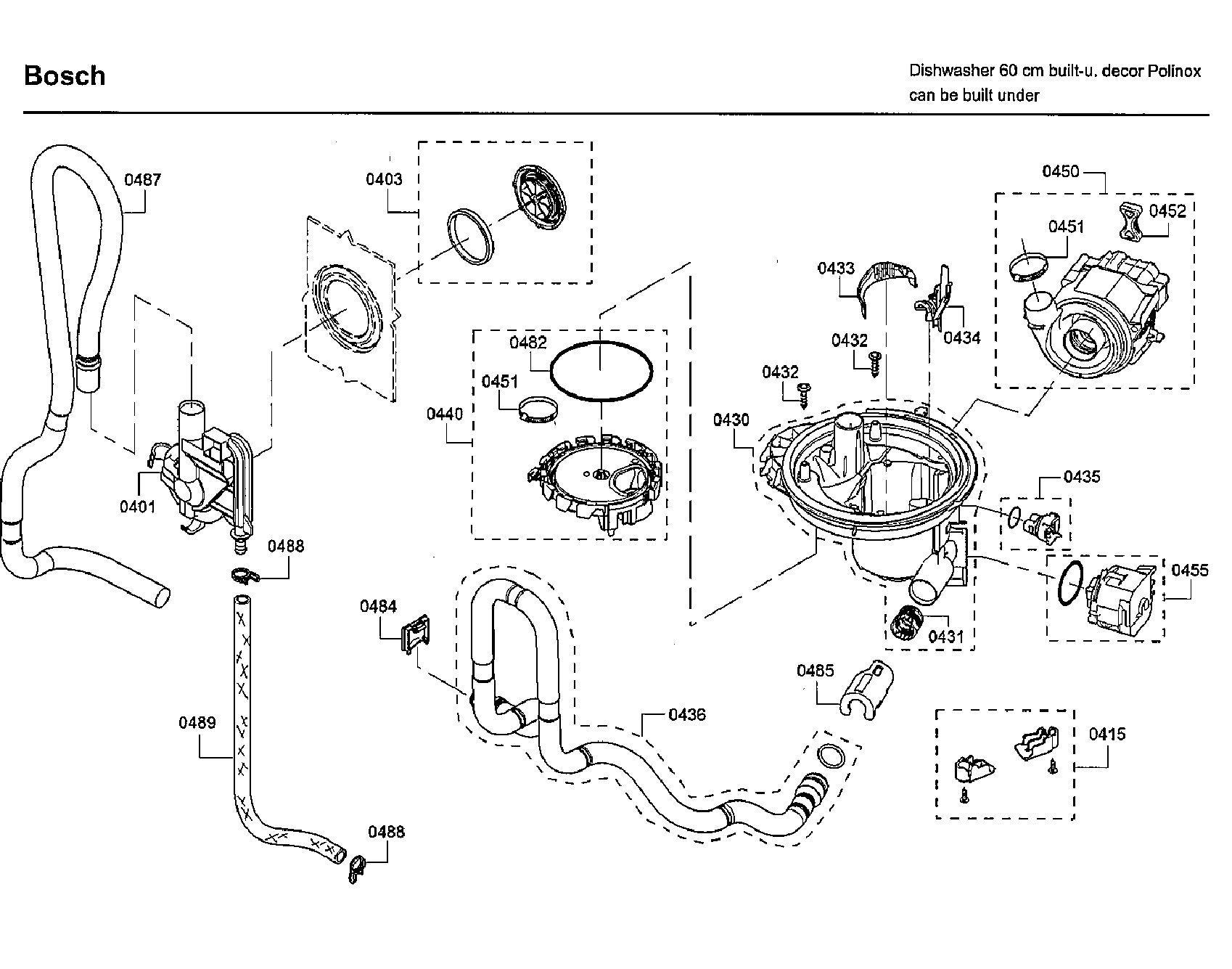

Pump diagram

Dishwasher circulation pump with heater

Part #12008381

BEST SELLER
$111.40 |
10% OFF Phone Price : $123.40
In Stock
Dishwasher Hose Clamp (replaces 00417502, 00606311, 172272) 00172272
#451

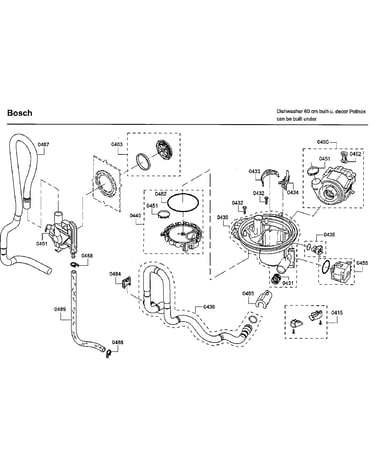

Pump diagram

Dishwasher hose clamp (replaces 00417502, 00606311, 172272)

Part #00172272

BEST SELLER
$28.11 |
18% OFF Phone Price : $34.11
In Stock

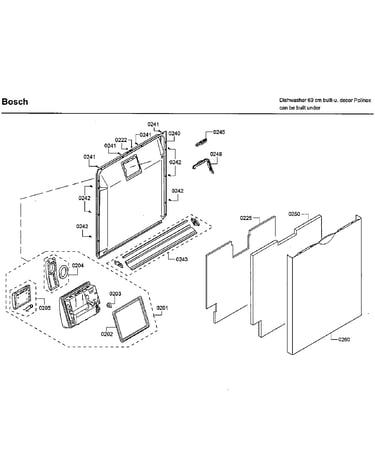

Dishwasher Door Lock (replaces 630783) 00630783
Dishwasher door lock (replaces 630783)

Part #00630783

BEST SELLER
$20.98 |
22% OFF Phone Price : $26.98
In Stock
Dishwasher Dishrack Roller, Lower (replaces 611475) 00611475
#621

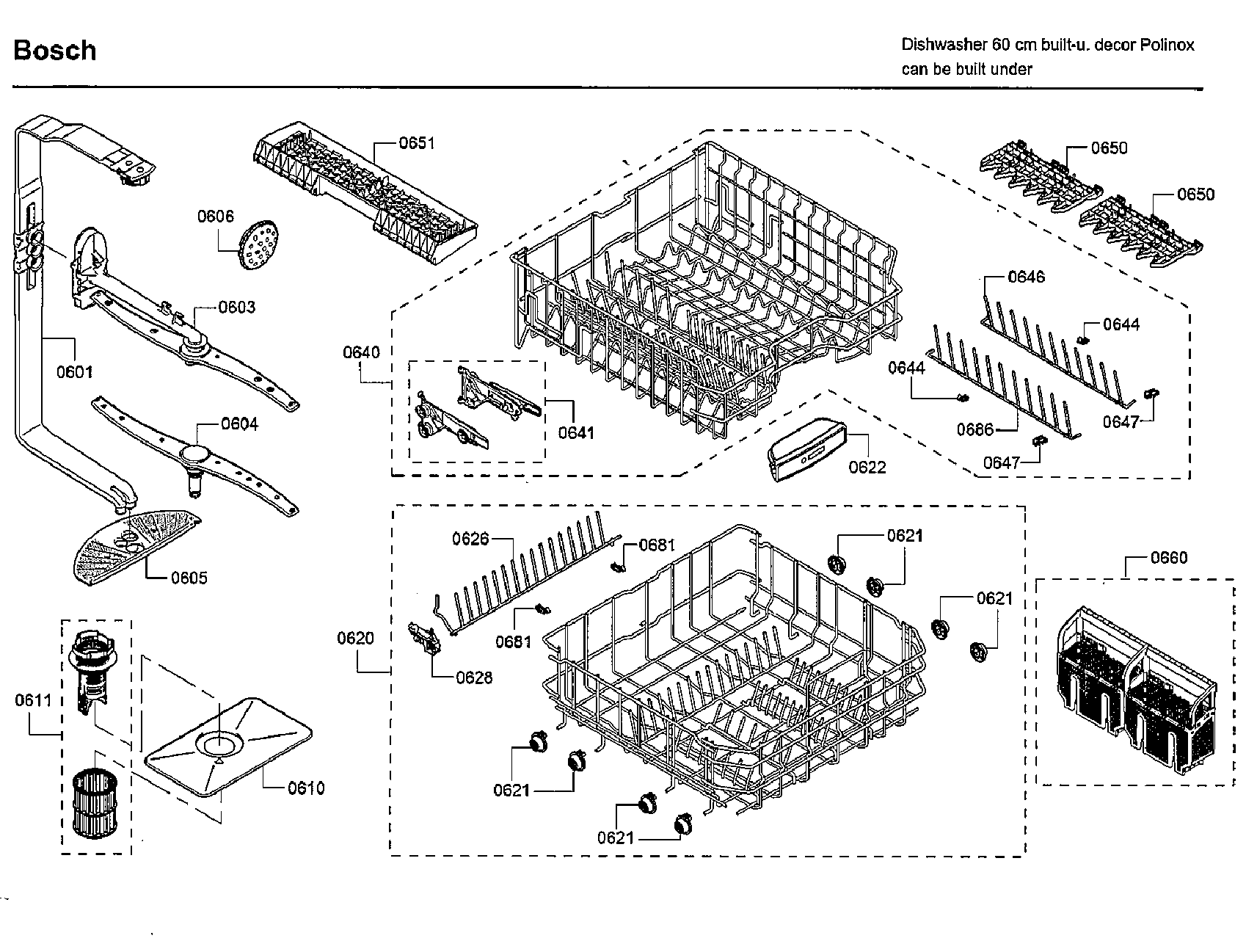

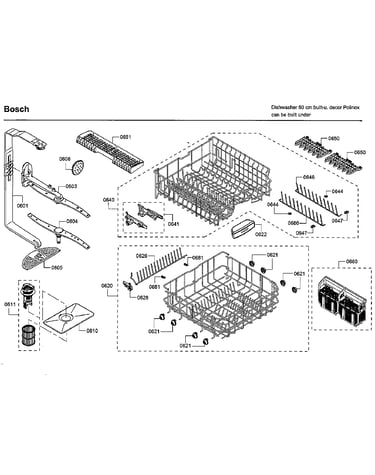

Rack diagram

Dishwasher dishrack roller, lower (replaces 611475)

Part #00611475

BEST SELLER
$14.27 |
12% OFF Phone Price : $16.27
In Stock
Dishwasher Turbidity Sensor (replaces 00611567, 00611568, 611323) 00611323
#435

Pump diagram

Dishwasher turbidity sensor (replaces 00611567, 00611568, 611323)

Part #00611323

BEST SELLER
$38.75 |
13% OFF Phone Price : $44.75
In Stock
Dishwasher On/off Switch (replaces 620775) 00620775
#113

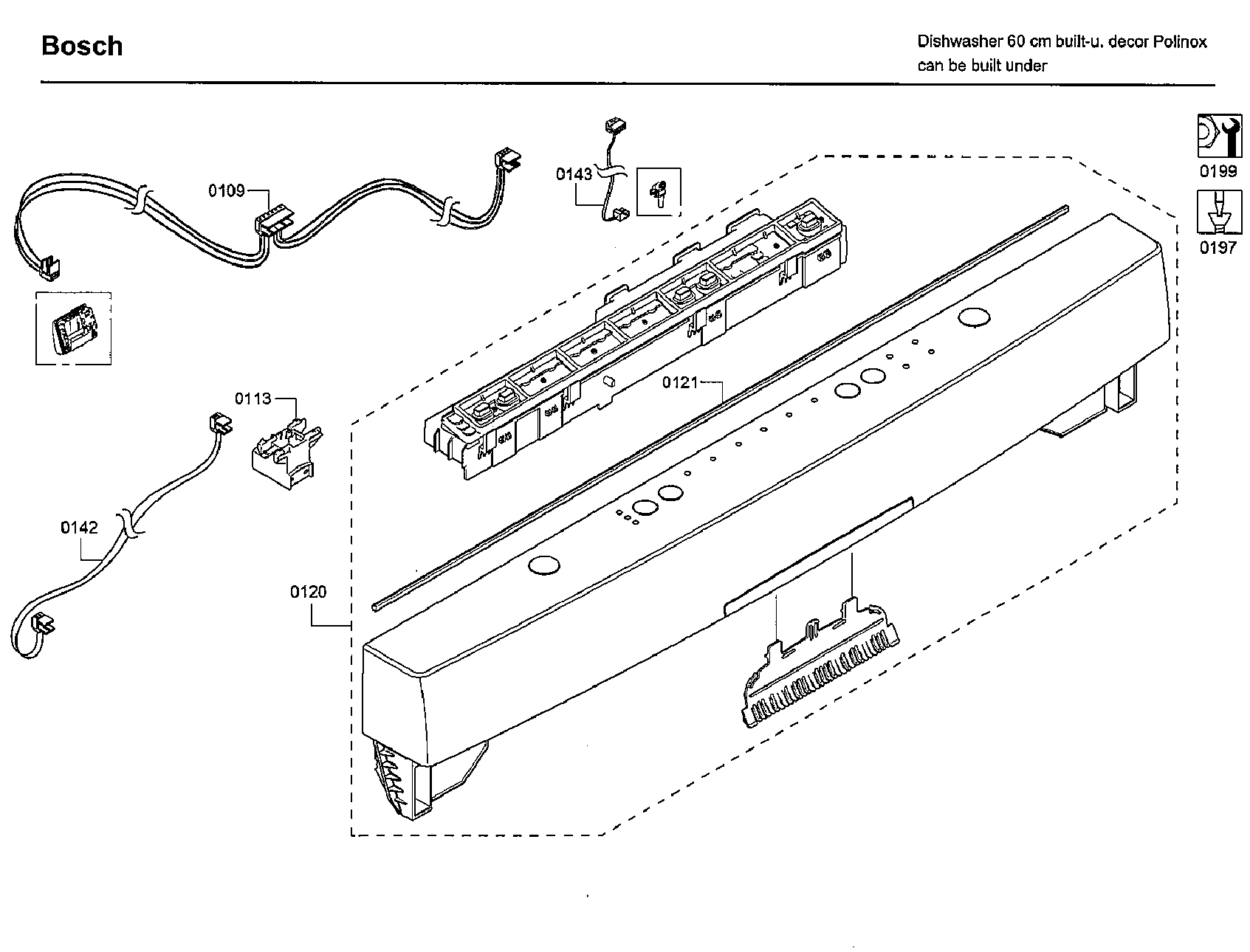

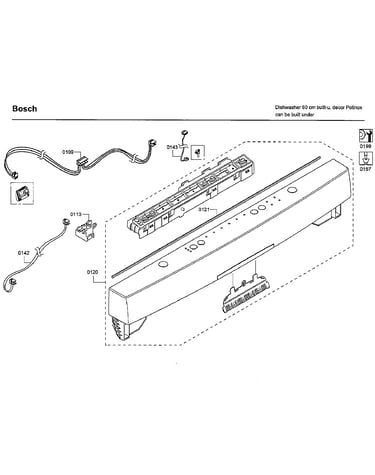

Control panel diagram
