Model # UC-48 Official Janitrol upflow & downflow evaporator coil

Here are the diagrams and repair parts for Official Janitrol UC-48 upflow & downflow evaporator coil, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
UC-48 Upflow & Downflow Evaporator Coil
Plastic Pan 17559-23N
#2

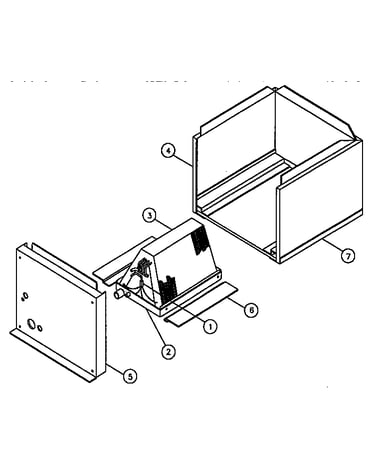

Functional replacement parts diagram

Plastic pan

Part #17559-23N

Replaced by #B1755923HDF

?
Manufacturer substitution
This part replaces 17559-23N. Substitute parts can look different from the original.
$68.78
In Stock
Access Panel 15777-18
#5

Functional replacement parts diagram

Access panel

Part #15777-18

The manufacturer no longer makes this part, and there's no substitute part

Upflow Cabin 15777-07
#4

Functional replacement parts diagram

Upflow cabin

Part #15777-07

The manufacturer no longer makes this part, and there's no substitute part

Filler Plate 15775-09
#7

Functional replacement parts diagram

Filler plate

Part #15775-09

The manufacturer no longer makes this part, and there's no substitute part

Flowrator W/ B13136-82
#1

Functional replacement parts diagram

Flowrator w/

Part #B13136-82

The manufacturer no longer makes this part, and there's no substitute part

Service Coil 1585408-48NS
#3

Functional replacement parts diagram

Service coil

Part #1585408-48NS

The manufacturer no longer makes this part, and there's no substitute part
