Maytag
Dryer

Model # MEDX700XL1 Official Maytag electric dryer

Here are the diagrams and repair parts for Official Maytag MEDX700XL1 electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

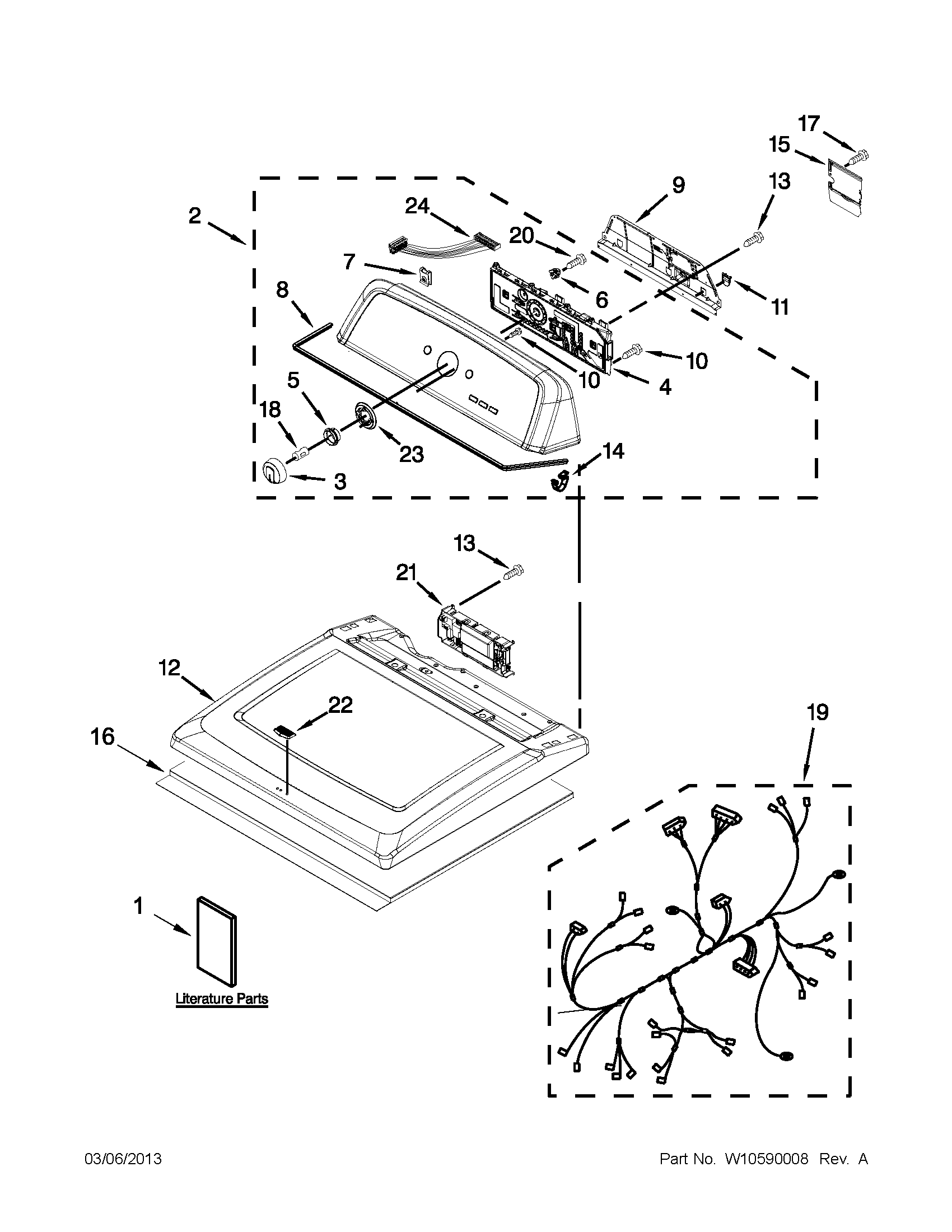

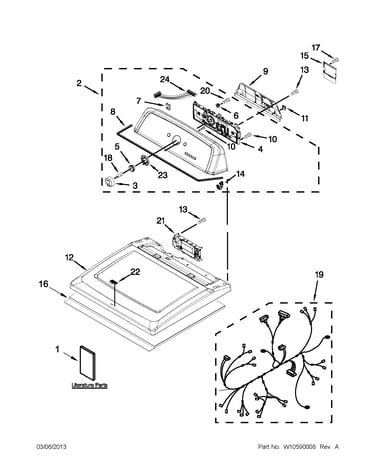

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |
Dryer Thermal Fuse 3392519
#41

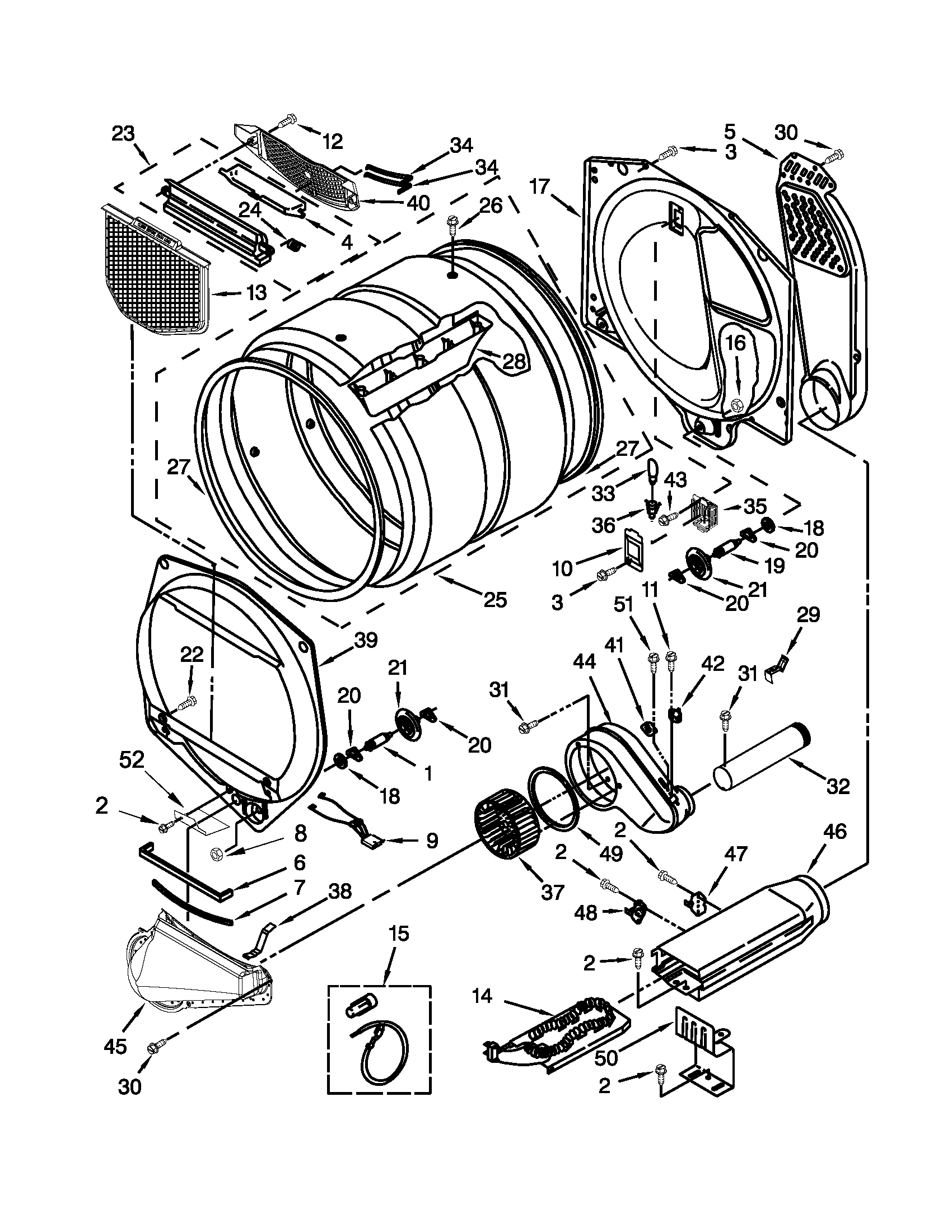

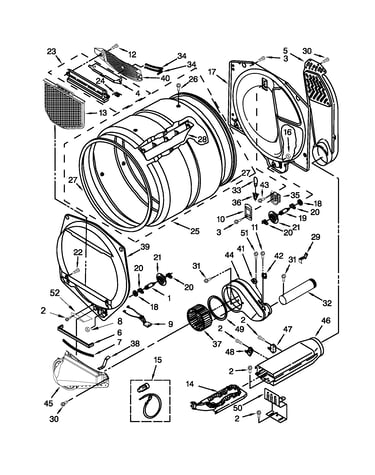

Bulkhead parts diagram

Dryer thermal fuse

Part #3392519

Replaced by #WP3392519

?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
BEST SELLER
$19.12 |
9% OFF Phone Price : $21.12
In Stock
Dryer Idler Pulley W10468057
#13

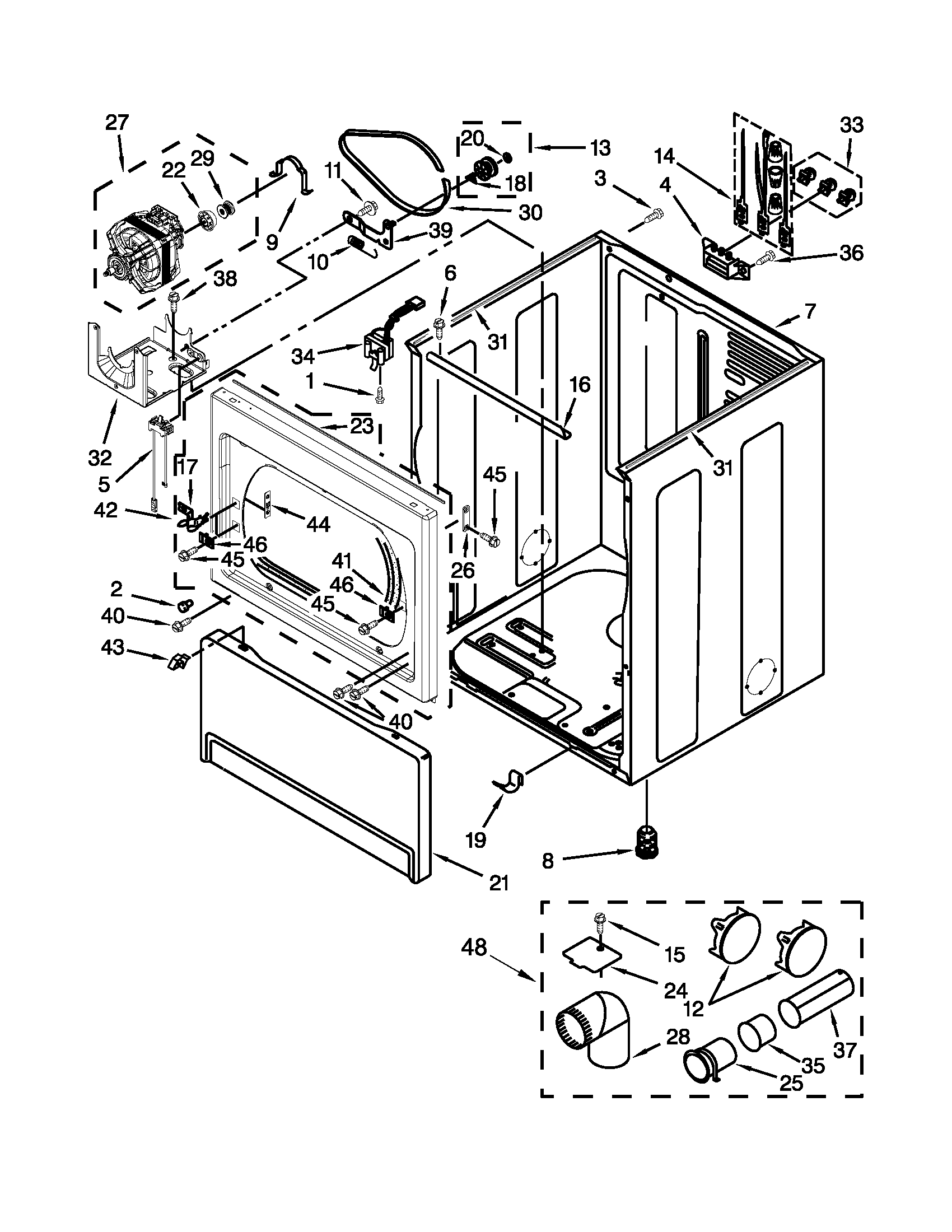

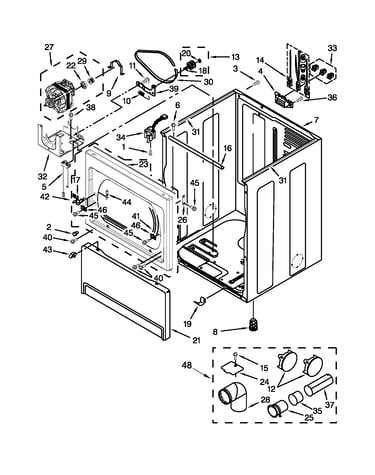

Cabinet parts diagram

Dryer idler pulley

Part #W10468057

The manufacturer no longer makes this part, and there's no substitute part

Dryer Drum Support Roller W10314171
#21

Bulkhead parts diagram

Dryer drum support roller

Part #W10314171

Replaced by #WPW10314173

?
Manufacturer substitution
This part replaces W10314171. Substitute parts can look different from the original.
BEST SELLER
$16.24 |
11% OFF Phone Price : $18.24
In Stock
Bracket 3388674
#39

Cabinet parts diagram

Bracket

Part #3388674

Replaced by #W10837240

?
Manufacturer substitution
This part replaces 3388674. Substitute parts can look different from the original.
BEST SELLER
$21.25 |
22% OFF Phone Price : $27.25
In Stock
Dryer Thermistor 8577274
#42

Bulkhead parts diagram

Dryer thermistor

Part #8577274

Replaced by #WP8577274

?
Manufacturer substitution
This part replaces 8577274. Substitute parts can look different from the original.
BEST SELLER
$32.80 |
15% OFF Phone Price : $38.80
In Stock
Dryer Repair Kit 80047
#NI

Optional parts (not included) diagram

Dryer repair kit

Part #80047

Replaced by #4392067

?
Manufacturer substitution
This part replaces 80047. Substitute parts can look different from the original.
BEST SELLER
$49.32 |
11% OFF Phone Price : $55.32
In Stock
Dryer Thermal Cut-off Fuse Kit 8318314
#47

Bulkhead parts diagram

Dryer thermal cut-off fuse kit

Part #8318314

Replaced by #279973

?
Manufacturer substitution
This part replaces 8318314. Substitute parts can look different from the original.
BEST SELLER
$39.11 |
13% OFF Phone Price : $45.11
In Stock
Catch 690081
#10

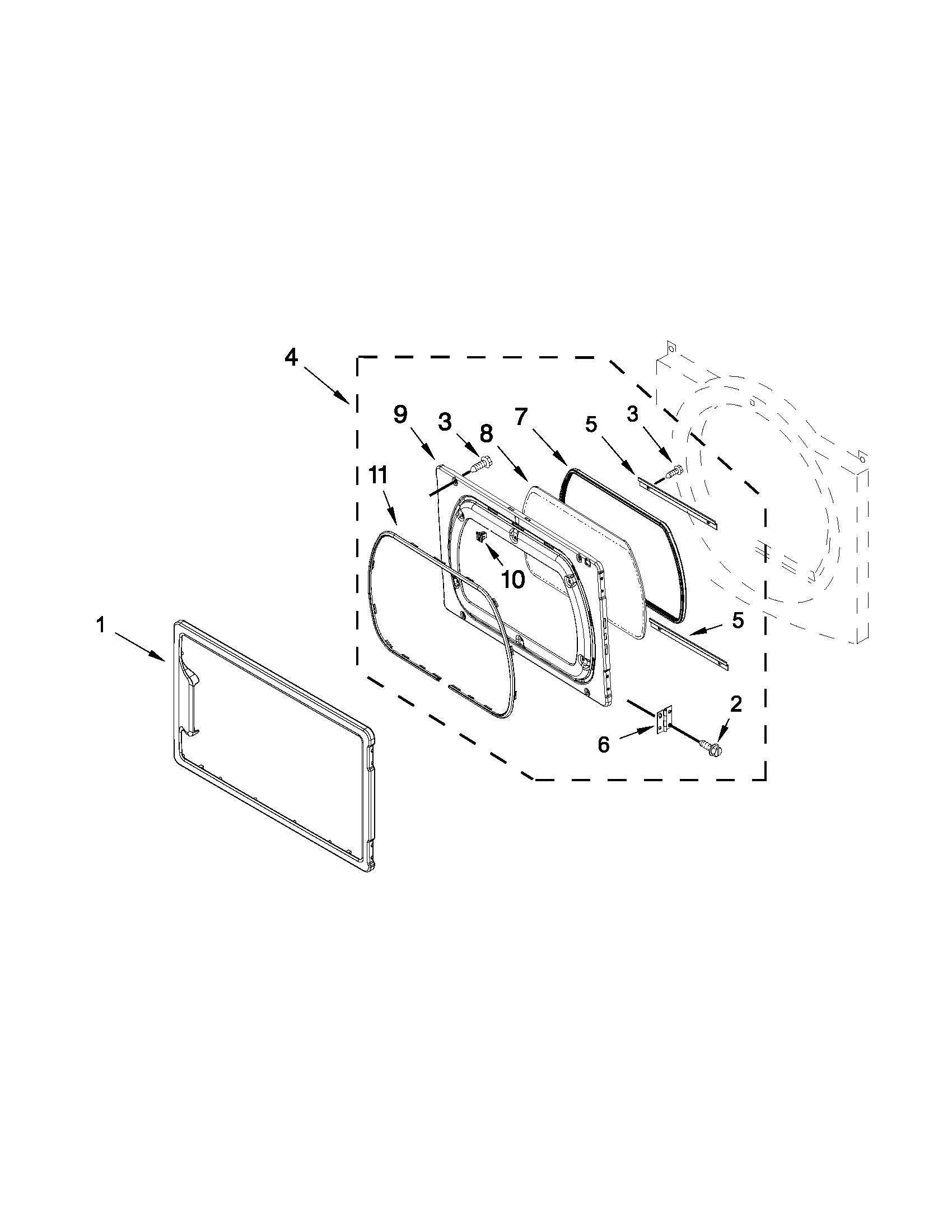

Door parts diagram

Catch

Part #690081

Replaced by #279570

?
Manufacturer substitution
This part replaces 690081. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Screen W10049370
#13

Bulkhead parts diagram

Screen

Part #W10049370

Replaced by #W10120998

?
Manufacturer substitution
This part replaces W10049370. Substitute parts can look different from the original.
BEST SELLER
$58.57 |
9% OFF Phone Price : $64.57
In Stock
Washer Seal W10521118
#27

Bulkhead parts diagram

Washer seal

Part #W10521118

Replaced by #280114

?
Manufacturer substitution
This part replaces W10521118. Substitute parts can look different from the original.
BEST SELLER
$32.45 |
16% OFF Phone Price : $38.45
In Stock
