Model # 2335538912 Official Kenmore range hood

Here are the diagrams and repair parts for Official Kenmore 2335538912 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

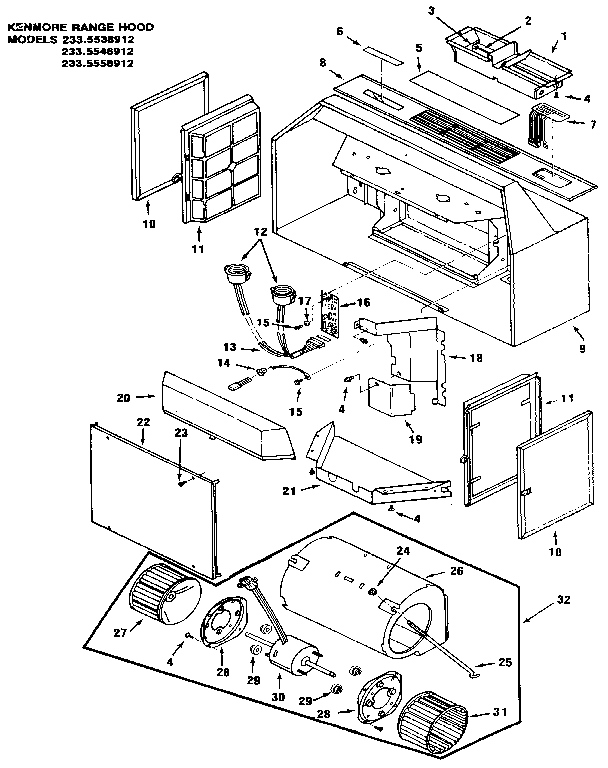

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Cook Top Side Trim Kit Range Hood Grease Filter, 2-pack (replaces 970007894) 97007894
#10

Range hood diagram

Cook top side trim kit range hood grease filter, 2-pack (replaces 970007894)

Part #97007894

BEST SELLER
$29.91 |
17% OFF Phone Price : $35.91
Back Order
Range Hood Light Lens 99110605
#20

Range hood diagram

Range hood light lens

Part #99110605

The manufacturer no longer makes this part, and there's no substitute part

Motor 99080271
#30

Range hood diagram

Motor

Part #99080271

Replaced by #S97010736

?
Manufacturer substitution
This part replaces 99080271. Substitute parts can look different from the original.
$120.10 |
9% OFF Phone Price : $132.10
In Stock
Range Hood Blower Assembly 97010327
#32

Range hood diagram

Range hood blower assembly

Part #97010327

Replaced by #S97010327

?
Manufacturer substitution
This part replaces 97010327. Substitute parts can look different from the original.
$216.99 |
5% OFF Phone Price : $228.99
In Stock
Range Hood Vent Damper Cover 98005221
#2

Range hood diagram

Range hood vent damper cover

Part #98005221

Replaced by #S98005221

?
Manufacturer substitution
This part replaces 98005221. Substitute parts can look different from the original.
This item is not returnable
$3.70
In Stock
Range Hood Bulb Socket Cover 98006546
#21

Range hood diagram

Range hood bulb socket cover

Part #98006546

Replaced by #S98006546

?
Manufacturer substitution
This part replaces 98006546. Substitute parts can look different from the original.
This item is not returnable
$7.06
In Stock
Rod (silver) 99420464
#25

Range hood diagram

Rod (silver)

Part #99420464

Replaced by #S99420464

?
Manufacturer substitution
This part replaces 99420464. Substitute parts can look different from the original.
This item is not returnable
$4.72
In Stock
Range Hood Grounding Screw (green) 99150471
#15

Range hood diagram

Range hood grounding screw (green)

Part #99150471

Replaced by #S99150471

?
Manufacturer substitution
This part replaces 99150471. Substitute parts can look different from the original.
This item is not returnable
$3.64
In Stock
Bushing 99400042
#14

Range hood diagram

Bushing

Part #99400042

Replaced by #S99400042

?
Manufacturer substitution
This part replaces 99400042. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Range Hood Outlet Box Cover Screw 99170245
#4

Range hood diagram

Range hood outlet box cover screw

Part #99170245

Replaced by #S99170245

?
Manufacturer substitution
This part replaces 99170245. Substitute parts can look different from the original.
This item is not returnable
$3.64
In Stock
