GE
Gas Range

Model # JGBS22BEA2WH Official GE gas range

Here are the diagrams and repair parts for Official GE JGBS22BEA2WH gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 172 parts  |
G.e. Range Oven Burner Igniter (replaces Wb13k0021, Wb13k10009, Wb13k10026, Wb13k12, Wb13k13, Wb13k14) WB13K21
#218

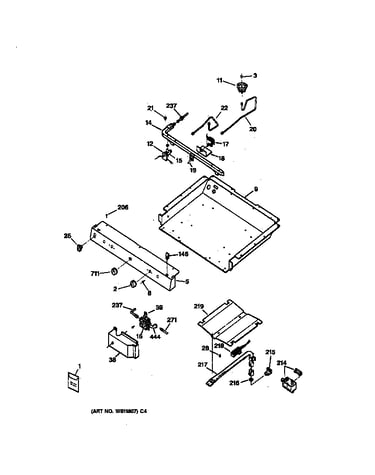

Burner parts diagram

G.e. range oven burner igniter (replaces wb13k0021, wb13k10009, wb13k10026, wb13k12, wb13k13, wb13k14)

Part #WB13K21

BEST SELLER
$54.97 |
10% OFF Phone Price : $60.97
In Stock
40a15bulb STD372401
#235

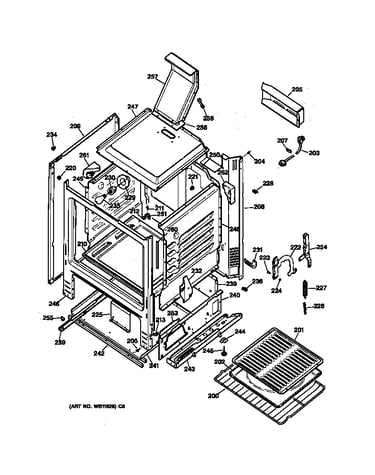

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Screw WB1K50
#28

Burner parts diagram

Screw

Part #WB1K50

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB1K50. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Oven Burner WB16K27
#217

Burner parts diagram

Oven burner

Part #WB16K27

Replaced by #WB16K10043

?
Manufacturer substitution
This part replaces WB16K27. Substitute parts can look different from the original.
$100.83 |
11% OFF Phone Price : $112.83
In Stock
Range Oven Gas Valve (replaces Wb19k0031) WB19K31
#214

Burner parts diagram

Range oven gas valve (replaces wb19k0031)

Part #WB19K31

$88.65 |
6% OFF Phone Price : $94.65
In Stock
Mounting Clip WB1K10007
#168

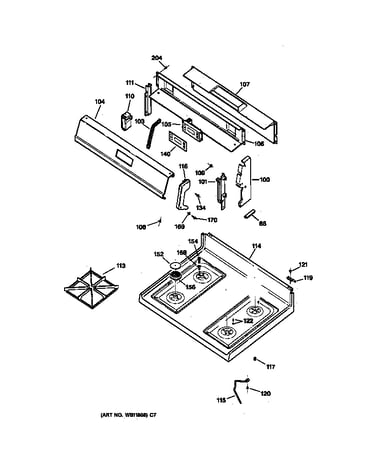

Control panel & cooktop diagram

Mounting clip

Part #WB1K10007

Replaced by #WB01K10112

?
Manufacturer substitution
This part replaces WB1K10007. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
End Cap H WB7X10034
#397

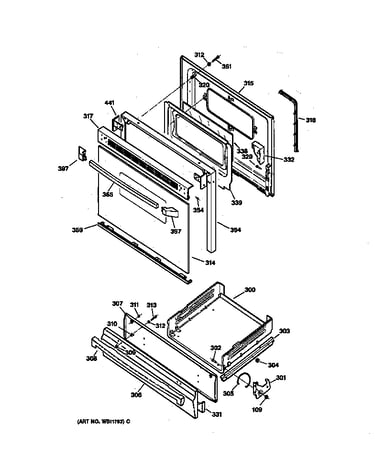

Door & drawer parts diagram

End cap h

Part #WB7X10034

Replaced by #WB07X10034

?
Manufacturer substitution
This part replaces WB7X10034. Substitute parts can look different from the original.
$35.15 |
15% OFF Phone Price : $41.15
In Stock
Igniter Harness WB18K10005
#110A

Control panel & cooktop diagram

Igniter harness

Part #WB18K10005

Replaced by #WB18K10035

?
Manufacturer substitution
This part replaces WB18K10005. Substitute parts can look different from the original.
$32.79 |
15% OFF Phone Price : $38.79
Back Order
Range Surface Burner Valve (replaces Wb21k0038) WB21K38
#15

Burner parts diagram

Range surface burner valve (replaces wb21k0038)

Part #WB21K38

$44.24 |
12% OFF Phone Price : $50.24
In Stock
Range Screw WB1K42
Range screw

Part #WB1K42

Replaced by #WB1K5062

?
Manufacturer substitution
This part replaces WB1K42. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
