Model # RGB528ET3WW Official Hotpoint gas range

Here are the diagrams and repair parts for Official Hotpoint RGB528ET3WW gas range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forRGB528ET3WW Ranges

  • 40a15bulb STD372401
    #235

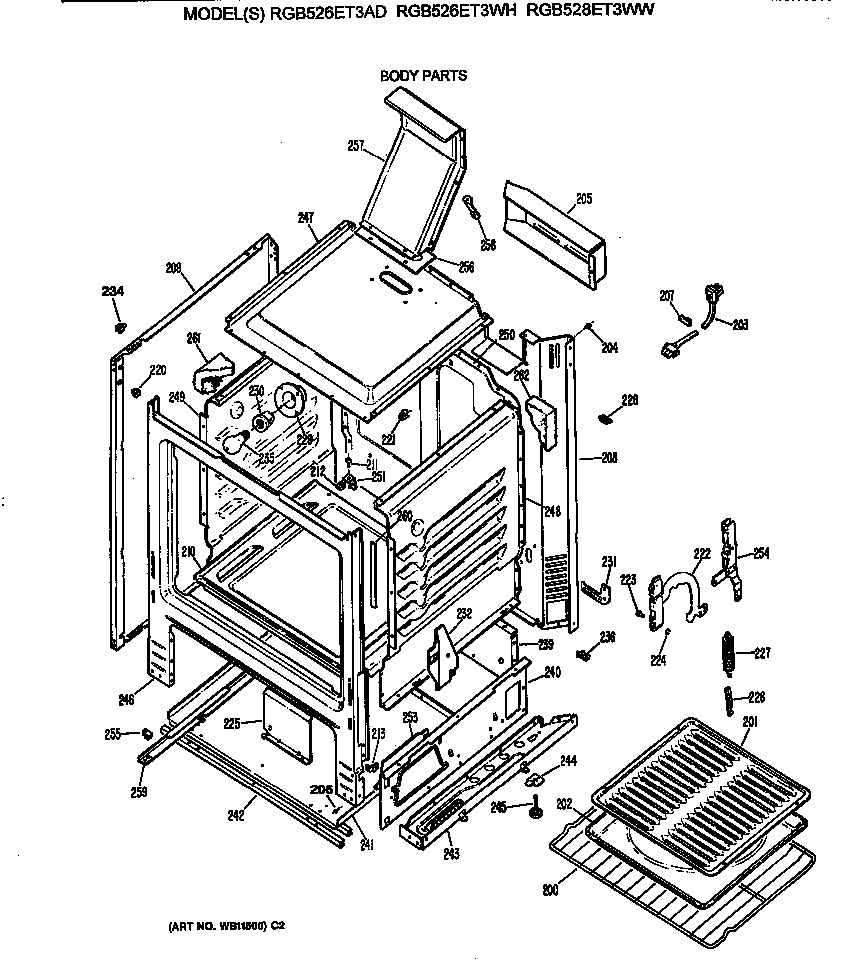

    Body parts diagram

    40a15bulb

    Part #STD372401

    Replaced by #40A15

    ?
    Manufacturer substitution
    This part replaces STD372401. Substitute parts can look different from the original.
    BEST SELLER
    $16.24
    11% OFF Phone Price : $18.24
    In Stock
  • Double Burner WB29K17
    #4

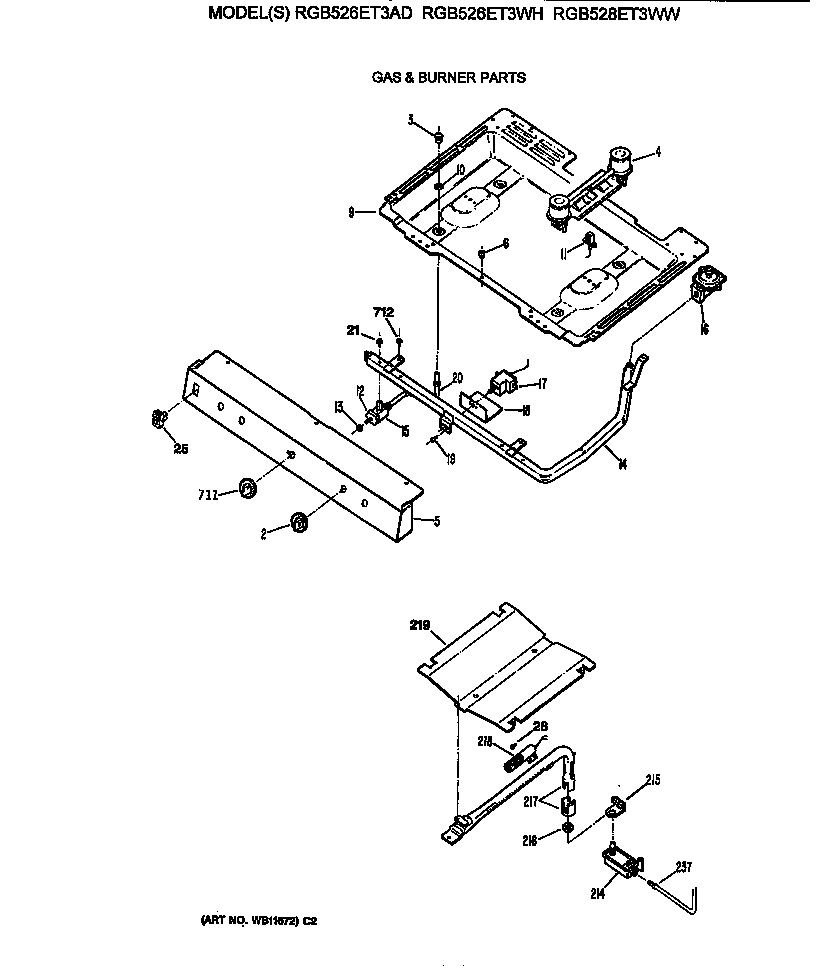

    Gas & burner parts diagram

    Double burner

    Part #WB29K17

    Replaced by #WB16K10026

    ?
    Manufacturer substitution
    This part replaces WB29K17. Substitute parts can look different from the original.
    $61.83
    9% OFF Phone Price : $67.83
    In Stock
  • Range Surface Burner Valve WB21K12
    #15

    Gas & burner parts diagram

    Range surface burner valve

    Part #WB21K12

    $86.62
    6% OFF Phone Price : $92.62
    In Stock
  • Clock Timer WB11K22
    #105

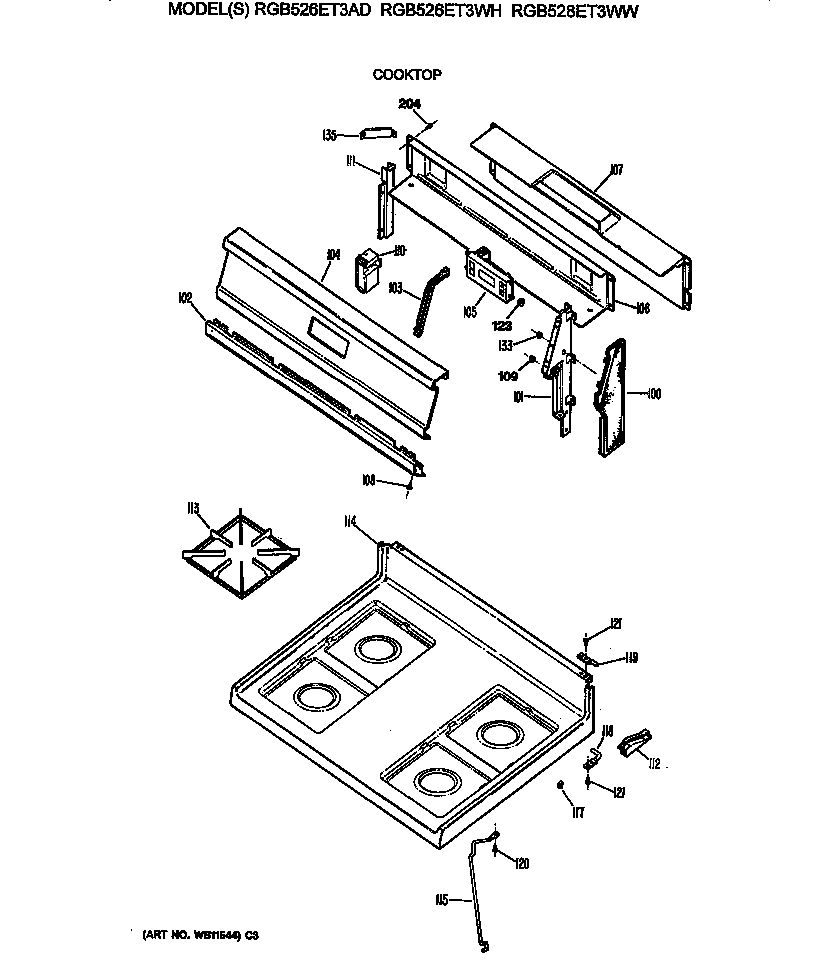

    Cooktop diagram

    Clock timer

    Part #WB11K22

    Replaced by #WB27T10469

    ?
    Manufacturer substitution
    This part replaces WB11K22. Substitute parts can look different from the original.
    $99.87
    11% OFF Phone Price : $111.87
    In Stock
  • Clock Timer WB11K23
    #105

    Cooktop diagram

    Clock timer

    Part #WB11K23

    Replaced by #WB27T10469

    ?
    Manufacturer substitution
    This part replaces WB11K23. Substitute parts can look different from the original.
    $99.87
    11% OFF Phone Price : $111.87
    In Stock
  • Range Surface Burner Igniter Switch WB24K14
    #12

    Gas & burner parts diagram

    Range surface burner igniter switch

    Part #WB24K14

    $33.59
    15% OFF Phone Price : $39.59
    In Stock
  • Range Surface Burner Igniter WB19K20
    #11

    Gas & burner parts diagram

    Range surface burner igniter

    Part #WB19K20

    Replaced by #WB18X26988

    ?
    Manufacturer substitution
    This part replaces WB19K20. Substitute parts can look different from the original.
    $20.99
    22% OFF Phone Price : $26.99
    In Stock
  • Range Screw WB1K21
    #206

    Body parts diagram

    Range screw

    Part #WB1K21

    Replaced by #WR01X10065

    ?
    Manufacturer substitution
    This part replaces WB1K21. Substitute parts can look different from the original.
    This item is not returnable
    $7.40
    12% OFF Phone Price : $8.40
    In Stock
  • Spacer WB2K14
    #310

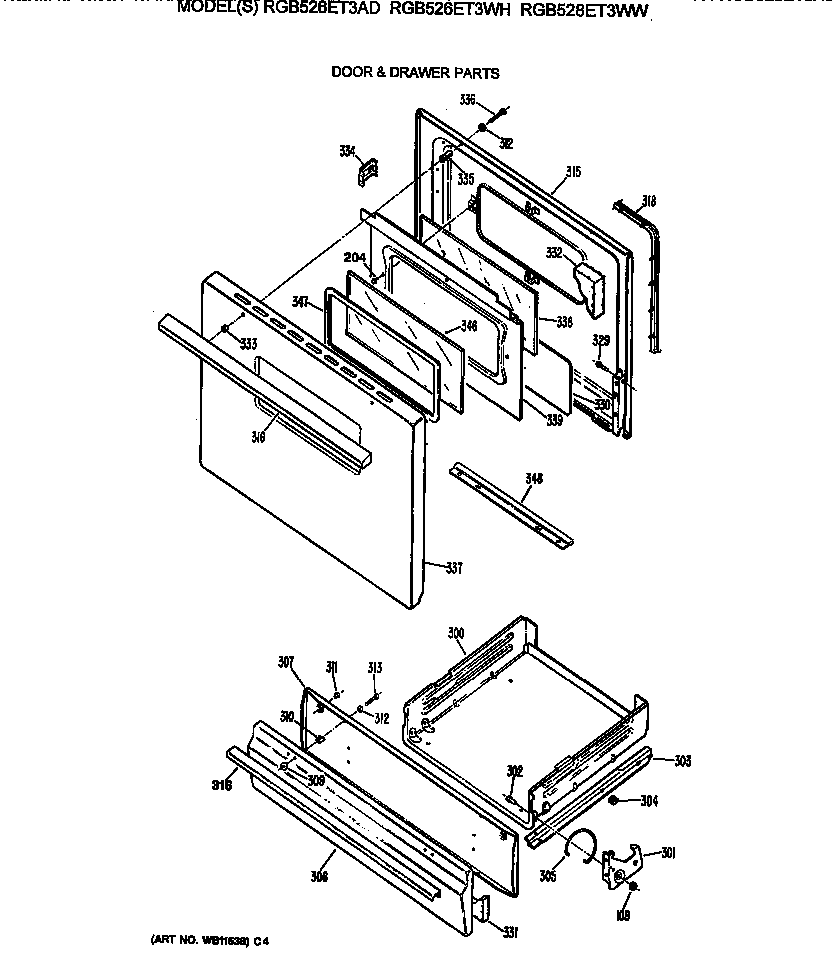

    Door & drawer parts diagram

    Spacer

    Part #WB2K14

    This item is not returnable
    In Stock
  • Range Screw And Washer WB1K45
    #120

    Cooktop diagram

    Range screw and washer

    Part #WB1K45

    This item is not returnable
    In Stock
