Model # 91194410300 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 91194410300 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

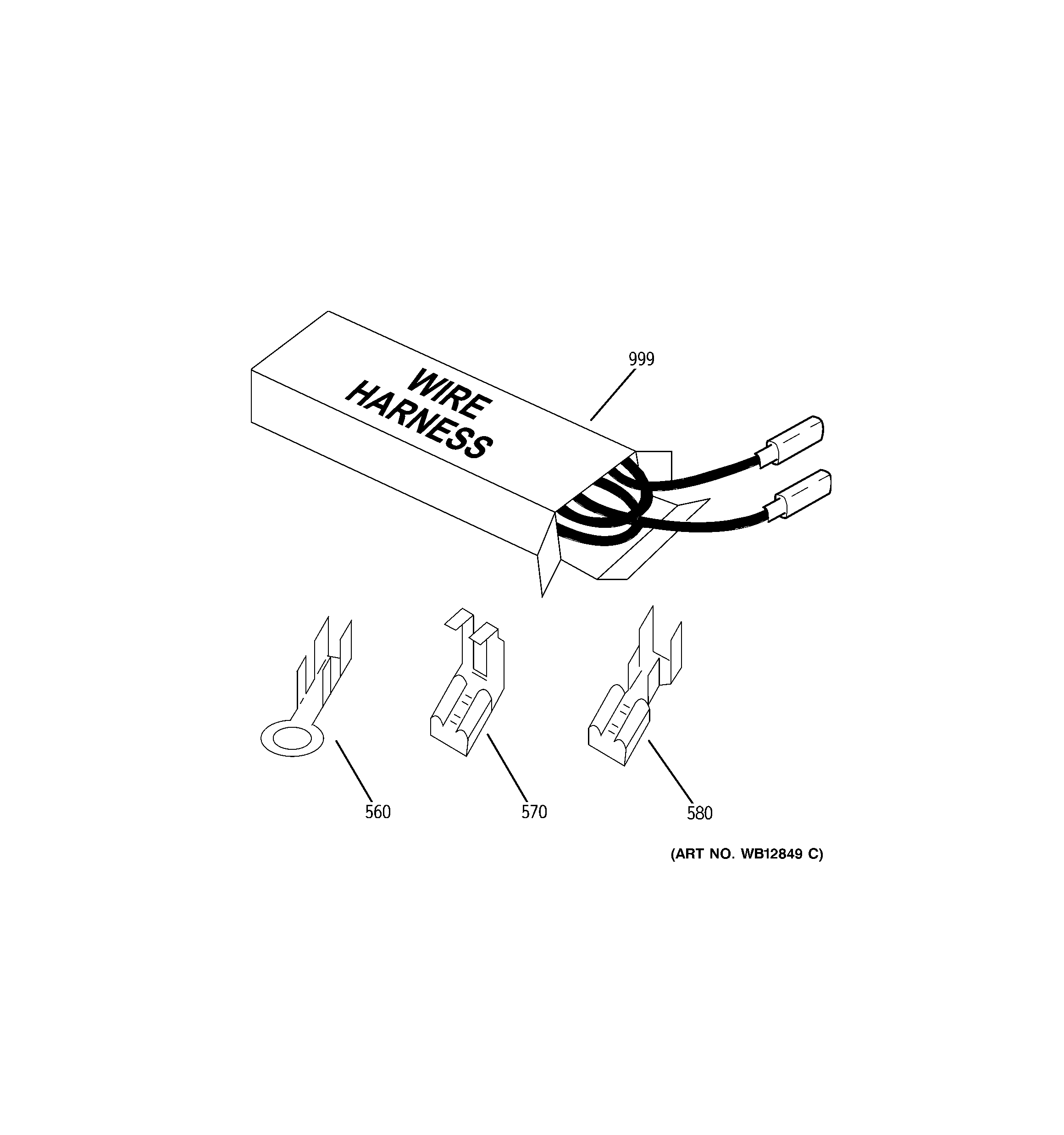

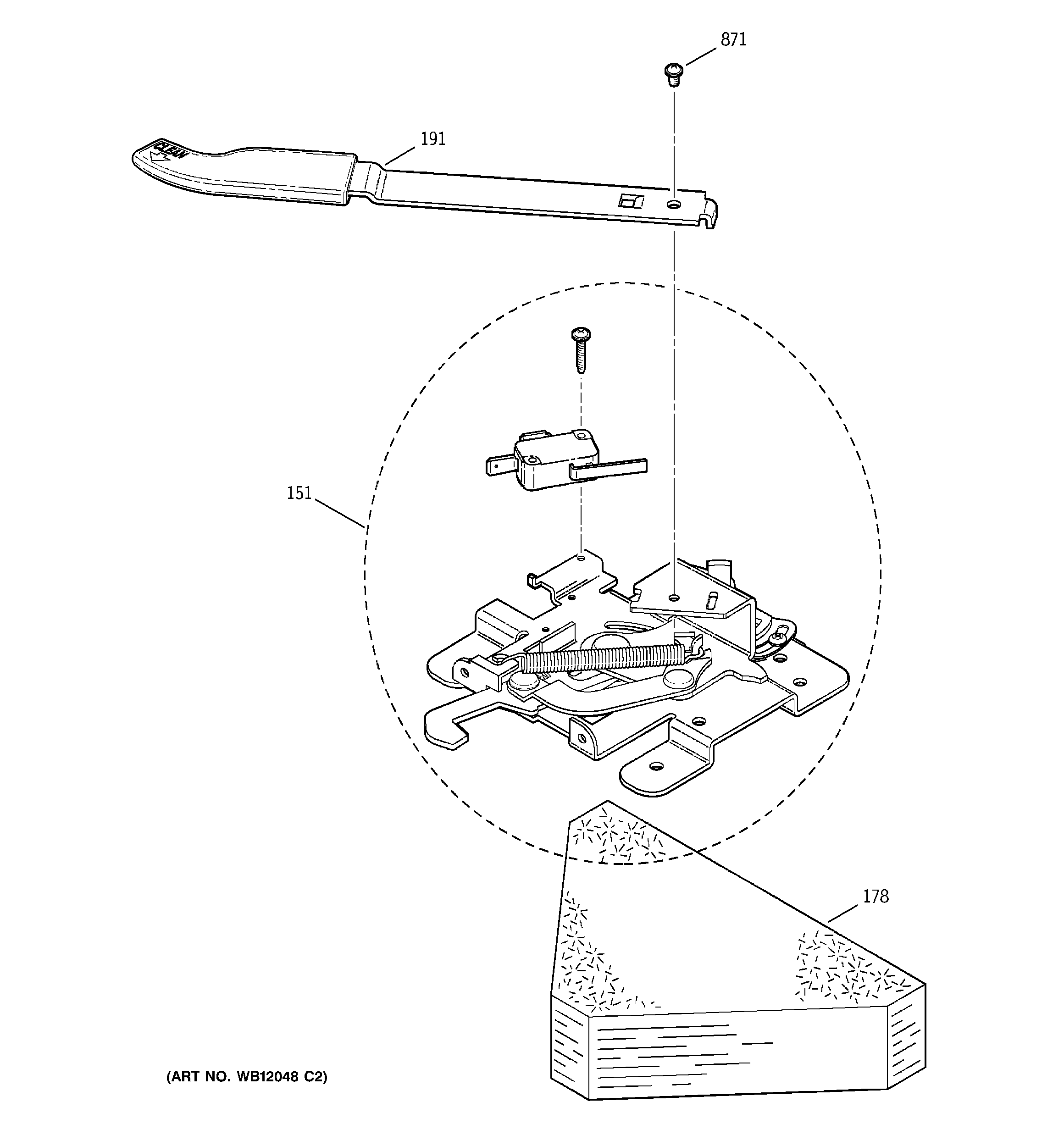

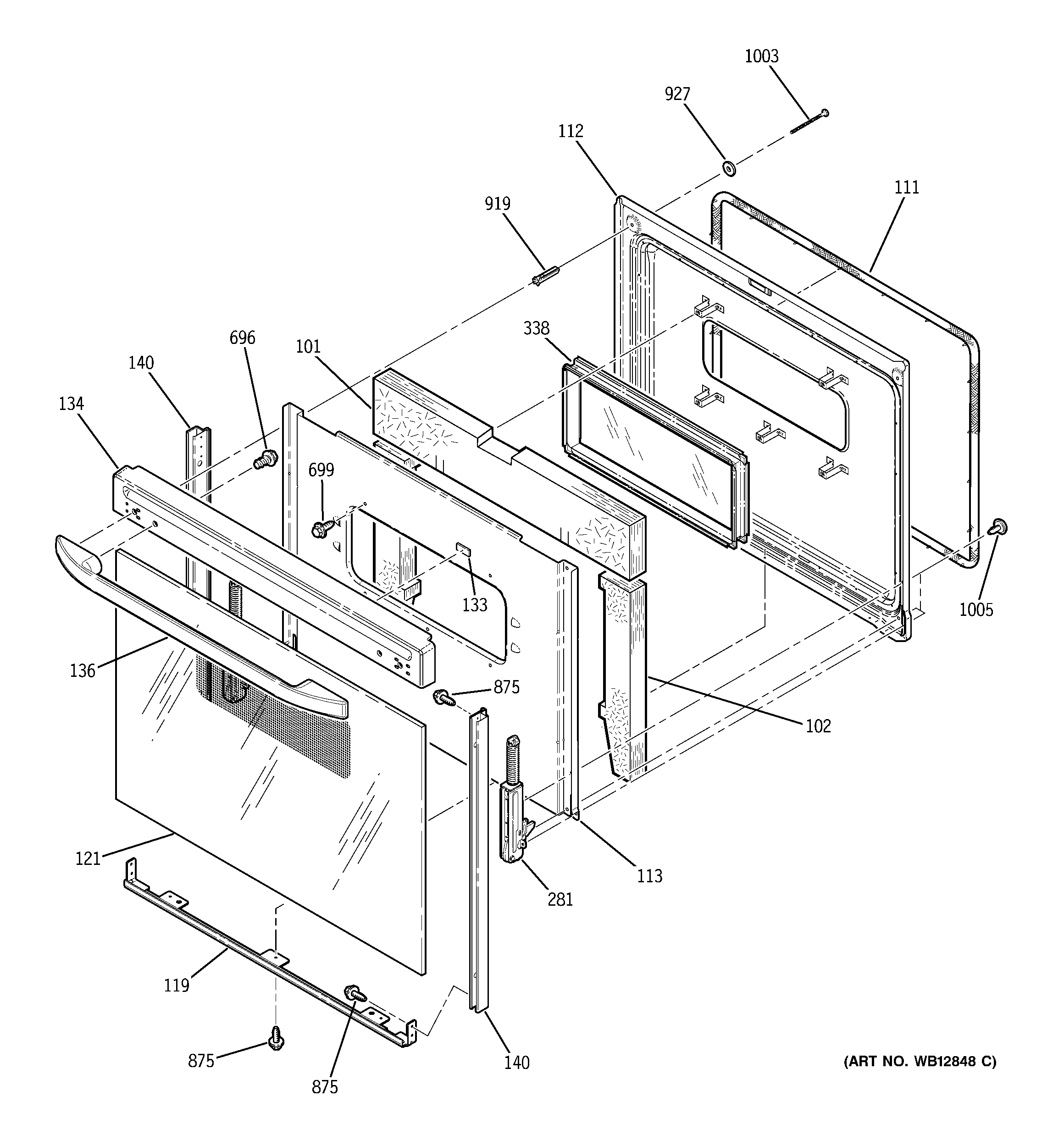

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |
Range Oven Light Bulb WX12X1510
#257

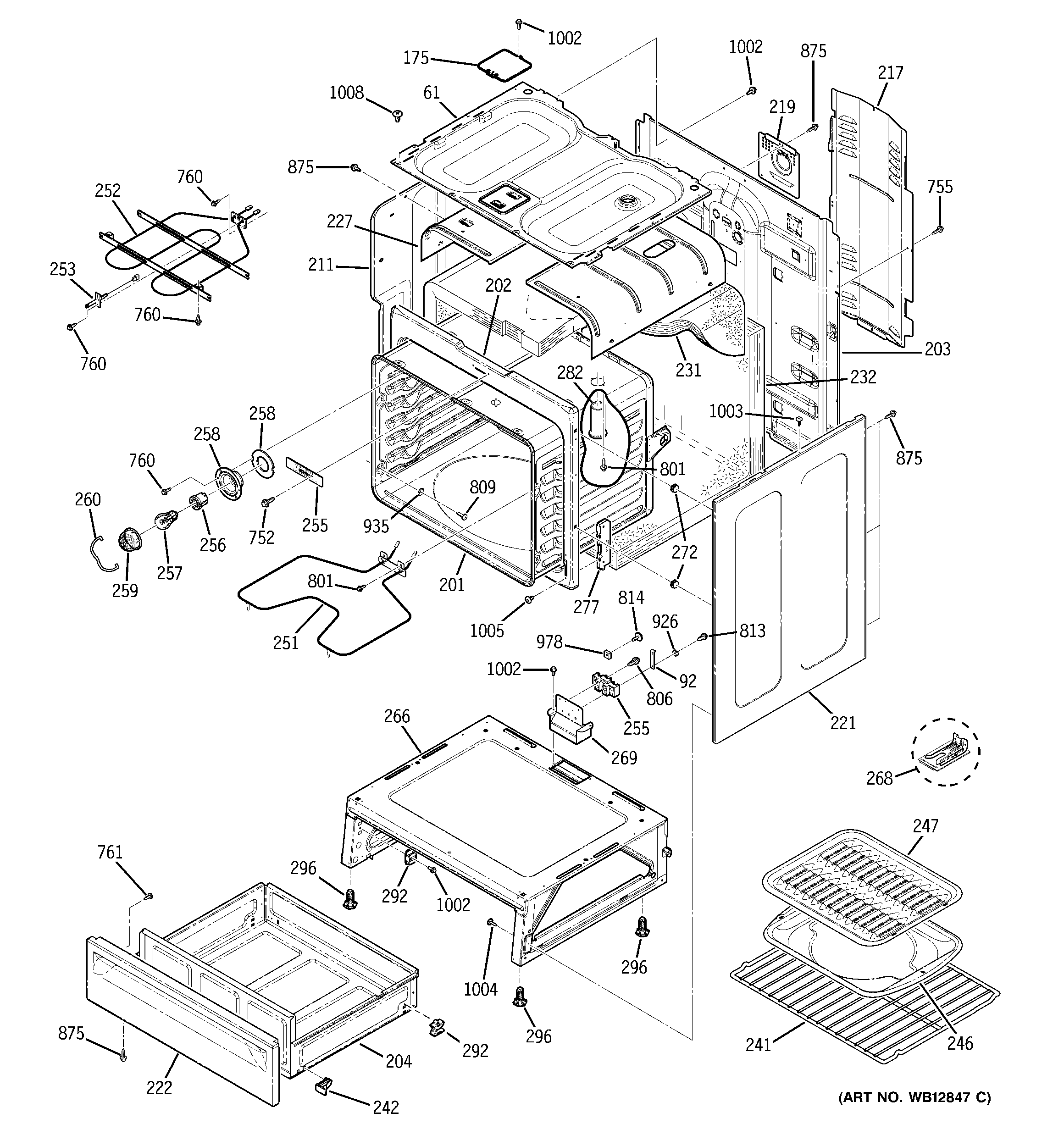

Body parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Oven Control WB27T10468
#16

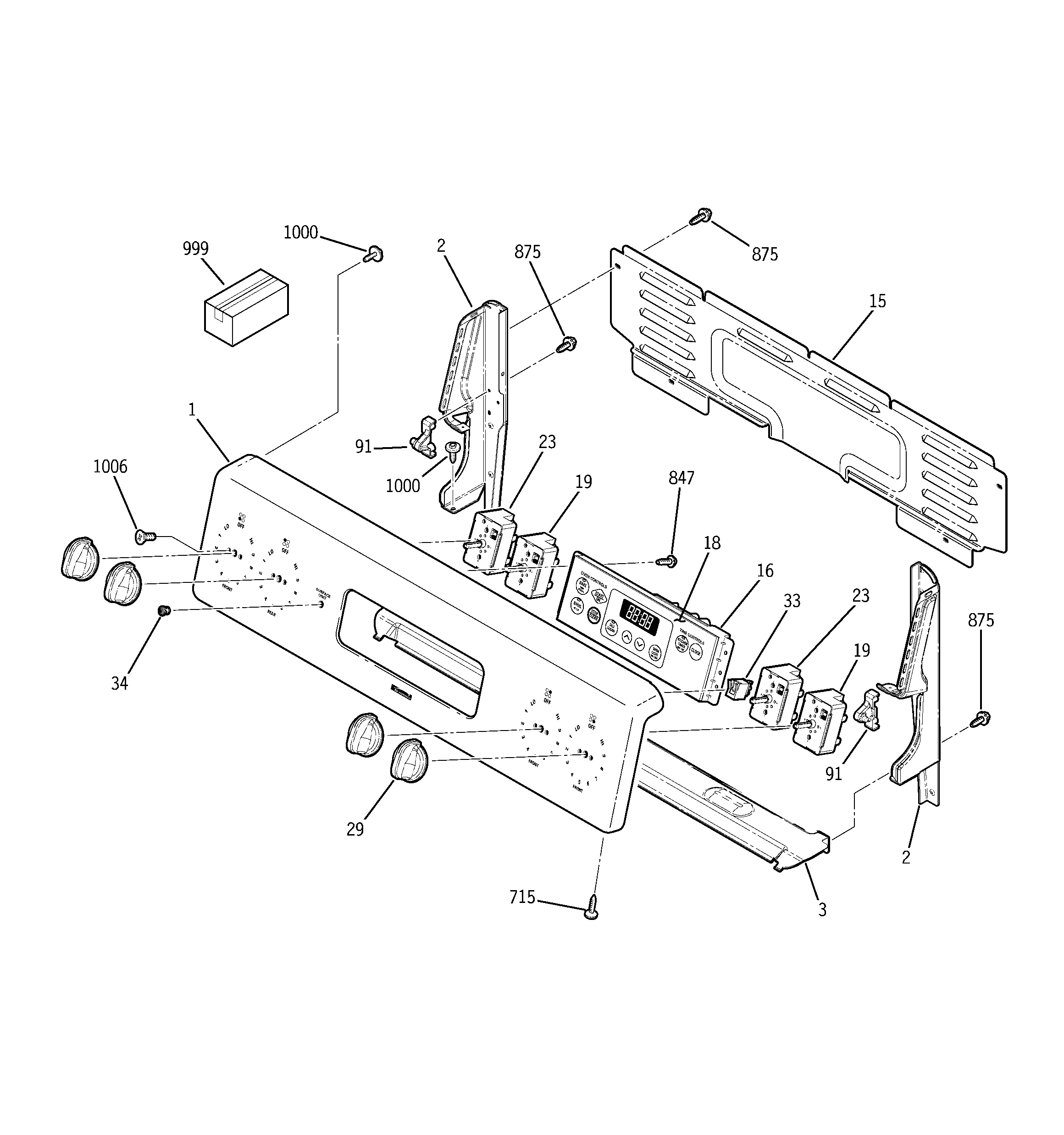

Control panel diagram

Oven control

Part #WB27T10468

Replaced by #WB27X45466

?
Manufacturer substitution
This part replaces WB27T10468. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$139.52 |
8% OFF Phone Price : $151.52
In Stock
Wall Oven Temperature Sensor WB21T10007
#253

Body parts diagram

Wall oven temperature sensor

Part #WB21T10007

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10007. Substitute parts can look different from the original.
BEST SELLER
$23.33 |
20% OFF Phone Price : $29.33
In Stock
Hotpoint Range Surface Element Receptacle (replaces Wb17k10003, Wb17t10001, Wb17x10007) WB17T10006
#82

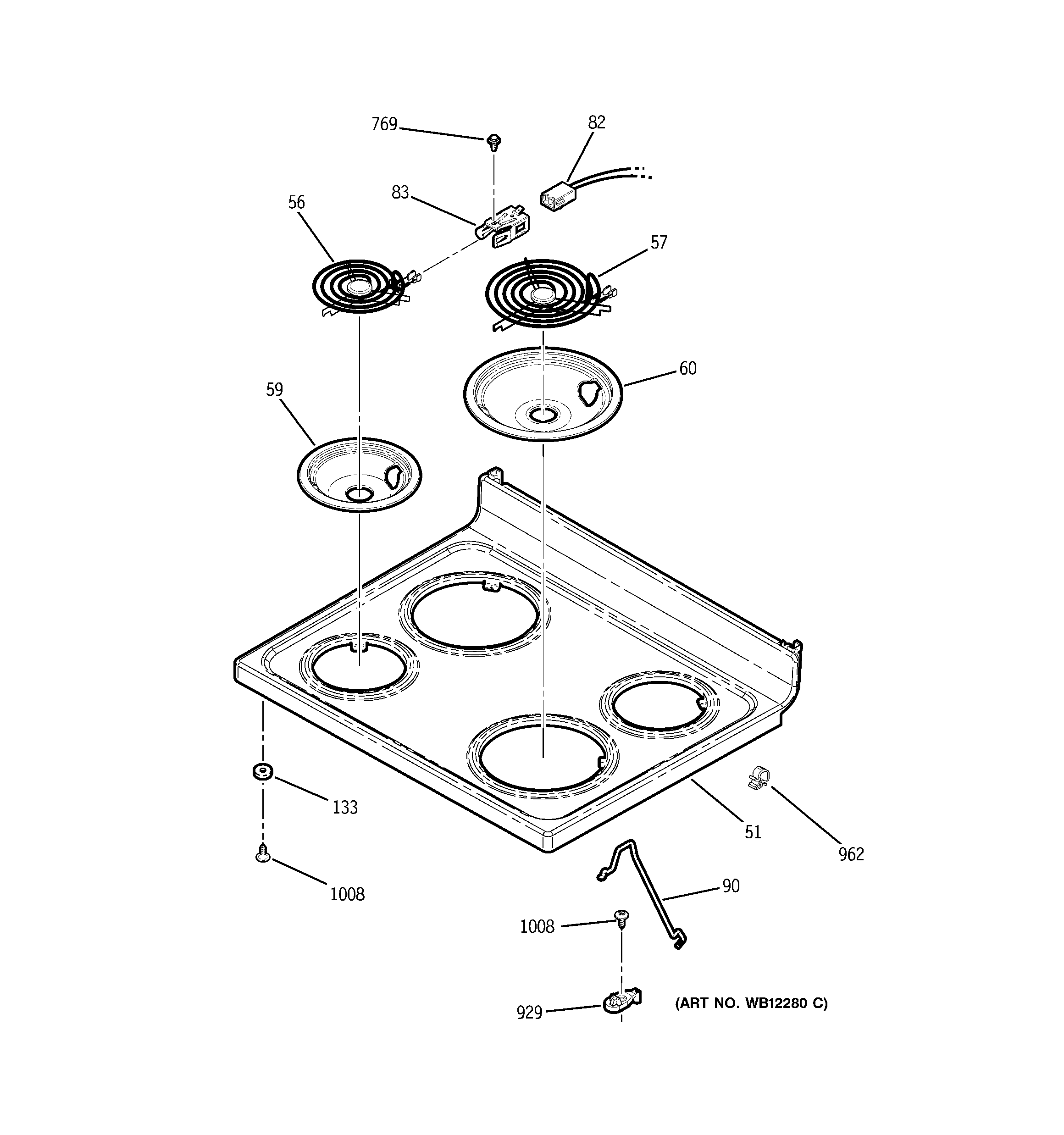

Cooktop diagram

Hotpoint range surface element receptacle (replaces wb17k10003, wb17t10001, wb17x10007)

Part #WB17T10006

BEST SELLER
$26.40 |
19% OFF Phone Price : $32.40
In Stock
Range Drip Pan (replaces Wb32t10008, Wb32x10015) WB31T10010
#59

Cooktop diagram

Range drip pan (replaces wb32t10008, wb32x10015)

Part #WB31T10010

BEST SELLER
$18.17 |
10% OFF Phone Price : $20.17
In Stock
Range Broil Element (replaces Wb44t10034) WB44T10009
#252

Body parts diagram

Range broil element (replaces wb44t10034)

Part #WB44T10009

BEST SELLER
$79.35 |
7% OFF Phone Price : $85.35
In Stock
Range Coil Surface Element, 8-in (replaces Wb30t10028) WB30T10071
#57

Cooktop diagram

Range coil surface element, 8-in (replaces wb30t10028)

Part #WB30T10071

BEST SELLER
$67.49 |
8% OFF Phone Price : $73.49
In Stock
Range Surface Element Control Switch WB24T10027
#19

Control panel diagram

Range surface element control switch

Part #WB24T10027

BEST SELLER
$91.11 |
6% OFF Phone Price : $97.11
In Stock
Range Light Socket (replaces Wb08t10004) WB08T10026
#256

Body parts diagram

Range light socket (replaces wb08t10004)

Part #WB08T10026

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Coil Surface Element WB30T10075
#56

Cooktop diagram

Range coil surface element

Part #WB30T10075

Replaced by #WB30K10002

?
Manufacturer substitution
This part replaces WB30T10075. Substitute parts can look different from the original.
$57.45 |
9% OFF Phone Price : $63.45
In Stock
