Bosch
Washer

Model # WFXD8400UC/01 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WFXD8400UC-01 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

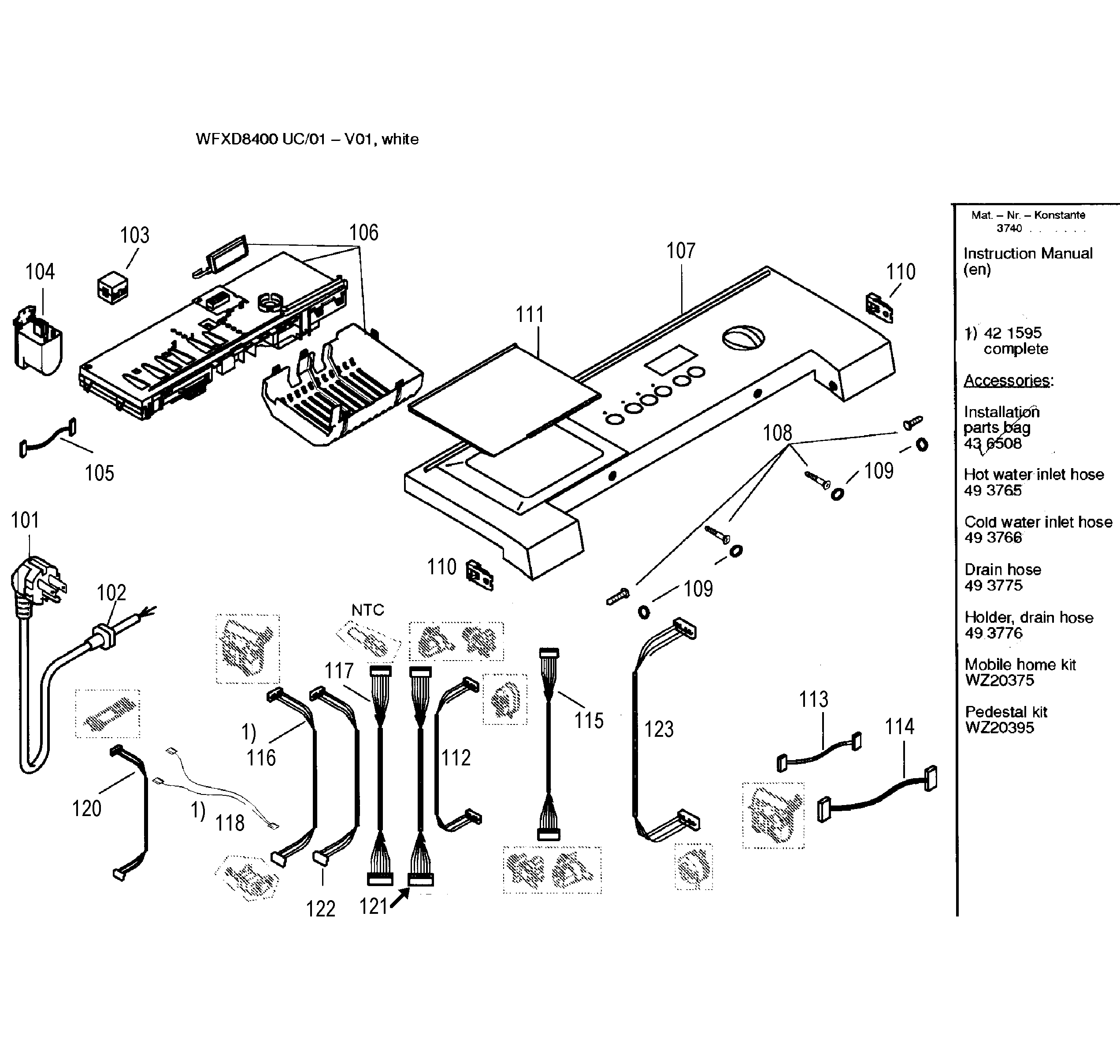

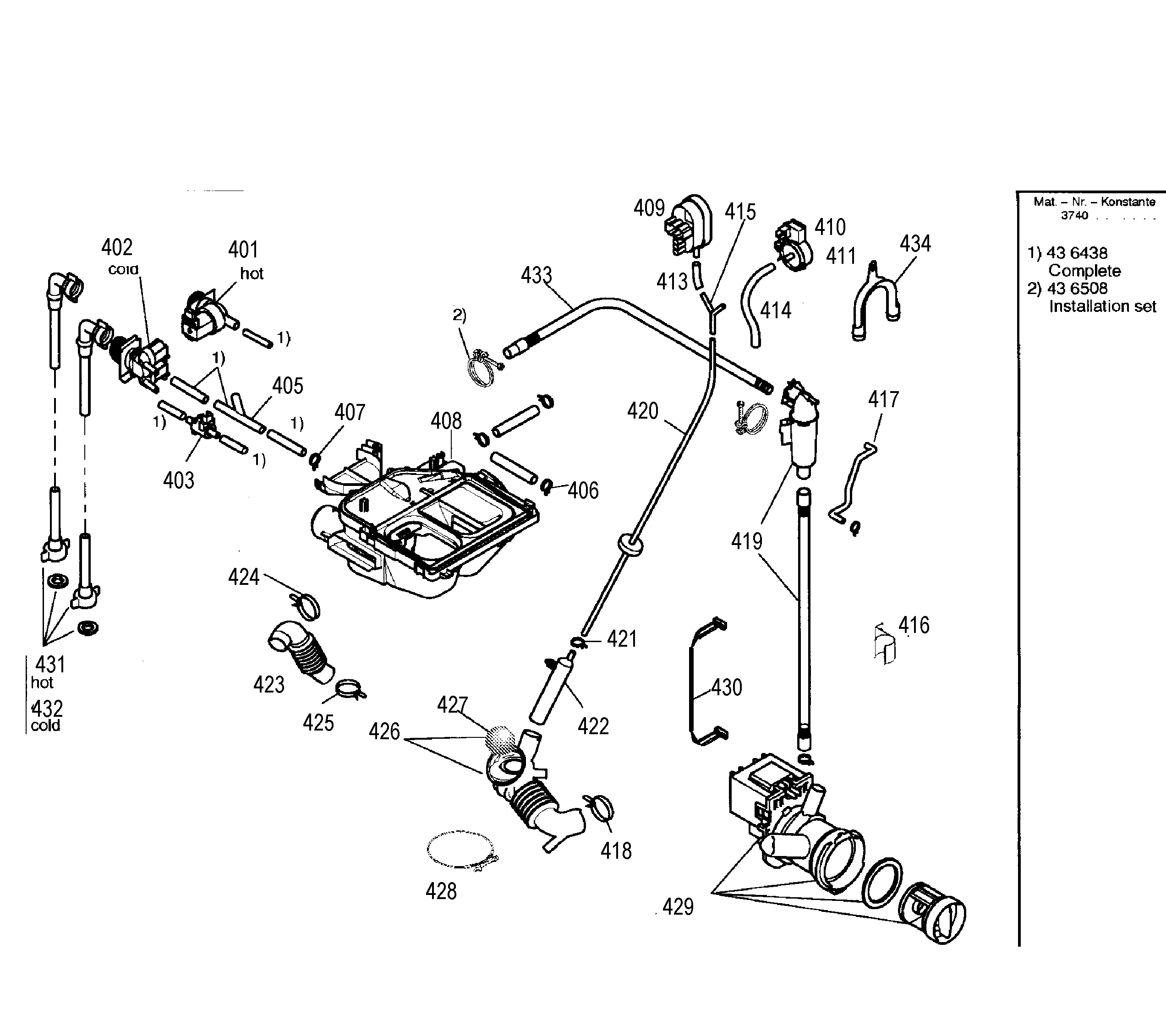

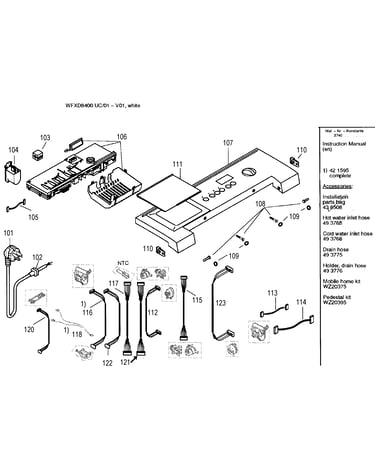

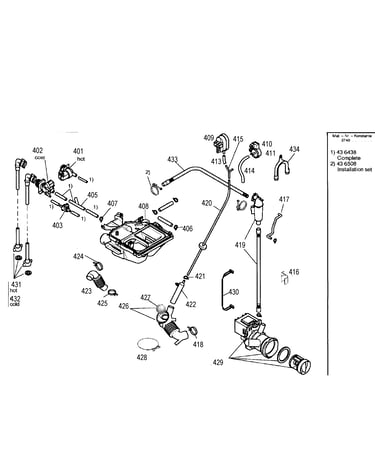

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Shock Absorber 00491694
#325

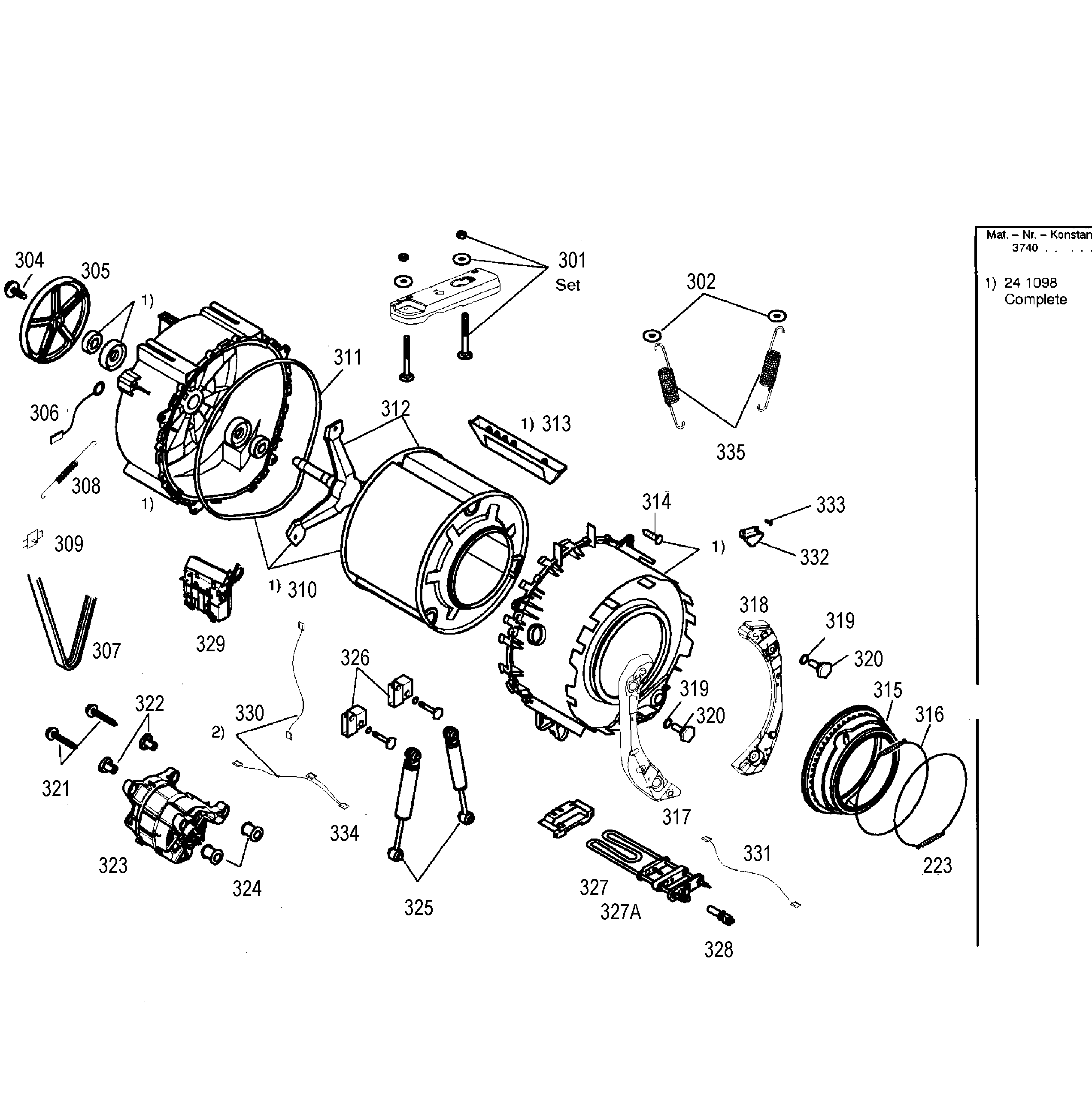

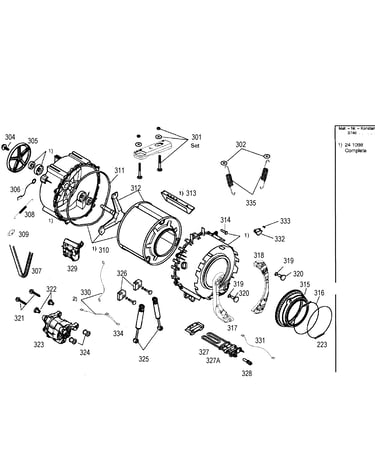

Drum tub assy diagram

Shock absorber

Part #00491694

Replaced by #00642112

?
Manufacturer substitution
This part replaces 00491694. Substitute parts can look different from the original.
$68.79 |
8% OFF Phone Price : $74.79
In Stock
Clamp Spring 00491625
#316

Drum tub assy diagram

Clamp spring

Part #00491625

Replaced by #00648264

?
Manufacturer substitution
This part replaces 00491625. Substitute parts can look different from the original.
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Drum 00241108
#312

Drum tub assy diagram

Drum

Part #00241108

The manufacturer no longer makes this part, and there's no substitute part

Washer Door Hinge 00491646
#215

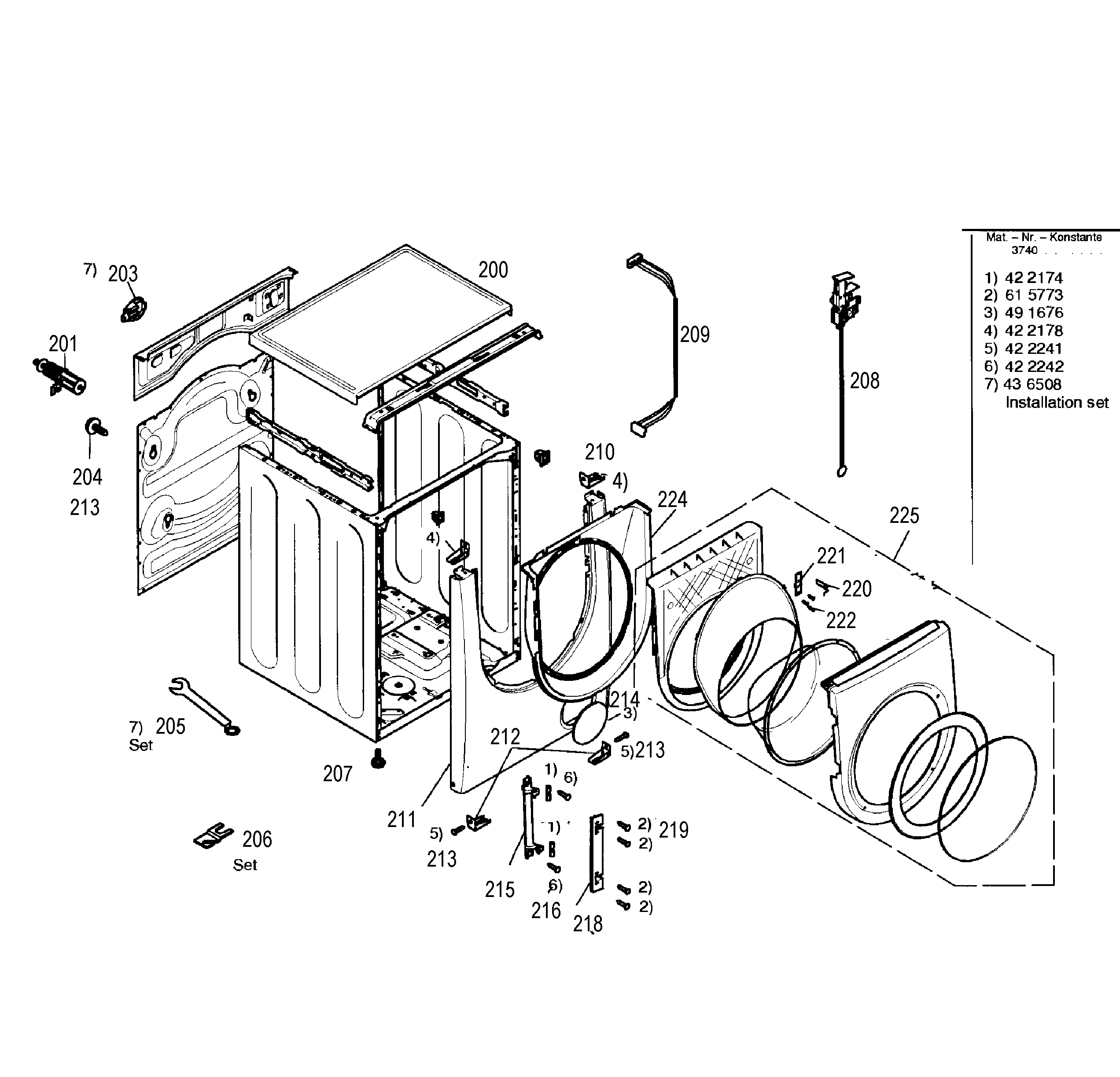

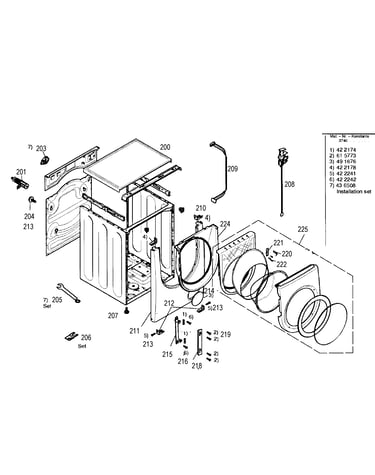

Base & frame diagram

Washer door hinge

Part #00491646

Replaced by #00651004

?
Manufacturer substitution
This part replaces 00491646. Substitute parts can look different from the original.
$38.99 |
13% OFF Phone Price : $44.99
In Stock
Tub Drum 00241098
#310

Drum tub assy diagram

Tub drum

Part #00241098

The manufacturer no longer makes this part, and there's no substitute part

Washer Counterweight, Left 00143681
#317

Drum tub assy diagram

Washer counterweight, left

Part #00143681

$100.05 |
11% OFF Phone Price : $112.05
In Stock
Washer Shock Absorber Mounting Bracket 00491695
#326

Drum tub assy diagram

Washer shock absorber mounting bracket

Part #00491695

$45.07
In Stock
Washer Door Hinge Screw (replaces 422242) 00422242
#216

Base & frame diagram

Washer door hinge screw (replaces 422242)

Part #00422242

This item is not returnable
$2.80
In Stock
Laundry Appliance Heater Temperature Sensor (replaces 422221) 00422221
#327A

Drum tub assy diagram

Laundry appliance heater temperature sensor (replaces 422221)

Part #00422221

$66.39 |
8% OFF Phone Price : $72.39
In Stock
Level Foot 00600888
#207

Base & frame diagram

Level foot

Part #00600888

Replaced by #00610643

?
Manufacturer substitution
This part replaces 00600888. Substitute parts can look different from the original.
This item is not returnable
$19.89
In Stock
