Model # KWCV167MSS0 Official KitchenAid range hood
Here are the diagrams and repair parts for Official KitchenAid KWCV167MSS0 range hood, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
KWCV167MSS0 Range Hood
#1

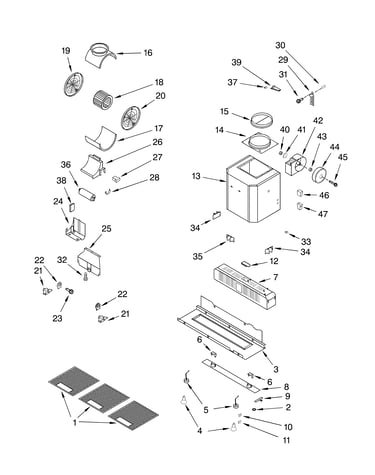

Ventilation parts diagram
Filter
Part #8189594
Replaced by #WPW10252087
?
Manufacturer substitution
This part replaces 8189594. Substitute parts can look different from the original.
$188.48 |
6% OFF Phone Price : $200.48
Back Order
#9

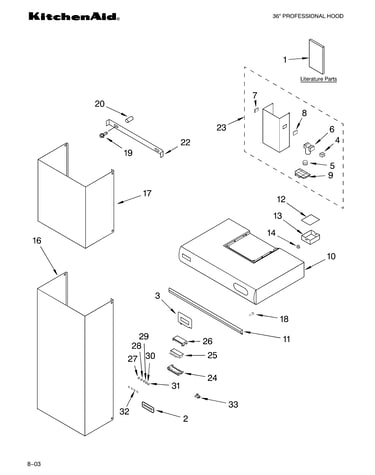

Hood parts diagram
Range hood filter
Part #8285507
$55.99 |
10% OFF Phone Price : $61.99
In Stock
#44
Ventilation parts diagram
Range hood transformer
Part #8190410
$358.49 |
$12.00 OFF Phone Price : $370.49
In Stock
#4
Ventilation parts diagram
Range hood light bulb
Part #8189593
Replaced by #WPW10252088
?
Manufacturer substitution
This part replaces 8189593. Substitute parts can look different from the original.
$72.88 |
8% OFF Phone Price : $78.88
In Stock
#25
Ventilation parts diagram
Mounting bracket
Part #8190398
The manufacturer no longer makes this part, and there's no substitute part
#36
Ventilation parts diagram
Capacitor
Part #8190385
The manufacturer no longer makes this part, and there's no substitute part
#16
Ventilation parts diagram
Housng-fan
Part #8190389
The manufacturer no longer makes this part, and there's no substitute part
#17A
Hood parts diagram
Chimney
Part #8190353
The manufacturer no longer makes this part, and there's no substitute part
#24
Hood parts diagram
Control housing
Part #8190373
The manufacturer no longer makes this part, and there's no substitute part
#47
Ventilation parts diagram
Connector
Part #8190408
The manufacturer no longer makes this part, and there's no substitute part
