York
Heating & Cooling Combined Unit

Model # D1NA048N11046A Official York heating & cooling unit

Here are the diagrams and repair parts for Official York D1NA048N11046A heating & cooling unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Air Pressure 024-25975-000

#21

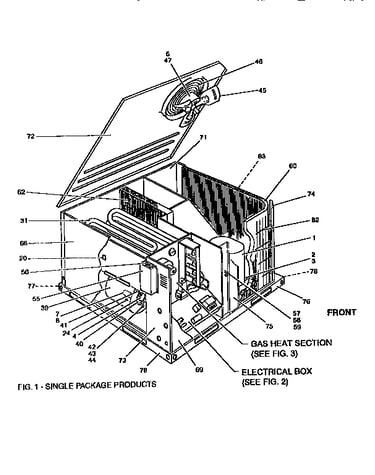

All parts diagram

Air pressure

Part #024-25975-000

The manufacturer no longer makes this part, and there's no substitute part

Vent Motor 026-33999-001

#48

All parts diagram

Vent motor

Part #026-33999-001

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 025-30859-000

#36

All parts diagram

Gas valve

Part #025-30859-000

Replaced by #SV9501M2528

?
Manufacturer substitution
This part replaces 025-30859-000. Substitute parts can look different from the original.
$641.87
In Stock
Capacitor 024-20043-000

#10

All parts diagram

Capacitor

Part #024-20043-000

Replaced by #12005

?
Manufacturer substitution
This part replaces 024-20043-000. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Evap Header 373-18508-050

#63

All parts diagram

Evap header

Part #373-18508-050

The manufacturer no longer makes this part, and there's no substitute part

Accessories-non-electrical, Natural Gas To Propane Conversion Kit (indicates Replacement Parts Lists Available) 1NP0806

#NI

All parts diagram

Accessories-non-electrical, natural gas to propane conversion kit (indicates replacement parts lists available)

Part #1NP0806

The manufacturer no longer makes this part, and there's no substitute part

Guard Coil (long Tan) 026-34569-000

#83

All parts diagram

Guard coil (long tan)

Part #026-34569-000

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 029-21180-000

#29

All parts diagram

Gas valve

Part #029-21180-000

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 1FA0406

#NI

All parts diagram

Owner's manual

Part #1FA0406

The manufacturer no longer makes this part, and there's no substitute part

Economizer 2EE04702724

#NI

All parts diagram

Economizer

Part #2EE04702724

The manufacturer no longer makes this part, and there's no substitute part
