Model # 50PQ30C-UAAUSALHR Official LG plasma television

Here are the diagrams and repair parts for Official LG 50PQ30C-UAAUSALHR plasma television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |

Cover Assembly ACQ68643413
#400

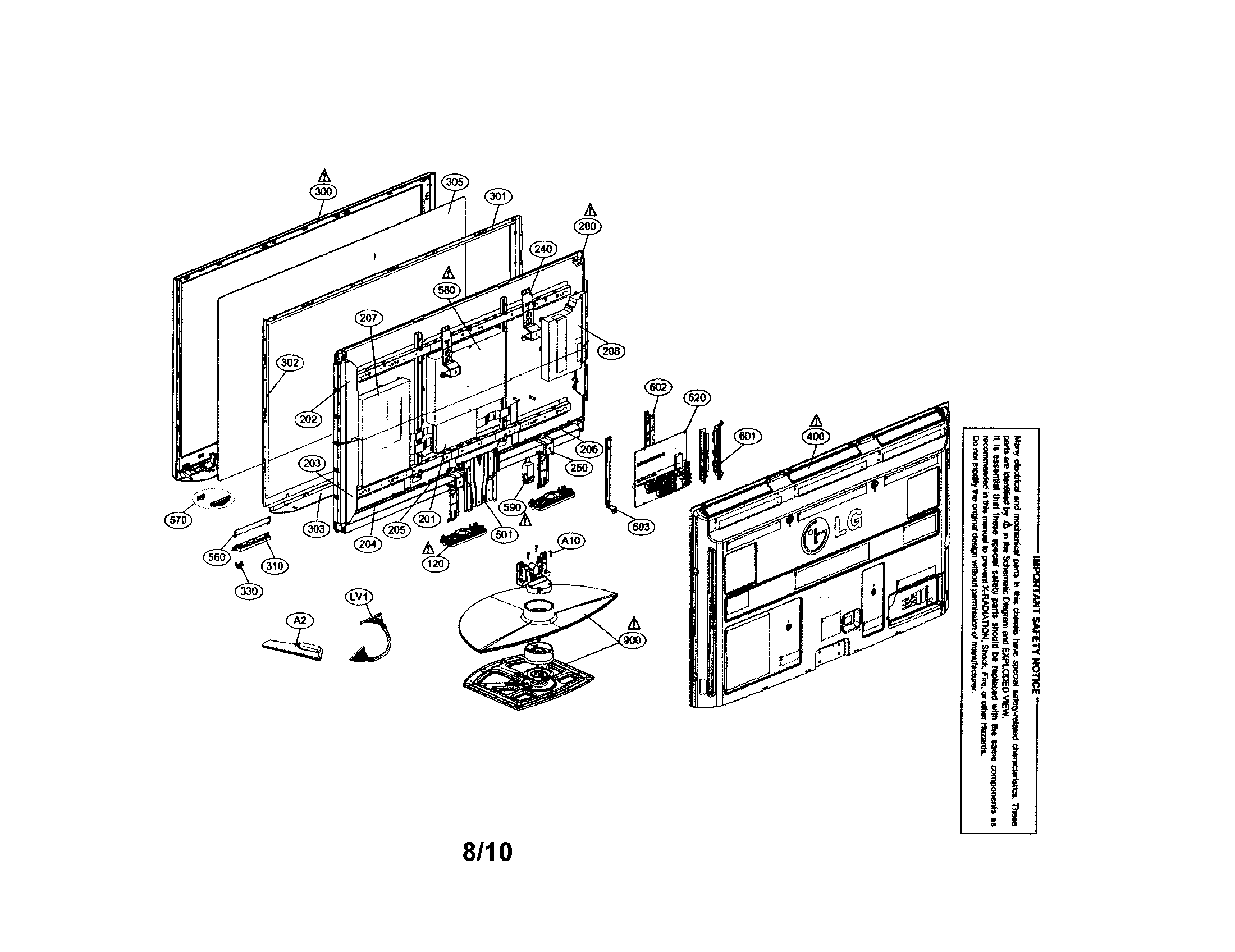

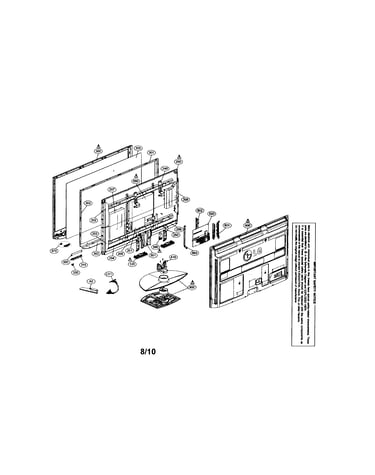

Plasma tv diagram

Cover assembly

Part #ACQ68643413

In Stock
Pcb,centrl EBR57316201
#201

Plasma tv diagram

Pcb,centrl

Part #EBR57316201

In Stock
Connector EAG42049601

#NI06

All parts diagram

Connector

Part #EAG42049601

This item is not returnable
In Stock
Support AJJ69472502
#250

Plasma tv diagram

Support

Part #AJJ69472502

In Stock
Jack Din EAG42463001

#NI08

All parts diagram

Jack din

Part #EAG42463001

In Stock
Jack Phone 6612F00099A

#NI02

All parts diagram

Jack phone

Part #6612F00099A

This item is not returnable
In Stock
Pcb Assembly EBR57316704
#204A

Plasma tv diagram

Pcb assembly

Part #EBR57316704

In Stock
Television Screw FAB30016430
#A10

Plasma tv diagram

Television screw

Part #FAB30016430

This item is not returnable
In Stock
Television Speaker EAB58534501
#120

Plasma tv diagram

Television speaker

Part #EAB58534501

In Stock
Television Power Supply Board EAY58316301
#580

Plasma tv diagram

Television power supply board

Part #EAY58316301

In Stock
