Model # 39025850 Official Kenmore convertible deep well jet pump

Here are the diagrams and repair parts for Official Kenmore 39025850 convertible deep well jet pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |

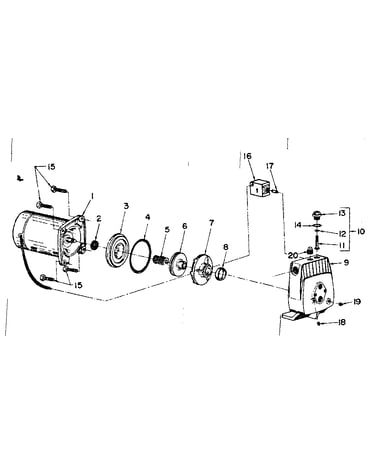

Rotary Seal U9-6
#5

Motor and pump assembly diagram

Rotary seal

Part #U9-6

Replaced by #U109-6B

?
Manufacturer substitution
This part replaces U9-6. Substitute parts can look different from the original.
$106.69 |
10% OFF Phone Price : $118.69
Back Order
Slinger N69-1
#2

Motor and pump assembly diagram

Slinger

Part #N69-1

Replaced by #17351-0009

?
Manufacturer substitution
This part replaces N69-1. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
Back Order

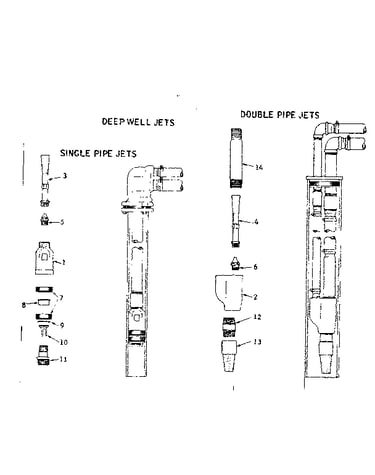

Pump Jet Body Leather Seal, 2-in J57-1
#7A

Deep well jets diagram

Pump jet body leather seal, 2-in

Part #J57-1

$63.99 |
9% OFF Phone Price : $69.99
In Stock
Pump Nozzle N34P-17
#48

Shallow well jet pkg diagram

Pump nozzle

Part #N34P-17

$28.33
In Stock
Regulator L262-4P
#10

Motor and pump assembly diagram

Regulator

Part #L262-4P

Replaced by #01322

?
Manufacturer substitution
This part replaces L262-4P. Substitute parts can look different from the original.
$42.81 |
12% OFF Phone Price : $48.81
Back Order
Complete Valve N212-10P
#49

Shallow well jet pkg diagram

Complete valve

Part #N212-10P

Replaced by #N212-12P

?
Manufacturer substitution
This part replaces N212-10P. Substitute parts can look different from the original.
$118.69 |
9% OFF Phone Price : $130.69
In Stock
Complete Fitting U111-86

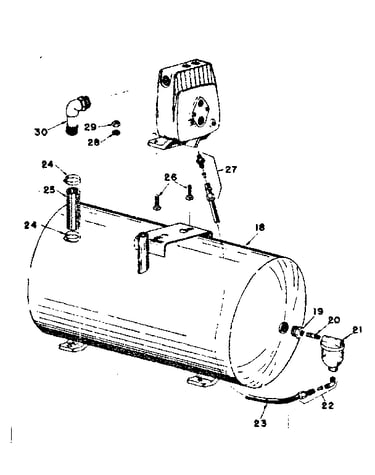

#22

Tank assembly diagram

Complete fitting

Part #U111-86

Replaced by #U111-212T

?
Manufacturer substitution
This part replaces U111-86. Substitute parts can look different from the original.
This item is not returnable
$27.69 |
18% OFF Phone Price : $33.69
Back Order

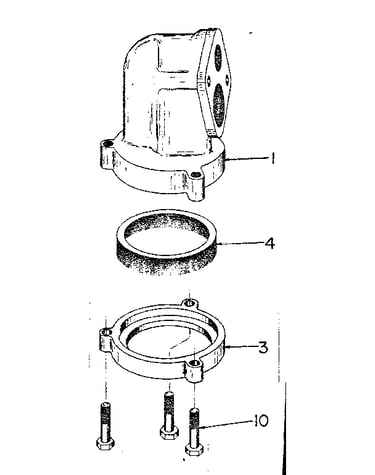

Seal Ring J21-21
#4B

Horizontal casing adapters diagram

Seal ring

Part #J21-21

$52.40
In Stock
Pump Nozzle Housing J40-25
#1B

Deep well jets diagram

Pump nozzle housing

Part #J40-25

$147.64
In Stock
Spacer J43-16
#8B

Deep well jets diagram

Spacer

Part #J43-16

$59.85
In Stock
