LG
Bottom-Mount Refrigerator

Model # LMXS27676D/00 Official LG bottom-mount refrigerator

Here are the diagrams and repair parts for Official LG LMXS27676D-00 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

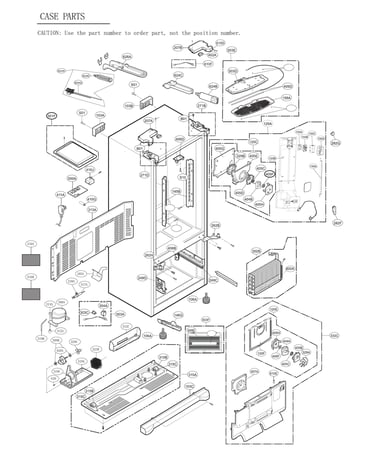

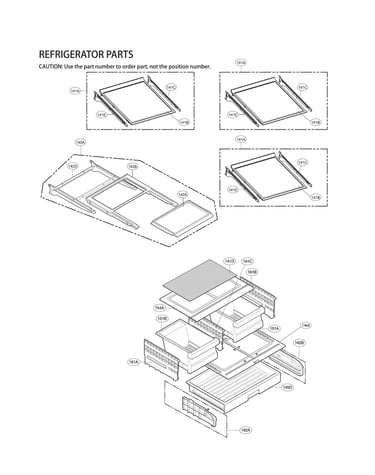

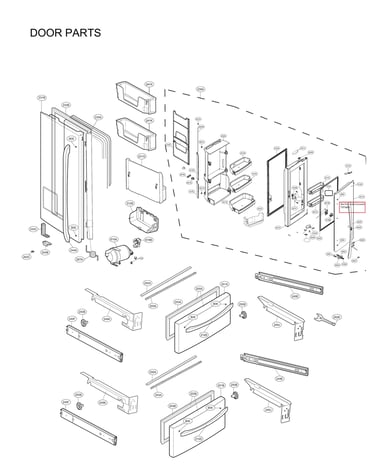

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 224 parts  |
Refrigerator Air Filter ADQ73214404

#150C

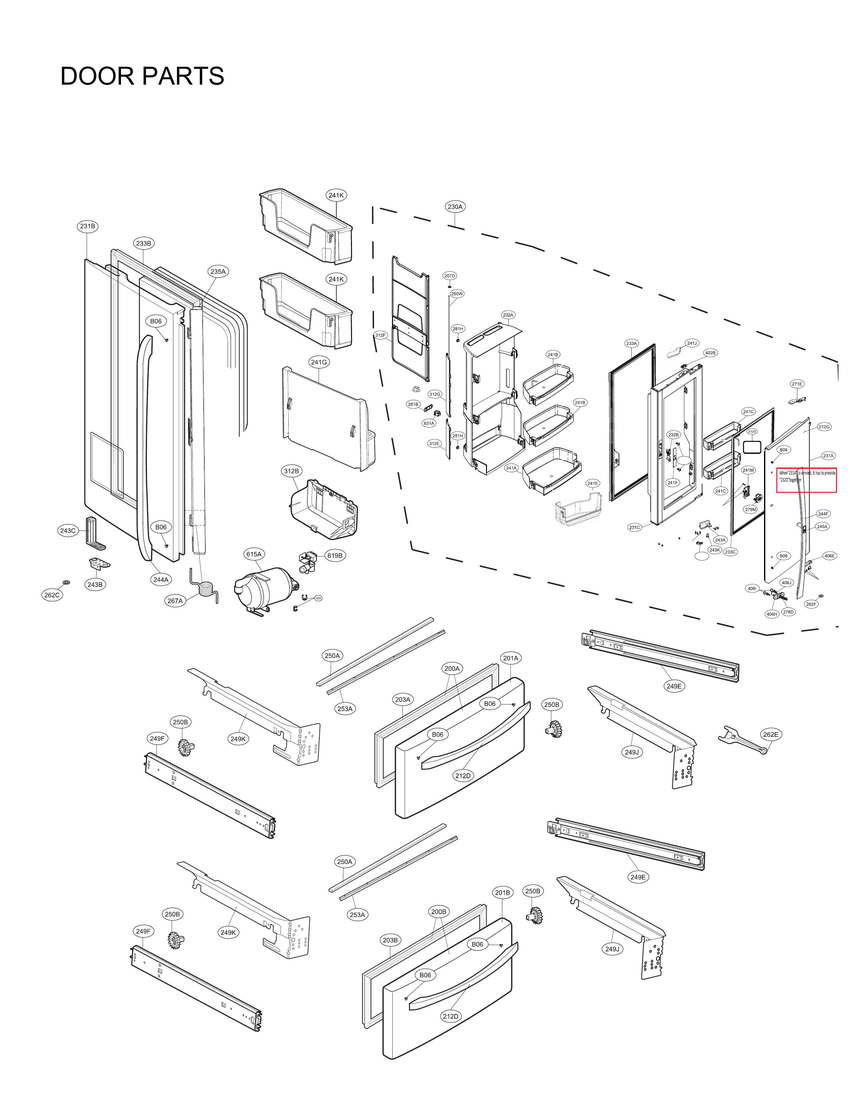

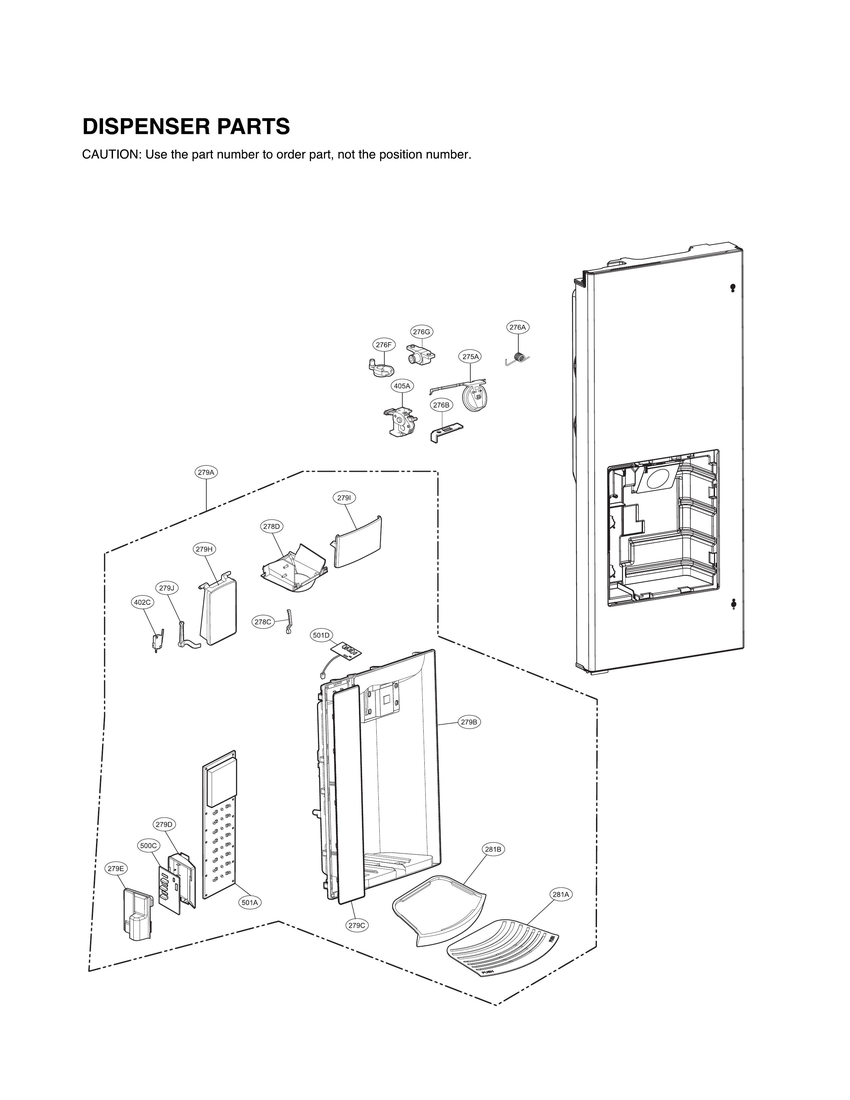

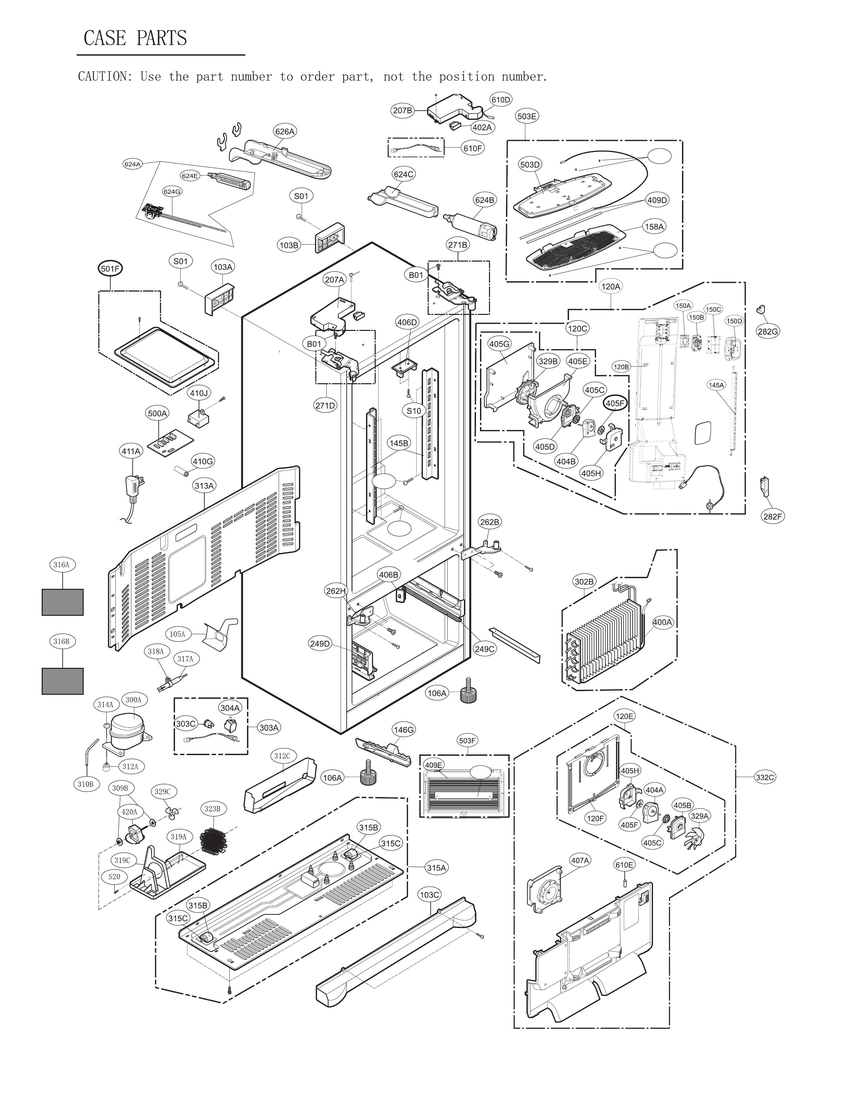

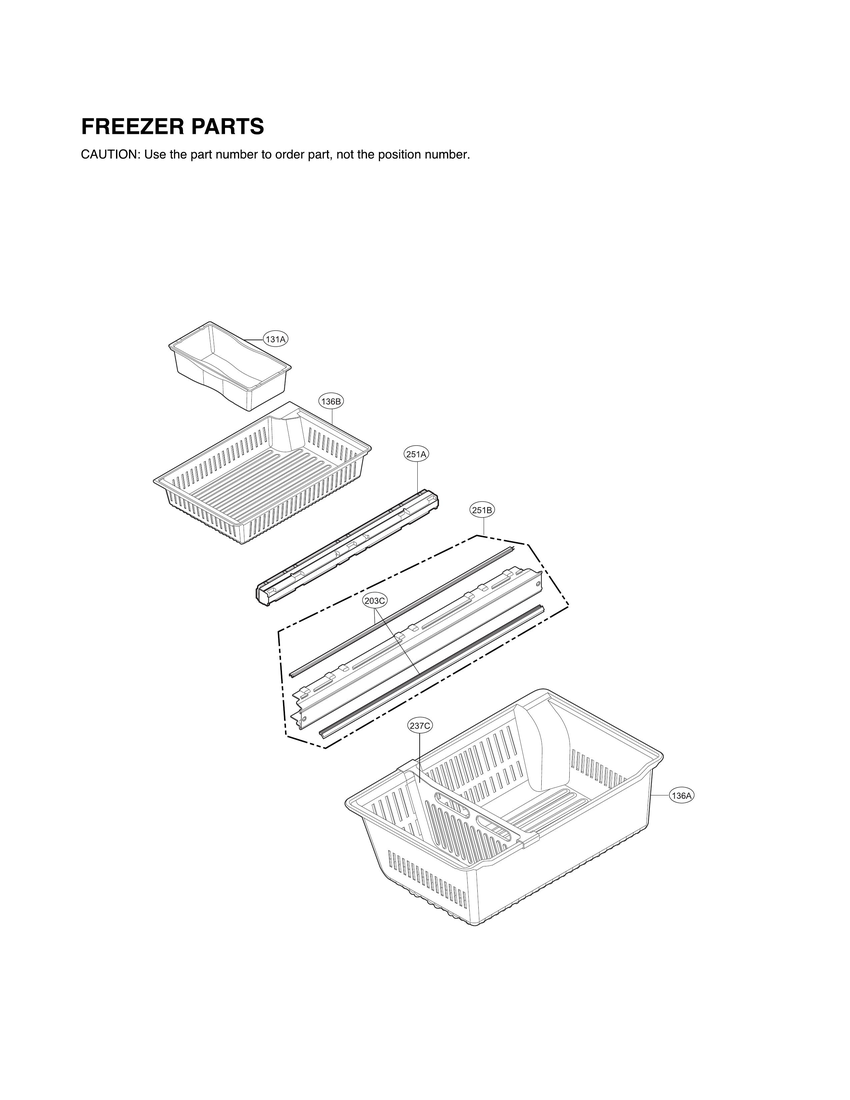

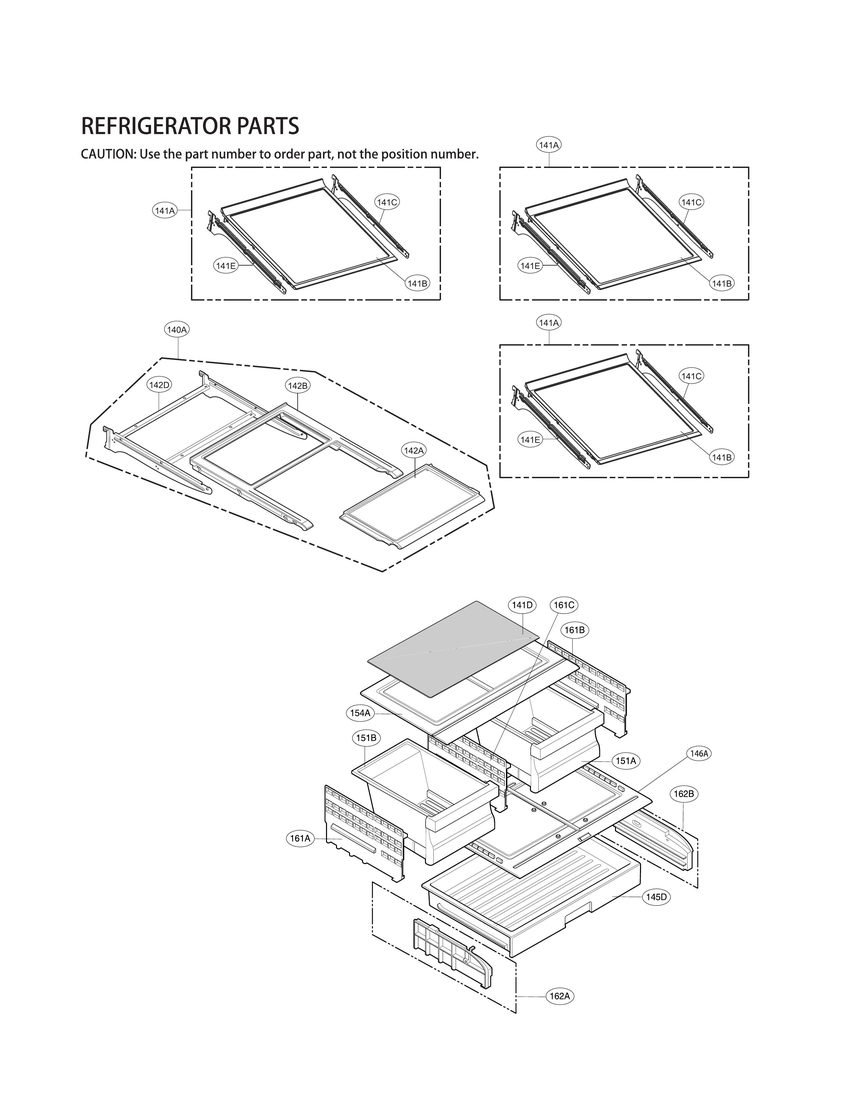

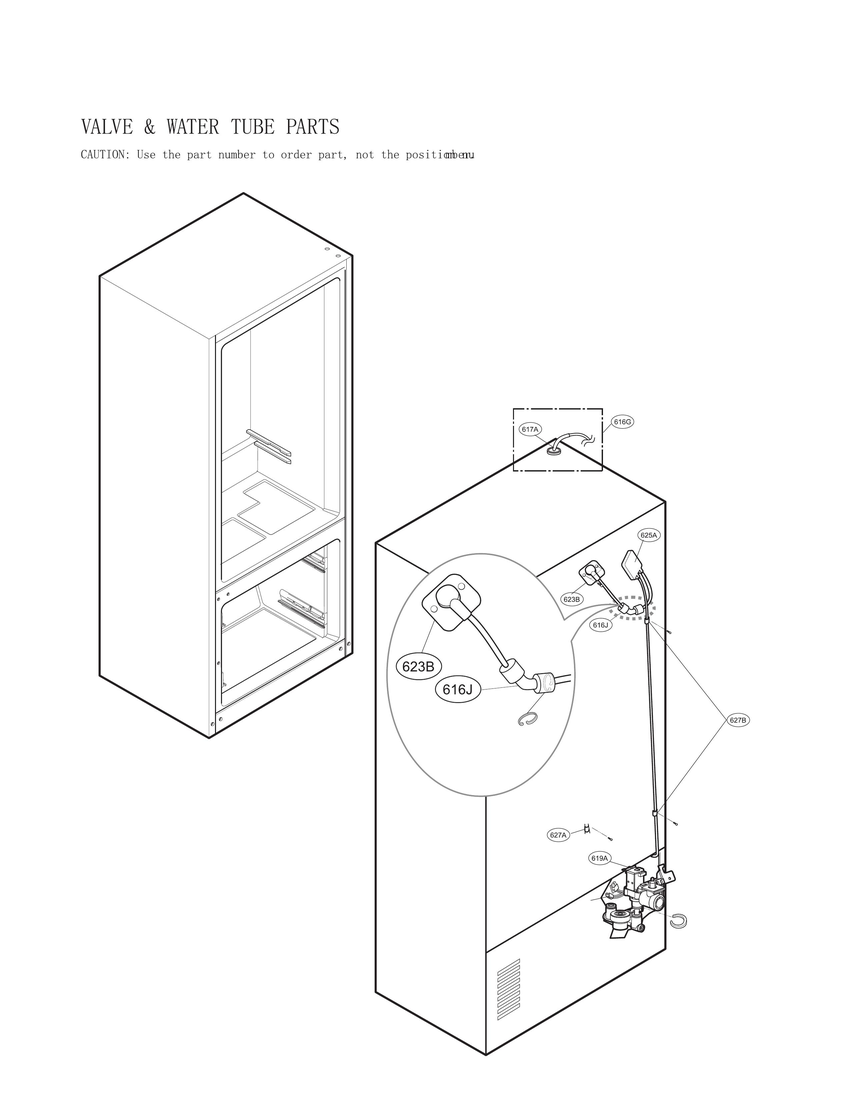

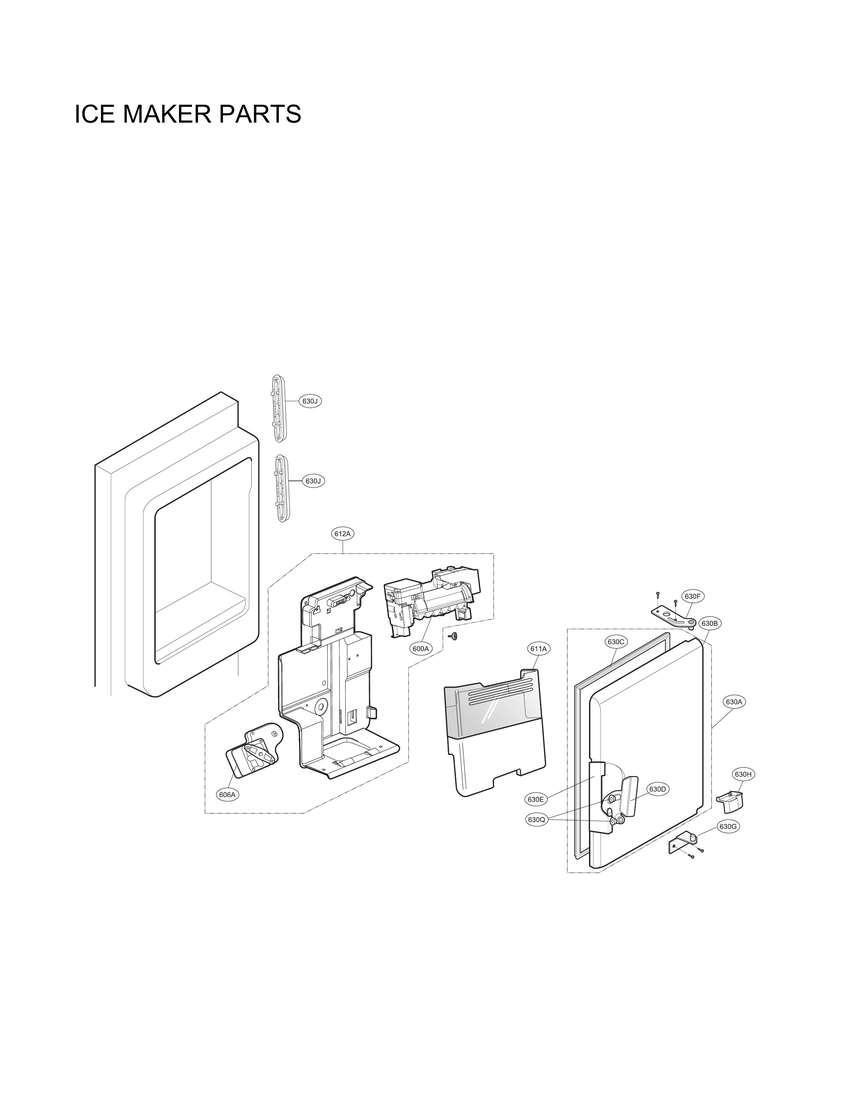

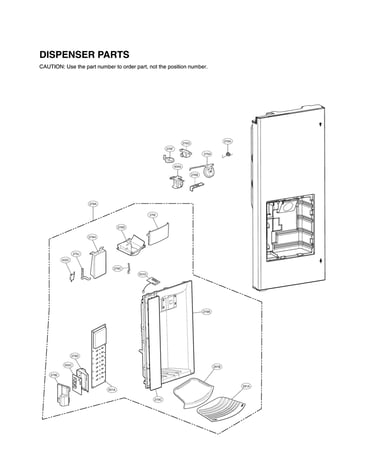

All parts diagram

Refrigerator air filter

Part #ADQ73214404

Replaced by #ADQ73214408

?
Manufacturer substitution
This part replaces ADQ73214404. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$31.91 |
16% OFF Phone Price : $37.91
In Stock
Refrigerator Filter Dryer ADH69749103

#317A

All parts diagram

Refrigerator filter dryer

Part #ADH69749103

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces ADH69749103. Substitute parts can look different from the original.
BEST SELLER
$65.17 |
8% OFF Phone Price : $71.17
In Stock
Kenmore Lg Lt700p Refrigerator Water Filter (replaces Adq36006113) ADQ36006101

#624B

All parts diagram

Kenmore lg lt700p refrigerator water filter (replaces adq36006113)

Part #ADQ36006101

BEST SELLER

Get free shipping with Automatic Reorder

$68.99
In Stock
Refrigerator Ice Maker Assembly (replaces Aeq73110211) AEQ73110212

#600A

All parts diagram

Refrigerator ice maker assembly (replaces aeq73110211)

Part #AEQ73110212

Replaced by #AEQ73110210

?
Manufacturer substitution
This part replaces AEQ73110212. Substitute parts can look different from the original.
BEST SELLER
$166.25 |
7% OFF Phone Price : $178.25
In Stock
Refrigerator Dispenser Ice Chute Door Motor (replaces Eau59551201, Eau59551202, Eau59551203, Eau59551205, Eau59551207) EAU59551204

#405A

All parts diagram

Refrigerator dispenser ice chute door motor (replaces eau59551201, eau59551202, eau59551203, eau59551205, eau59551207)

Part #EAU59551204

BEST SELLER
$52.52 |
10% OFF Phone Price : $58.52
In Stock
Refrigerator Ice Maker And Auger Motor Assembly (replaces Eau61843010, Eau61843015, Eau61843016, Ebs61443384) EAU61843018

#612A

All parts diagram

Refrigerator ice maker and auger motor assembly (replaces eau61843010, eau61843015, eau61843016, ebs61443384)

Part #EAU61843018

BEST SELLER
$165.01 |
7% OFF Phone Price : $177.01
In Stock
Refrigerator Water Inlet Valve (replaces 5221ja2011p, Aju72992606, Ebd60664501) AJU72992601

#619A

All parts diagram

Refrigerator water inlet valve (replaces 5221ja2011p, aju72992606, ebd60664501)

Part #AJU72992601

BEST SELLER
$111.69 |
10% OFF Phone Price : $123.69
In Stock
Refrigerator Ice Container Assembly AKC73249303

#611A

All parts diagram

Refrigerator ice container assembly

Part #AKC73249303

Replaced by #AKC73249304

?
Manufacturer substitution
This part replaces AKC73249303. Substitute parts can look different from the original.
BEST SELLER
$48.33 |
11% OFF Phone Price : $54.33
In Stock
Refrigerator Spring (replaces Mhy62044103) MHY62044106

#267A

All parts diagram

Refrigerator spring (replaces mhy62044103)

Part #MHY62044106

BEST SELLER
$12.00 |
14% OFF Phone Price : $14.00
In Stock
Refrigerator Water Inlet Valve (replaces 5221jb2010l, 5221jb2010q, 5221jb2010u) 5221JB2010G

#619B

All parts diagram

Refrigerator water inlet valve (replaces 5221jb2010l, 5221jb2010q, 5221jb2010u)

Part #5221JB2010G

BEST SELLER
$124.14 |
9% OFF Phone Price : $136.14
In Stock
