LG
Washer

Model # WM2496HSM Official LG washer

Here are the diagrams and repair parts for Official LG WM2496HSM washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

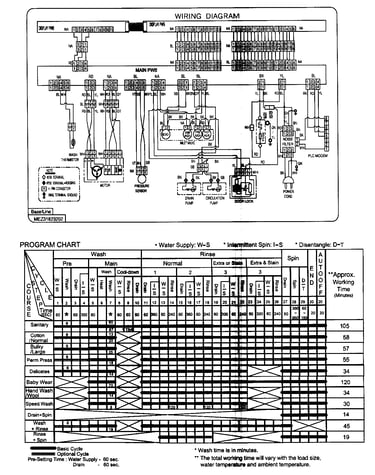

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Washer Water Inlet Valve 5221ER1003A
#F160

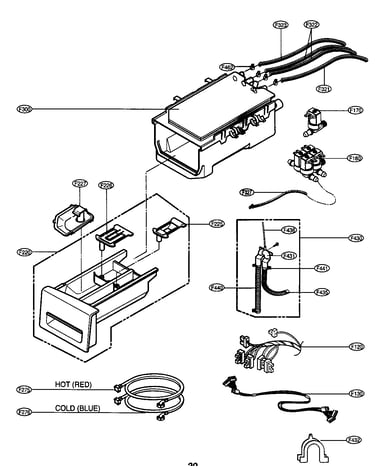

Dispenser assy diagram

Washer water inlet valve

Part #5221ER1003A

Replaced by #5220FR2075L

?
Manufacturer substitution
This part replaces 5221ER1003A. Substitute parts can look different from the original.
BEST SELLER
$61.36 |
9% OFF Phone Price : $67.36
In Stock
Washer Single-solenoid Water Inlet Valve (replaces 5220fr1280f, 5220fr2006l) 5220FR2006H
#F170

Dispenser assy diagram

Washer single-solenoid water inlet valve (replaces 5220fr1280f, 5220fr2006l)

Part #5220FR2006H

BEST SELLER
$20.53 |
23% OFF Phone Price : $26.53
In Stock
Washer Motor Rotor Position Sensor 6501KW2002A
#K351

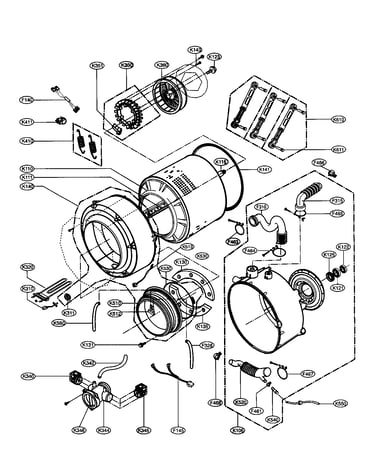

Drum/tub assy diagram

Washer motor rotor position sensor

Part #6501KW2002A

Replaced by #6501KW2002B

?
Manufacturer substitution
This part replaces 6501KW2002A. Substitute parts can look different from the original.
BEST SELLER
$35.11 |
15% OFF Phone Price : $41.11
In Stock
Washer Door Lock Switch 6601ER1004C
#A440

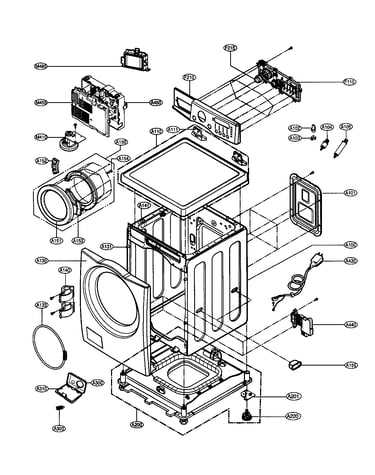

Cabinet parts diagram

Washer door lock switch

Part #6601ER1004C

Replaced by #EBF49827801

?
Manufacturer substitution
This part replaces 6601ER1004C. Substitute parts can look different from the original.
BEST SELLER
$57.02 |
10% OFF Phone Price : $63.02
In Stock
Washer Motor Stator 4417FA1994G
#K350

Drum/tub assy diagram

Washer motor stator

Part #4417FA1994G

Replaced by #4417EA1002Y

?
Manufacturer substitution
This part replaces 4417FA1994G. Substitute parts can look different from the original.
BEST SELLER
$188.05 |
6% OFF Phone Price : $200.05
In Stock
Washer Drain Hose (replaces 5215er2002b, 5215er2002c, 5215er2002f, 5215er2002n, 5215er2002r, 5215er2002s, Aem73773301) 5215ER2002G
#F430

Dispenser assy diagram

Washer drain hose (replaces 5215er2002b, 5215er2002c, 5215er2002f, 5215er2002n, 5215er2002r, 5215er2002s, aem73773301)

Part #5215ER2002G

BEST SELLER
$35.53 |
14% OFF Phone Price : $41.53
In Stock
Washer Outer Tub Gasket 4036ER4001B
#K141

Drum/tub assy diagram

Washer outer tub gasket

Part #4036ER4001B

BEST SELLER
$20.97 |
22% OFF Phone Price : $26.97
In Stock
Washer Drain Pump Filter Drain Hose 5214FR4006L
#K342

Drum/tub assy diagram

Washer drain pump filter drain hose

Part #5214FR4006L

Replaced by #5214FR4006G

?
Manufacturer substitution
This part replaces 5214FR4006L. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.56 |
13% OFF Phone Price : $7.56
In Stock
Lg Washer Tub Inner Rear Bearing (replaces 4280fr4048l, 4280fr4048d, 4280fr4048s, Map62554001) 4280FR4048N
#K121

Drum/tub assy diagram

Lg washer tub inner rear bearing (replaces 4280fr4048l, 4280fr4048d, 4280fr4048s, map62554001)

Part #4280FR4048N

BEST SELLER
$38.97 |
13% OFF Phone Price : $44.97
In Stock
Washer Drive Motor 4681EA2001C
#K345

Drum/tub assy diagram

Washer drive motor

Part #4681EA2001C

Replaced by #EAU61383503

?
Manufacturer substitution
This part replaces 4681EA2001C. Substitute parts can look different from the original.
BEST SELLER
$90.92 |
6% OFF Phone Price : $96.92
In Stock
