Kenmore
Mechanical Sewing Machine

Model # 15816510 Official Kenmore sewing machine head

Here are the diagrams and repair parts for Official Kenmore 15816510 sewing machine head, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

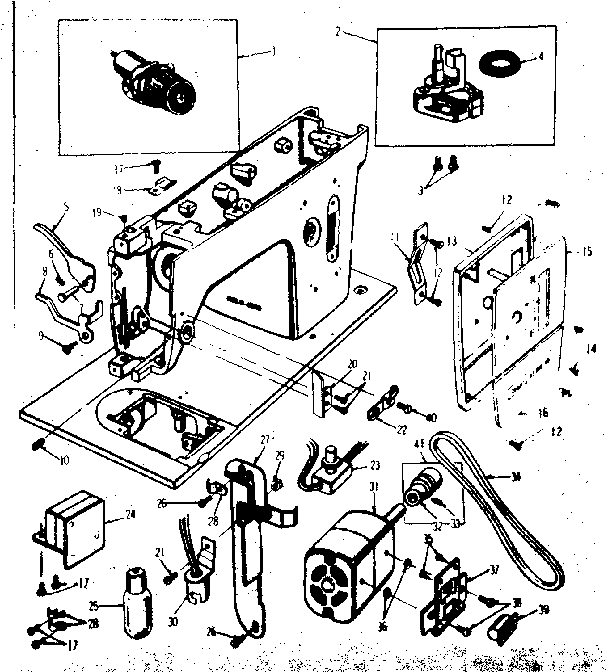

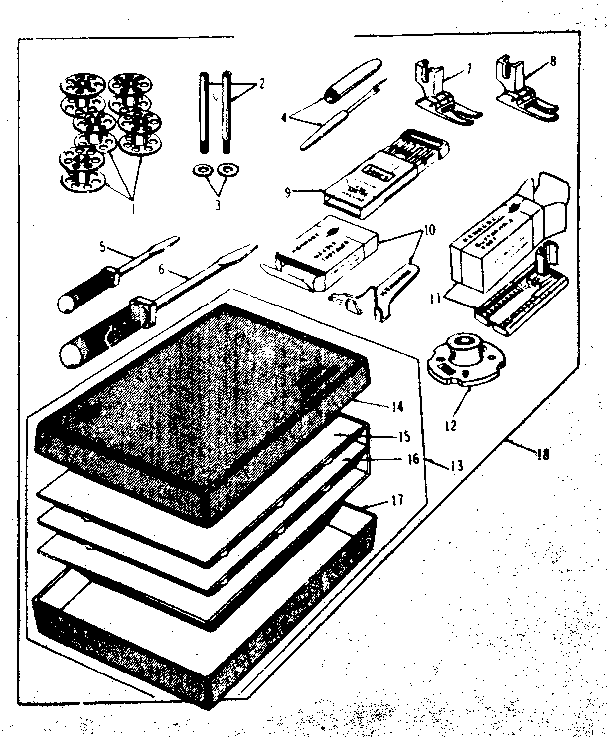

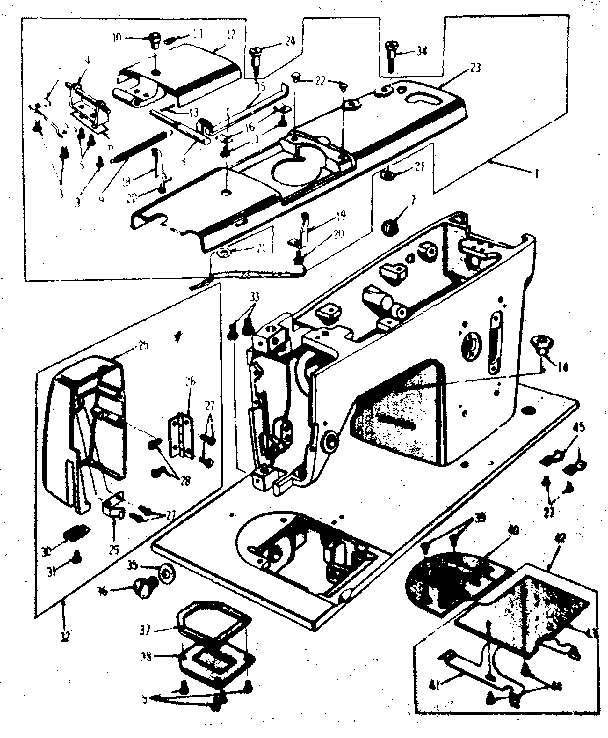

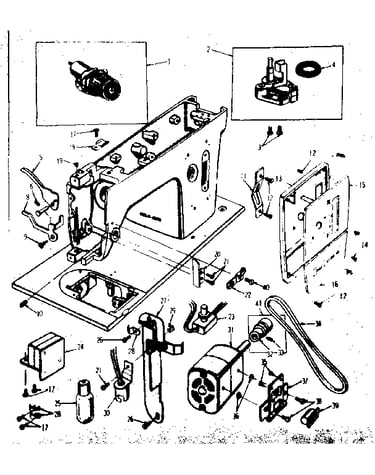

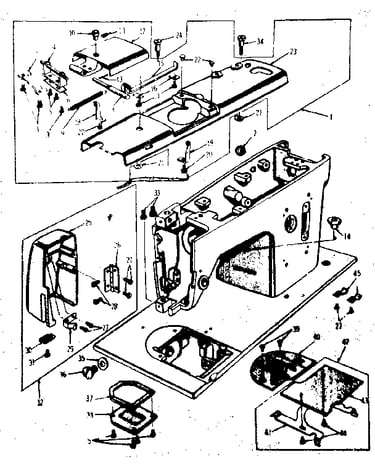

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 303 parts  |
Pin 26078
#25

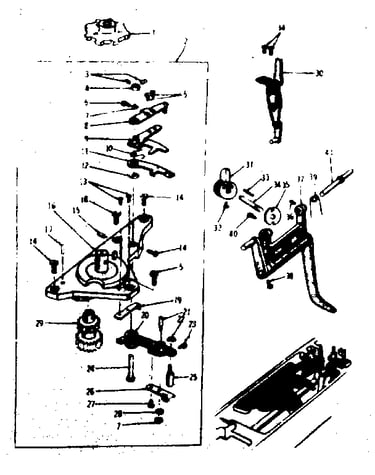

Geared cam assembly diagram

Pin

Part #26078

The manufacturer no longer makes this part, and there's no substitute part

Stud 2751
#27

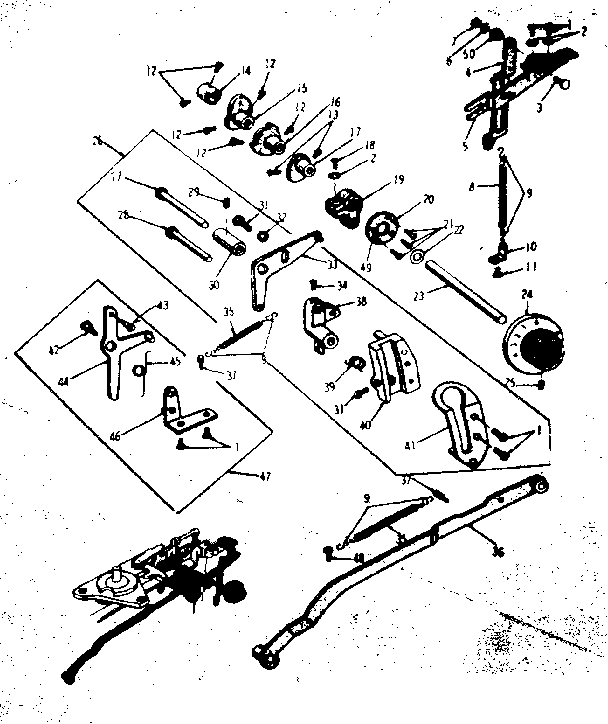

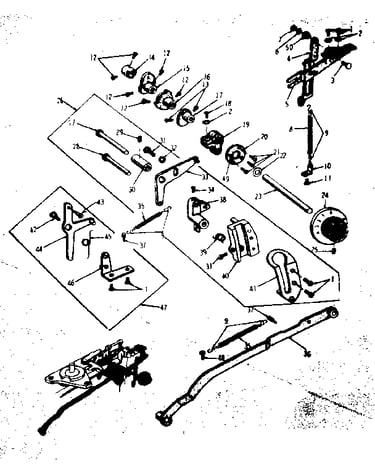

Zigzag guide assembly diagram

Stud

Part #2751

The manufacturer no longer makes this part, and there's no substitute part

Washer 2467
#6

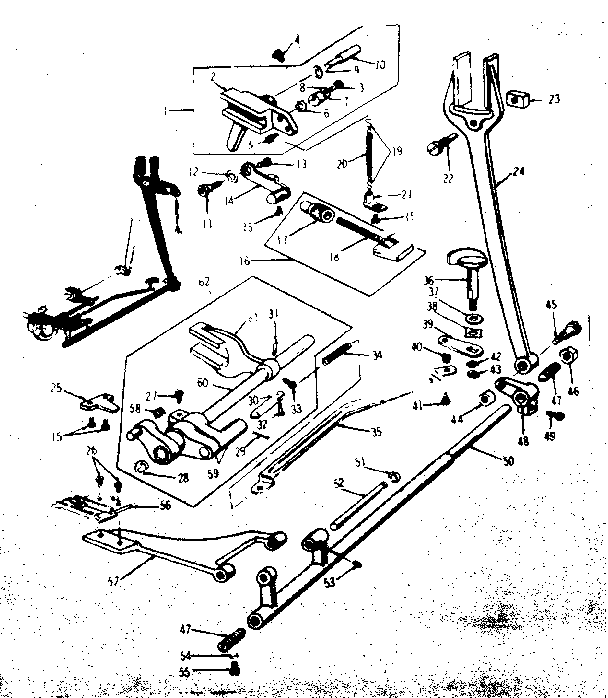

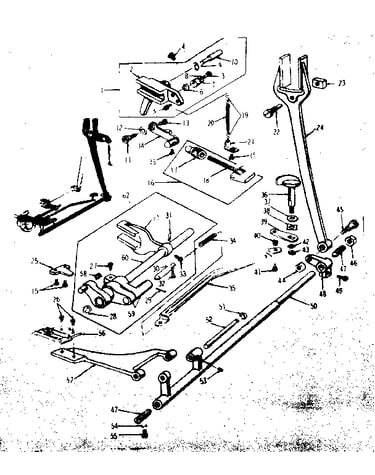

Feed regulator assembly diagram

Washer

Part #2467

The manufacturer no longer makes this part, and there's no substitute part

Shaft Collar 27075
#7

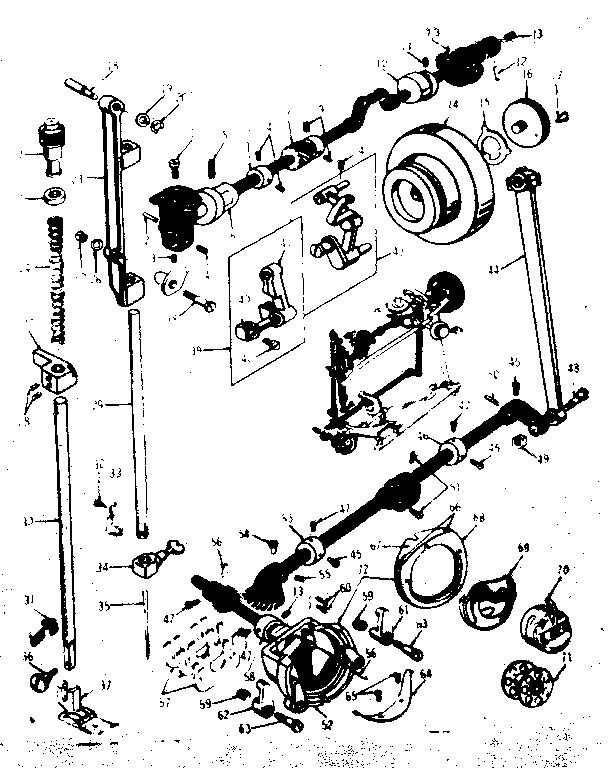

Shuttle assembly diagram

Shaft collar

Part #27075

The manufacturer no longer makes this part, and there's no substitute part

Stud Screw 9926
#3

Zigzag guide assembly diagram

Stud screw

Part #9926

The manufacturer no longer makes this part, and there's no substitute part

Guide B 1847
#19

Geared cam assembly diagram

Guide b

Part #1847

The manufacturer no longer makes this part, and there's no substitute part

Bushing 2302
#30

Zigzag guide assembly diagram

Bushing

Part #2302

The manufacturer no longer makes this part, and there's no substitute part

Spring 9927
#39

Geared cam assembly diagram

Spring

Part #9927

The manufacturer no longer makes this part, and there's no substitute part

Bushing 9925
#50

Zigzag guide assembly diagram

Bushing

Part #9925

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 200
#32

Geared cam assembly diagram

Set screw

Part #200

The manufacturer no longer makes this part, and there's no substitute part
